Description

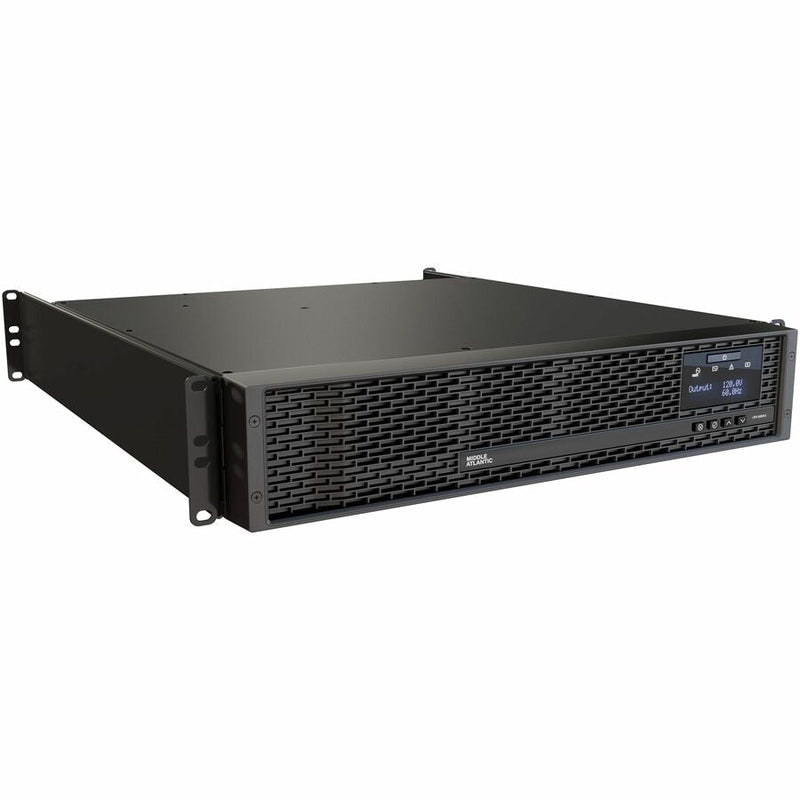

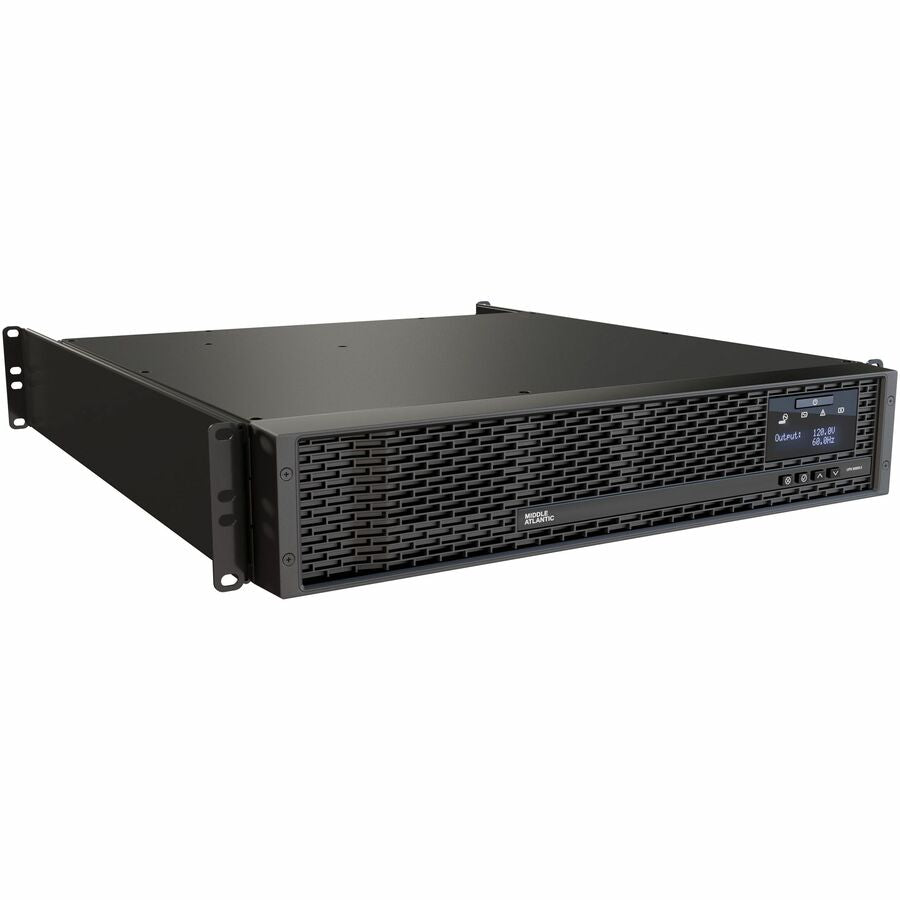

The Middle Atlantic NEXSYS™ UPX-1000R-2 delivers dependable, intelligent power protection for professional AV systems. Designed, engineered, and built specifically for AV integration, this 2RU line-interactive UPS provides 1000VA / 900W of pure sine wave power with automatic voltage regulation (AVR) to ensure clean, consistent energy for even the most sensitive equipment.

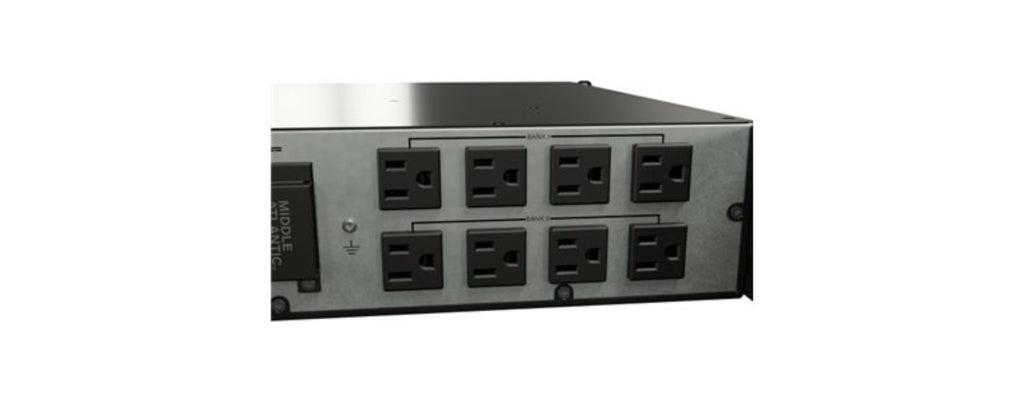

Featuring 8 NEMA 5-15R outlets divided into two controllable banks, it allows independent power management for connected devices. The RackLink® remote management platform enables real-time monitoring, control, and diagnostics through networked devices, ensuring continuous uptime and visibility.

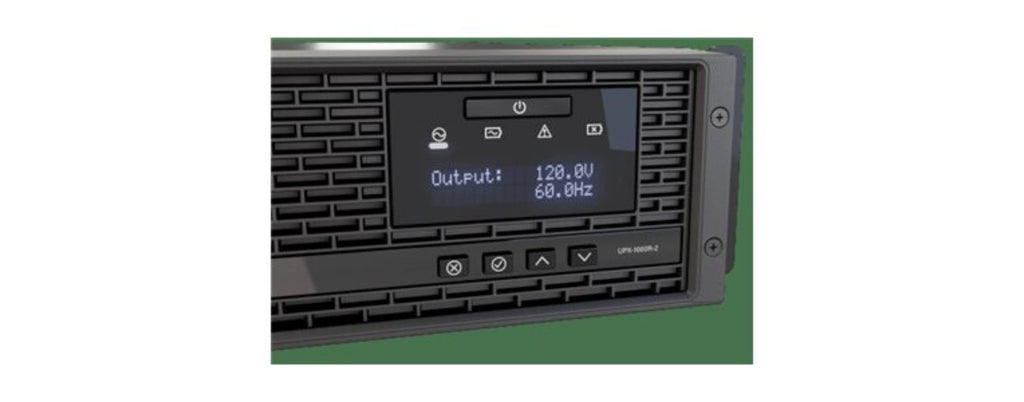

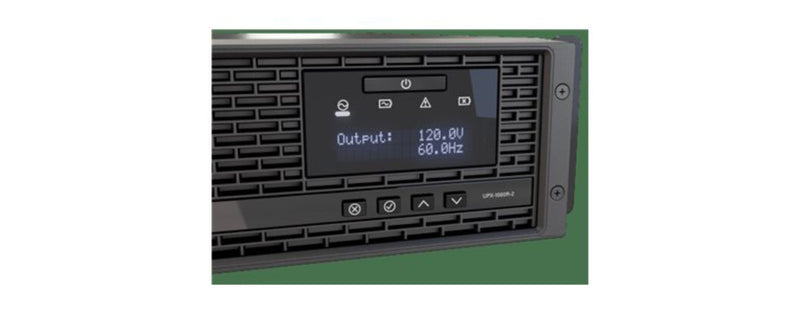

With hot-swappable, maintenance-free sealed lead-acid batteries, installers can perform service without system downtime. The pre-installed rack ears, 6 ft. IEC power cord, and front-access battery design simplify installation and servicing. The LCD front display provides quick access to IP, MAC address, battery health, and operational metrics.
Energy Star certified and built for professional-grade reliability, the NEXSYS UPX-1000R-2 is the all-in-one UPS solution that keeps your AV systems powered, protected, and always performing.
| Category | Specification |
|---|---|
| Manufacturer | Middle Atlantic |
| Model | UPX-1000R-2 |
| Series | NEXSYS Series UPS with RackLink |
| Form Factor | 2RU Rackmount |
| Power Capacity | 1000VA / 900W |
| Power Factor | 0.9 |
| Voltage (Input/Output) | 120V AC |
| Input Connector Type | NEMA 5-15P |
| Output Connectors | 8 x NEMA 5-15R (2 banks of 4 outlets each) |
| UPS Technology | Line Interactive with Pure Sine Wave Output |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge Protection | 1000 Joules |
| Maximum Input Current | 15A |
| Switching Time | 10 ms |
| Battery Type | Sealed Lead Acid (SLA), Hot-Swappable |
| Battery Capacity | 12V / 7Ah (x3) |
| Recharge Time | 6 hours |
| Runtime | 13 min (half load), 4 min (full load) |
| Management Interface | RS-232, USB, RackLink® Remote Management |
| Control Ports | (2) Dry Contact Ports, (1) EPO Terminal |
| Display | LCD Screen (shows IP, MAC, battery info) |
| Software Support | NEXSYS Power Management Software (Windows 7/8/10/11, Server 2008–2019) |
| Cord Length | 6 ft. (1.8m) IEC Power Cord |
| Operating Temperature | 32°F – 104°F (0°C – 40°C) |
| Operating Humidity | 0–95% (non-condensing) |
| Noise Level | 45 dB |
| Dimensions (W x D x H) | 19 in x 16 in x 3.5 in (2RU) |
| Weight | 44.09 lbs (20 kg) |
| Color | Black |
| Certifications | UL 1778, FCC Class A, RoHS, REACH, CAN/CSA C22.2, cTUVus |
| Energy Efficiency | ENERGY STAR Certified |
| Warranty | 3-Year Standard, 2-Year Battery |
