Description

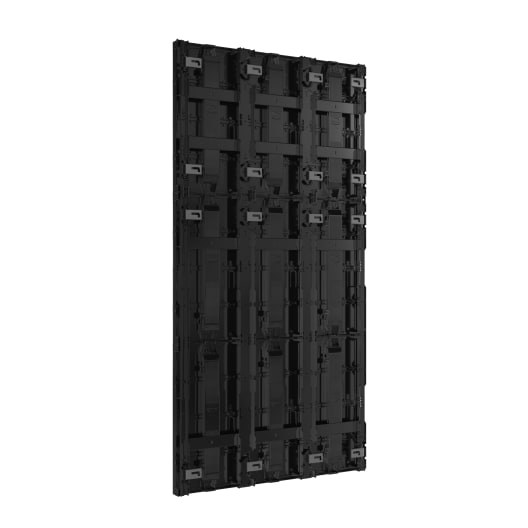

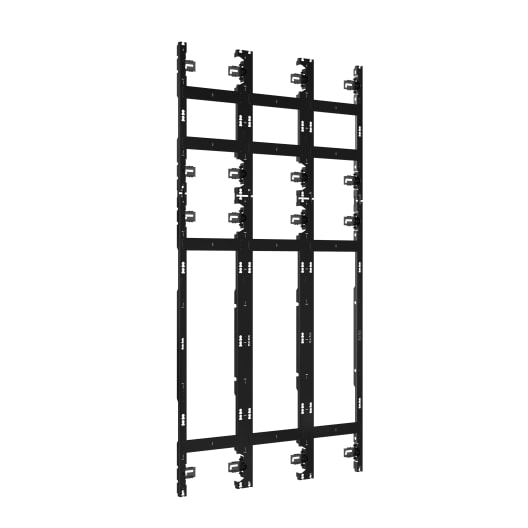

The Chief TiLED™ Middle dvLED Wall Mount (TILD1X5SO1-M) is a modular, precision-engineered mounting solution designed specifically for Sony Crystal LED C and B Series direct-view LED displays. Built for professional video wall installations, this middle-section mount supports configurations up to five displays tall, delivering exceptional alignment accuracy and structural reliability.
This system is part of the TiLED™ modular ecosystem, which combines left, middle, and right mounting components to create flexible dvLED wall layouts. Integrated X-, Y-, and Z-axis micro-adjustments allow installers to fine-tune lateral positioning, vertical alignment, and wall plumb, ensuring seamless cabinet-to-cabinet alignment and a perfectly flat video wall—even on imperfect wall surfaces.
Designed as a standard, off-the-shelf solution, the TiLED™ series is easy to specify, stock, and deploy, with no custom fabrication or extended lead times required. Offset mounting slots protect LED cabinet edges during installation, while the low-profile depth range maintains a clean, professional appearance once installed.
Compatible Sony Crystal LED models include ZRD-C12A, ZRD-C15A, ZRD-B12A, and ZRD-B15A. Wall mounting structure, vertical connectors, and side covers are sold separately to allow full system customization.
| Specification | Details |
|---|---|
| SKU | TILD1X5SO1-M |
| Product Type | dvLED Video Wall Mount (Middle Section) |
| Compatible Display Series | Sony Crystal LED C & B Series |
| Compatible Models | ZRD-C12A, ZRD-C15A, ZRD-B12A, ZRD-B15A |
| Number of Displays Supported | 5 (vertical configuration) |
| Orientation | Landscape |
| Mounting Application | Wall |
| Equipment Depth Range (with display) | 4.14" – 4.84" (105–123 mm) |
| Plumb (Z-Axis) Adjustment | 0.75" (19 mm) |
| Adjustability | Fixed, lateral shift (X), vertical shift (Y), plumb micro-adjustment (Z) |
| Weight Capacity | 25 lbs (11.3 kg) |
| Special Features | dvLED video wall support, multi-display alignment, modular system |
| TAA Compliant | No |
| Included Components | Middle mounting section only (other structural components sold separately) |
