Description

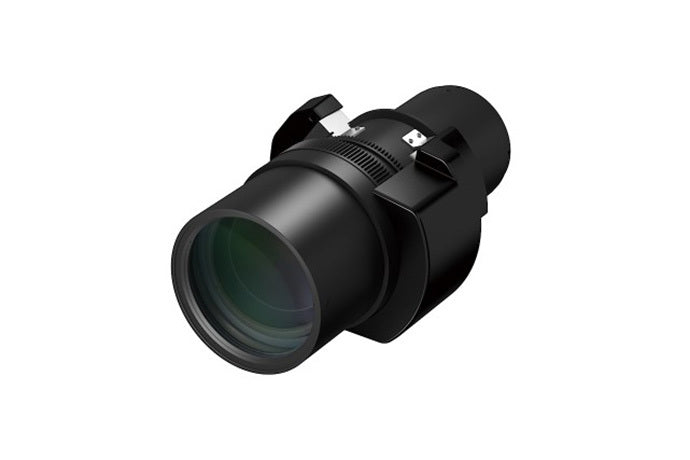

The Epson ELPLM11 Middle Throw Zoom Lens (V12H004M0B) delivers exceptional installation flexibility and projection quality for Epson Pro Series projectors, including models up to 20,000 lumens. Designed for large venues, lecture halls, and event spaces, this interchangeable lens supports screen sizes from 50” to 1000” with wide lens shift capabilities for perfect alignment.
Featuring a 3.54 to 5.41 throw ratio on high-lumen projectors and up to 7.38 throw ratio on 8,500-lumen models, the ELPLM11 ensures sharp, vibrant images in challenging setups. With motorized zoom, focus, and lens shift, it offers a seamless integration experience for AV professionals and system integrators.
Ideal for pairing with Epson’s EB-PU and EB-PQ Series projectors, this lens combines precision optics with reliable performance to handle demanding projection environments.
| Specification | Details |
|---|---|
| Manufacturer | Epson |
| Part Number (SKU) | V12H004M0B |
| Lens Model | ELPLM11 Middle Throw Zoom Lens |
| Compatibility | Epson Pro Series projectors (up to 20,000 lumens) including EB-PU1000, EB-PU2010, EB-PU2100/PU2200, EB-PQ 4K Series |
| Screen Size Support | 50” to 1000” |
| Throw Ratio (8,500-lumen projectors) | 4.85 – 7.38 (WUXGA/WXGA) |
| Throw Ratio (9,000–20,000-lumen projectors) | 3.54 – 5.41 (WUXGA) |
| Throw Ratio (EB-PQ 4K Series) | 3.42 – 5.23 |
| Focal Length | 80.6 mm – 121.1 mm |
| F-Number | 1.8 – 2.4 |
| Zoom Ratio | 1 – 1.5 |
| Lens Shift (8,500-lumen models) | Vertical: –67% to +67% / Horizontal: –30% to +30% |
| Lens Shift (9,000–20,000-lumen models) | Vertical: –60% to +60% / Horizontal: –18% to +18% |
| Lens Shift (EB-PQ 4K Series) | Vertical: –58% to +58% / Horizontal: –16% to +16% |
| Weight | 4.9 lbs (2,200 g) |
