Description

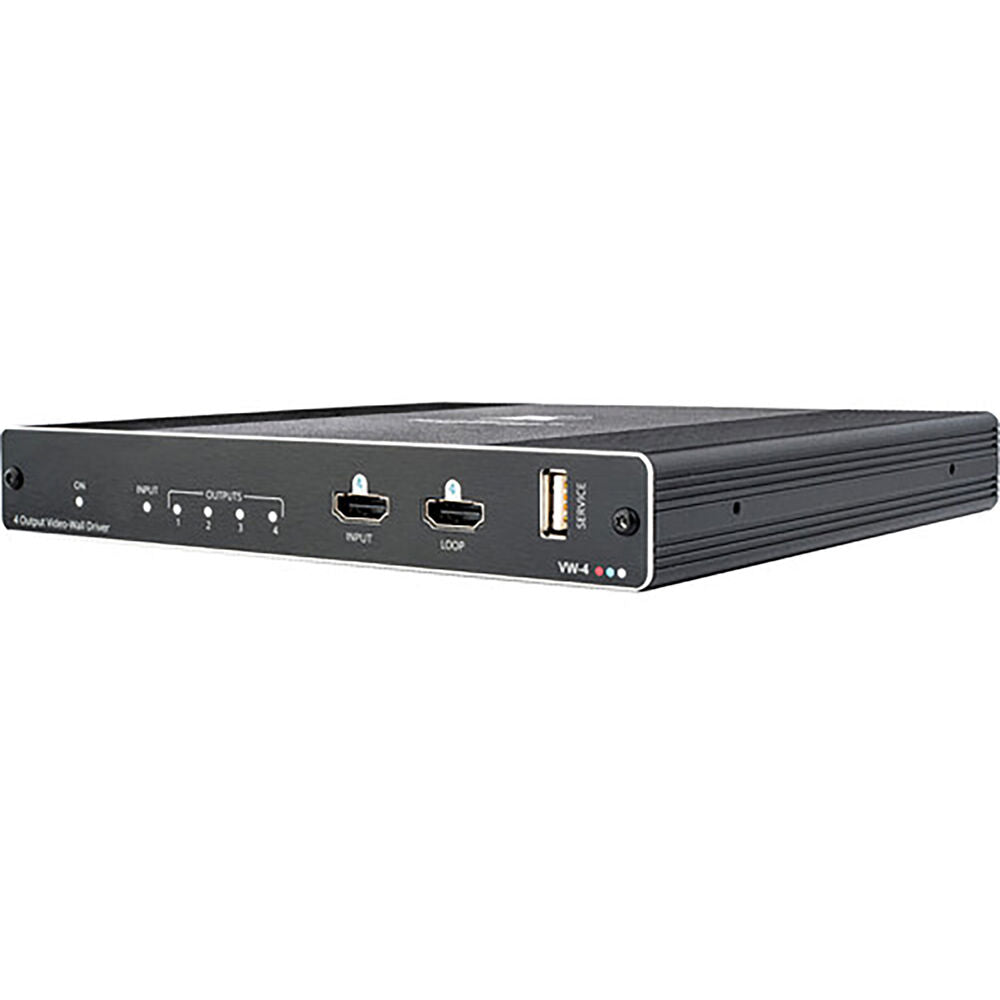

The Kramer VW-4 is a high-performance 4-output video wall driver engineered for fast setup, scalable deployment, and reliable 24/7 operation. Designed for commercial AV environments, the VW-4 supports flexible layouts—from simple 2×2 and 4×1 walls to expanded multi-unit configurations of up to 64 displays.

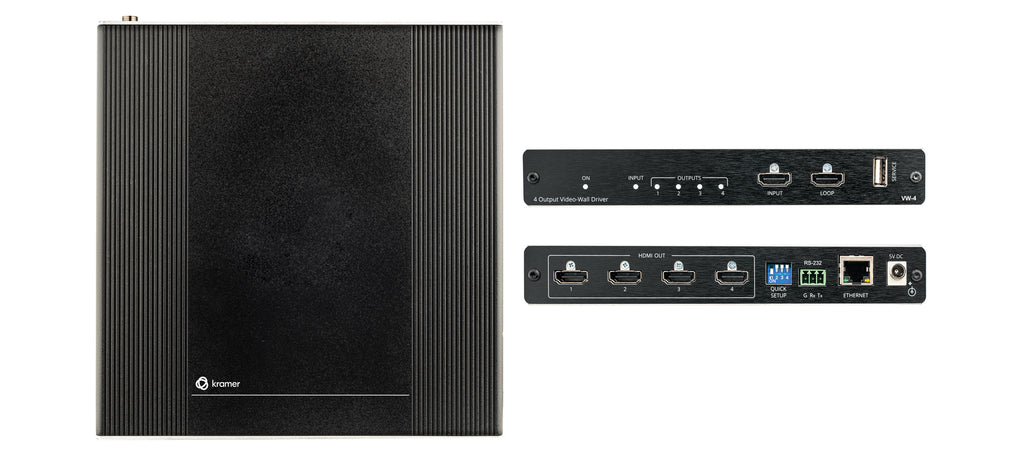

With HDMI input, HDMI loop output, four HDMI display outputs, and control via Ethernet or RS-232, the VW-4 delivers a streamlined installation experience. Basic configurations can be set using front-panel DIP switches, while advanced features—bezel correction, EDID management, HDCP control, firmware updates, and network configuration—are available through the VW-4 app.
Offering 4K@60Hz (4:4:4) max input resolution and 1080p output, the VW-4 ensures consistent, protected content distribution with HDCP 2.2/1.4 support, constant output sync, and CEC-based display power control. Its compact, fanless MegaTOOLS® design fits easily on walls, shelves, or side-by-side in a 1U rack for space-optimized installations.
Ideal for digital signage, control rooms, hospitality, retail, houses of worship, and corporate environments, the VW-4 delivers professional-grade video wall performance with outstanding reliability and ease of use.
| Category | Details |
|---|---|
| Inputs | 1 HDMI (female) |
| Outputs | 4 HDMI (female), 1 HDMI loop output |
| Control Ports | 1 Ethernet (RJ-45), 1 RS-232 (3-pin terminal block), 1 USB Type-A |
| Max Input Resolution | 4K@60Hz (4:4:4) |
| Max Input Data Rate | 18 Gbps |
| Output Resolution | 1080p |
| Content Protection | HDCP 2.2 (input & loop), HDCP 1.4 (main outputs) |
| User Interface | I/O detection LEDs, power indicators |
| Controls | DIP switches, VW-4 app via Ethernet/RS-232, firmware upgrade via USB |
| Included Accessories | Power adapter, bracket set, rubber feet |
| Power | 5V DC, 2.9A consumption |
| Operating Temperature | 0°C to +45°C (32°F to +113°F), 10–90% non-condensing |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Humidity | 10–90%, non-condensing |
| Product Dimensions (W × D × H) | 19.00 × 19.50 × 2.70 cm (7.48" × 7.68" × 1.06") |
| Product Weight | 0.9 kg (1.9 lbs) |
| Shipping Dimensions | 35.10 × 21.20 × 7.20 cm (13.82" × 8.35" × 2.83") |
| Shipping Weight | 1.4 kg (3.1 lbs) |
