Description

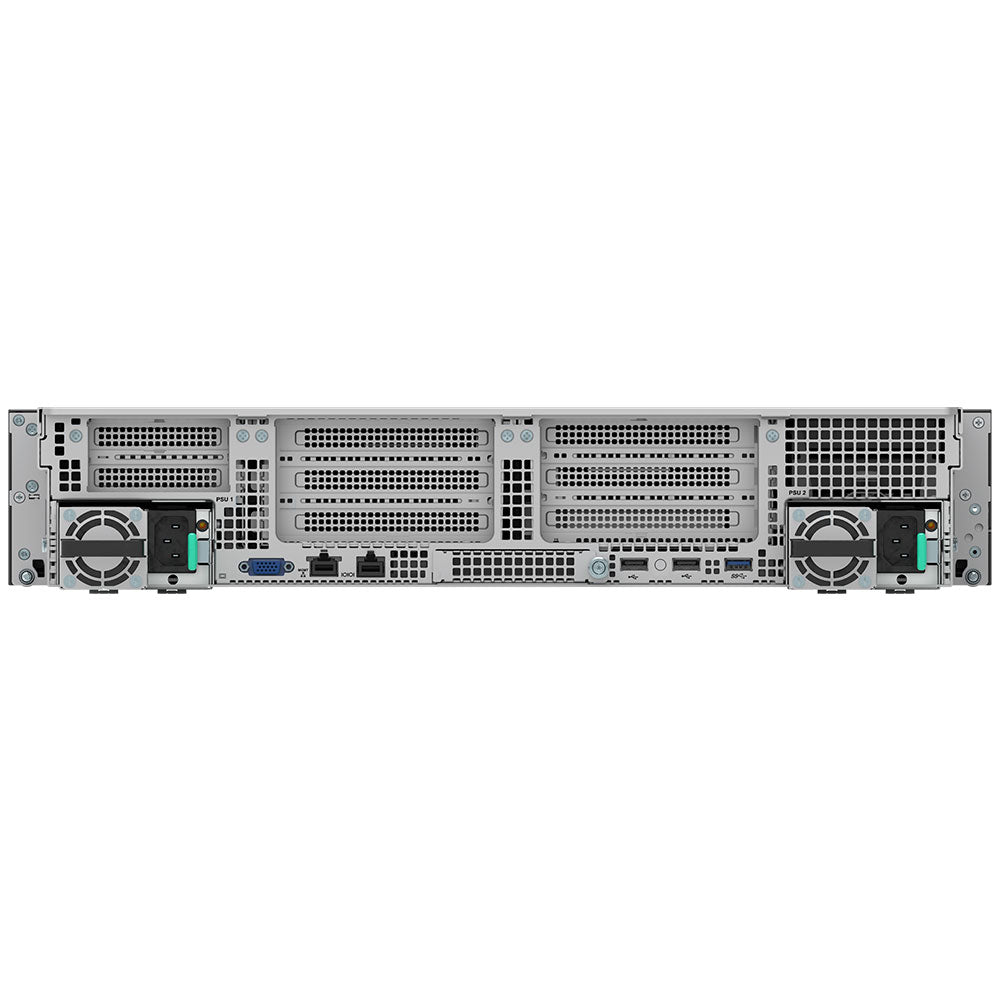

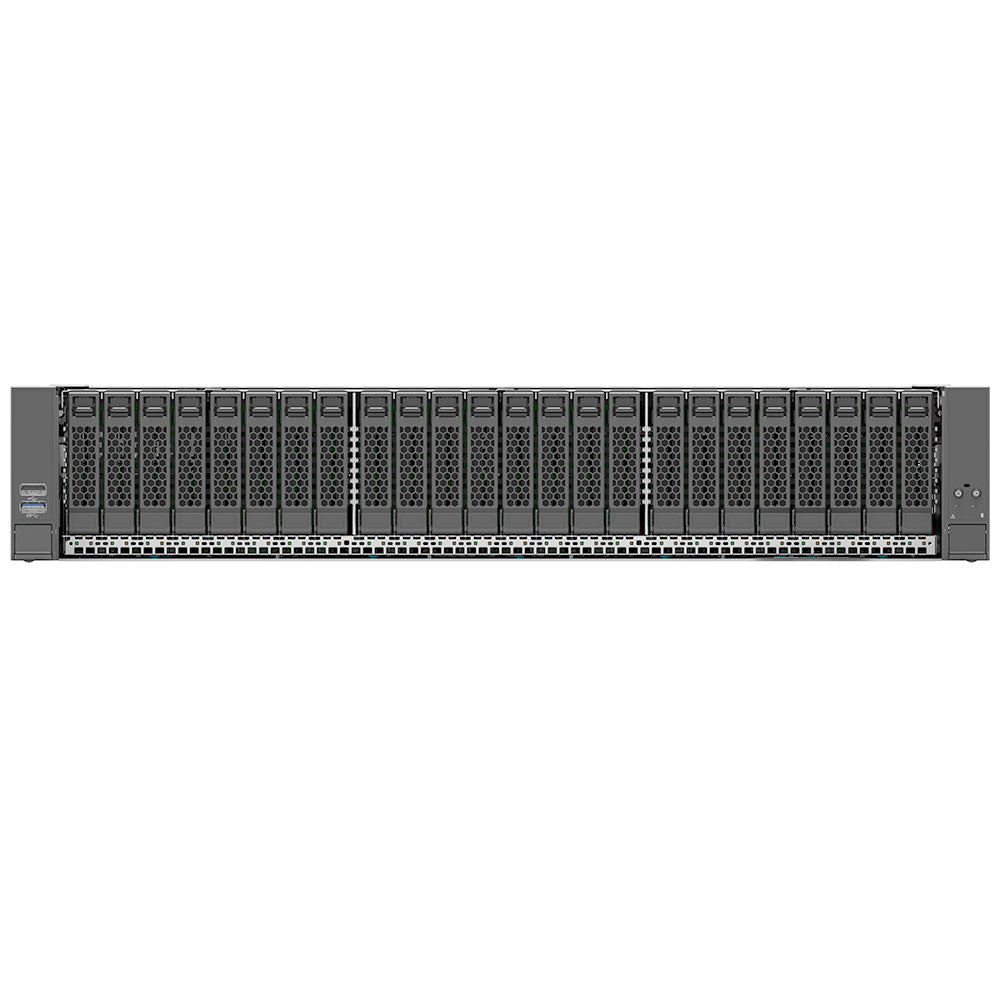

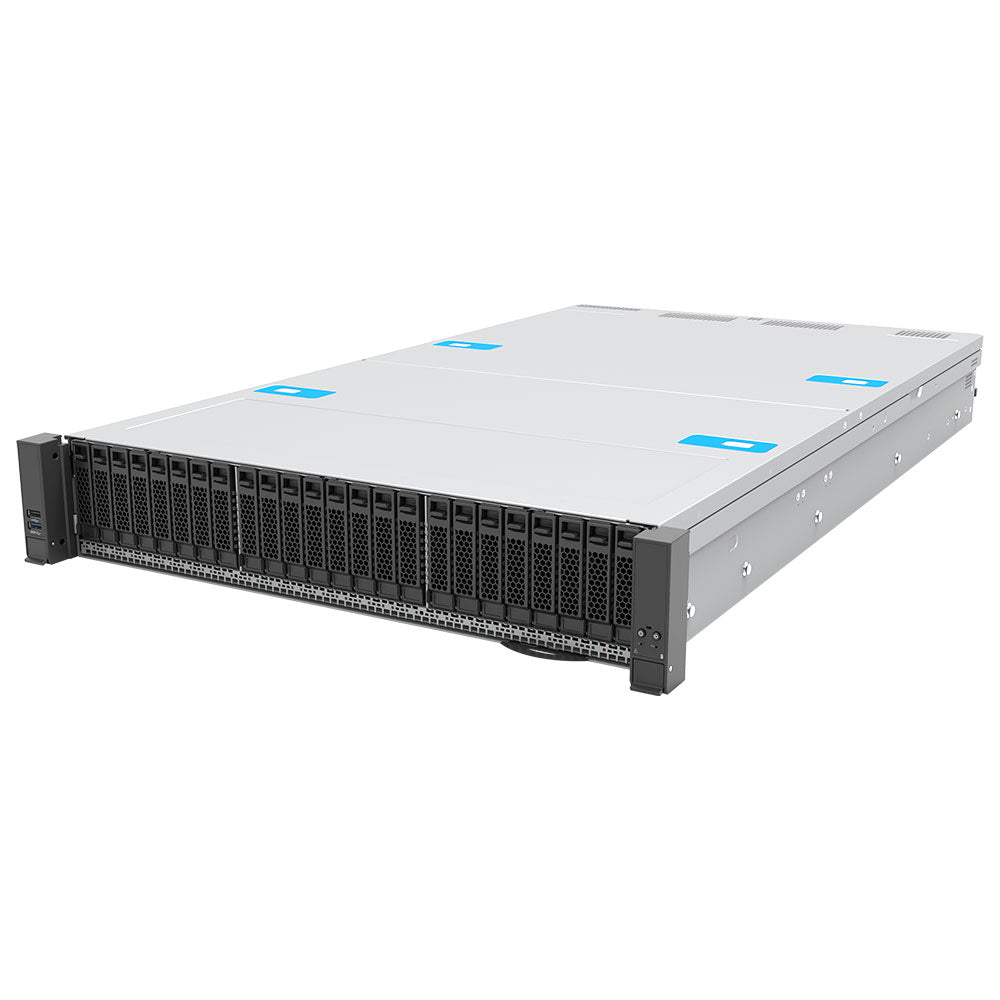

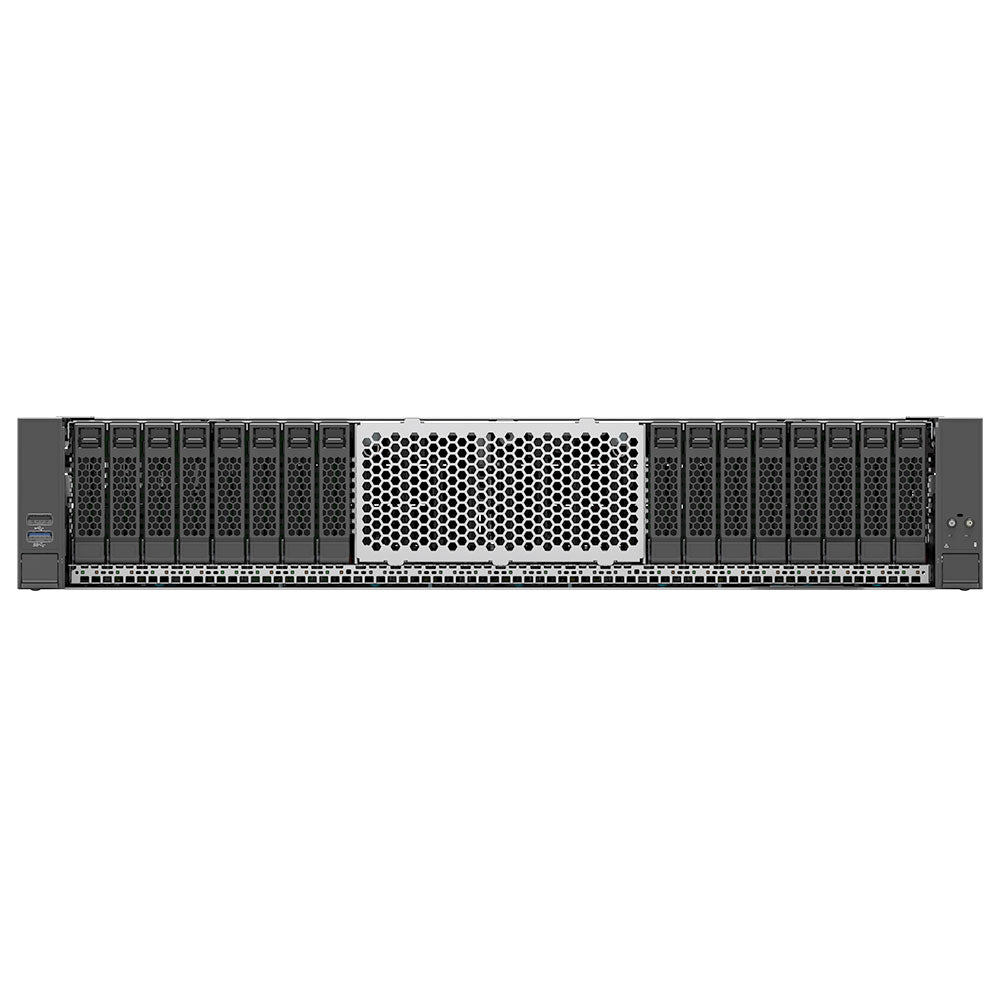

The Intel Server System M50FCP2UR208 is a high-performance, storage-optimized 2U rackmount server platform engineered for demanding enterprise and data center workloads. Designed around dual-socket 4th and 5th Gen Intel Xeon Scalable processors, this system delivers exceptional compute density, memory bandwidth, and I/O scalability.
With support for up to 32 DDR5 DIMM slots, flexible PCIe Gen5 expansion, and up to 8 front-access hot-swap 2.5" SAS/SATA/NVMe drive bays, the M50FCP2UR208 is ideal for virtualization, cloud infrastructure, HPC environments, and storage-heavy deployments.
Built with advanced thermal management, redundant power options, and integrated remote server management, this platform ensures reliability, uptime, and efficient operation in modern IT environments.
| Specification | Details |
|---|---|
| Product Model | Intel Server System M50FCP2UR208 |
| Form Factor | 2U Rackmount Server Chassis |
| Processor Support | Dual Socket LGA4677 |
| Compatible CPU Family | 4th & 5th Gen Intel Xeon Scalable Processors |
| Max Processor TDP | Up to 350W (configuration dependent) |
| Chipset | Intel C741 Platform Controller Hub |
| Memory Slots | 32x DDR5 DIMM Slots |
| Memory Type | ECC Registered DDR5 RDIMM / 3DS-RDIMM |
| Maximum Memory Capacity | Up to 8TB Total (SKU dependent) |

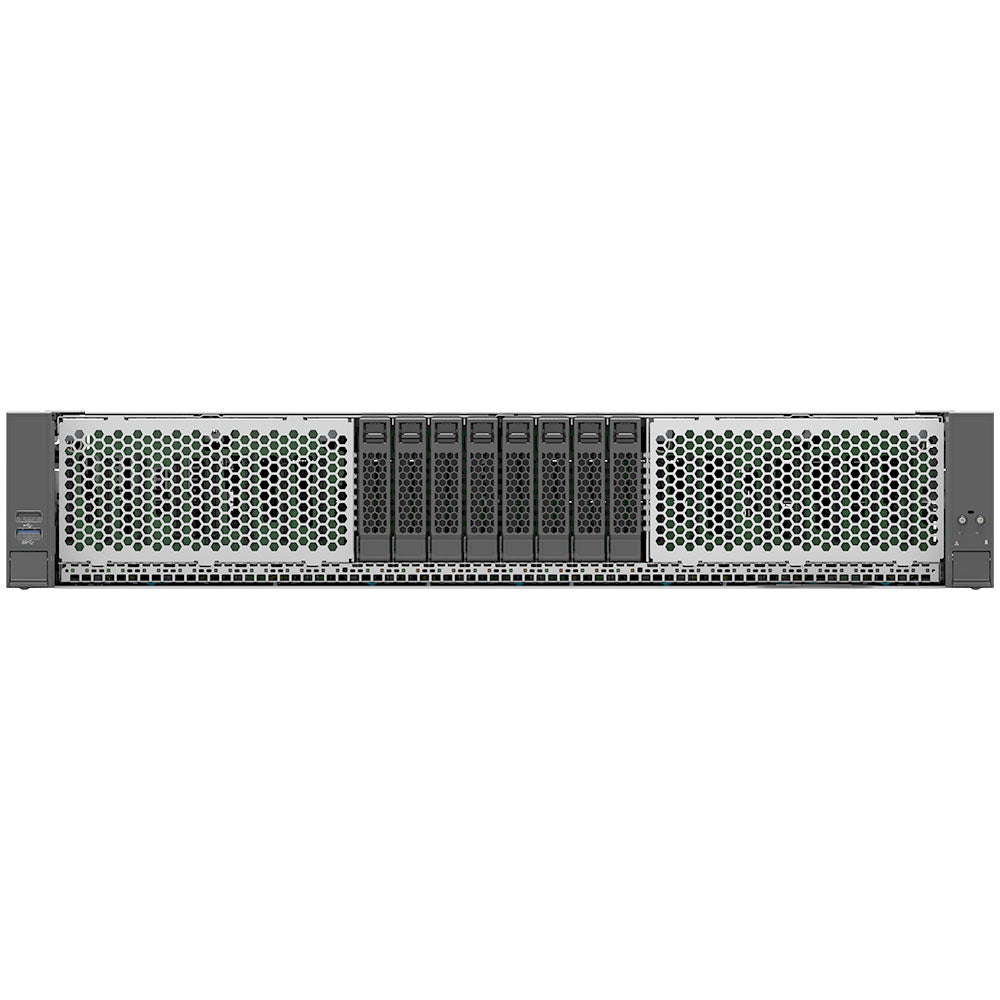

| Front Drive Bays | 8x 2.5" Hot-Swap Bays |
| Supported Drive Types | SAS / SATA / NVMe SSDs |
| Expansion Support | Up to 3 PCIe Gen5 Riser Cards |
| PCIe Bandwidth | Up to PCIe 5.0 (64 GB/s per riser) |
| Networking | Optional OCP 3.0 PCIe Adapter Support |
| Management | Integrated BMC, IPMI 2.0, Redfish Support |
| Video | Integrated VGA Controller (128MB DDR4) |
| USB Ports | Front: USB 3.0 + USB 2.0 / Rear: USB 3.0 + 2x USB 2.0 |
| Power Supply Options | 1600W Titanium or 2100W Platinum (1+0, 1+1, 2+0) |

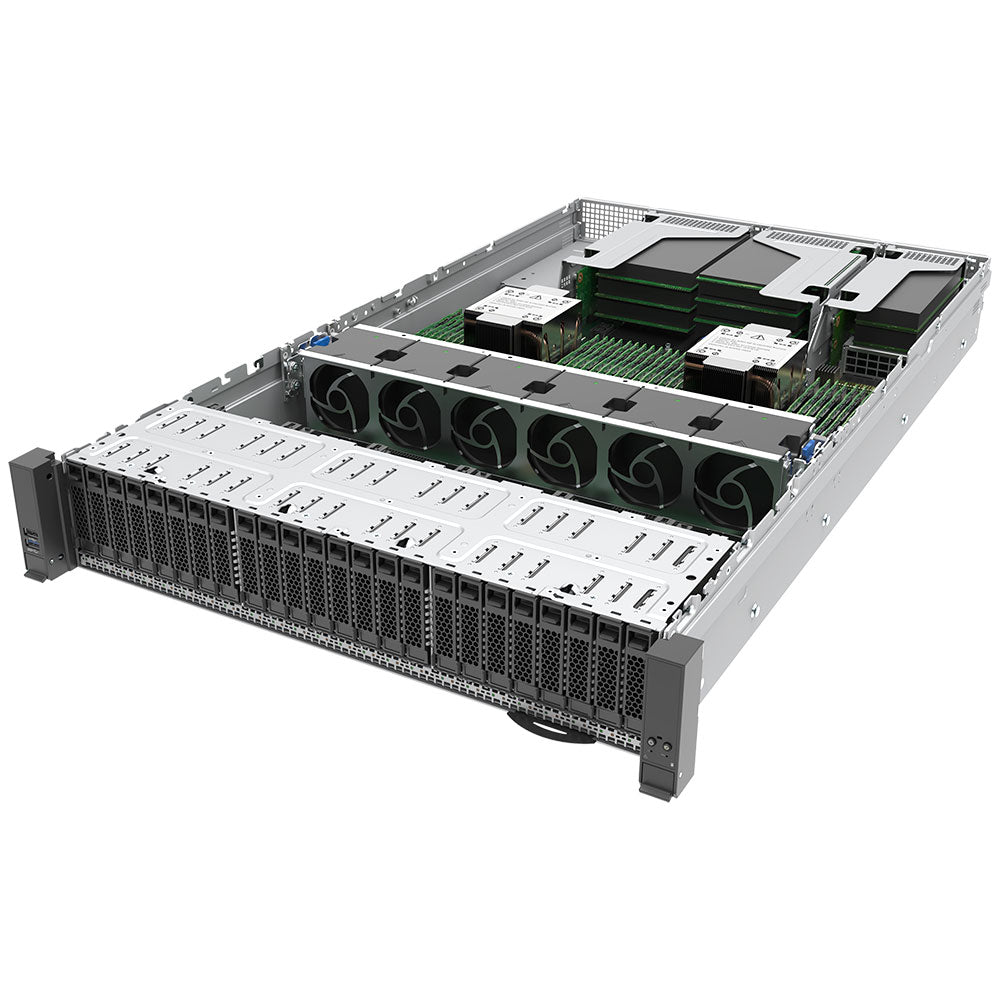

| Cooling | 6x Hot-Swap 60mm Managed System Fans |
| Security Features | Intel PFR, TXT, SGX, TPM 2.0 Support |
| Dimensions (L × W × H) | 769.6 × 438 × 87 mm |
| Use Case Applications | Data Center, Cloud, Storage, HPC, Virtualization |
