Description

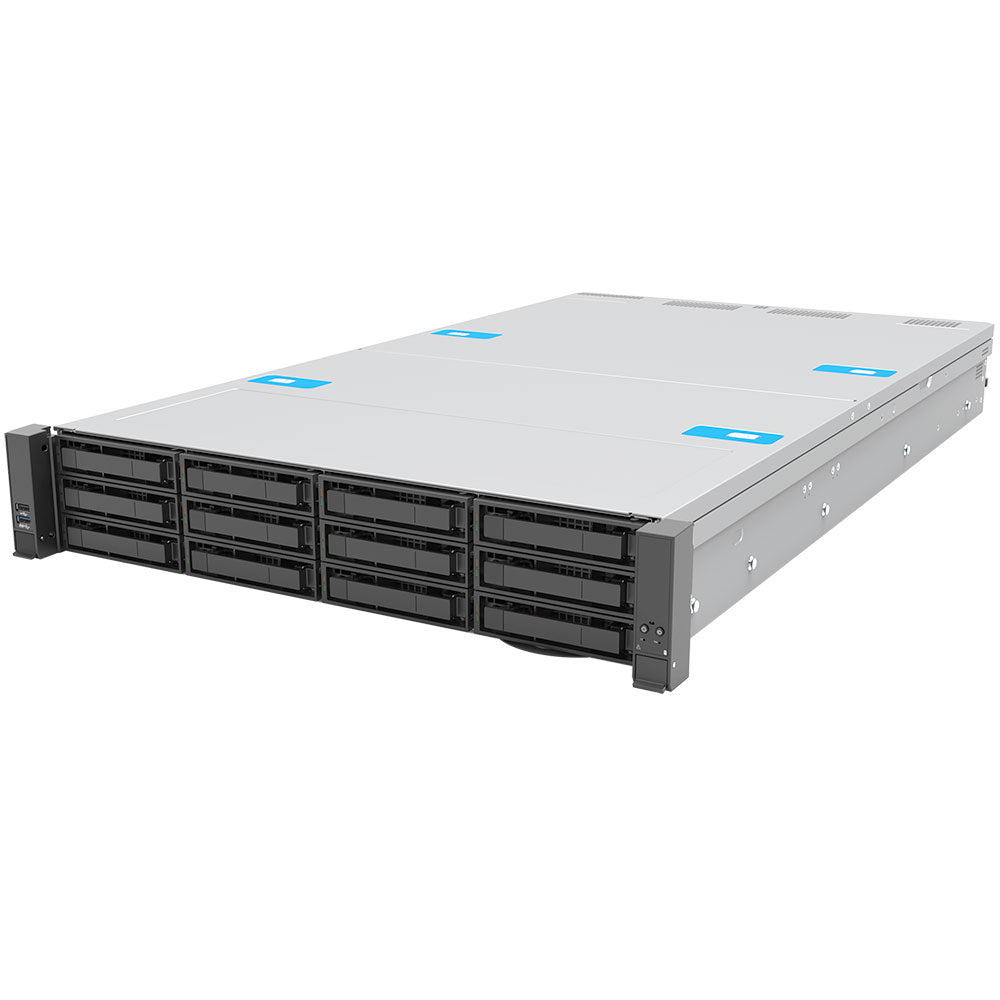

The MiTAC Intel Server System M50FCP2UR312 is a high-performance, storage-optimized 2U rackmount server platform designed for modern data center workloads, cloud infrastructure, and high-capacity enterprise storage deployments. Built around the Intel Server Board M50FCP2SBSTD, this system supports dual-socket 4th and 5th Gen Intel Xeon Scalable processors, delivering exceptional compute density, security enhancements, and scalability.
Designed for maximum flexibility, the M50FCP2UR312 features 12 hot-swap 3.5-inch drive bays with support for SAS/SATA storage and optional NVMe expansion. With up to 32 DDR5 memory slots, PCIe Gen5 expansion capabilities, redundant high-efficiency power supplies, and advanced remote management via integrated BMC, this server is ideal for enterprise storage, virtualization, cloud services, and HPC applications.
| Specification | Details |
|---|---|
| Brand | MiTAC |
| Model / System Series | Intel Server System M50FCP2UR |
| SKU Variant | M50FCP2UR312 |
| Form Factor | 2U Rackmount Server Chassis |
| Processor Support | Dual Socket E (LGA4677) |
| Compatible CPUs | 4th & 5th Gen Intel Xeon Scalable Processors |
| Maximum CPU TDP | Up to 350W (configuration dependent) |
| Chipset | Intel C741 Platform Controller Hub |
| Memory Slots | 32 DDR5 DIMM Slots |
| Memory Type | Registered DDR5 RDIMM / 3DS RDIMM with ECC |
| Maximum Memory Capacity | Up to 4TB per processor (SKU dependent) |

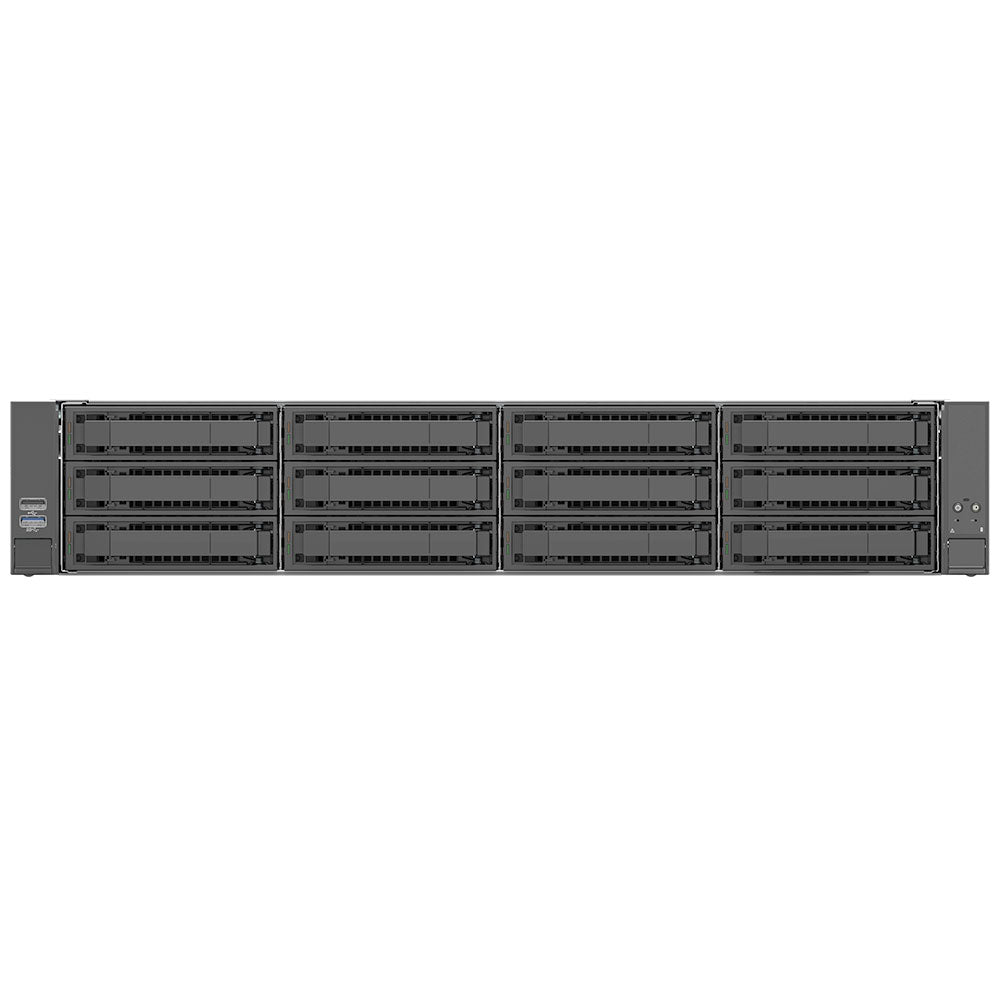

| Storage Bays (Front) | 12 × 3.5" SAS/SATA Hot-Swap Bays |
| NVMe Support | Supports up to 4 NVMe drives (optional configuration) |
| PCIe Expansion | Up to 8 PCIe add-in cards via riser options |
| PCIe Generation | PCIe 5.0 Support |
| Networking | Optional OCP 3.0 PCIe 5.0 Adapter Support |
| Power Supply Options | 1600W Titanium or 2100W Platinum |
| Redundancy Modes | 1+0, 1+1 Redundant, or 2+0 Combined |
| Cooling | 6 Hot-Swap Managed System Fans |
| Remote Management | Integrated BMC, IPMI 2.0, Redfish Support |
| Video Output | Rear VGA Port (128MB DDR4 video memory) |
| USB Ports | Front: USB 3.0 + USB 2.0 / Rear: USB 3.0 + 2× USB 2.0 |
| Security Features | Intel PFR, TXT, SGX, TPM 2.0 Support |
| Dimensions (L×W×H) | 769.6 × 438 × 87 mm |
| Ideal Use Cases | Storage Servers, Cloud, Virtualization, HPC, Data Centers |
