Description

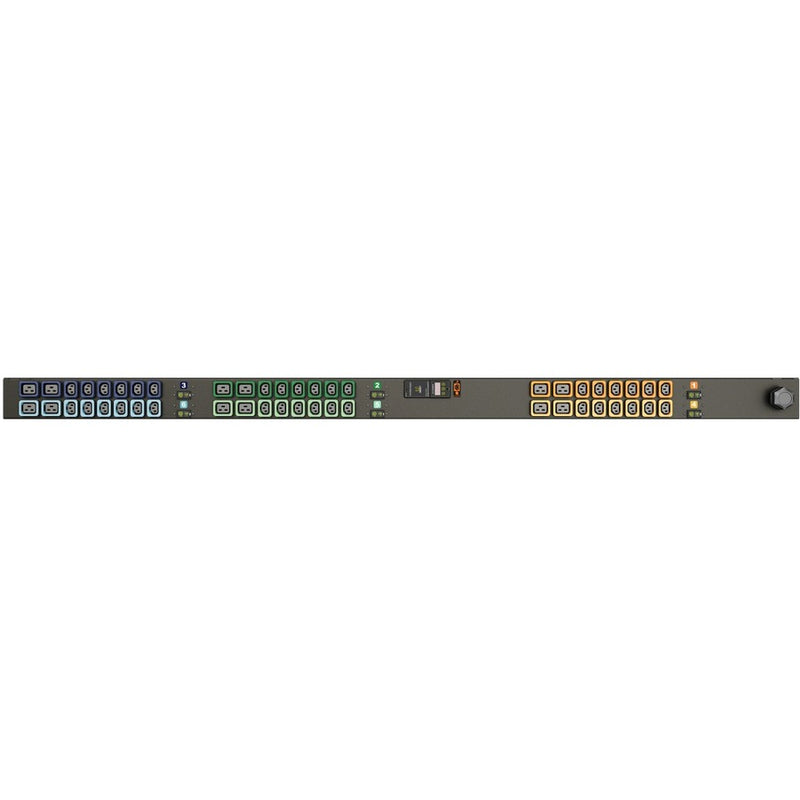

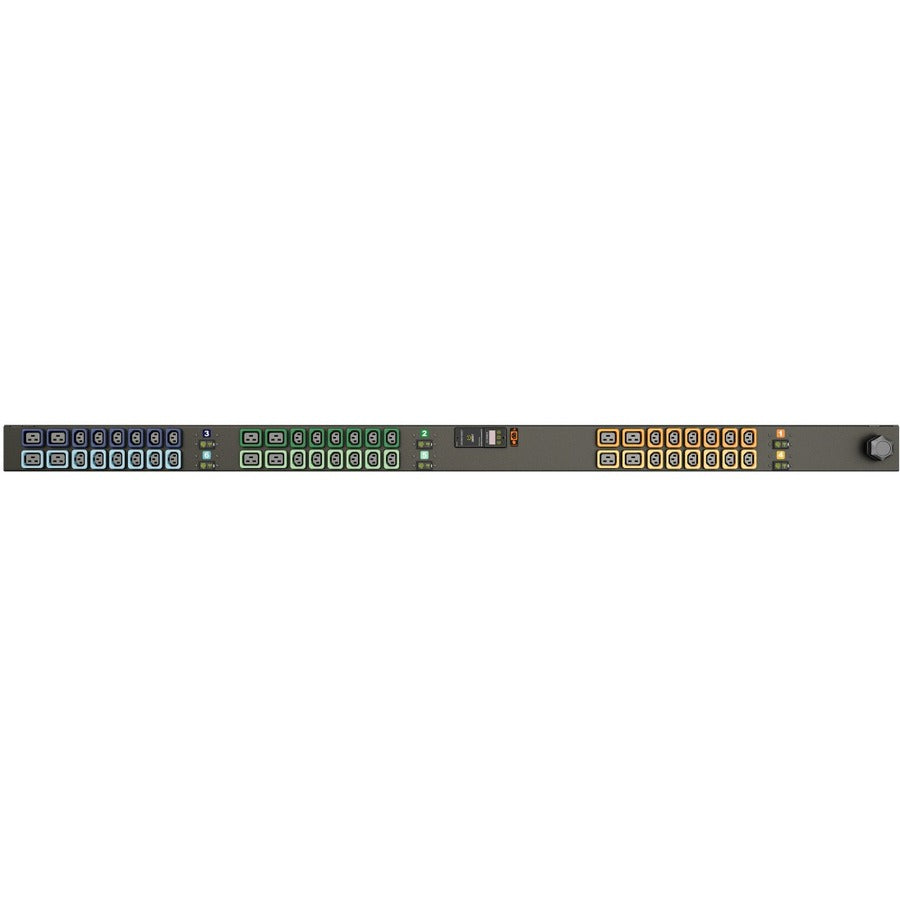

The Vertiv Geist I10095L is a metered, high-capacity 48-outlet vertical PDU designed for data centers and mission-critical environments. With a 60A IEC 60309 3P+E input and real-time monitoring via Visible Light Communication (VLC), this unit provides instant power metrics through the Geist Mobile App. Its hot-swappable Interchangeable Monitoring Device (IMD) allows you to upgrade to a monitored solution without service interruption. The rack-mountable 0U form factor with 42 x U-Lock C13 and 6 x U-Lock C19 outlets ensures secure and scalable power distribution. Backed by a 5-year limited warranty.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Manufacturer | Vertiv |
| Part Number | I10095L |
| Model | MN01D9W1-48PZB8-6PS15D0A10-S |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug Type | IEC 60309 3P+E 60A |
| Receptacles | 42 x U-Lock IEC 60320 C13, 6 x U-Lock IEC C19 |
| Input Voltage | 230V AC |
| Output Voltage | 208V AC |
| Power Rating | 7200W |
| Input Current | 60A |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Dimensions (W x D x L) | 3.8" x 3.4" x 72" |
| Protection | Overcurrent Protection |
| Warranty | 5 Year Limited Warranty |
| Compliance | RoHS |
| Environmentally Friendly | Yes |
| Package Contents | PDU, Mounting Bracket Kit |
| Condition | New and Factory Fresh |
| Shipping Weight | 32 lbs |
| Country of Origin | United States |
