Description

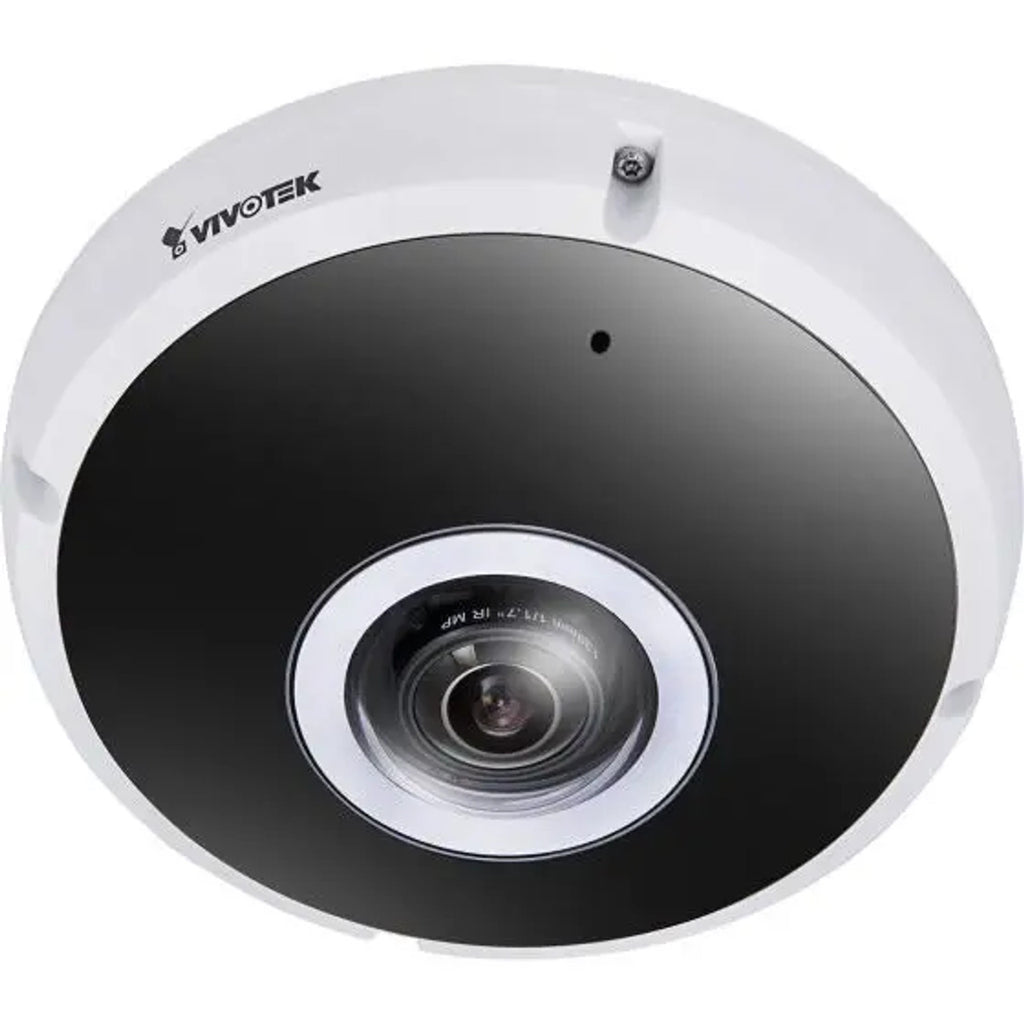

The Vivotek FE9391-EV-V2-M12(M) is a professional-grade 12MP fisheye panoramic AI network camera designed for high-performance surveillance in demanding outdoor environments. Featuring a 1/2.3" progressive CMOS sensor with a maximum resolution of 2816 x 2816, this camera delivers crisp, distortion-free 180° panoramic coverage, significantly reducing blind spots and optimizing situational awareness.
Engineered for critical security applications such as transportation, infrastructure, and industrial facilities, the FE9391-EV-V2-M12(M) combines cutting-edge imaging technologies with robust build quality. Its built-in 940nm Smart IR II illuminators provide up to 5 meters of visibility in complete darkness, while WDR Pro ensures superior image quality in high-contrast lighting conditions. The camera also supports seamless dewarping modes, versatile display configurations, and advanced ePTZ functionality for flexible monitoring.
Equipped with powerful AI analytics and a hardware deep learning accelerator, it supports intelligent features such as people detection, cybersecurity event detection, and smart motion detection. Designed to withstand harsh conditions, the camera is IP66/67 and IK10-rated, compliant with EN50155 railway standards, and supports operating temperatures as low as -40°C. Its rugged M12 connector ensures secure PoE connectivity in mobile and vibration-prone environments, making it ideal for transportation systems, industrial sites, and outdoor critical infrastructure surveillance.
| Category | Specification |
|---|---|
| Image Sensor | 1/2.3" Progressive CMOS, 4056 x 3040 |
| Max. Resolution | 2816 x 2816 |
| Lens | Fixed-focal, f = 1.18mm, F2.18, Fixed iris |
| Field of View | 180° ± 5° (Horizontal & Vertical) |
| Shutter Time | 1/5 sec. – 1/32,000 sec. |
| WDR | WDR Pro, 120 dB |
| Day/Night | Yes, with removable IR-cut filter |
| IR Illuminators | Built-in 940nm Smart IR II, up to 5 m |
| Min. Illumination | 0.1 lux (Color), <0.005 lux (B/W), 0 lux (IR on) |
| Digital Zoom / ePTZ | 12x digital zoom |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | 30 fps @ 2816 x 2816 (WDR off); 20 fps (WDR on) |
| Streams | Up to 3 video streams (8 profiles) |
| Audio | One-way audio, built-in microphone, 5 m range |
| Audio Compression | G.711, G.726, MPEG-2 AAC-LC |
| Network Interface | 10/100 Mbps Ethernet, M12 (Female, 4-pin D-coded) |
| Protocols | IPv4/IPv6, HTTP/HTTPS, SNMP, RTSP/RTP, FTP, NTP, etc. |
| Security | HTTPS, IEEE 802.1x, TLS 1.2, Secure Boot, Trend Micro IoT Security |
| AI Analytics | Deep learning SoC, Smart Motion Detection, People Detection |
| Event Triggers | Motion, tampering, audio detection, cyberattack, shock, etc. |
| Event Actions | Audio clip, digital output, email, FTP, NAS, SD card |
| Storage | MicroSD/SDHC/SDXC (up to 1TB), NAS |
| Power Input | IEEE 802.3at PoE Class 4 |
| Power Consumption | Max. 18 W (IR on) / 9.55 W (IR off) |
| Operating Temperature | -40°C ~ 70°C (IR off), -40°C ~ 60°C (IR on) |
| Ingress Protection | IP66/67, IK10, NEMA 4X |
| Certifications | CE, FCC, UL, EN50155, EN45545-2, E-Mark (ECE R10), etc. |
| Dimensions / Weight | Ø160 x 61.7 mm / Approx. 930 g |
| DORI (EN 62676-4) | Detection: 30.3 m, Observation: 12.0 m, Recognition: 6.1 m, Identification: 3.0 m |
