Description

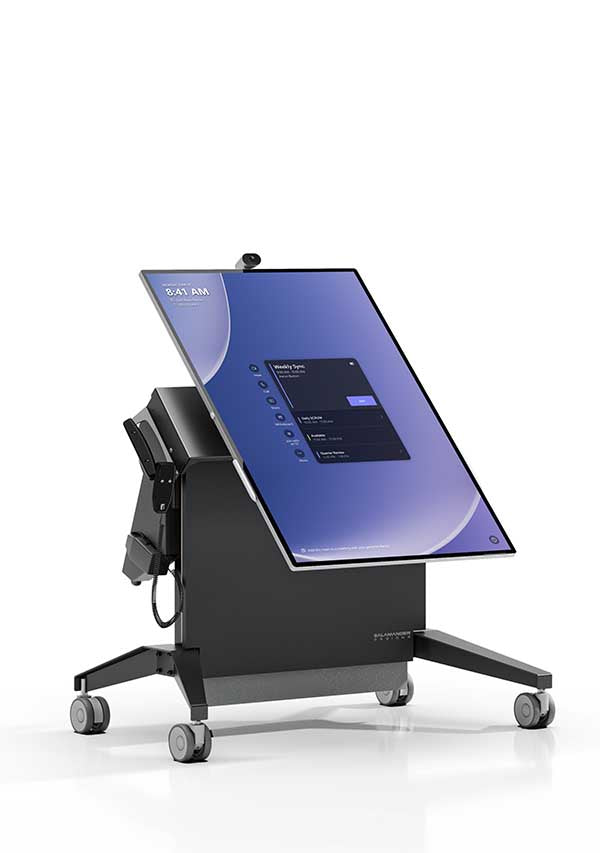

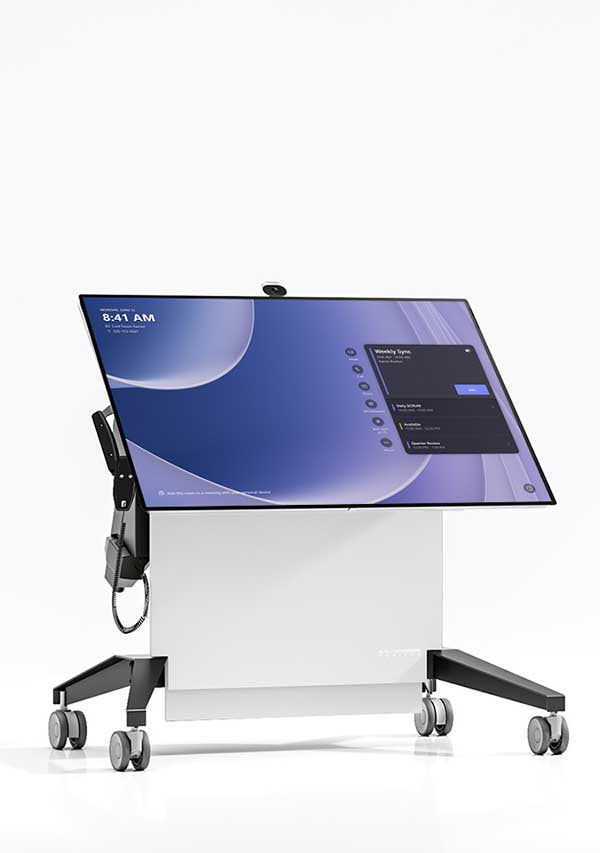

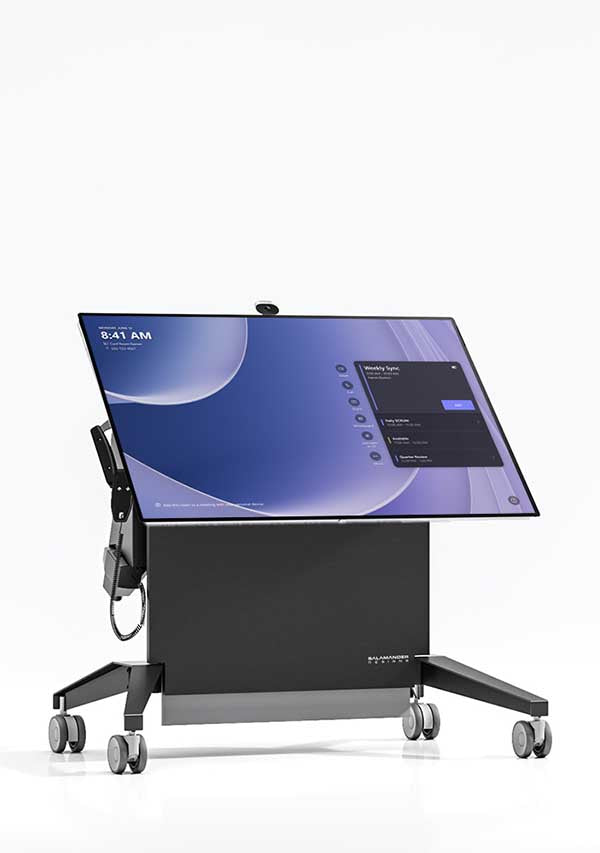

The Salamander Designs FPS2/ELT/MS/GG is an advanced electric lift and tilt mobile stand designed specifically for the Microsoft Surface Hub 2S 50". Engineered for ergonomic comfort, flexibility, and premium aesthetics, this heavy-duty stand enables seamless transitions between table, drafting, and presentation modes — ideal for modern collaborative spaces, classrooms, and conference environments.

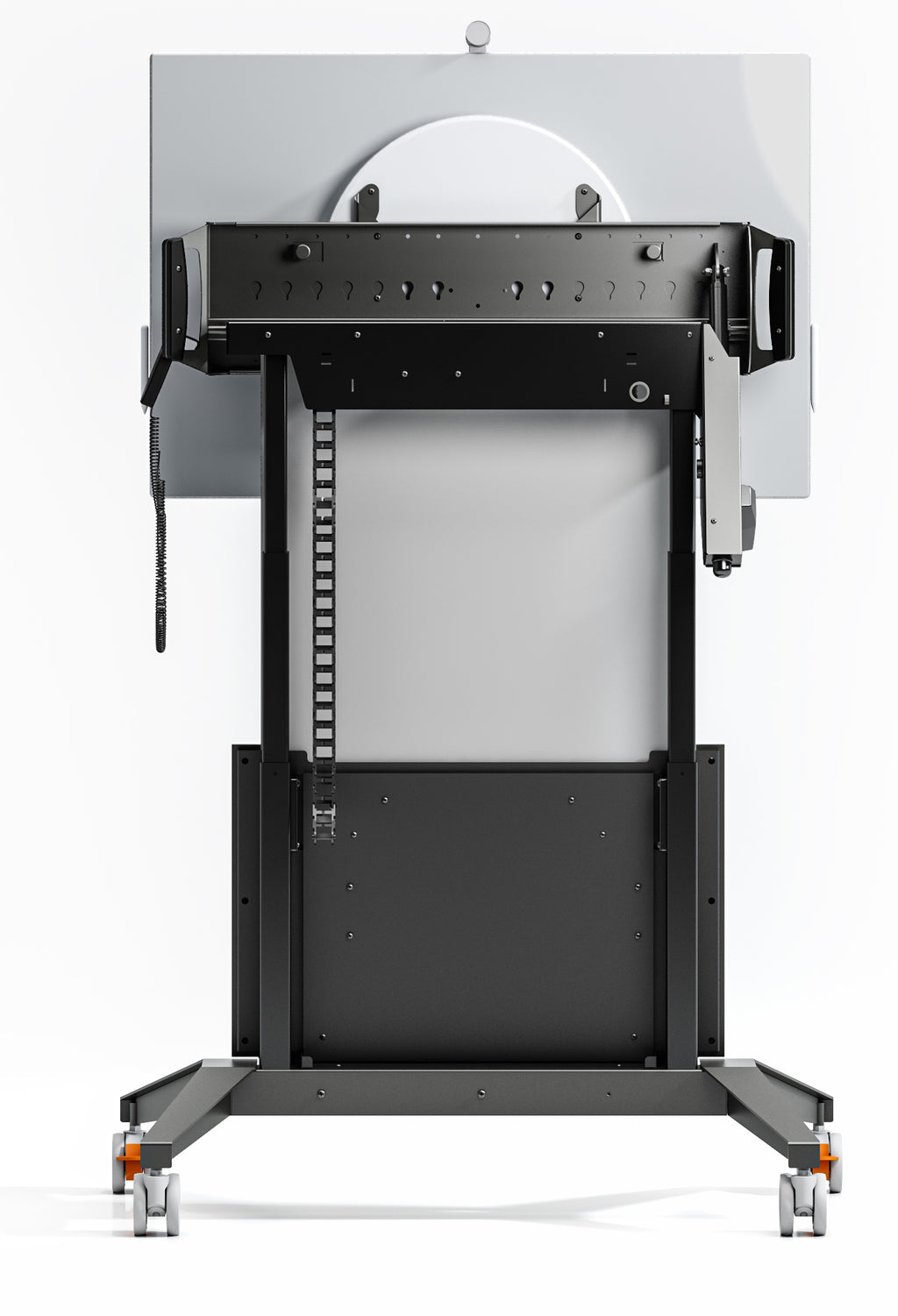

Constructed from durable powder-coated steel and veneered MDF panels, it features a motorized lift and tilt mechanism controlled by a wired remote with independent adjustments. The stand includes integrated cable management, electronic storage, and high-quality commercial-grade casters for effortless mobility. Its compact, telescopic design ensures easy transport and storage, while optional accessories—such as cable reels, keyboard trays, and power distribution units—enhance utility.
Proudly made in the USA, the FPS2/ELT/MS/GG offers lifetime value through ergonomic innovation, versatility, and timeless design—delivering the ideal platform for interactive and touch display collaboration.
| Category | Details |
|---|---|
| Model / SKU | FPS2/ELT/MS/GG |
| Brand | Salamander Designs |
| Product Type | Electric Lift & Tilt Mobile Display Stand |
| Display Compatibility | Microsoft Surface Hub 2S 50”, compatible with most large displays up to 70” |
| Lift / Tilt Control | Motorized electric lift & tilt with wired remote (independent control) |
| Ergonomic Adjustment | Height and tilt adjustable for table, drafting, and presentation modes |
| Center of Screen Range | 33.33" (847 mm) – 58.92" (1497 mm) |
| Overall Height Range | 41.63" – 67.22" (1057.5 – 1707.5 mm) |
| Depth | 27.38" (695 mm) |
| Max Load Capacity | 175 lbs (79.38 kg) |
| Construction Material | Powder-coated steel frame, MDF panels, Linak motor components |
| Cable Management | Fully concealed cable management system |
| Mobility | 4" (100 mm) heavy-duty, non-marking casters (2 with brakes) |
| Power Input | 90–240V AC, 48–63Hz |
| Duty Cycle | 10% (Max 2 min operation / 18 min rest) |
| Power Cable | IEC Type Class 2 (USA PN 400-590; EU/UK/AU variants available) |
| VESA Mount Compatibility | Horizontal: 200–900 mm / Vertical: 100–400 mm |
| Supported Display Mount | Microsoft Surface Hub 2 (VESA 350 × 350 mm) |
| Finish / Color | Graphite Gray |
| Weight | 145 lbs (65.77 kg) |
| Shipping Weight | 175 lbs (79.4 kg) |
| Additional Features | Telescopic transport design, integrated storage, optional accessories |
| Country of Manufacture | Made in USA |
| Warranty | Limited Lifetime Warranty |
