Description

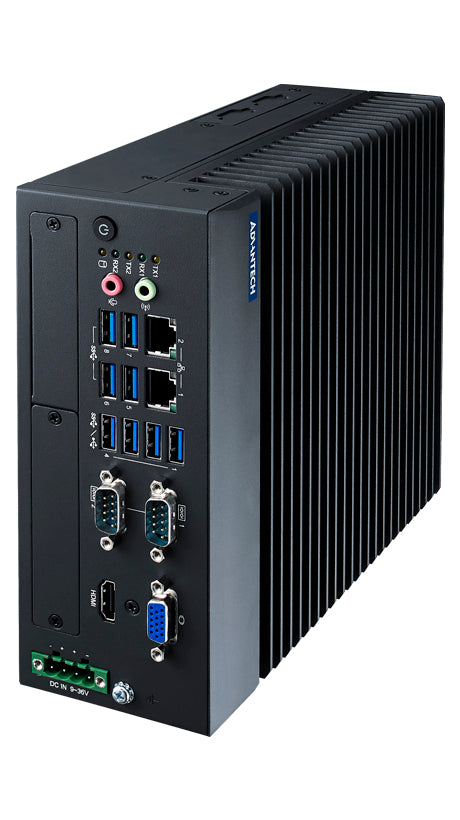

The Advantech MIC-770-BTO-ET is a compact, fanless modular industrial PC designed for reliable edge computing in harsh factory and automation environments. Built around Intel® 8th/9th Gen Core™ processors and a rugged IP40-rated chassis, the MIC-770 delivers strong performance, flexible expansion, and wide-range DC power input for industrial deployments.
With dual Gigabit Ethernet, multiple USB ports, VGA and HDMI display outputs, and support for FlexIO and iDoor technology, this system is highly configurable for applications such as machine vision, smart manufacturing, transportation, and industrial IoT gateways. Microsoft Azure certification and embedded software API support make it an ideal platform for modern edge AI and cloud-connected solutions.
| Specification | Details |
|---|---|
| Brand | Advantech |
| Product Series | MIC-770 Modular IPC |
| Model / SKU | MIC-770-BTO-ET |
| System Type | Fanless Modular Industrial PC |
| Processor Support | Intel® 8th/9th Gen Core™ i CPU (LGA1151) |
| Chipset | Intel® Q370 / H310 |
| Memory Support | Dual-channel DDR4 2400/2666 MHz |
| Memory Slots | 2 × DDR4 SODIMM |
| Maximum Memory | Up to 64GB |
| Display Outputs | 1 × VGA, 1 × HDMI |
| Ethernet Ports | 2 × Gigabit LAN (RJ45) |
| USB Ports | Up to 2 × USB 3.1 + 6 × USB 3.0 |
| Serial Ports | 2 × RS-232/422/485 + optional RS-232 expansion |
| Storage Options | 1 × 2.5" HDD/SSD bay, 1 × mSATA slot |
| Expansion Support | FlexIO, iDoor modules, Advantech i-Modules |
| Power Input Range | 9–36 VDC |
| Protection Rating | IP40 dust-proof enclosure |
| Operating Temperature | -10°C to 50°C (wide-temp SSD required) |
| Certifications | CE, FCC Class A, UL, CCC, BSMI |
| OS Support | Windows 10, Windows 10 IoT, Linux |
| Dimensions (W × H × D) | 77 × 192 × 230 mm |
| Weight | Approx. 2.8 kg |
| Typical Applications | Industrial automation, edge computing, IoT gateway, machine vision |
