Description

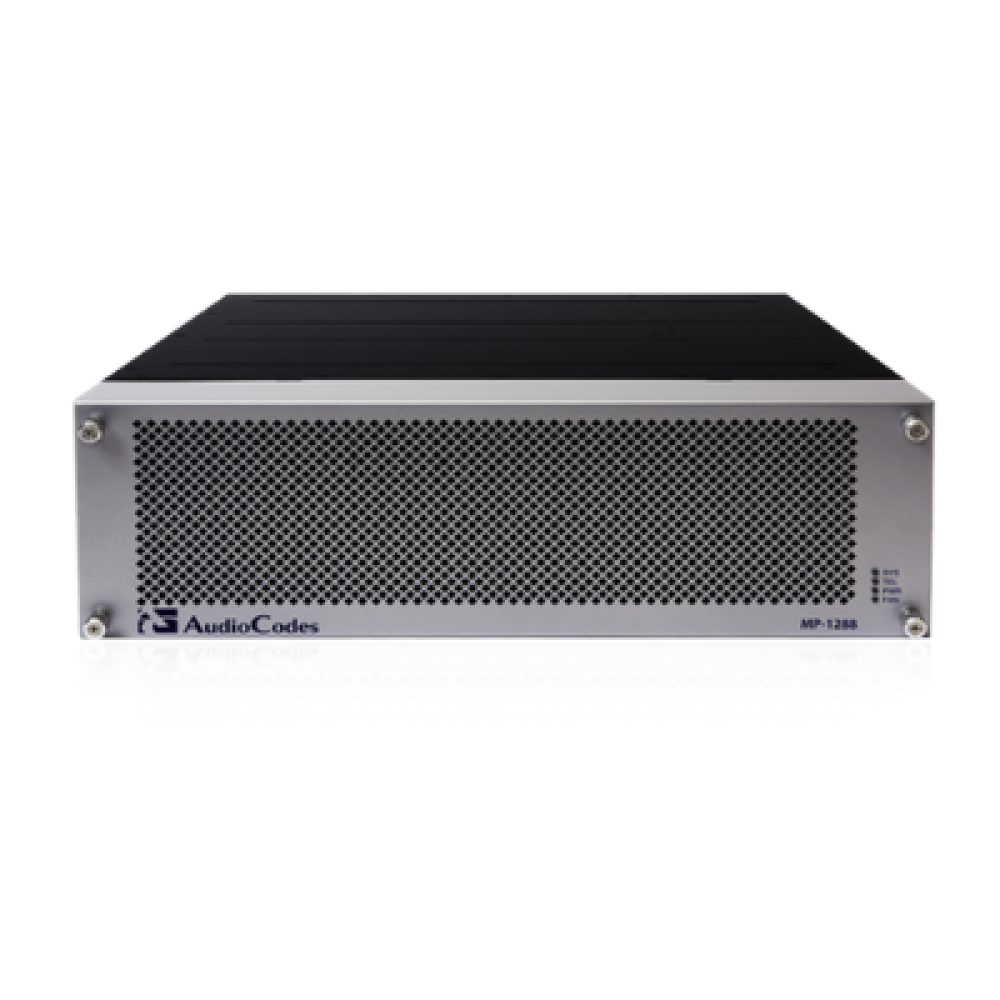

The AudioCodes MP1288-288S-2DC is a high-density analog gateway engineered for large-scale enterprise and service-provider environments requiring seamless and reliable integration of legacy analog devices into modern IP communications. With 288 FXS ports, robust survivability features, and advanced SIP interoperability, this platform is ideal for hospitality deployments, campus environments, contact centers, and organizations transitioning to all-IP telephony without sacrificing existing analog investments.
Delivering mission-critical resiliency, the MP1288 provides integrated surge protection, enhanced emergency/elevator phone support, dual DC power inputs, and powerful SBC functionality for secure connectivity to SIP trunks. It supports SRTP on all channels, extensive fax capabilities with T.38v3, SIP header manipulation, and long-haul analog support up to 7.5 km, ensuring unmatched flexibility and operational continuity.
The gateway’s modular 3U chassis and front-to-rear airflow design make it ideal for dense rack environments, while its comprehensive codec support—including G.711, G.729A/B, G.722, Opus-NB, and more—ensures high-quality voice performance across the network. Built to TAA standards, the MP1288-288S-2DC is a secure, scalable choice for organizations demanding reliability at scale.
| Category | Specification |
|---|---|
| Brand | AudioCodes |
| Model / SKU | MP1288-288S-2DC |
| Form Factor | 3U Rackmount |
| FXS Port Capacity | 288 FXS ports (4 blades × 72 ports each) |
| FXO Ports | 0 |

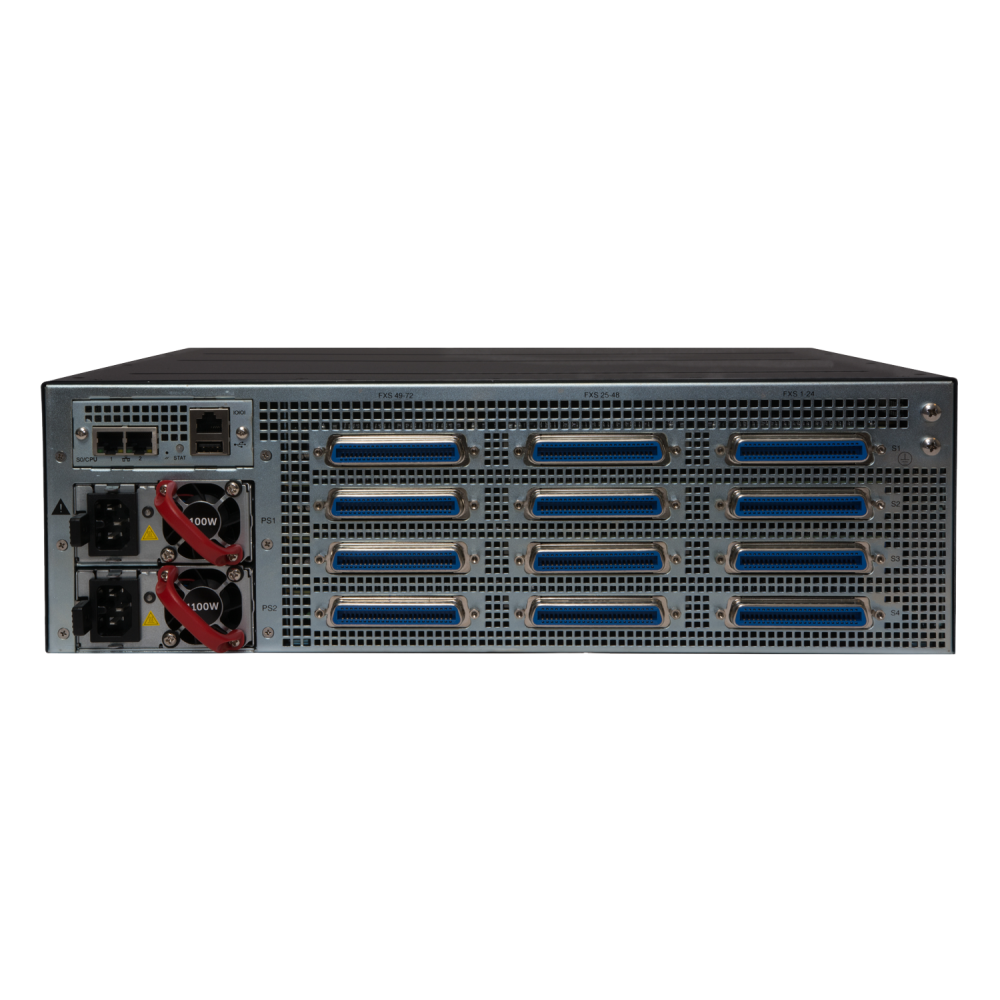

| Connection Type | RJ-45; Amphenol (CHAMP 50-pin) cables required |
| Amphenol Cable Included | No |
| Ethernet Ports | 2 × 100/1000Base-T (RJ-45) with 1+1 redundancy |
| Supported Protocols | SIP (UDP/TCP/TLS), IPv4/IPv6, RTP/RTCP, SRTP |
| Voice Features | G.168 echo cancellation, jitter buffer, comfort noise, packet loss concealment |
| Codecs Supported | G.711, G.723.1, G.726, G.729A/B, G.722, AMR-NB, Opus-NB |
| Fax Support | T.38, T.38v3, fax bypass |
| SBC Capabilities | Up to 300 SBC sessions, 350 registered users |
| Emergency Phone Support | Higher loop current & ring voltage for elevator/emergency phones |
| Long-Haul Support | Up to 7.5 km |
| MWI Support | High/low DC voltage, V23 FSK, stutter tone |
| Survivability | Call survivability for all FXS extensions & additional IP phones |
| Security | SRTP on all channels without capacity reduction |
| Management Interfaces | Web GUI, SNMP v2/v3, SSH/Telnet, INI file, REST API |
| Power Input | 40–60 VDC, dual-feed redundant DC power |
| Power Consumption | 450 W (short haul), 950 W (long haul) |
| Dimensions (W × H × D) | 17.24" × 5.16" × 17.75" (438 × 131.2 × 451 mm) |
| Weight | 21 kg (fully populated) |
| Cooling | Front-to-rear airflow |
| Operating Temperature | 0°C to 40°C (41°F to 104°F) |
| TAA Compliance | Yes |
| Mounting Options | Standard 19-inch rackmount |
