Description

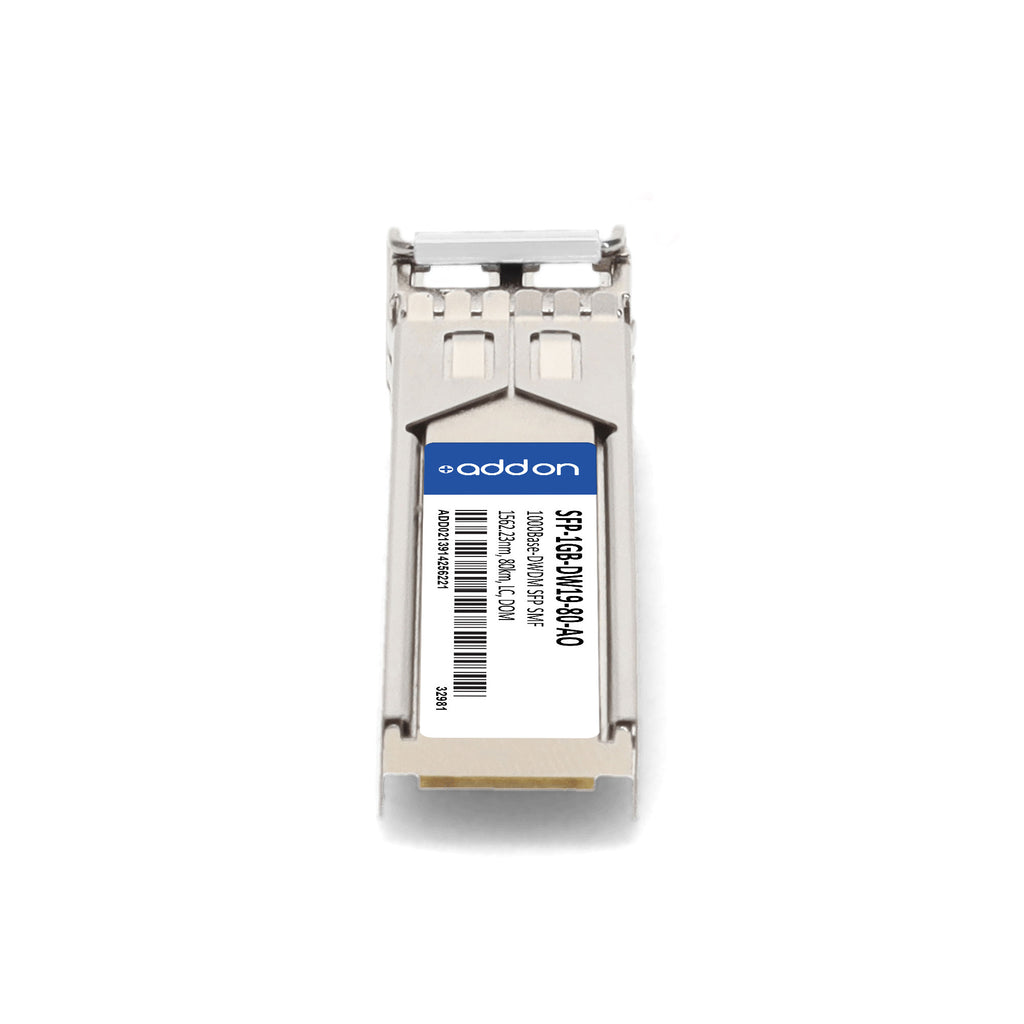

The AddOn SFP-1GB-DW19-80-AO is a high-performance, MSA and TAA compliant 1000Base-DWDM SFP transceiver designed for Gigabit Ethernet and Fibre Channel applications. Operating at a wavelength of 1562.23nm, it delivers reliable data transmission over single-mode fiber (SMF) for distances up to 80km.
Equipped with a duplex LC connector, the module supports hot-pluggable installation, ensuring ease of deployment and scalability in dense networking environments. Its digital optical monitoring (DOM) enables real-time access to critical operating parameters for improved network management.
Built with strong ESD protection, low EMI metal housing, and RoHS compliance, this transceiver ensures durability, performance, and environmental responsibility. Backed by AddOn’s limited lifetime warranty, it is an ideal solution for access, metro, and enterprise networks.
| Specification | Details |
|---|---|
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Data Rate | 1000 Mbps (1.25 Gbps max) |
| Standards Compliance | INF-8074, SFF-8472, MSA, TAA |
| Wavelength | 1562.23 nm (ITU Channel 19, 100 GHz spacing) |
| Transmission Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| DOM Support | Yes |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.15V – 3.45V (typ. 3.3V) |
| Power Consumption | 300 mA (typical) |
| Tx Optical Power (avg.) | 0 to +5 dBm |
| Receiver Sensitivity | ≤ -24 dBm |
| Receiver Overload | -10 dBm |
| Regulatory Compliance | RoHS, FCC Part 15, EN55022, IEC 60825-1/2 (Laser Eye Safety) |
| Warranty | Limited Lifetime |
