Description

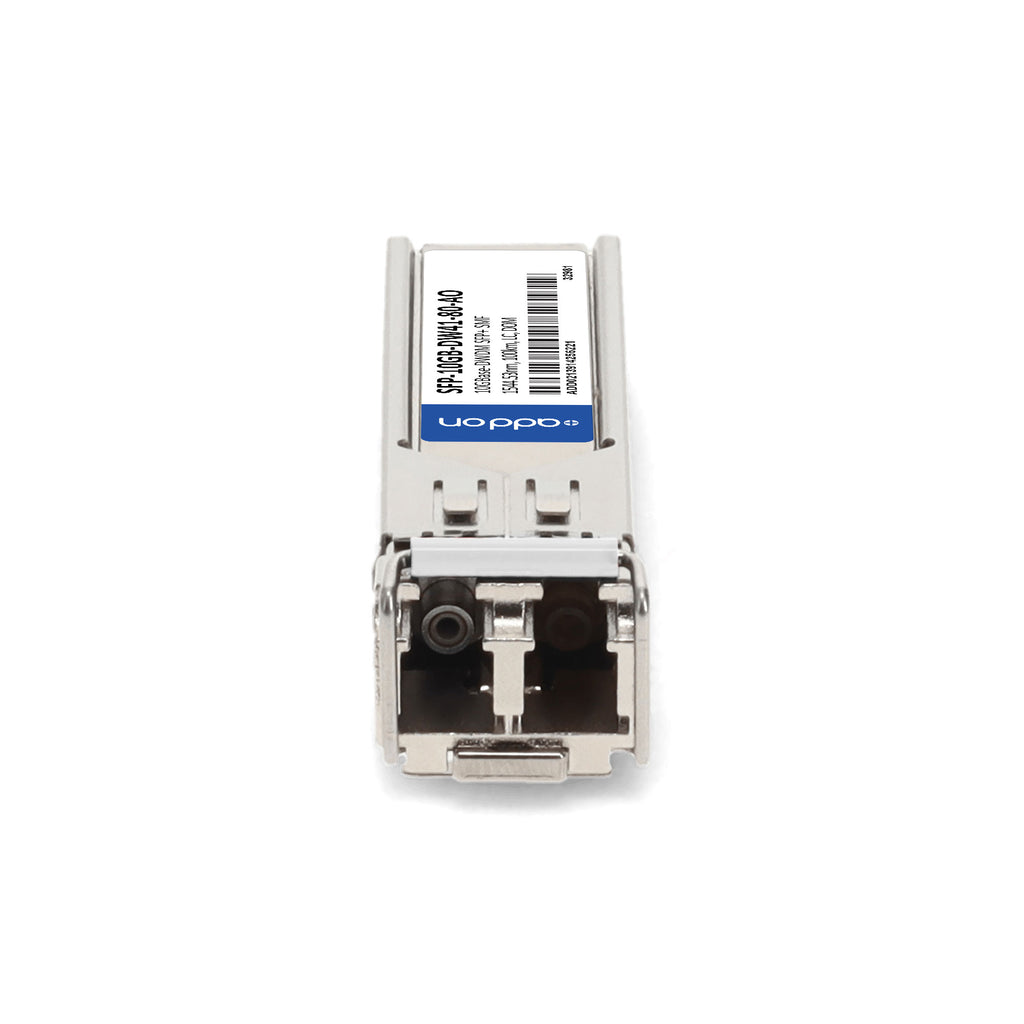

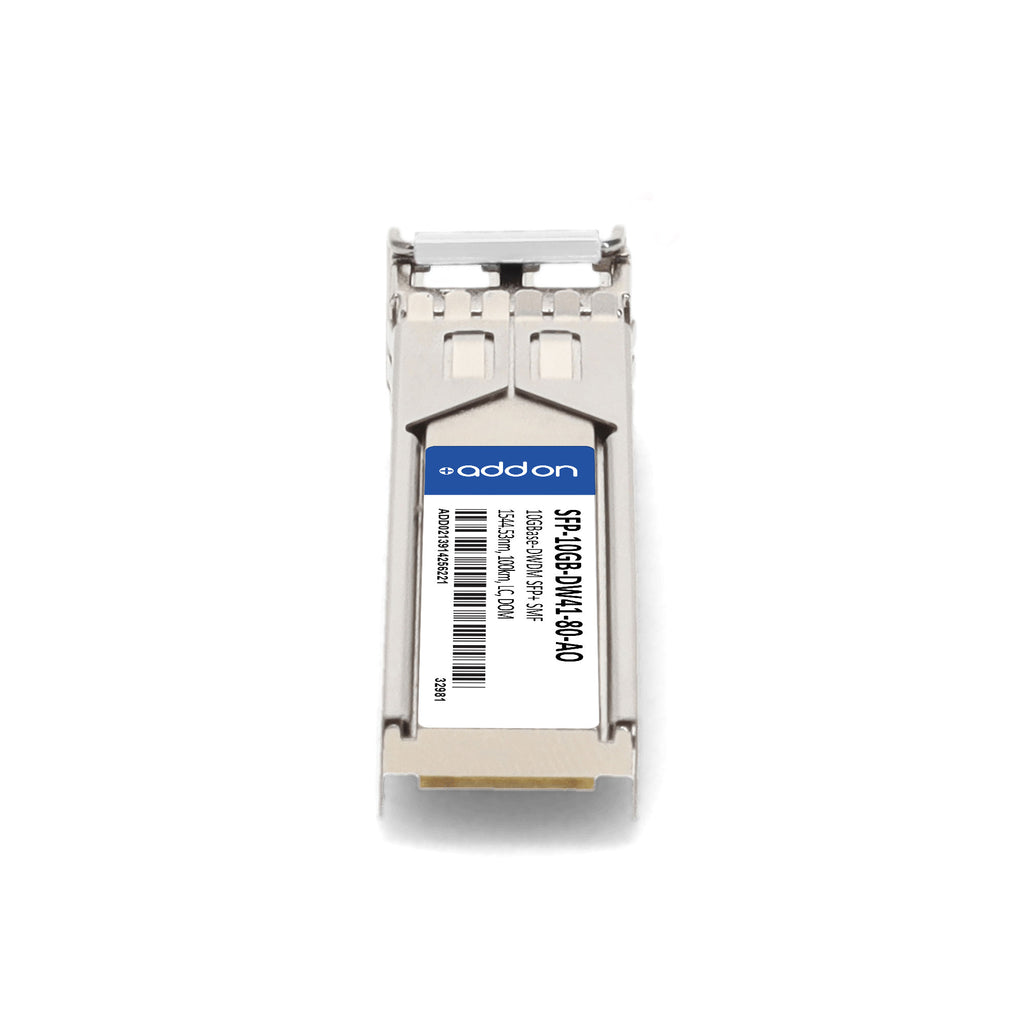

The AddOn SFP-10GB-DW41-80-AO is an MSA and TAA compliant 10GBase-DWDM SFP+ transceiver designed for reliable, high-speed data transmission across long distances. Operating on the ITU Channel 41 with a wavelength of 1544.53nm, this transceiver delivers 10Gbps throughput up to 80km over single-mode fiber (SMF) via a duplex LC connector.
Engineered with a temperature-stabilized EML transmitter and APD receiver, it provides stable performance across a 0°C to 70°C operating range. The module supports Digital Optical Monitoring (DOM) for real-time parameter tracking and features hot-pluggable design, excellent ESD protection, and low EMI.
Ideal for use in 10G Ethernet, Fibre Channel, enterprise, and access networks, this AddOn transceiver is fully tested for seamless integration and backed by a limited lifetime warranty.
| Specification | Details |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps (10GBase-DWDM) |
| Wavelength | 1544.53nm (ITU Channel 41, C-Band, 100GHz spacing) |
| Transmission Distance | Up to 80 km over SMF |
| Connector Type | Duplex LC |
| Transmitter Type | EML (Externally Modulated Laser), temperature-stabilized |
| Receiver Type | APD (Avalanche Photodiode) |
| Optical Output Power | 0 to +4 dBm |
| Receiver Sensitivity | ≤ -24 dBm |
| Extinction Ratio | ≥ 9 dB |
| Digital Optical Monitoring | Supported |
| Power Consumption | ≤ 1.5W |
| Operating Temperature | 0°C to 70°C |
| Compliance | SFF-8432, SFF-8472, RoHS, TAA |
| Dimensions / Weight | Module: 16.5 g; Dust cap: 0.95 g |
| Warranty | Limited Lifetime |
