Description

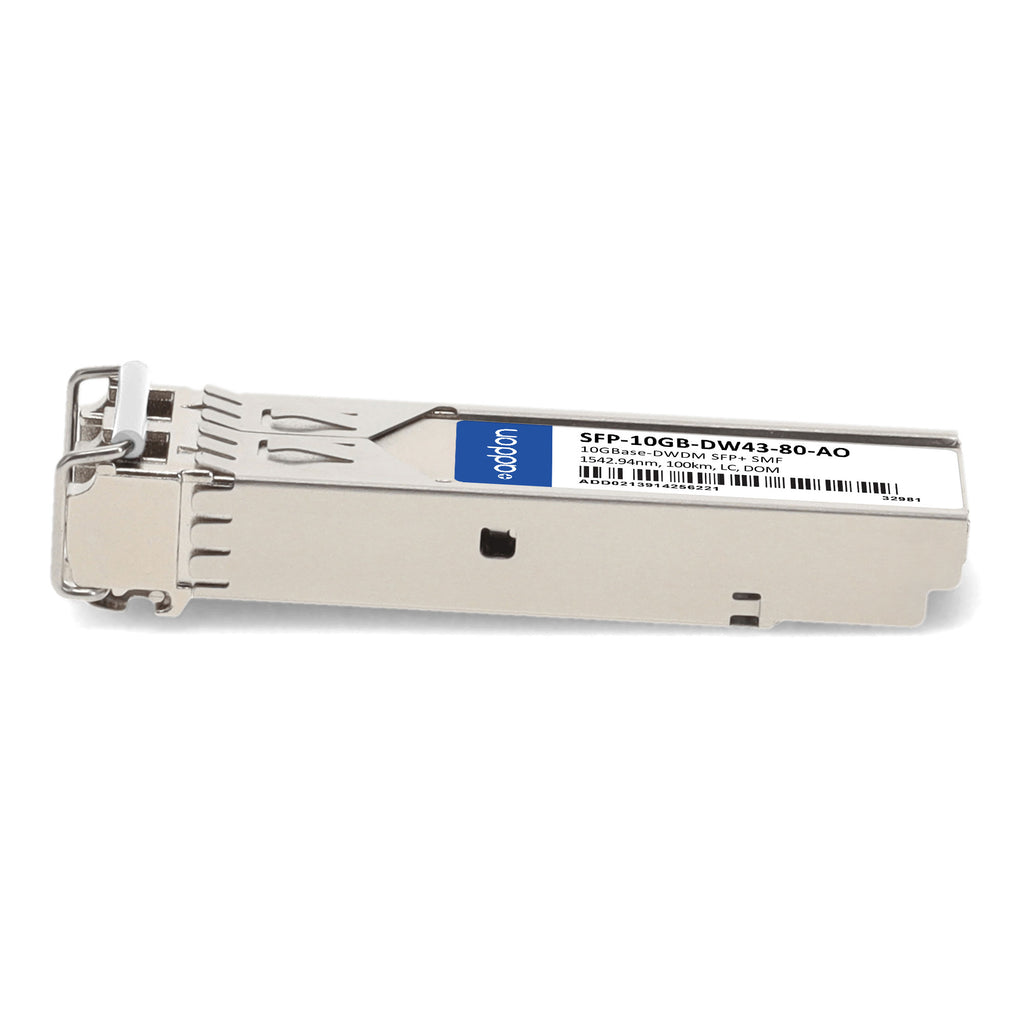

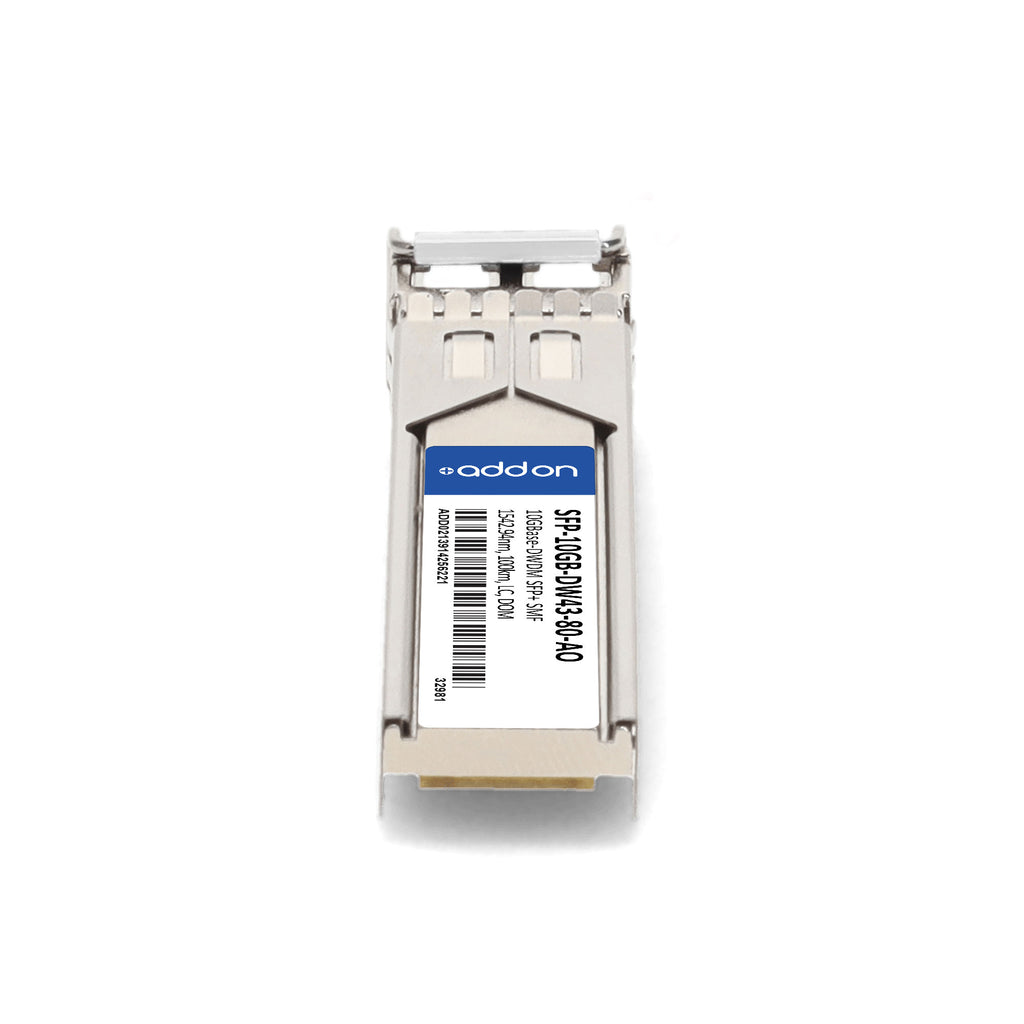

The AddOn SFP-10GB-DW43-80-AO is a high-performance, MSA-compliant 10GBase-DWDM SFP+ transceiver designed for long-distance data transmission. Operating at a center wavelength of 1542.94nm on the ITU Channel 43, this module delivers up to 80km reach over single-mode fiber (SMF) with a duplex LC connector.
Built with a temperature-stabilized EML transmitter and APD receiver, this transceiver ensures reliability in demanding environments. It supports Digital Optical Monitoring (DOM) for real-time diagnostics, providing network administrators with key performance data.
Hot-pluggable and RoHS compliant, this module integrates seamlessly into existing network infrastructure, making it ideal for enterprise, data center, and carrier-class applications. It is fully Trade Agreements Act (TAA) compliant and backed by AddOn’s limited lifetime warranty for guaranteed performance.
| Specification | Details |
|---|---|
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) |
| Data Rate | 10.3125 Gbps (10G Ethernet) / up to 11.3 Gbps supported |
| Wavelength | 1542.94nm (ITU Channel 43, C-Band, 100GHz spacing) |
| Transmission Distance | Up to 80 km over Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled EML (Electro-absorption Modulated Laser) |
| Receiver Type | APD (Avalanche Photodiode) |
| Optical Power (Tx) | 0 to +4 dBm |
| Receiver Sensitivity (Rx) | -24 dBm |
| Extinction Ratio | ≥ 9 dB |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Power Consumption | 1.5W (typical) |
| Compliance | MSA, SFF-8432, SFF-8472, RoHS, TAA |
| Digital Diagnostics (DOM) | Supported |
| Applications | 10G Ethernet over DWDM, 8G/10G Fibre Channel, enterprise, and access networks |
| Dimensions / Weight | Approx. 16.5g (module only) |
| Warranty | Limited Lifetime Warranty |
