Description

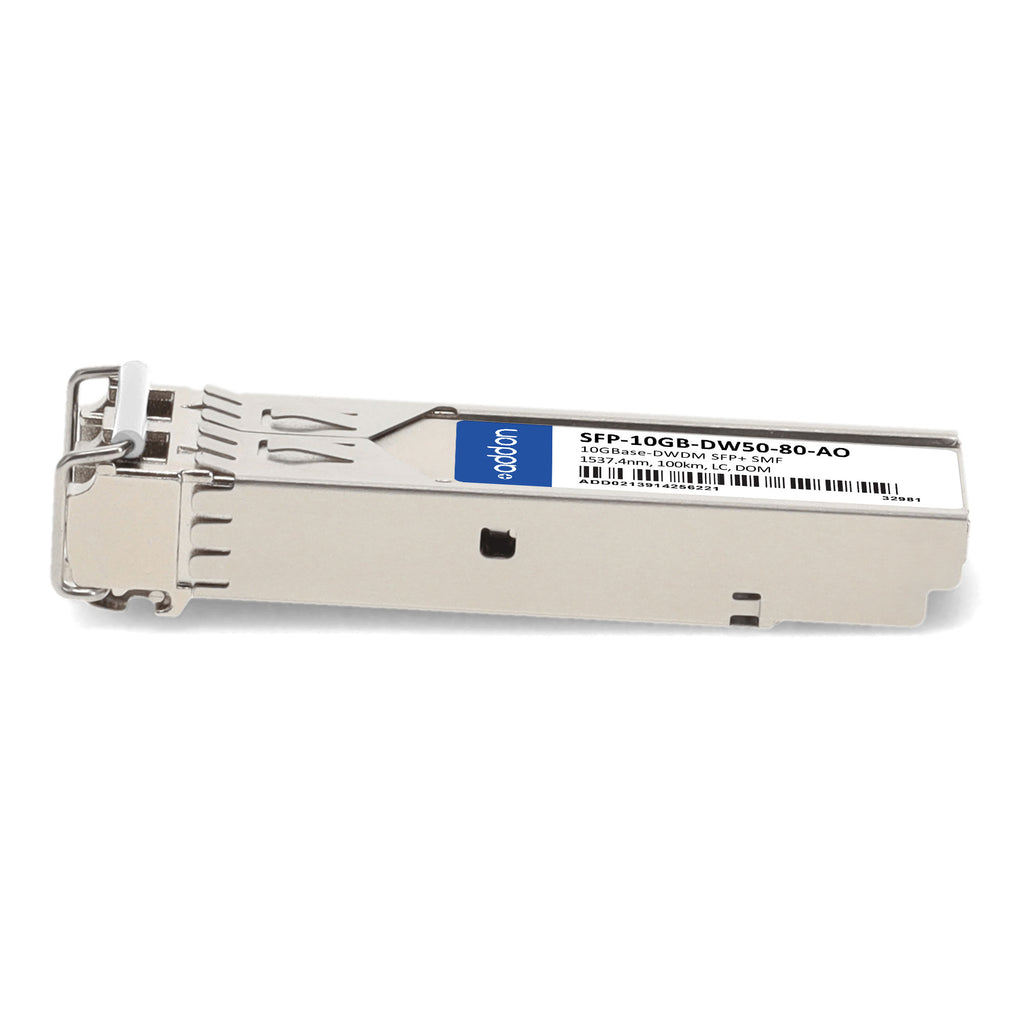

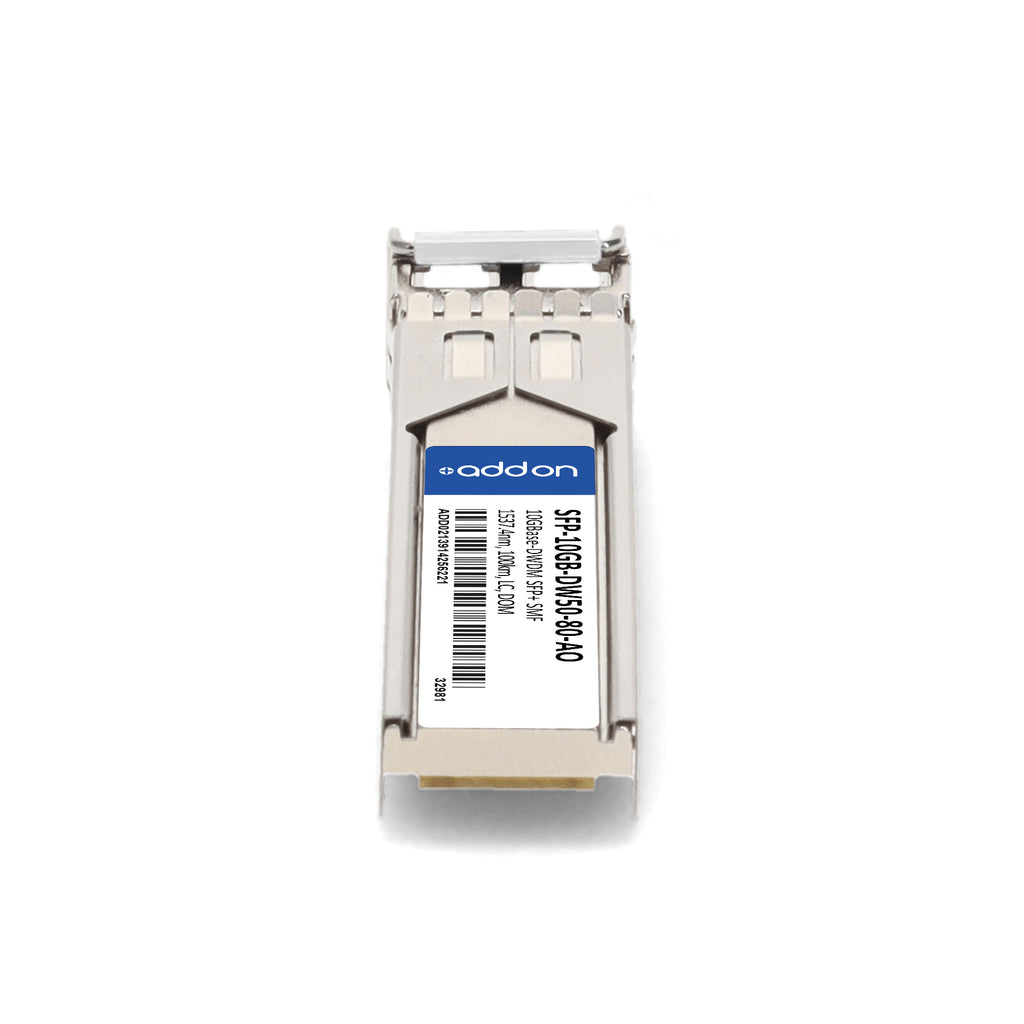

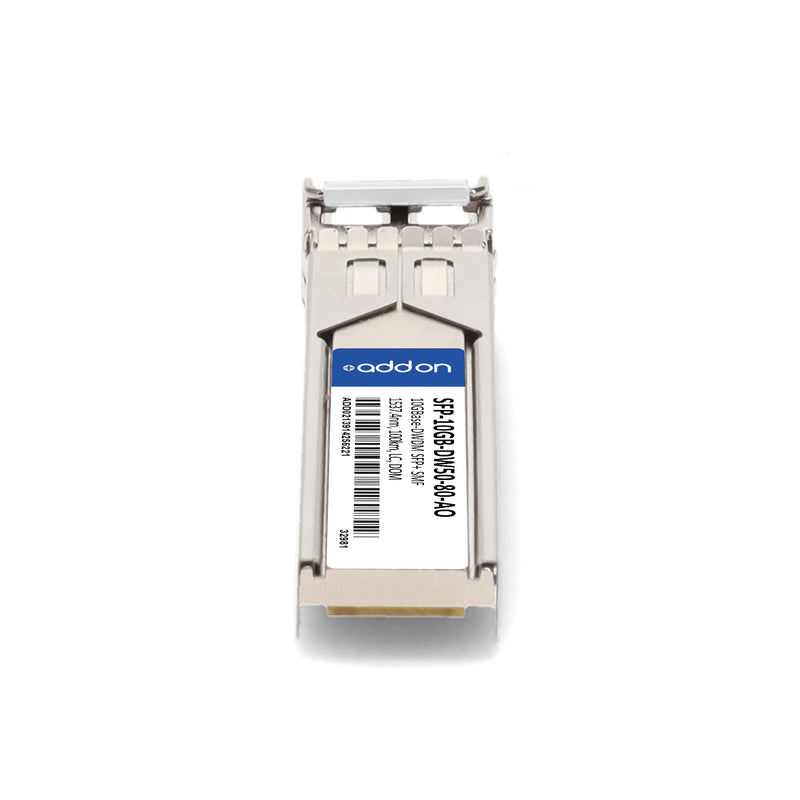

The AddOn SFP-10GB-DW50-80-AO is a high-performance, MSA-compliant 10GBase-DWDM SFP+ transceiver that delivers reliable connectivity up to 80 km over single-mode fiber (SMF). Operating on the 1537.40nm wavelength (ITU Channel 50, 100GHz spacing), this module features a temperature-stabilized EML transmitter and APD receiver to ensure superior signal integrity across long distances.
Equipped with a duplex LC connector, hot-pluggable design, and digital optical monitoring (DOM) for real-time parameter access, this transceiver integrates seamlessly into existing networks. It supports 10GbE DWDM links and 8x/10x Fibre Channel applications, making it ideal for access and enterprise networks.
Built with robust metal housing for low EMI, excellent ESD protection, and full RoHS and TAA compliance, this module is backed by AddOn’s limited lifetime warranty, ensuring long-term reliability and performance.
| Specification | Details |
|---|---|
| Form Factor | SFP+ (Hot-Pluggable) |
| Data Rate | 10.3125 Gbps (10GBase-DWDM) |
| Wavelength | 1537.40nm (ITU Channel 50, C-Band, 100GHz spacing) |
| Reach / Distance | Up to 80 km over SMF |
| Connector Type | Duplex LC |
| Transmitter Type | EML (Externally Modulated Laser) |
| Receiver Type | APD (Avalanche Photodiode) |
| Optical Power (Tx) | 0 to +4 dBm |
| Receiver Sensitivity | ≤ -24 dBm |
| Extinction Ratio | ≥ 9 dB |
| Digital Optical Monitoring (DOM) | Supported |
| Power Supply Voltage | 3.14 to 3.46 V |
| Power Consumption | ≤ 1.5 W |
| Operating Case Temperature | 0°C to +70°C |
| Compliance | MSA, SFF-8432, SFF-8472, RoHS, TAA |
| Dimensions / Weight | Module: ~16.5 g; Dust Cap: ~0.95 g |
| Applications | 10GbE DWDM, 8x/10x Fibre Channel, Access & Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
