Description

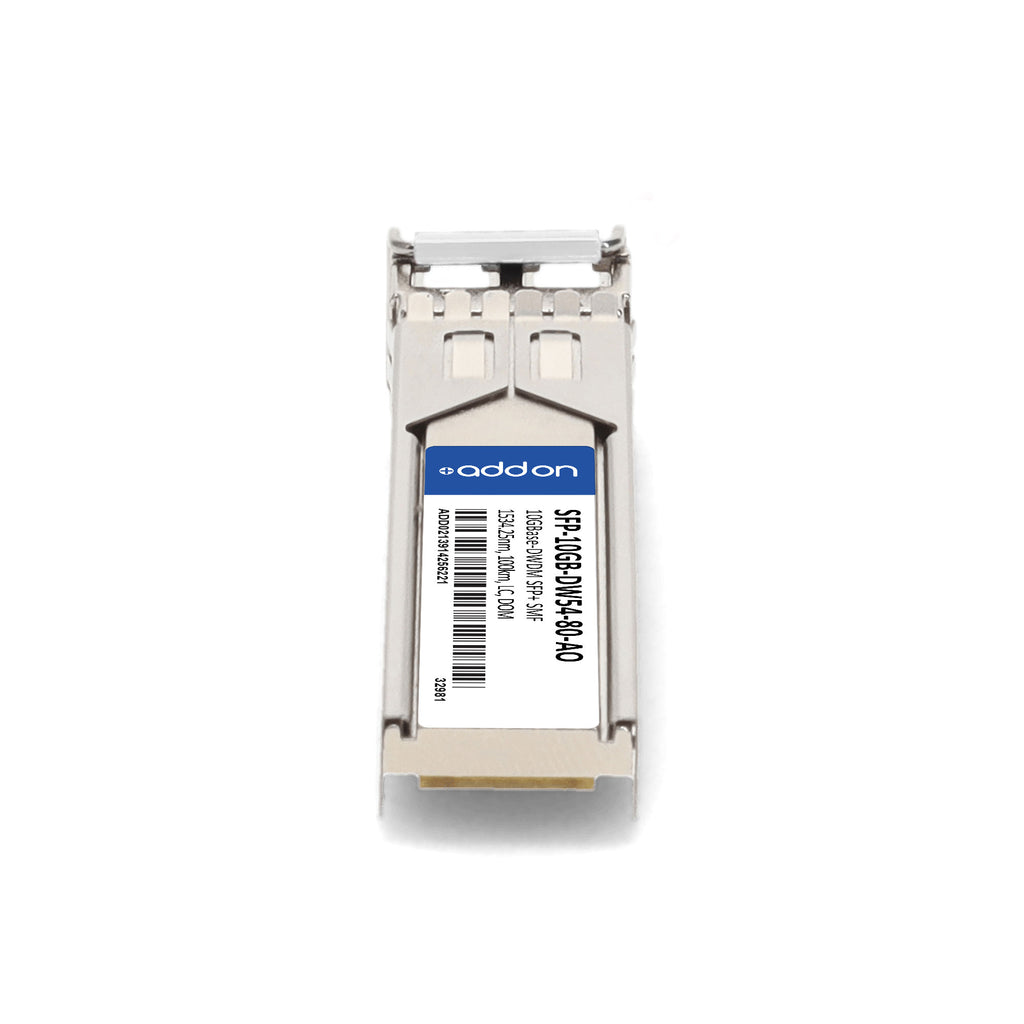

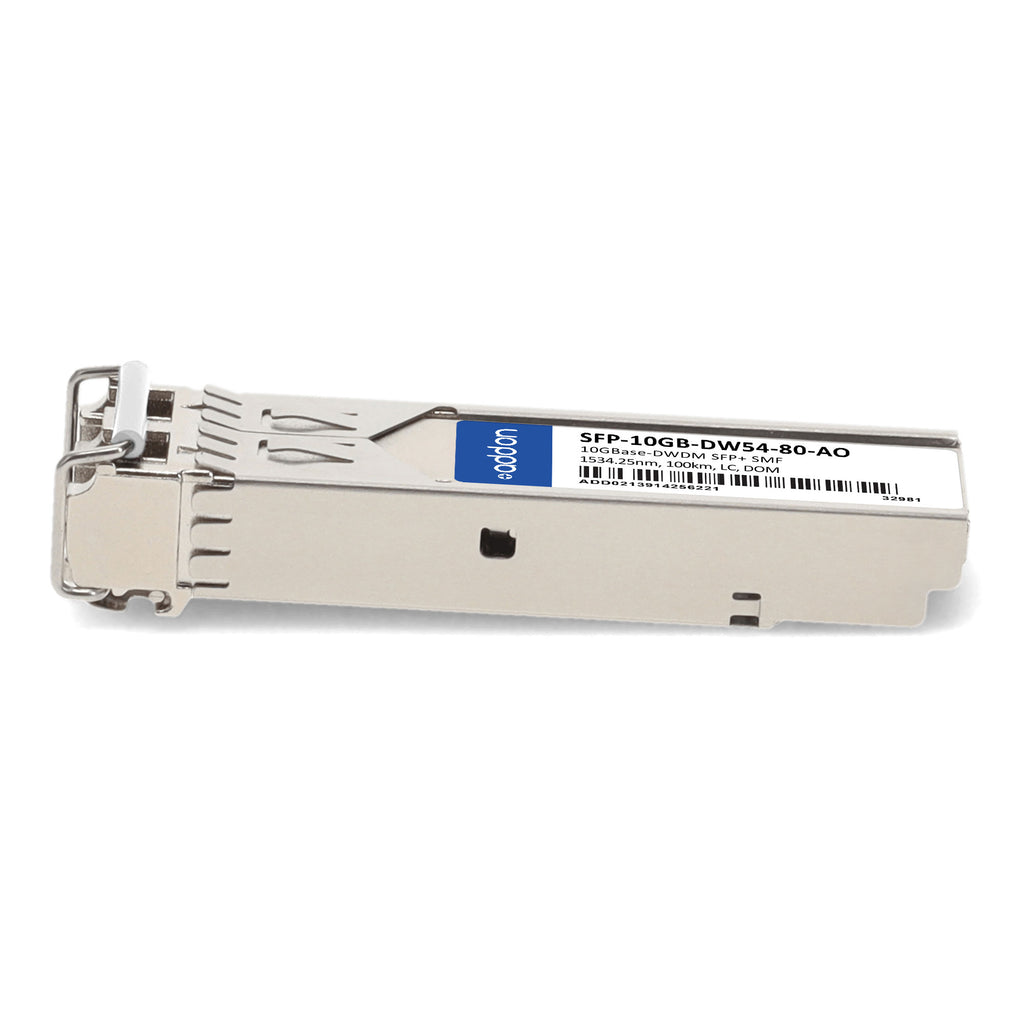

The AddOn SFP-10GB-DW54-80-AO is a high-performance, MSA-compliant 10GBase-DWDM SFP+ transceiver designed for long-range data transmission over single-mode fiber (SMF). Operating at a 1534.25nm wavelength (ITU Channel 54), this module supports distances up to 80km with an LC duplex connector. It features a temperature-stabilized EML transmitter, APD receiver, and advanced Digital Optical Monitoring (DOM) for real-time performance tracking.
Built for 10G Ethernet and Fibre Channel applications, this hot-pluggable transceiver ensures seamless network integration and superior reliability. It is RoHS compliant, TAA-compliant, and includes excellent ESD protection with a metal housing for reduced EMI. Backed by AddOn’s industry-leading testing standards and limited lifetime warranty, this module delivers reliable connectivity for carrier, enterprise, and access networks.
| Specification | Details |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 10GBase-DWDM |
| Wavelength | 1534.25nm (ITU Channel 54, C-Band 100GHz) |
| Reach/Distance | Up to 80 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter | EML (Electro-absorption Modulated Laser) |
| Receiver | APD (Avalanche Photodiode) |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0°C to +70°C (Commercial) |
| Power Consumption | 1.5W (max) |
| Tx Power | 0 to +4 dBm |
| Rx Sensitivity | ≤ -24 dBm |
| Extinction Ratio | ≥ 9 dB |
| Compliance | MSA, SFF-8432, SFF-8472, IEEE 802.3ae |
| Certifications | RoHS, TAA Compliant |
| Warranty | Limited Lifetime Warranty |
| Hot Pluggable | Yes |
