Description

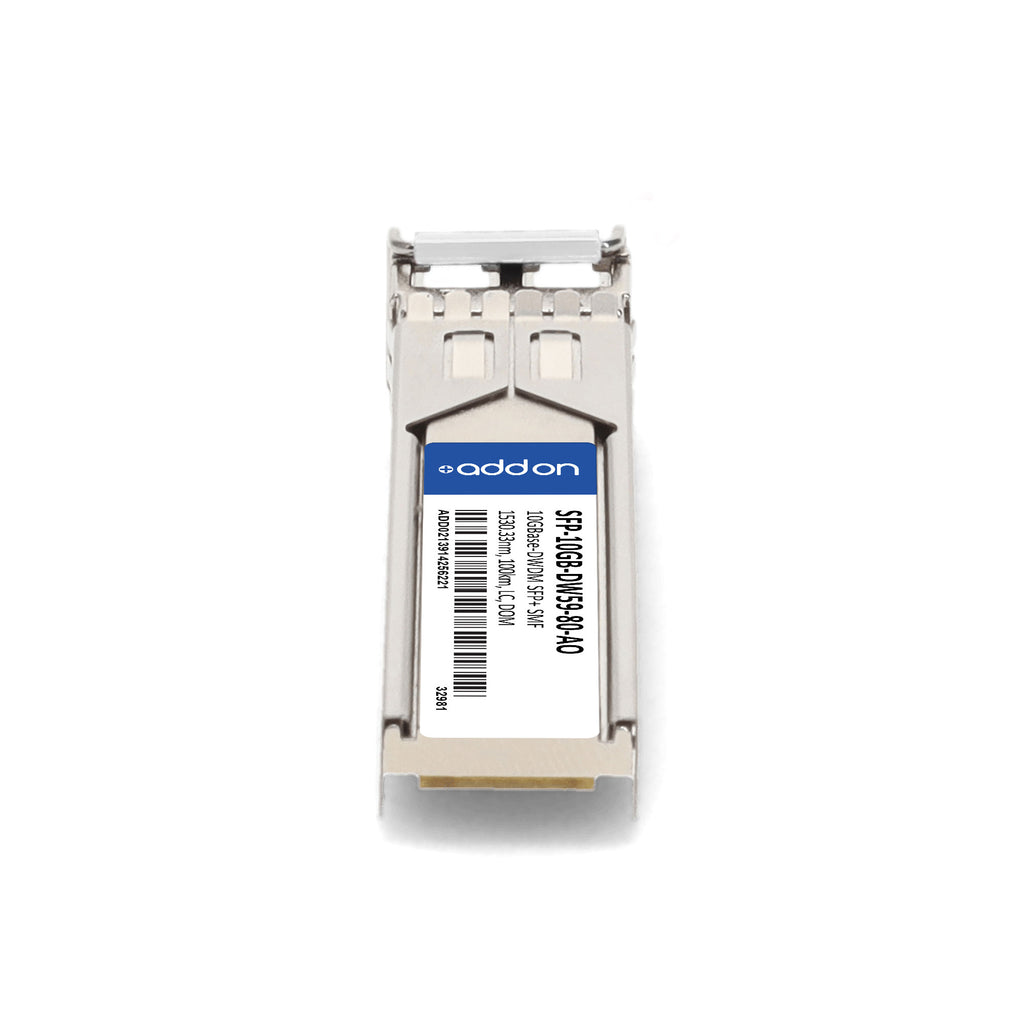

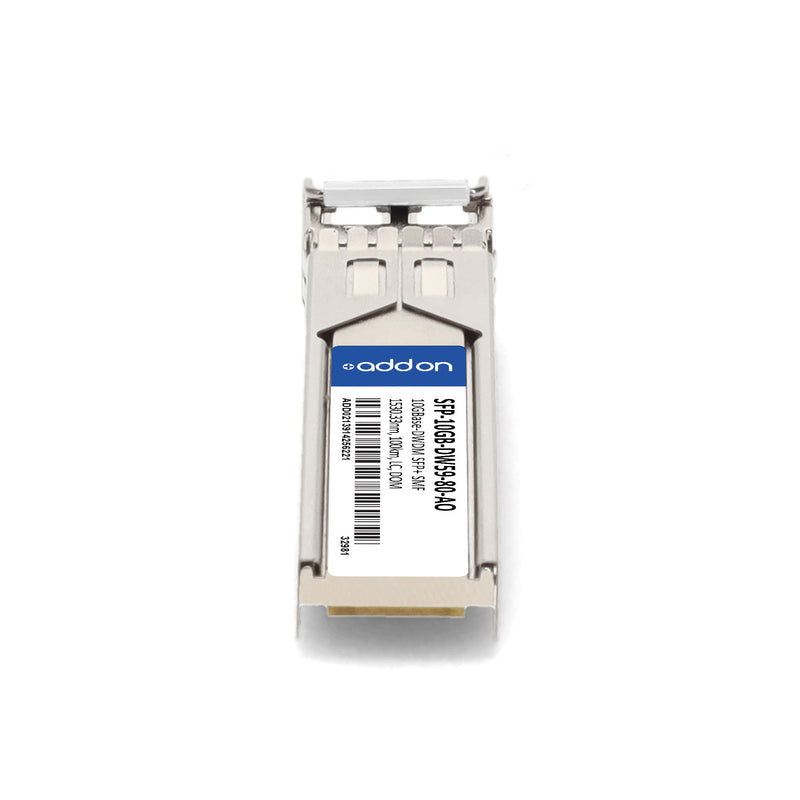

The AddOn SFP-10GB-DW59-80-AO is a high-performance MSA and TAA compliant 10GBase-DWDM SFP+ transceiver designed for long-reach optical networking. Operating at a wavelength of 1530.33nm (ITU Channel 59), it delivers reliable data transmission up to 80km over single-mode fiber (SMF) using a standard duplex LC connector.
Built with a temperature-stabilized EML transmitter and APD receiver, this transceiver ensures exceptional optical stability and sensitivity. Digital Optical Monitoring (DOM) provides real-time diagnostics for key operating parameters, enhancing network management.
Hot-pluggable and engineered for excellent EMI and ESD protection, the module supports 10G Ethernet and 8G/10G Fibre Channel applications. Fully tested for seamless interoperability, it comes backed by AddOn’s limited lifetime warranty, making it a dependable choice for enterprise, access, and carrier-grade networks.
| Specification | Details |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps (10GBase-DWDM) |
| ITU Channel / Wavelength | Channel 59 / 1530.33 nm |
| Reach / Distance | Up to 80 km over SMF |
| Connector Type | Duplex LC |
| Transmitter Type | Cooled EML (Externally Modulated Laser) |
| Receiver Type | APD (Avalanche Photodiode) |
| Optical Power Output | 0 to +4 dBm |
| Receiver Sensitivity | ≤ -24 dBm |
| Extinction Ratio | ≥ 9 dB |
| Power Budget | 20 dB (typical) |
| Power Consumption | ≤ 1.5 W |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Compliance | MSA, TAA, SFF-8432, SFF-8472, RoHS |
| Features | Hot-pluggable, DOM support, EMI/ESD protection |
| Warranty | Limited Lifetime Warranty |
