Description

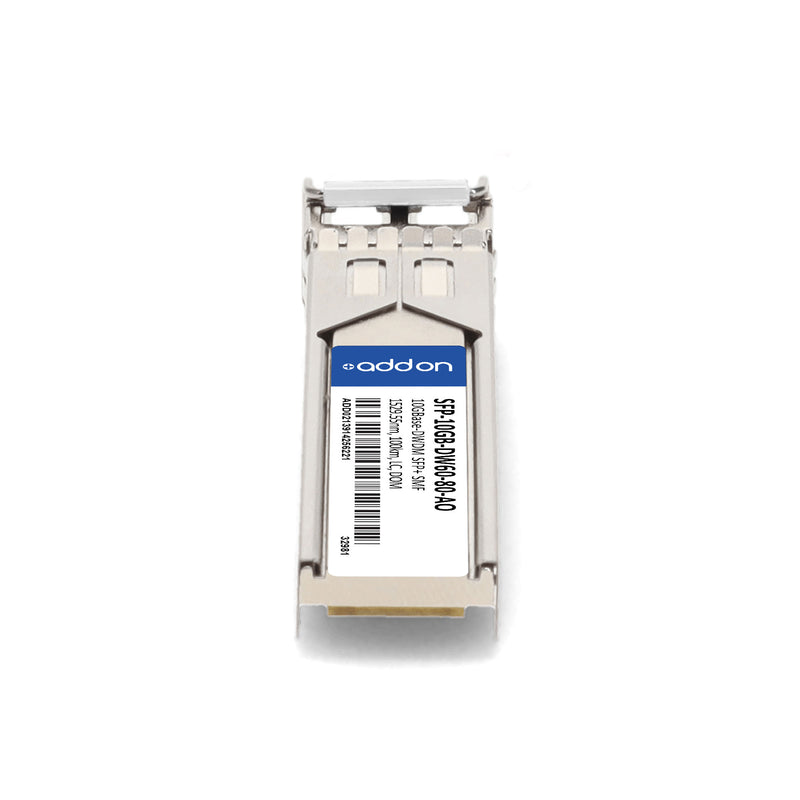

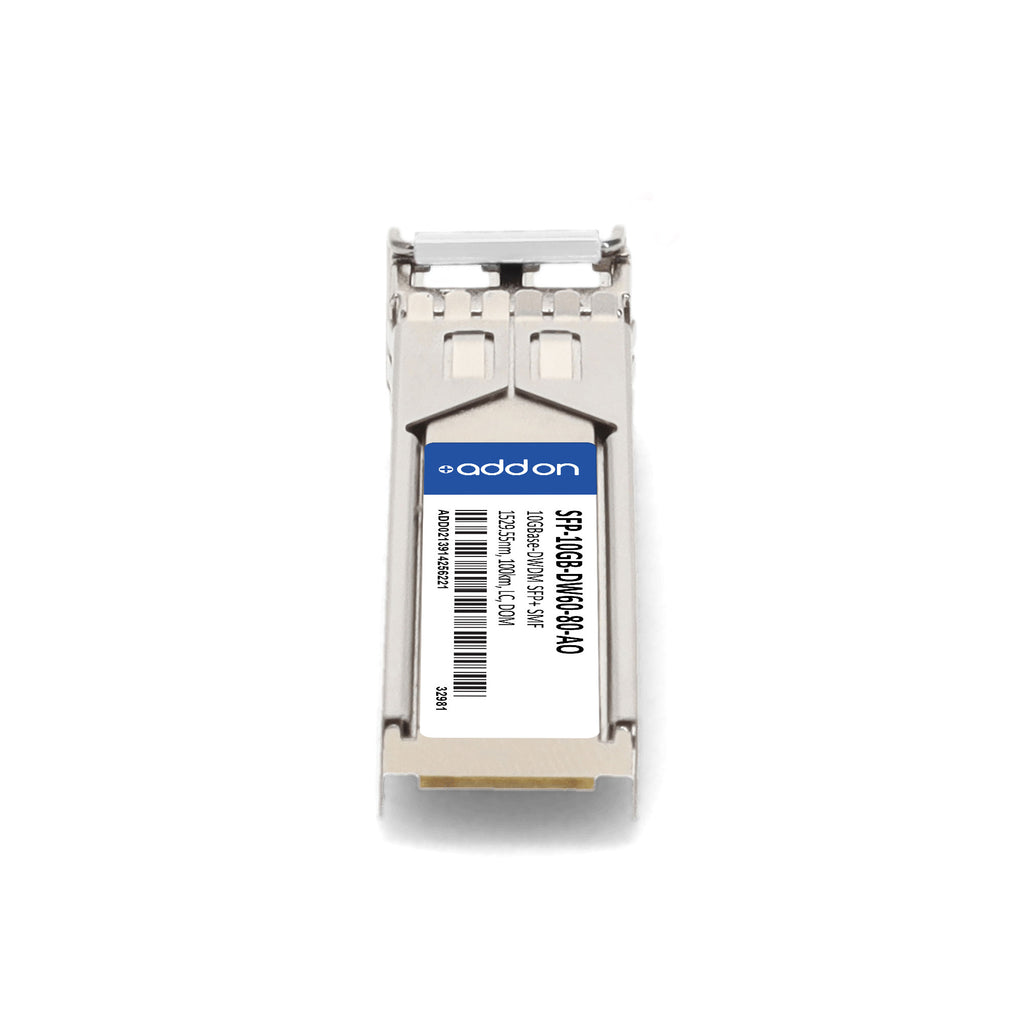

The AddOn SFP-10GB-DW60-80-AO is an MSA and TAA-compliant 10GBase-DWDM SFP+ transceiver that delivers reliable high-speed connectivity up to 80 km over single-mode fiber (SMF) using a 1529.55nm wavelength. Designed for seamless integration, it supports Digital Optical Monitoring (DOM), providing real-time access to critical operating parameters for improved network management.
Built with a temperature-stabilized EML transmitter and APD receiver, this transceiver ensures superior performance in demanding data center, enterprise, and telecom applications. It features a duplex LC connector, hot-pluggable design, excellent ESD protection, and is fully RoHS compliant and lead-free. AddOn’s rigorous testing and limited lifetime warranty guarantee reliability and compatibility with your networking infrastructure.
| Specification | Details |
|---|---|
| Form Factor | SFP+ (Hot-Pluggable) |
| Data Rate | Up to 11.3 Gbps |
| Transmission Distance | Up to 80 km |
| Wavelength | 1529.55 nm (ITU Channel 60, C-Band, 100GHz spacing) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Optical Power Output | 0 to +4 dBm |
| Receiver Sensitivity | -24 dBm |
| Power Consumption | 1.5W (typical) |
| Compliance | MSA, SFF-8432, SFF-8472, TAA, RoHS |
| Bit Error Rate (BER) | < 1 x 10⁻¹² |
| Dimensions | Standard SFP+ |
| Weight | 16.5 g (Module only) |
| Warranty | Limited Lifetime Warranty |
