Description

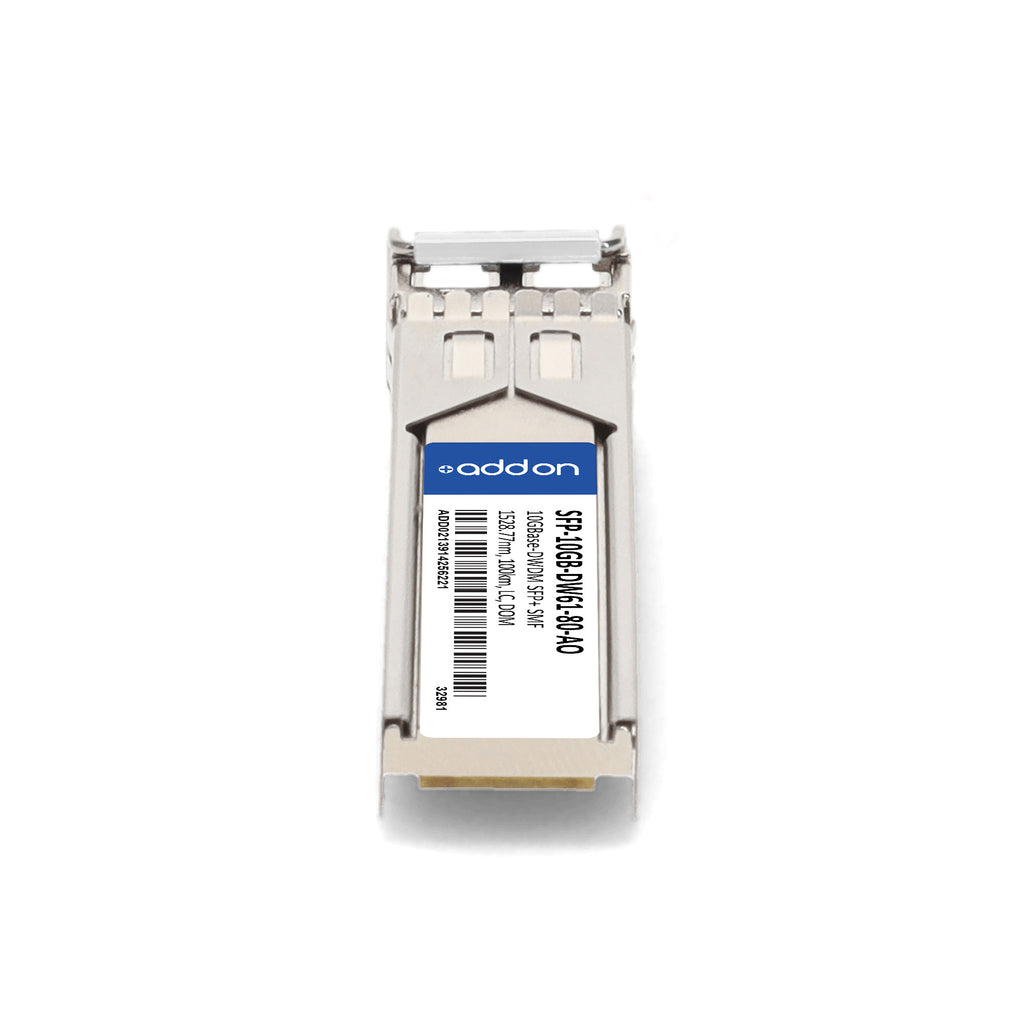

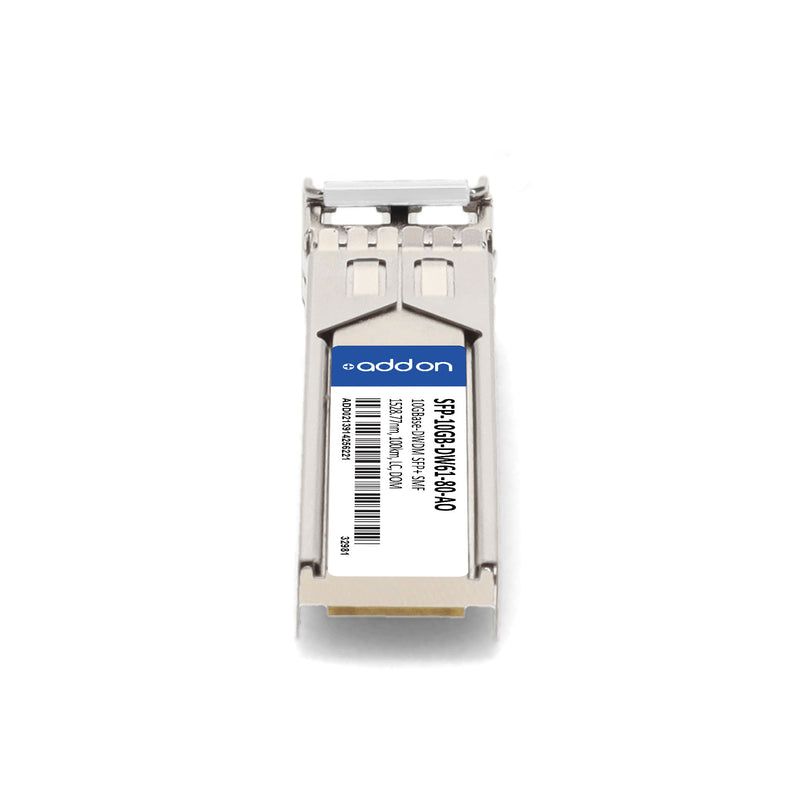

The AddOn SFP-10GB-DW61-80-AO is an MSA and TAA compliant 10GBase-DWDM SFP+ transceiver designed for reliable high-speed data transmission. It delivers up to 80km reach over single-mode fiber (SMF) using a 1528.77nm wavelength with an LC duplex connector. Built to meet SFF-8432 and SFF-8472 standards, this hot-pluggable module features a temperature-stabilized EML transmitter, APD receiver, and advanced digital optical monitoring (DOM) for real-time performance tracking.
Ideal for 10G Ethernet over DWDM, 8G/10G Fibre Channel, access, and enterprise applications, this transceiver ensures seamless integration with existing network equipment. AddOn backs its reliability with RoHS compliance, strong ESD protection, and a limited lifetime warranty, making it a cost-effective and dependable choice for mission-critical networks.
| Specification | Details |
|---|---|
| Form Factor | SFP+ (Hot-Pluggable) |
| Data Rate | Up to 10.3125 Gbps |
| Reach/Distance | Up to 80 km |
| Wavelength | 1528.77 nm (ITU Channel 61, 196.1 THz) |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Transmitter Type | Temperature-stabilized EML |
| Receiver Type | APD |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Case Temperature | 0°C to 70°C |
| Power Consumption | 1.5 W (typical) |
| Optical Output Power | 0 to +4 dBm |
| Receiver Sensitivity | -24 dBm |
| Extinction Ratio | ≥ 9 dB |
| Compliance | MSA, SFF-8432, SFF-8472, RoHS, TAA |
| Applications | 10G Ethernet over DWDM, 8/10G Fibre Channel, Enterprise, Access Networks |
| Warranty | Limited Lifetime Warranty |
