Description

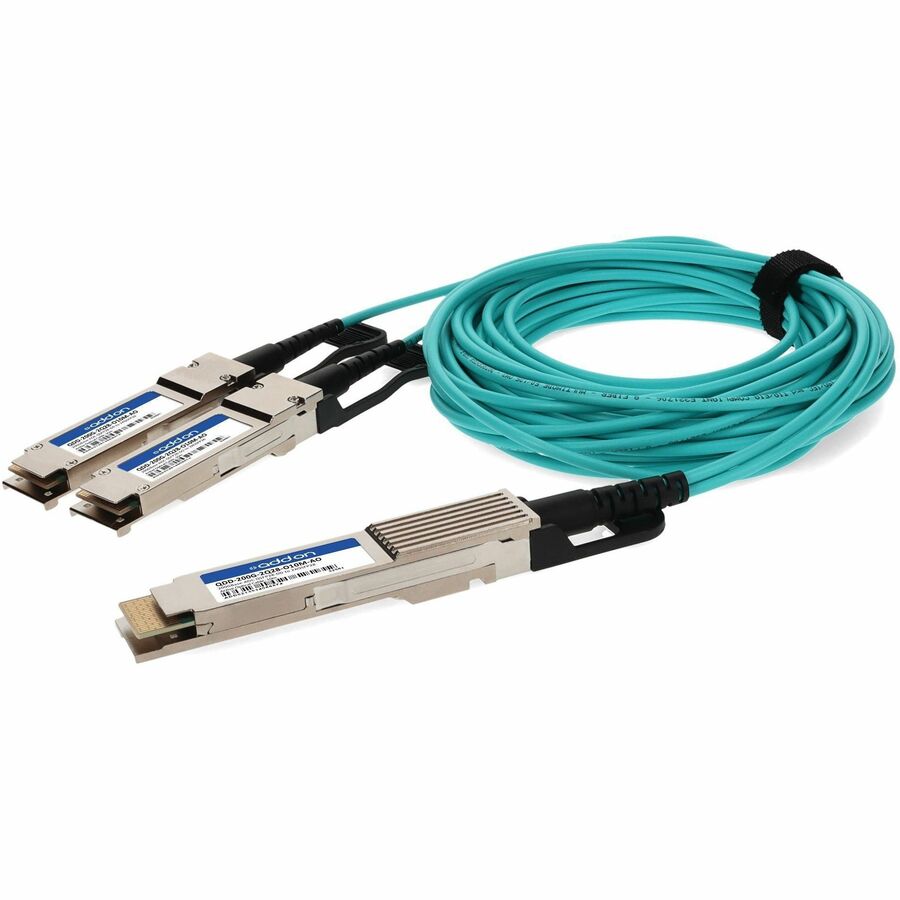

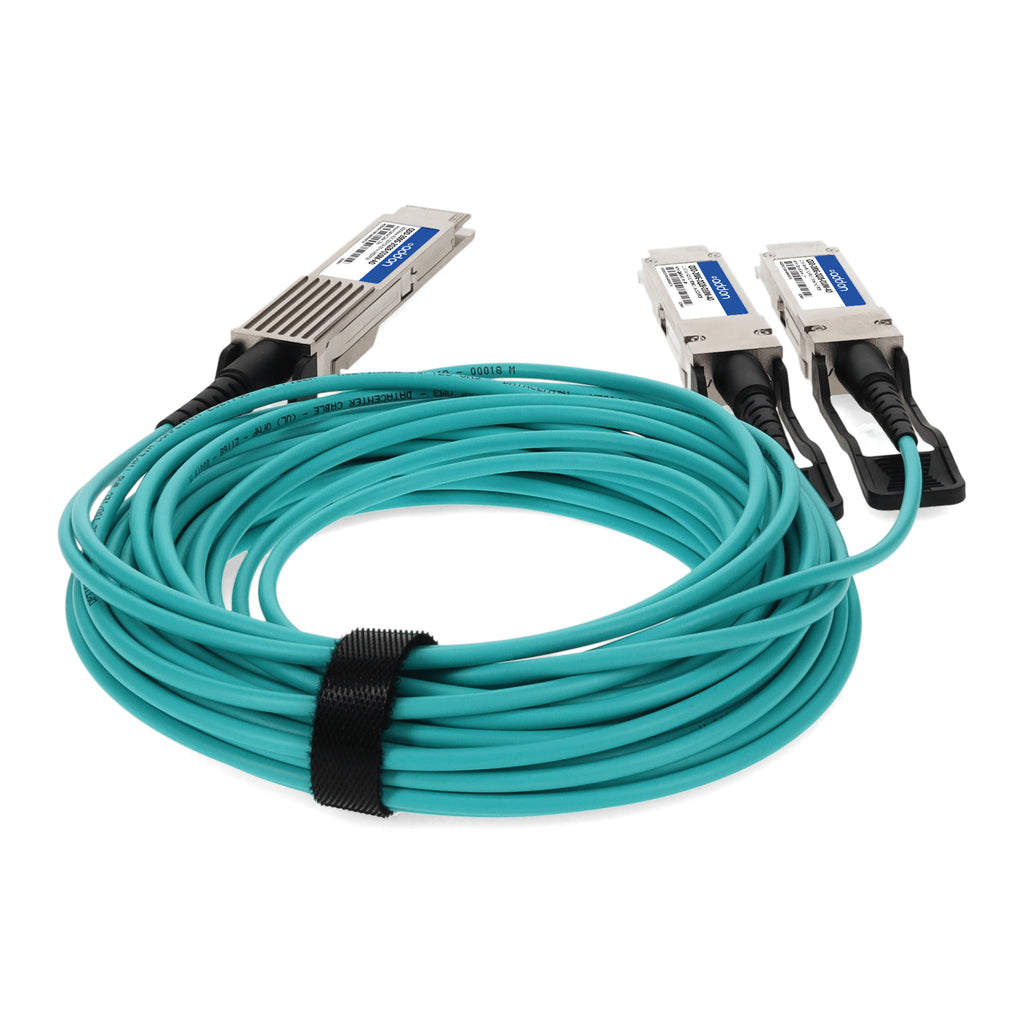

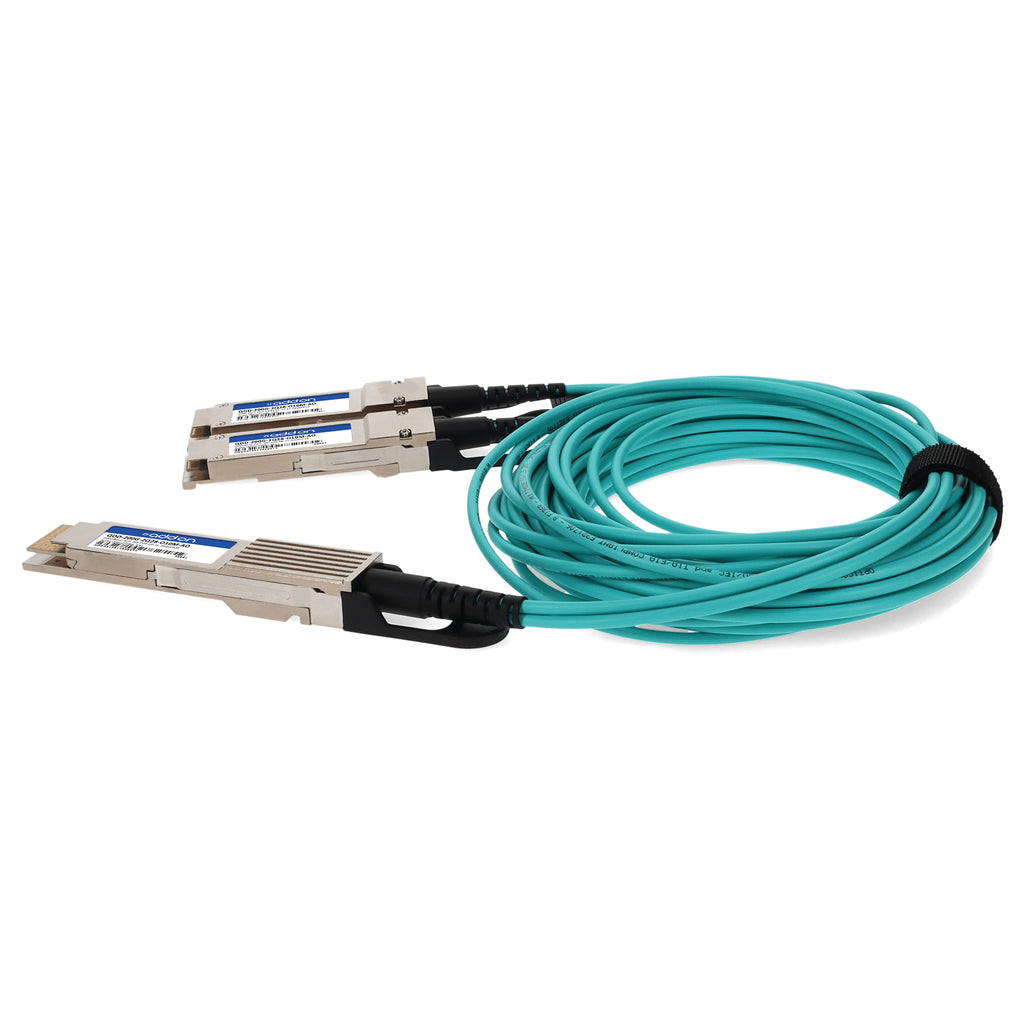

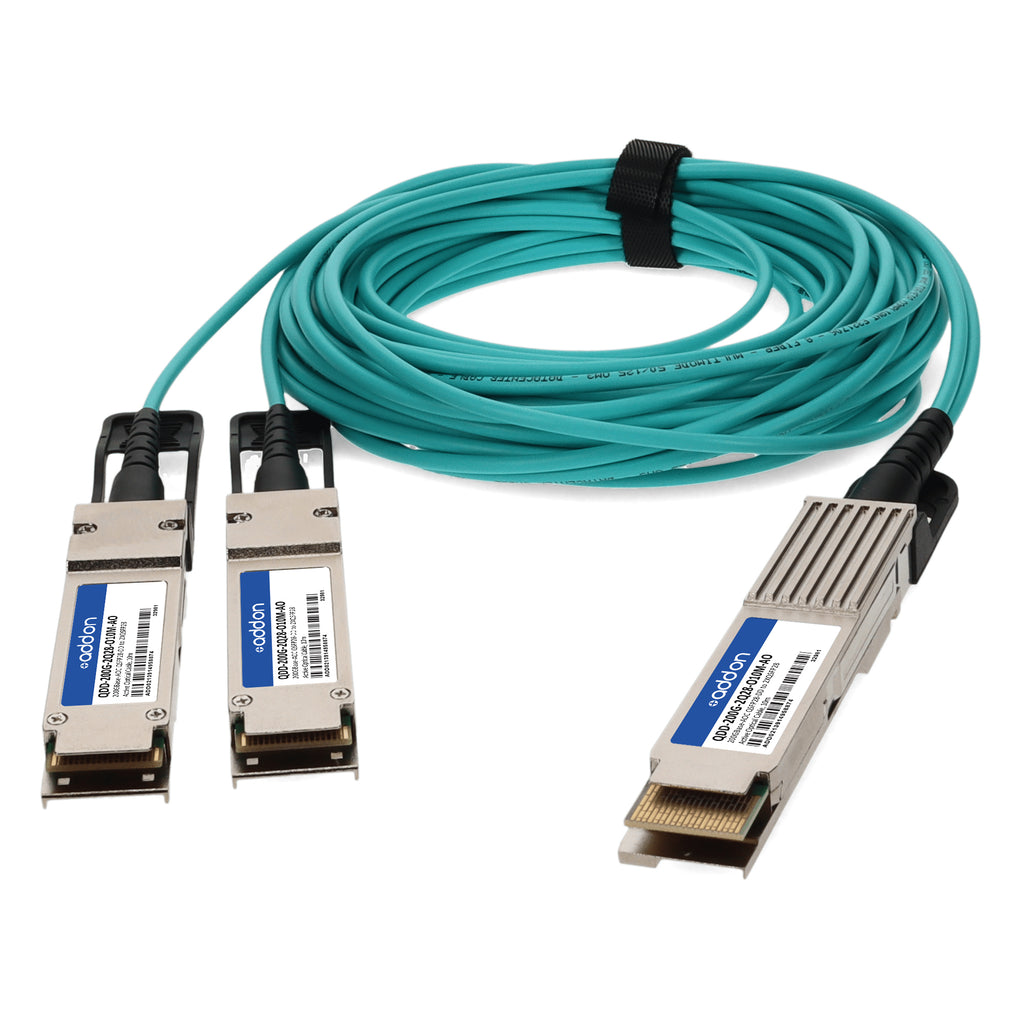

The AddOn QDD-200G-2Q28-O10M-AO is a high-performance, MSA-compliant 200GBase active optical cable designed to deliver reliable, high-speed connectivity for data center, enterprise, and high-performance computing (HPC) environments. Featuring a QSFP28-DD to 2xQSFP28 NRZ breakout design, this active optical cable operates at a wavelength of 850nm over multimode fiber (MMF) with a maximum reach of 10 meters. It supports up to 25.78 Gbps per channel and provides two independent full-duplex channels, ensuring optimal data throughput and signal integrity. Engineered for energy efficiency, it consumes only 3.3W on the QSFP28-DD end and 1.65W on the QSFP28 end, making it ideal for scalable, high-density network deployments. Fully compliant with TAA and MSA standards, this cable is hot-pluggable, OFNP-rated, RoHS/REACH compliant, and TUV certified—guaranteeing safety, performance, and reliability in mission-critical applications.
| Specification | Description |
|---|---|
| SKU | QDD-200G-2Q28-O10M-AO |
| Product Type | 200GBase Active Optical Cable |
| Form Factor | QSFP28-DD to 2xQSFP28 NRZ |
| Wavelength | 850nm |
| Cable Length | 10 meters |
| Fiber Type | Multimode Fiber (MMF) |
| Cable Jacket | OFNP-rated (Aqua) |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Total Data Rate | 200 Gbps |
| Full-Duplex Channels | 2 |
| Power Consumption | 3.3W (QSFP28-DD), 1.65W (QSFP28) |
| Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Minimum Bend Radius | 30 mm (without tension), 60 mm (under tension) |
| Length Tolerance | +300 / -0 mm |
| Compliance | MSA, TAA, RoHS, REACH |
| Certifications | TUV Certified |
| Applications | 100Gigabit Ethernet, InfiniBand EDR, Data Centers, HPC Interconnects |
| Warranty | Limited Lifetime Warranty |
