Description

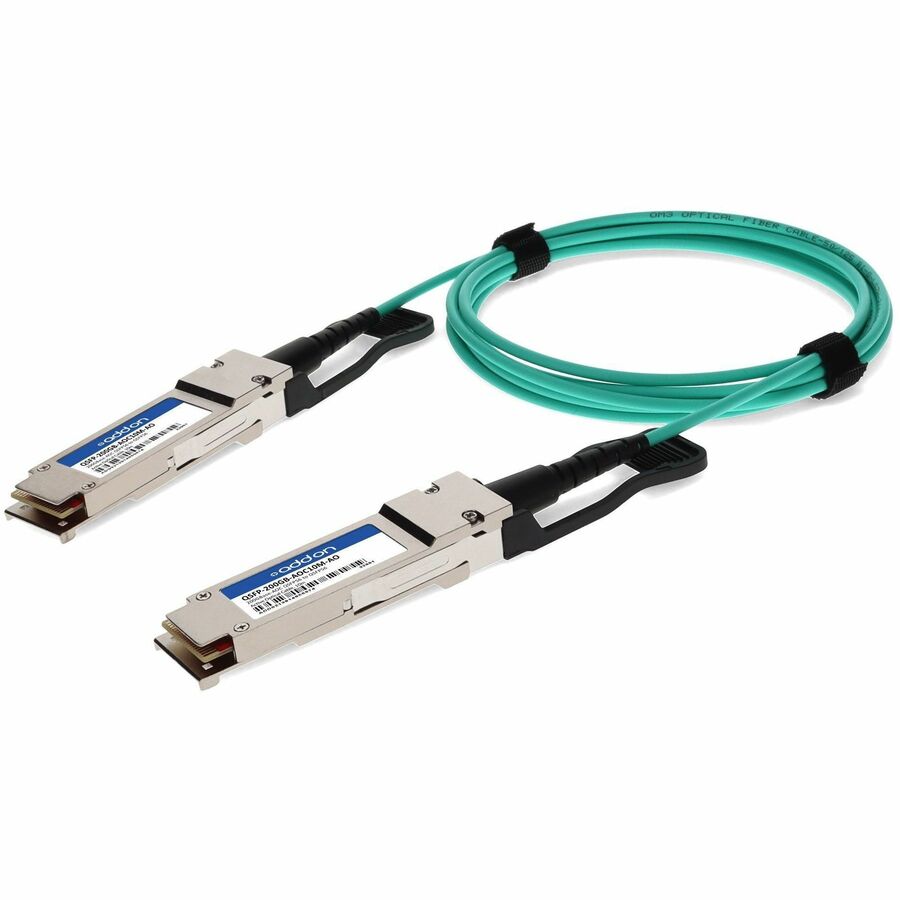

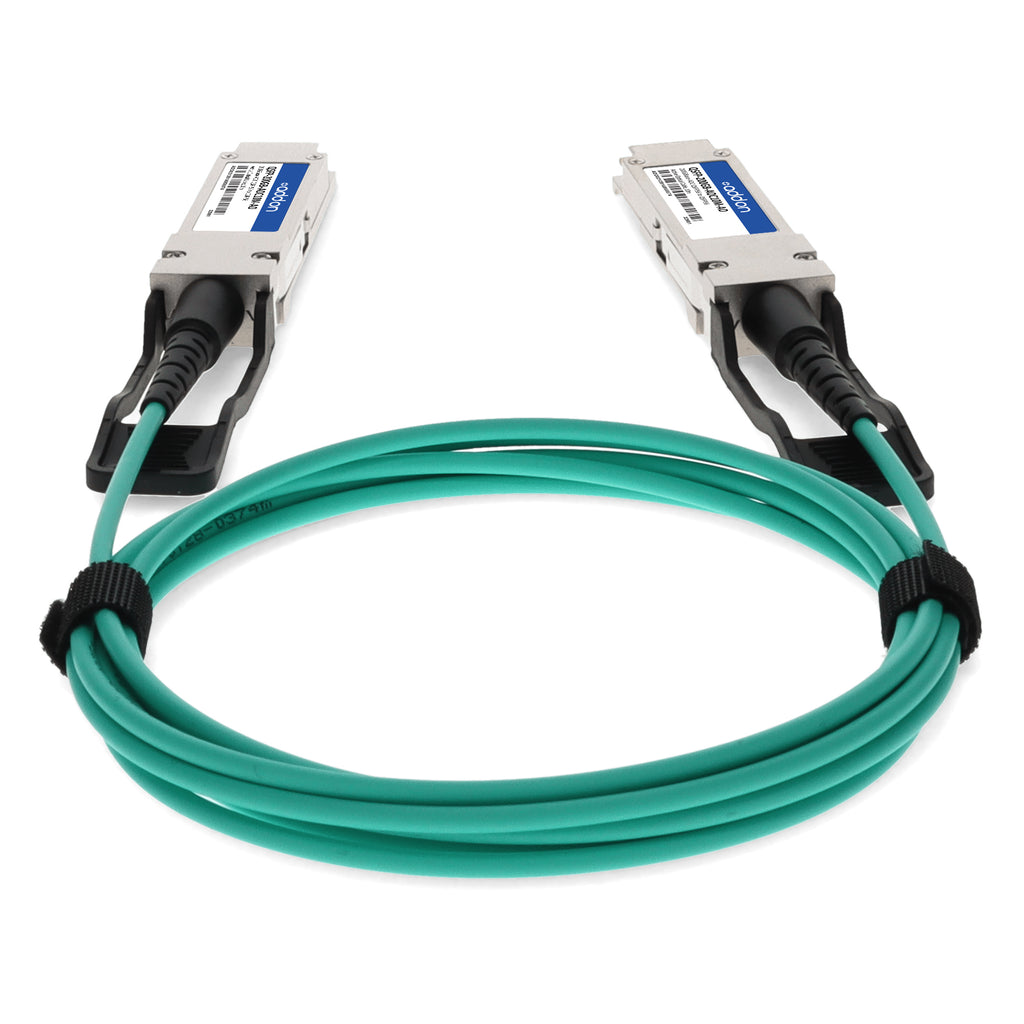

The AddOn QSFP-200GB-AOC10M-AO is a MSA and TAA compliant 200GBase-AOC QSFP56 to QSFP56 active optical cable designed for high-performance data center connectivity. It operates over multimode fiber (MMF) with a maximum reach of 10 meters and uses PAM4 modulation with a 53.125 Gbps per lane data rate. This plug-and-play AOC features low latency DSP-free electronics, CDR-enabled power efficiency, and FEC support for enhanced signal integrity.
Engineered for data center applications including servers, switches, storage, and NIC adapters, it complies with IEEE 802.3cd 200GBASE-SR4 standards. With a low power consumption of 3.6 W per cable end, hot-pluggable design, and LSZH or LSZH/OFNR-rated cable, this solution ensures robust, scalable, and environmentally safe deployments. Each unit is programmed, uniquely serialized, and application-tested to guarantee 100% functionality, and comes backed by AddOn’s limited lifetime warranty.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| Part Number (SKU) | QSFP-200GB-AOC10M-AO |
| Product Type | Active Optical Cable (AOC) |
| Data Rate | 200 Gbps (53.125 Gbps per lane, PAM4) |
| Interface | QSFP56 to QSFP56 |
| Wavelength | 850 nm |
| Cable Type | Multimode Fiber (MMF) |
| Cable Length | 10 m |
| Cable Jacket | LSZH or LSZH/OFNR, Aqua |
| Compliance | MSA, TAA, IEEE 802.3cd 200GBASE-SR4, SFF-8665 |
| Power Supply Voltage | 3.13 V – 3.47 V (typ. 3.3 V) |
| Power Consumption | 3.6 W per cable end (with CDR enabled) |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5% – 85% |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Minimum Bend Radius | 30 mm |
| Length Tolerance | +300 mm / -0 mm |
| Hot-Pluggable | Yes |
| FEC Support | Yes |
| RoHS Compliance | Yes, lead-free |
| Applications | Data center servers, switches, storage, NIC adapters |
