Description

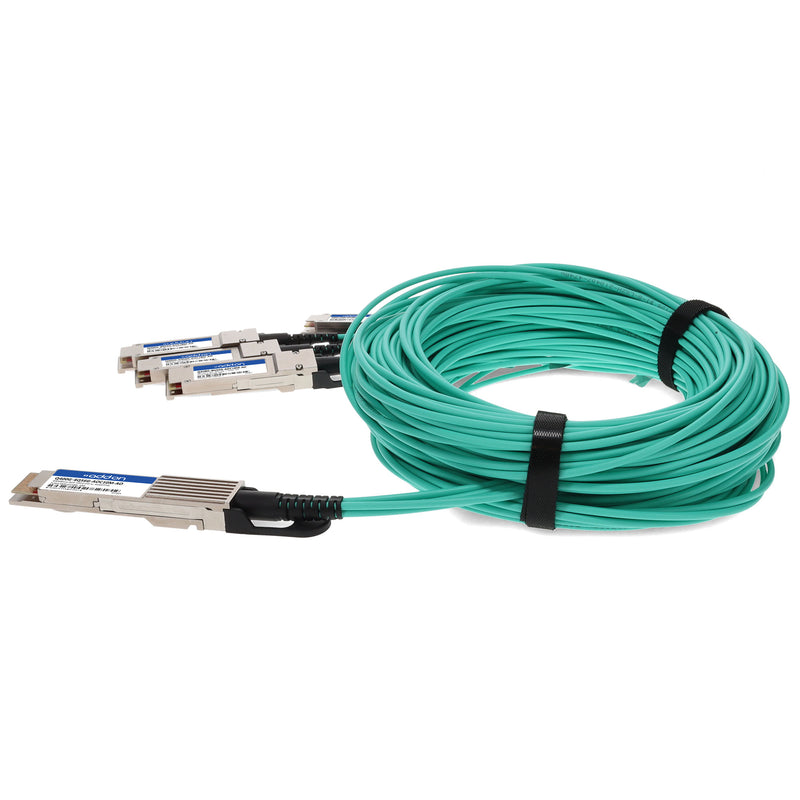

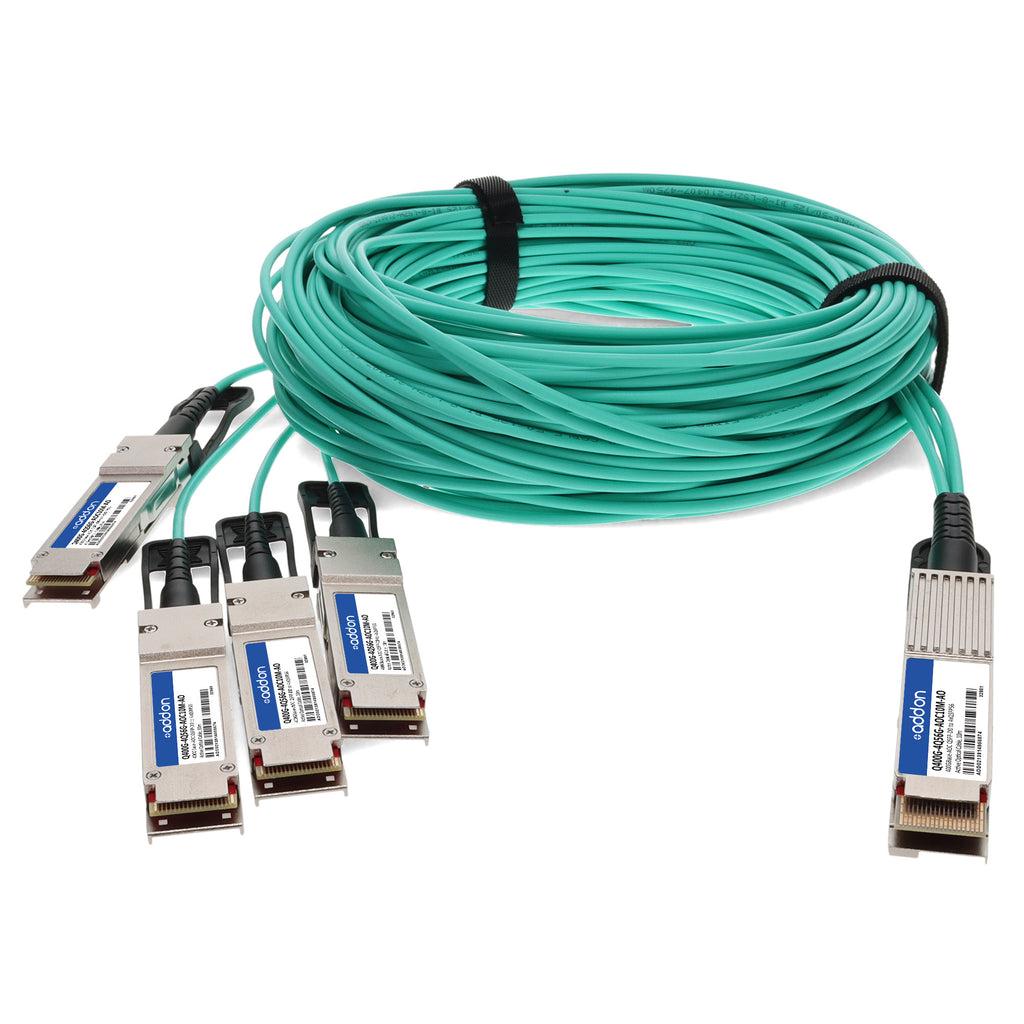

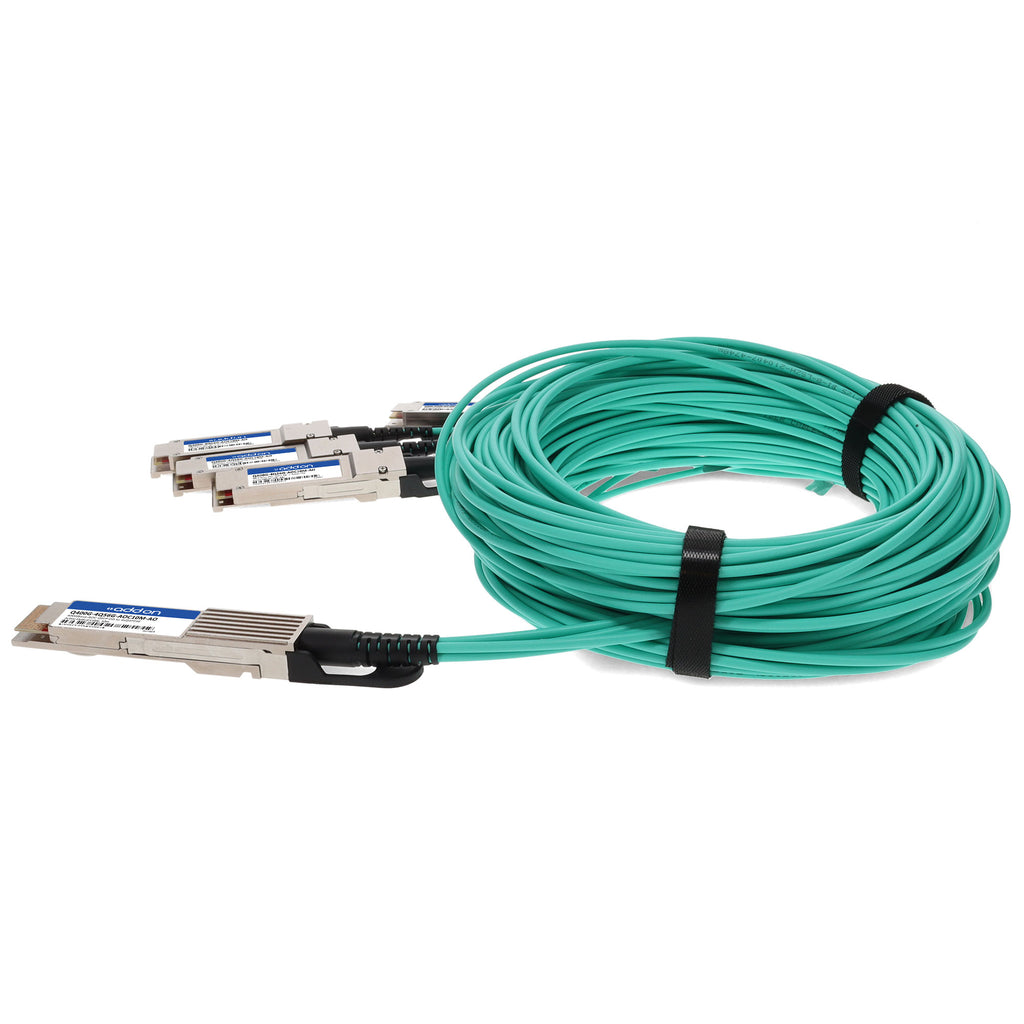

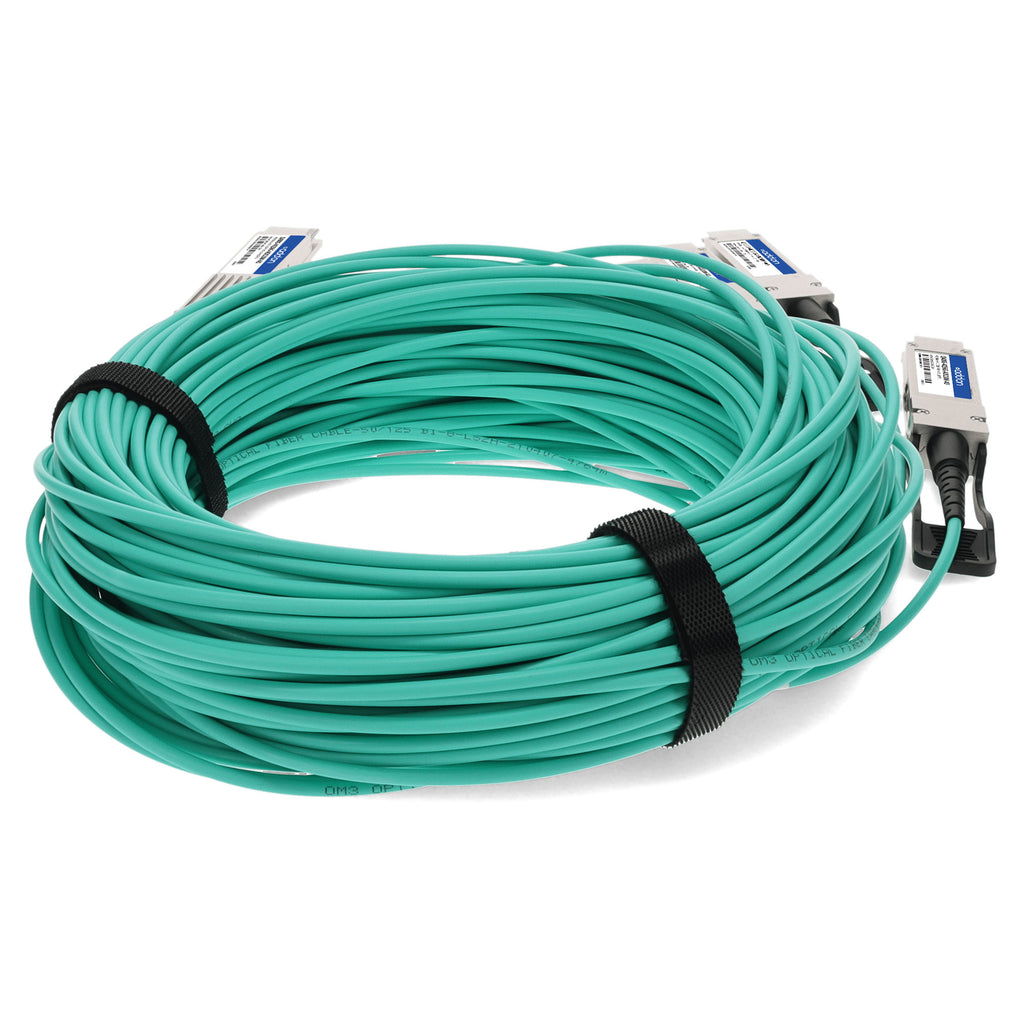

The AddOn Q400G-4Q56G-AOC10M-AO is a MSA and TAA compliant 400GBase Active Optical Cable designed for high-speed interconnects in modern data centers. This QSFP-DD to 4xQSFP56 PAM4 AOC operates over multi-mode fiber (MMF) with a maximum reach of 10 meters, delivering exceptional performance for 400G Ethernet connectivity between switches, servers, storage systems, and network adapters.
Featuring low-latency, DSP-free CDR electronics and PAM4 modulation, it supports data rates up to 56.15 Gb/s per lane with minimal power consumption — 7.6W on the 400G end and 2.3W on the 100G ends. Built to meet CMIS 4.0, IEEE 802.3cm, and QSFP-DD MSA standards, this hot-pluggable, LSZH-rated cable ensures reliable, high-density connectivity while complying with TAA trade requirements. Each unit is programmed, uniquely serialized, and rigorously tested for full interoperability and performance, backed by AddOn’s limited lifetime warranty.
| Parameter | Specification |
|---|---|
| Part Number | Q400G-4Q56G-AOC10M-AO |
| Form Factor | QSFP-DD to 4xQSFP56 |
| Data Rate | Up to 400Gbps aggregate (56.15 Gb/s per lane) |
| Cable Type | Active Optical Cable (AOC) |
| Cable Length | 10m (32.8ft) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Wavelength | 850nm |
| Modulation | PAM4 |
| Connector Type | QSFP-DD (400G) to 4xQSFP56 (100G) |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) |
| Power Supply Voltage | 3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Bit Error Rate (BER) | ≤ 2.4 × 10⁻⁴ (Pre-FEC) |
| Compliance | QSFP-DD MSA, CMIS 4.0, IEEE 802.3cm, RoHS, TAA |
| Features | DSP-free CDR, Hot-pluggable, LSZH-rated cable |
| Applications | 400G Ethernet switches, servers, storage, NIC adapters |
| Warranty | Limited Lifetime Warranty |
