Description

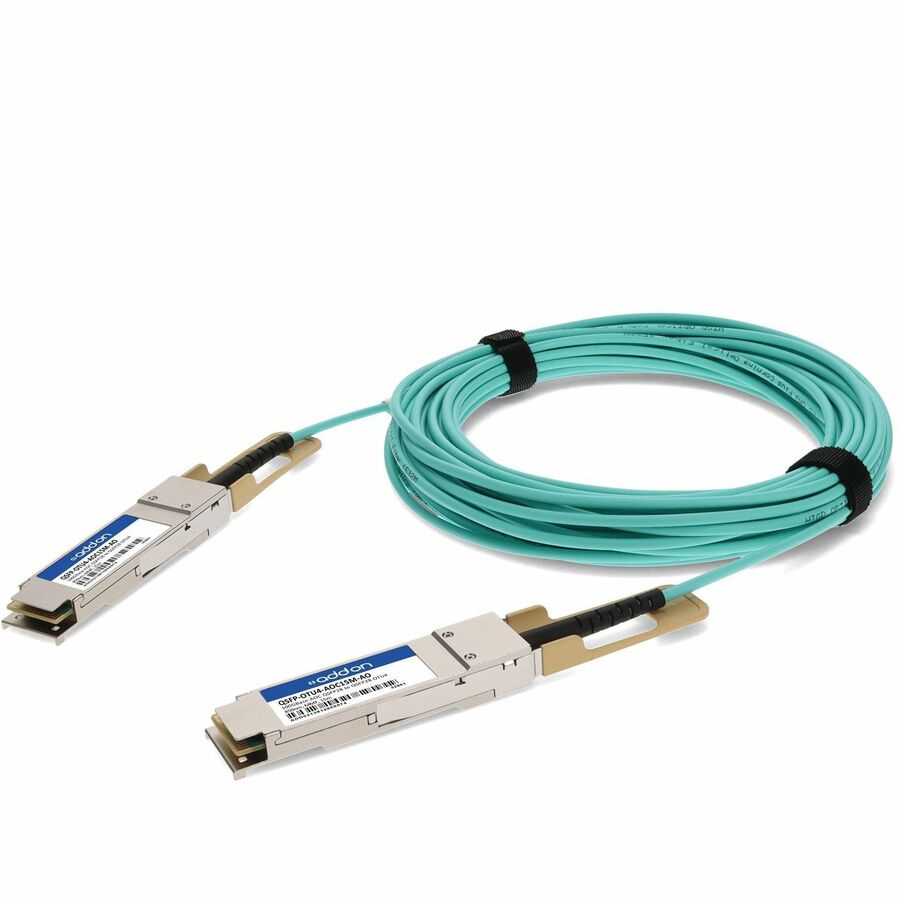

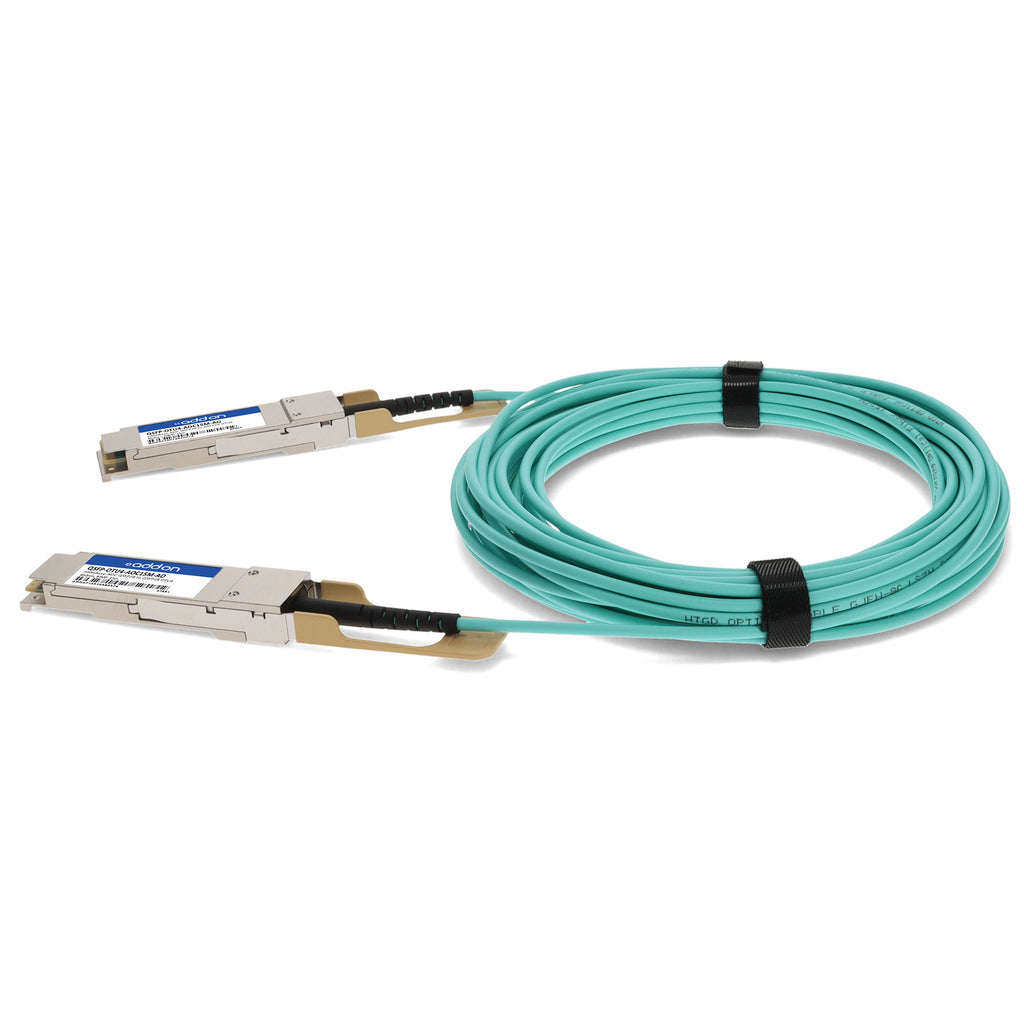

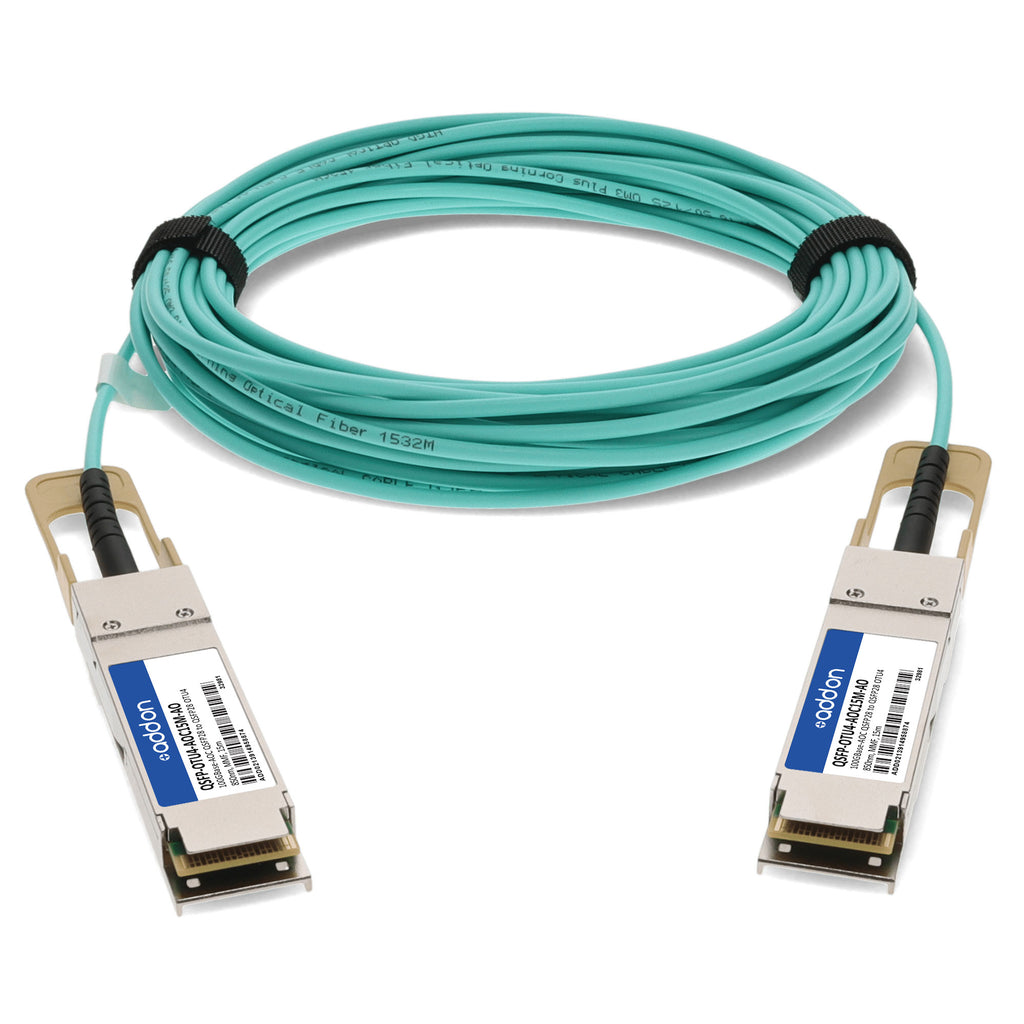

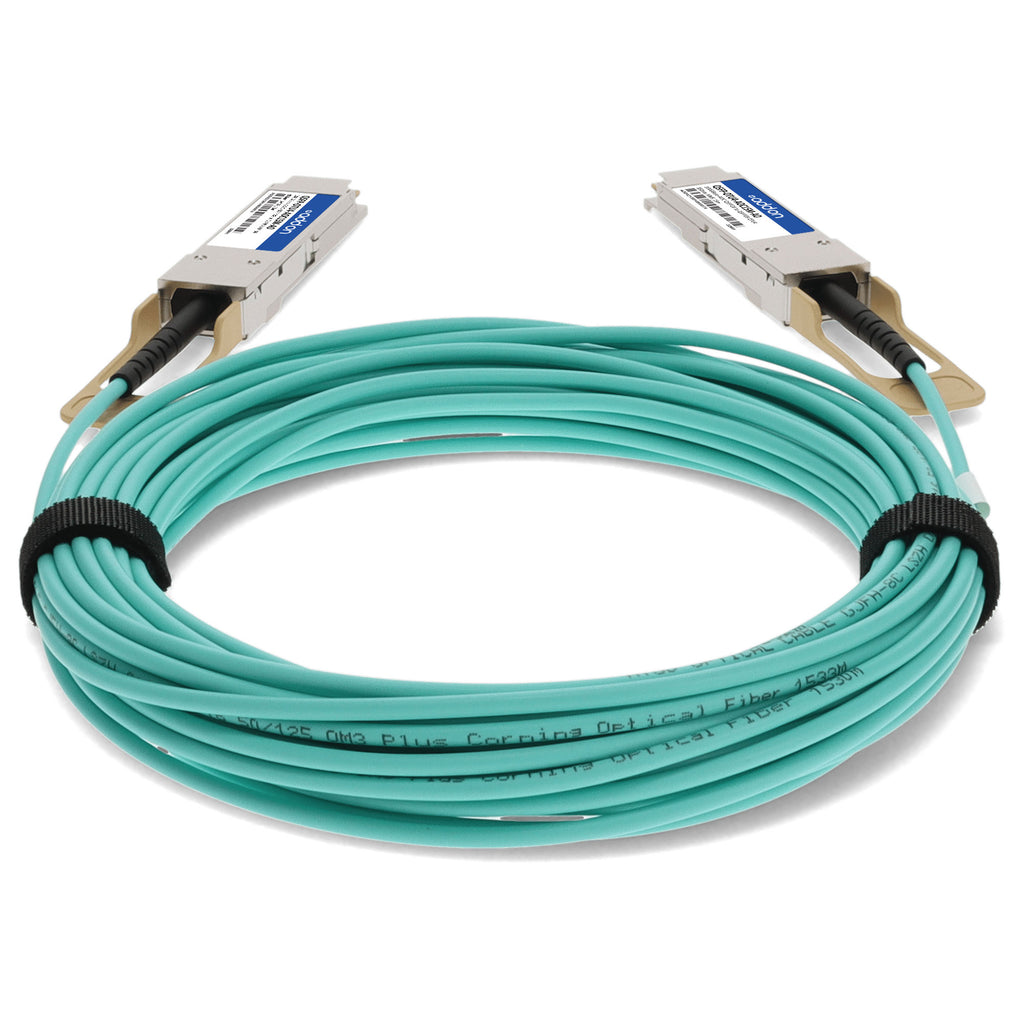

The AddOn QSFP-OTU4-AOC15M-AO is a TAA-compliant, MSA-standard 100GBase-OTU4 QSFP28 to QSFP28 active optical cable designed for high-speed data center and network applications. Operating over multi-mode fiber at an 850nm wavelength, this cable provides a maximum reach of 15 meters and supports up to 4x28 Gbps bi-directional operation. Built with reliable VCSEL and PIN photonic devices, it ensures excellent high-speed signal integrity while maintaining low power consumption of less than 2.5W. With automatic power-down for enhanced eye safety, standard I2C management, and superior signal performance, this AOC is ideal for 100G Ethernet, OTU4 transport, high-performance computing, and server or storage interconnects. Each unit is uniquely serialized, rigorously tested, and backed by AddOn’s limited lifetime warranty for guaranteed compatibility and reliability.
| Parameter | Specification |
|---|---|
| SKU | QSFP-OTU4-AOC15M-AO |
| Form Factor | QSFP28 to QSFP28 |
| Data Rate | Up to 4x28 Gbps bi-directional |
| Application | 100GBase-OTU4, 100G Ethernet, High-Performance Computing, Server & Storage |
| Wavelength | 850nm |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Maximum Reach | 15m |
| Compliance | MSA, TAA, RoHS |
| Power Consumption | < 2.5W |
| Operating Temperature | 0°C to 70°C |
| Supply Voltage | 3.135V – 3.465V |
| Optical Return Loss Tolerance | 12 dB |
| Differential Input Impedance | 100 Ω |
| Pre-Emphasis Pulse Amplitude | 10%, 20%, 40% (user selectable) |
| Rise/Fall Time | 24 ps |
| Receiver Overload | 2.5 dBm |
| Damage Threshold | 3.4 dBm |
| Management Interface | I2C |
| Safety Feature | Automatic power-down on cable disconnect |
| Warranty | Limited Lifetime Warranty |
