Description

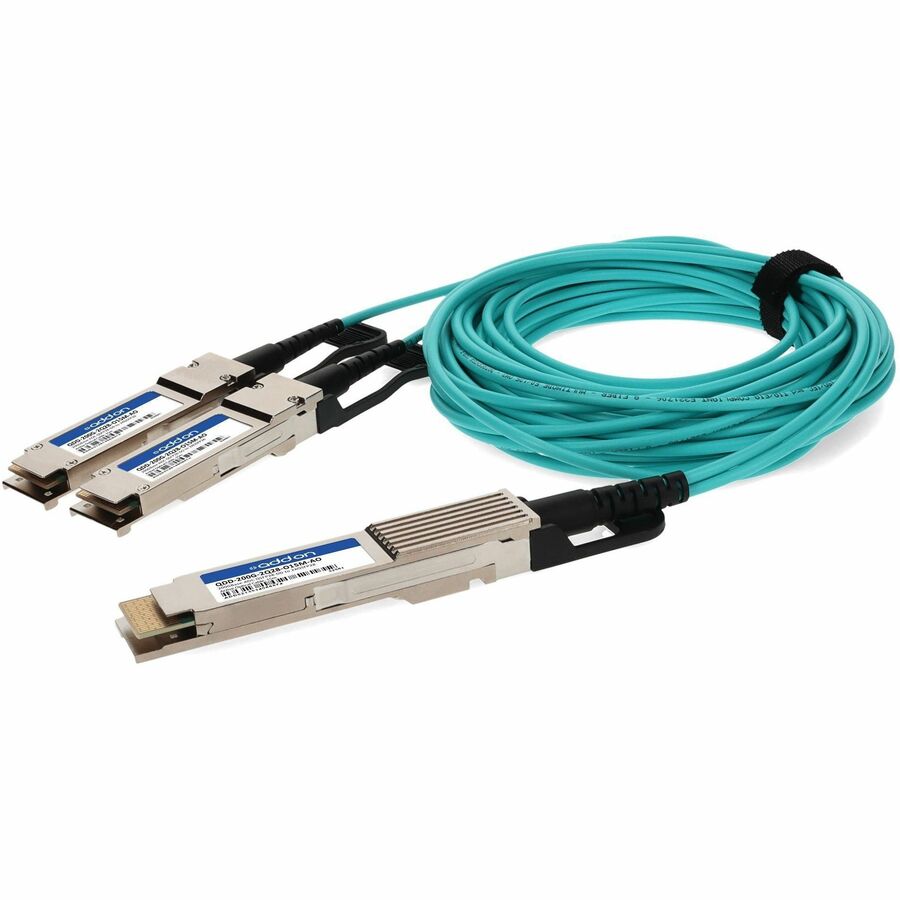

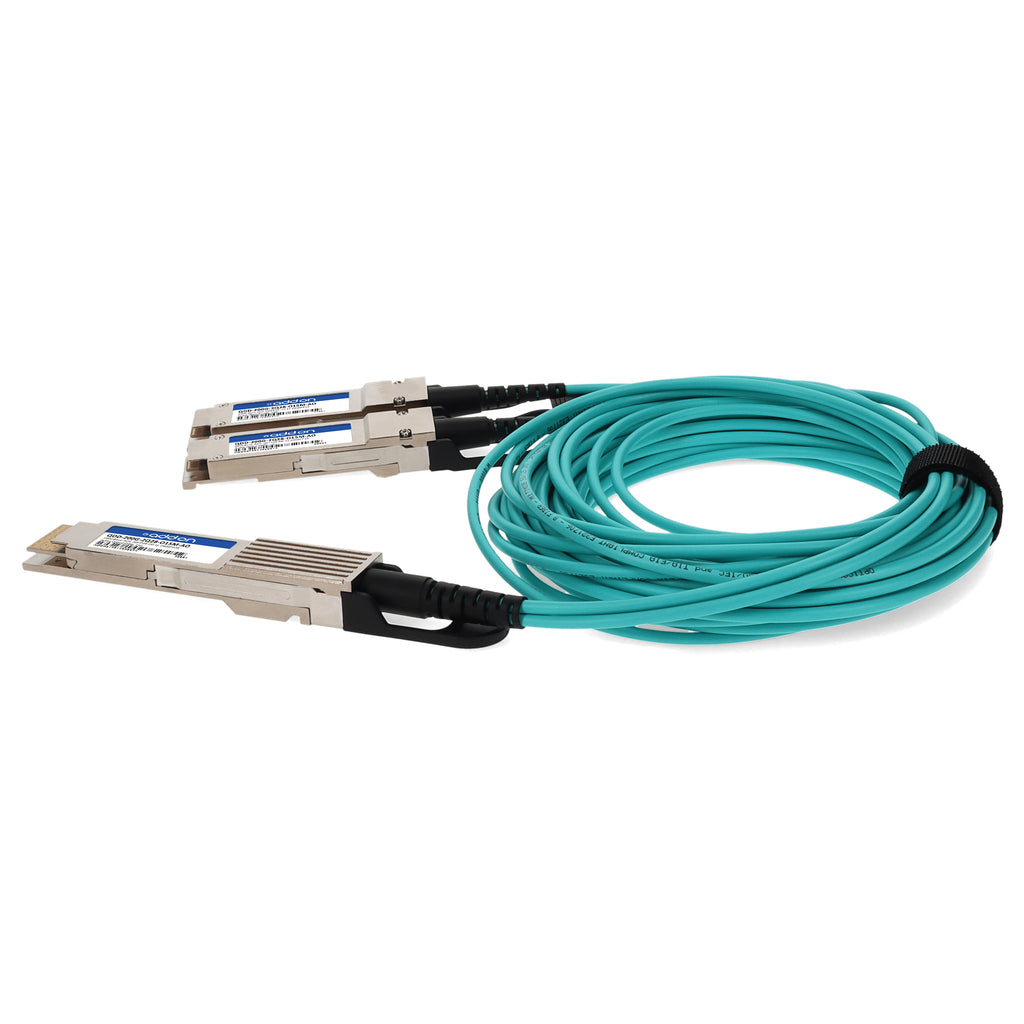

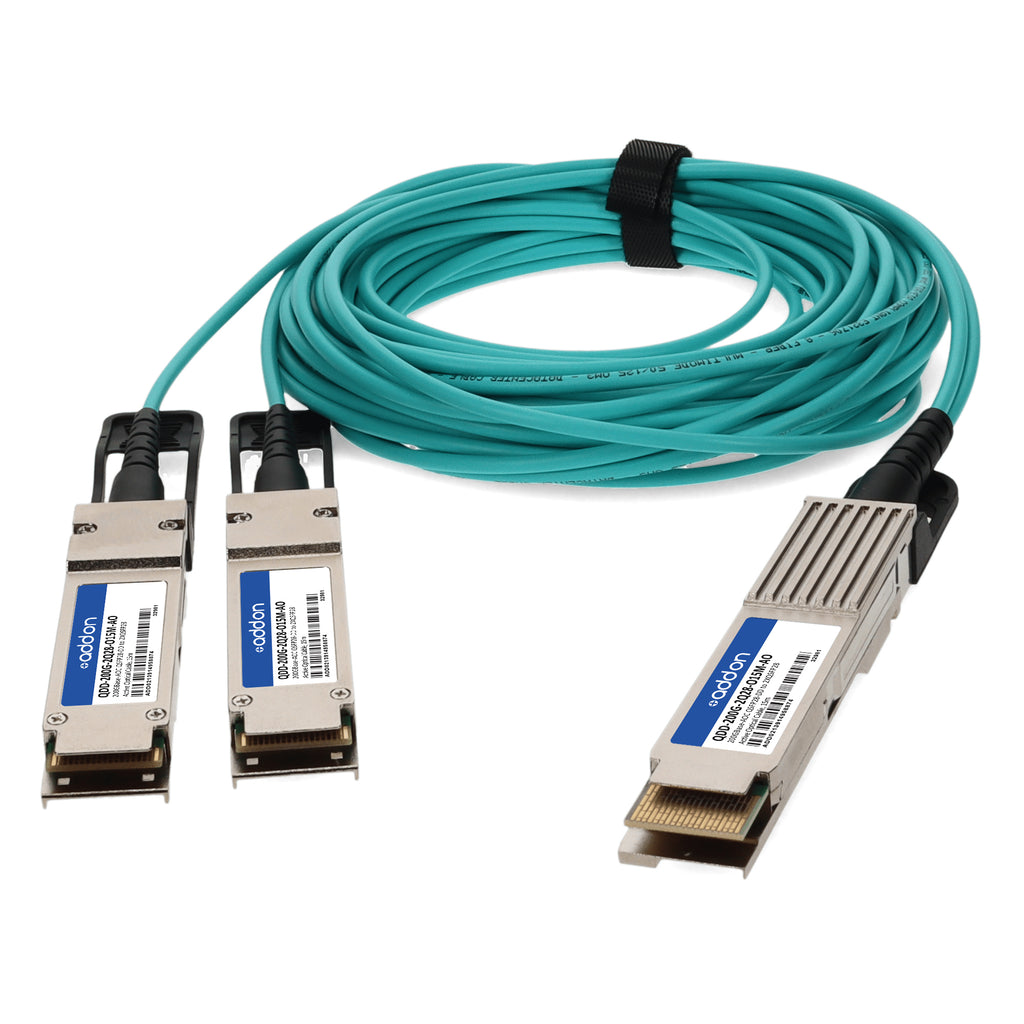

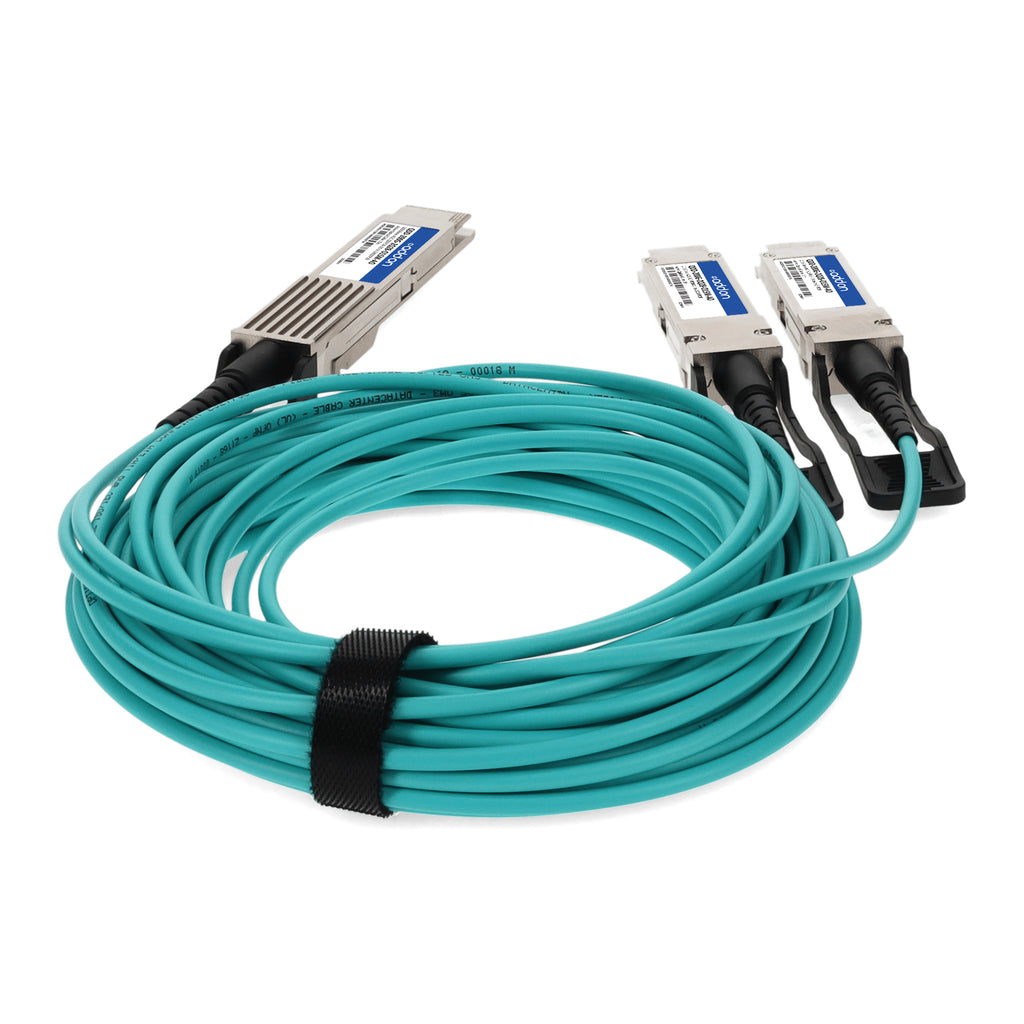

The AddOn QDD-200G-2Q28-O15M-AO is an MSA and TAA compliant 200GBase-AOC active optical cable designed for high-performance data center, HPC, and enterprise networking environments. This breakout cable connects a single QSFP28-DD port to two QSFP28 ports, delivering 200Gbps aggregate bandwidth over multimode fiber (MMF) with a maximum reach of 15 meters. Operating at a wavelength of 850nm, it supports up to 25.78 Gbps per channel in NRZ modulation, ensuring reliable, low-latency transmission. With hot-pluggable connectors, low power consumption (3.3W on QSFP28-DD and 1.65W on QSFP28 ends), and OFNP-rated cable construction, this AOC offers optimal performance, safety, and ease of deployment. It is ideal for 100GbE, InfiniBand EDR, and proprietary HPC interconnections. Each cable is uniquely serialized, rigorously tested, and backed by a limited lifetime warranty for dependable, long-term use.
| Specification | Details |
|---|---|
| SKU | QDD-200G-2Q28-O15M-AO |
| Brand | AddOn |
| Form Factor | QSFP28-DD to 2xQSFP28 Active Optical Cable |
| Data Rate per Channel | Up to 25.78 Gbps |
| Aggregate Data Rate | 200 Gbps |
| Wavelength | 850 nm |
| Cable Length | 15 m |
| Fiber Type | Multimode Fiber (OM3) |
| Connector Type | QSFP28-DD to 2x QSFP28 |
| Modulation | NRZ |
| Power Consumption | 3.3 W (QSFP28-DD end), 1.65 W (QSFP28 end) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Supply Voltage | 3.13 – 3.47 V |
| Relative Humidity | 0 – 85% |
| Cable Jacket | OFNP-rated (Aqua) |
| Minimum Bend Radius | 30 mm (no tension), 60 mm (under tension) |
| Bit Error Rate (BER) | ≤ 10⁻¹² (pre-FEC) |
| Compliance | MSA, TAA, RoHS, REACH |
| Applications | 100GbE, InfiniBand EDR, Data Center, HPC |
| Warranty | Limited Lifetime Warranty |
