Description

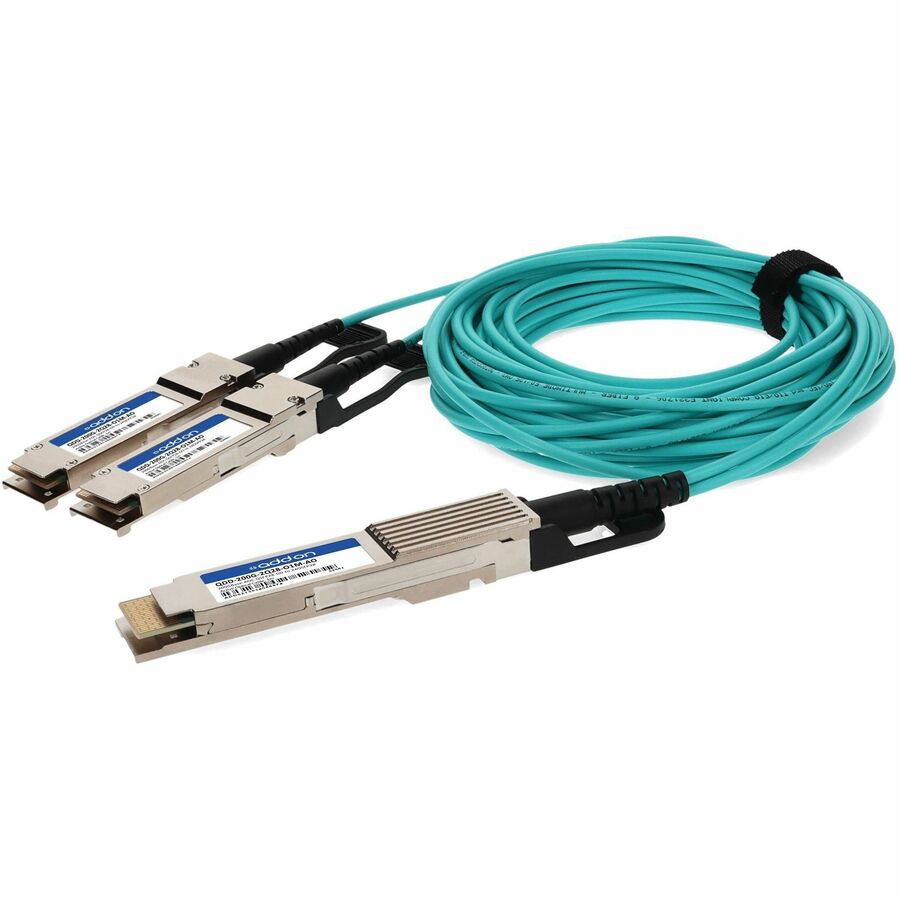

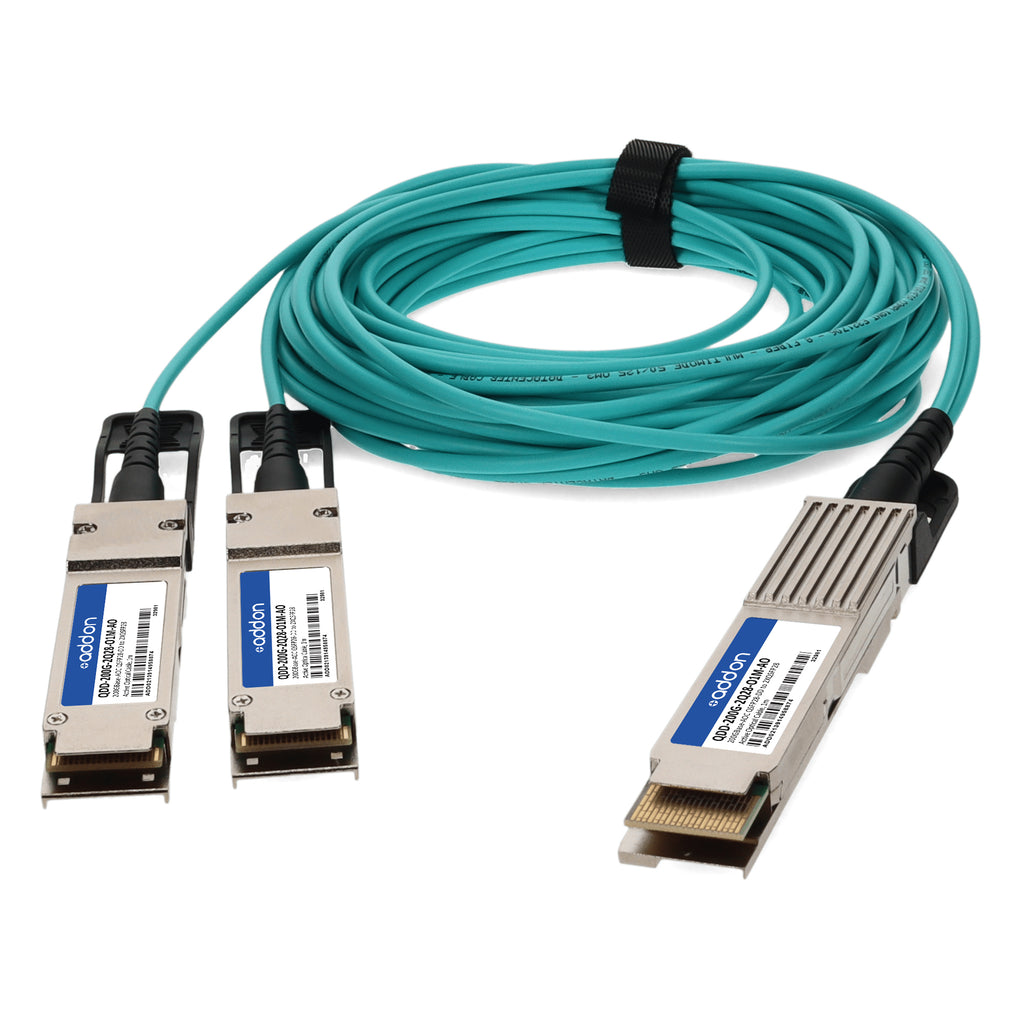

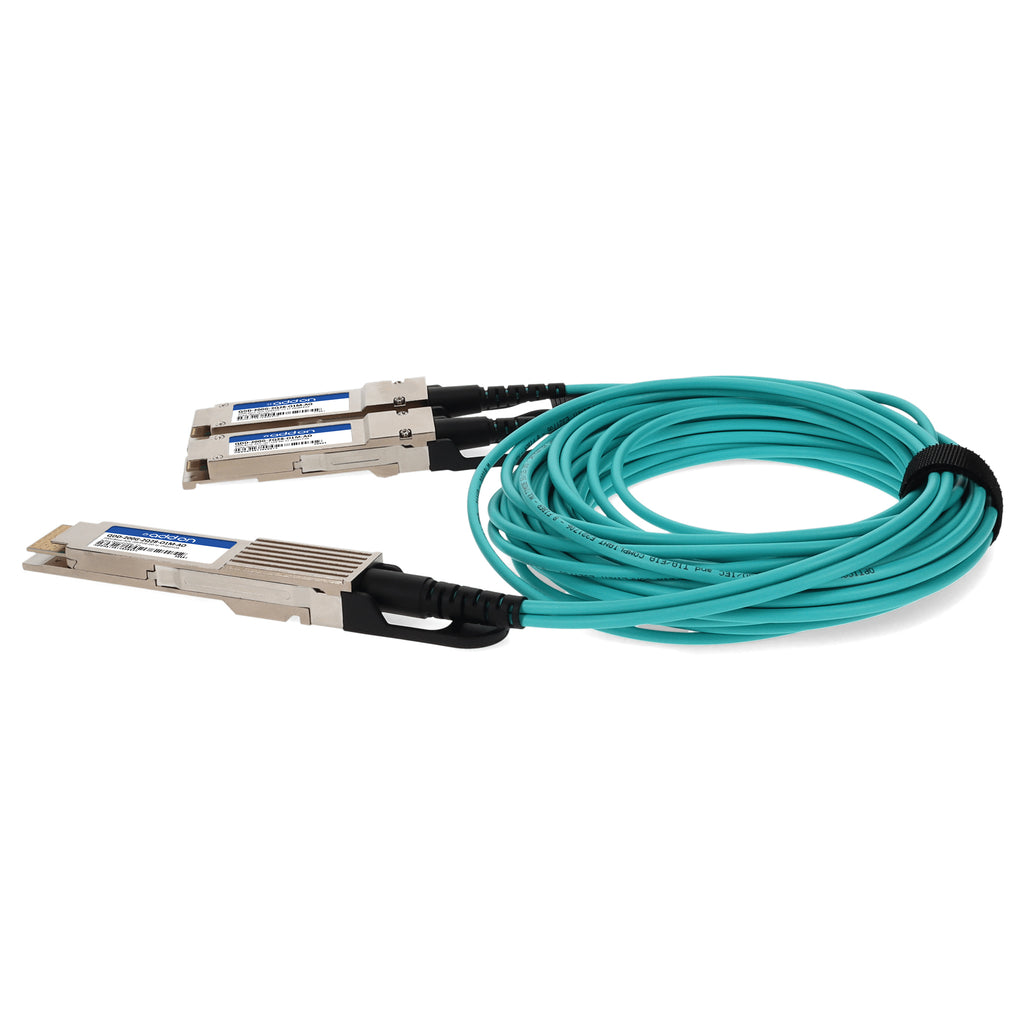

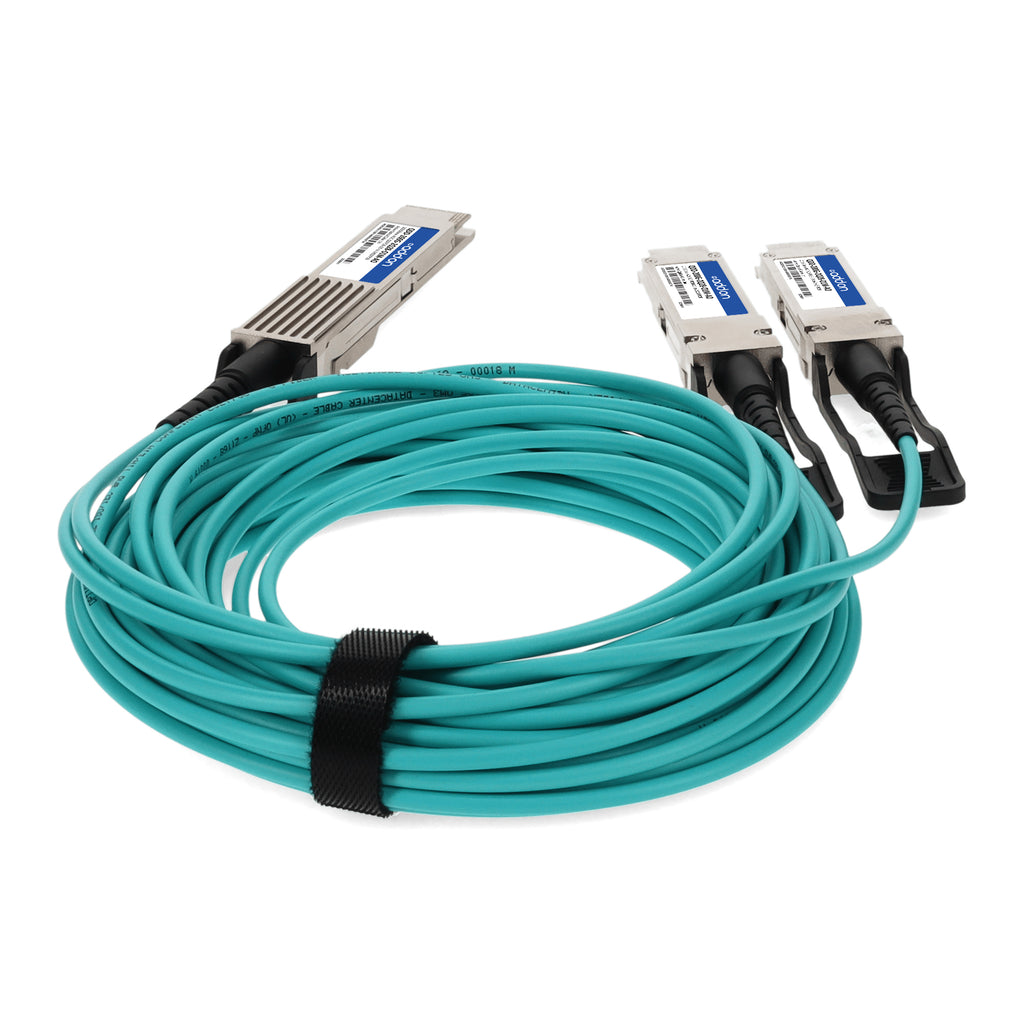

The AddOn QDD-200G-2Q28-O1M-AO is an MSA and TAA compliant 200GBase-AOC QSFP28-DD to 2xQSFP28 NRZ active optical cable designed for high-performance data transmission across short distances. Operating at 850nm over multimode fiber (MMF) with a maximum reach of 1 meter, this breakout cable supports up to 25.78 Gbps per channel across two independent full-duplex channels. It offers low power consumption (3.3W on the QSFP28-DD end and 1.65W on the QSFP28 end) and hot-pluggable connectivity for seamless deployment. Ideal for 100 Gigabit Ethernet, InfiniBand EDR, data center interconnects, and HPC environments, it meets rigorous MSA standards, ensuring full interoperability and reliability. Each cable is uniquely serialized, tested for data traffic and application performance, and backed by AddOn’s limited lifetime warranty for guaranteed quality and long-term performance.
| Specification | Details |
|---|---|
| SKU | QDD-200G-2Q28-O1M-AO |
| Cable Type | 200GBase-AOC QSFP28-DD to 2xQSFP28 NRZ Active Optical Cable |
| Compliance | MSA, TAA, RoHS, REACH |
| Connector Type | QSFP28-DD to 2xQSFP28 |
| Data Rate per Channel | Up to 25.78 Gbps |
| Total Data Rate | 200 Gbps |
| Wavelength | 850 nm |
| Fiber Type | OM3 Multimode Fiber (MMF) |
| Maximum Reach | 1 meter |
| Cable Jacket | OFNP-rated (Aqua) |
| Power Consumption | 3.3 W (QSFP28-DD end), 1.65 W (QSFP28 end) |
| Power Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Minimum Bend Radius | 30 mm (no tension), 60 mm (under tension) |
| Applications | 100Gigabit Ethernet, InfiniBand EDR, Datacenter, HPC Interconnections |
| Certification | TUV Certified |
| Warranty | Limited Lifetime Warranty |
