Description

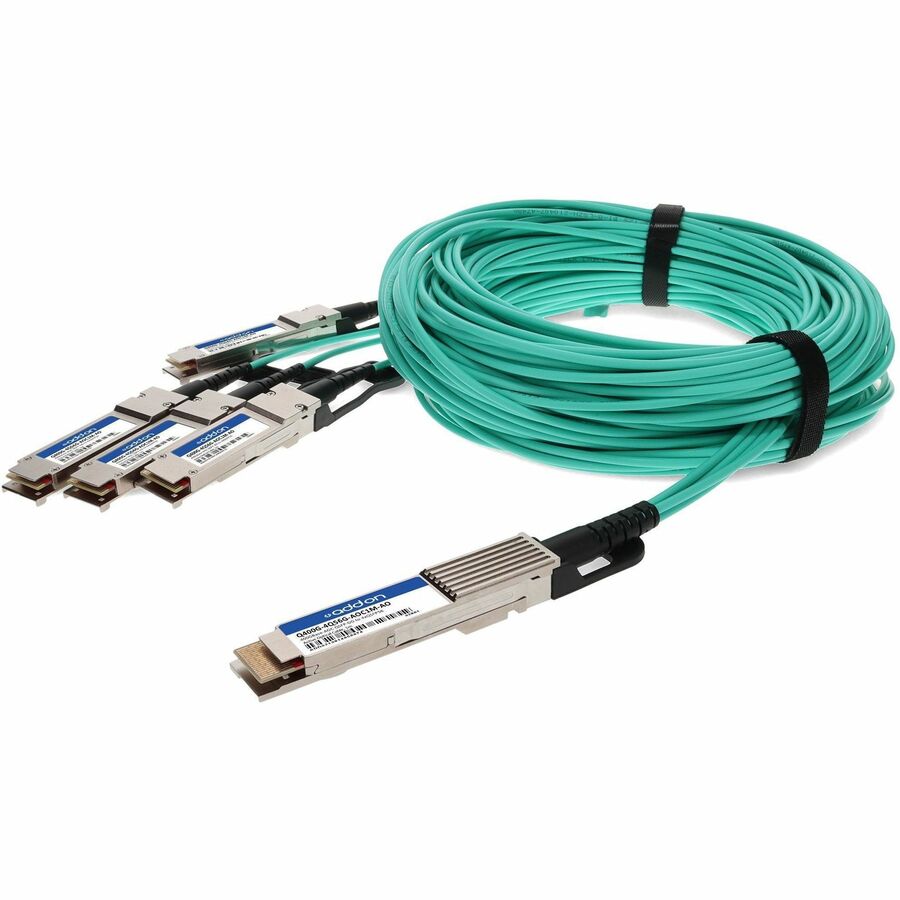

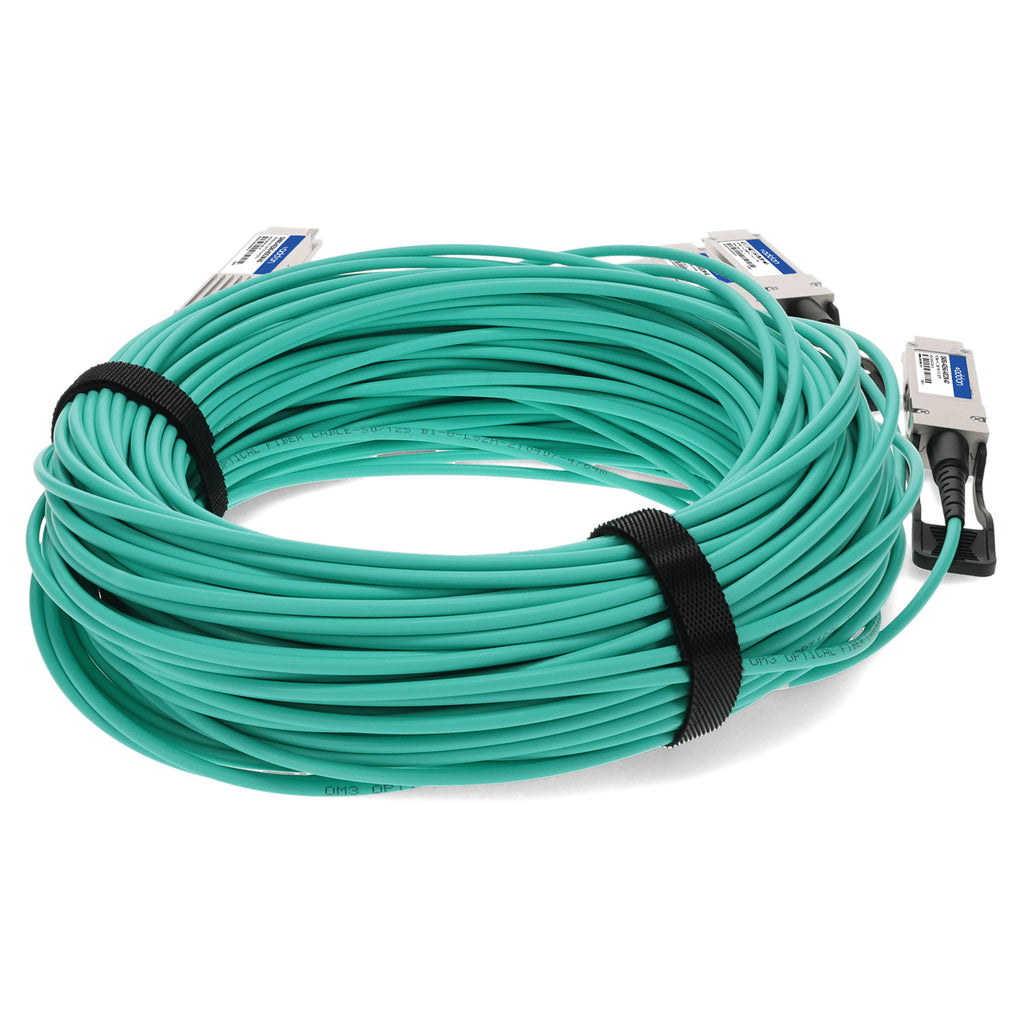

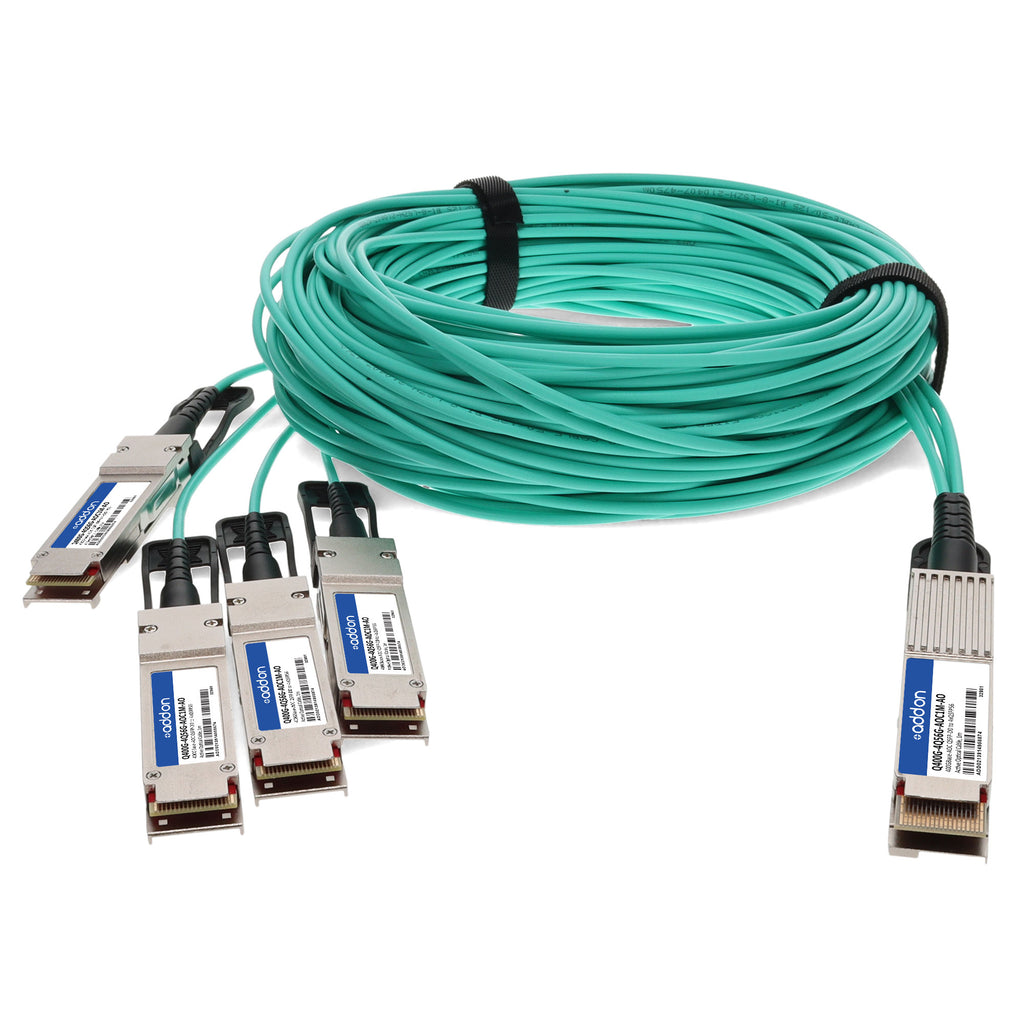

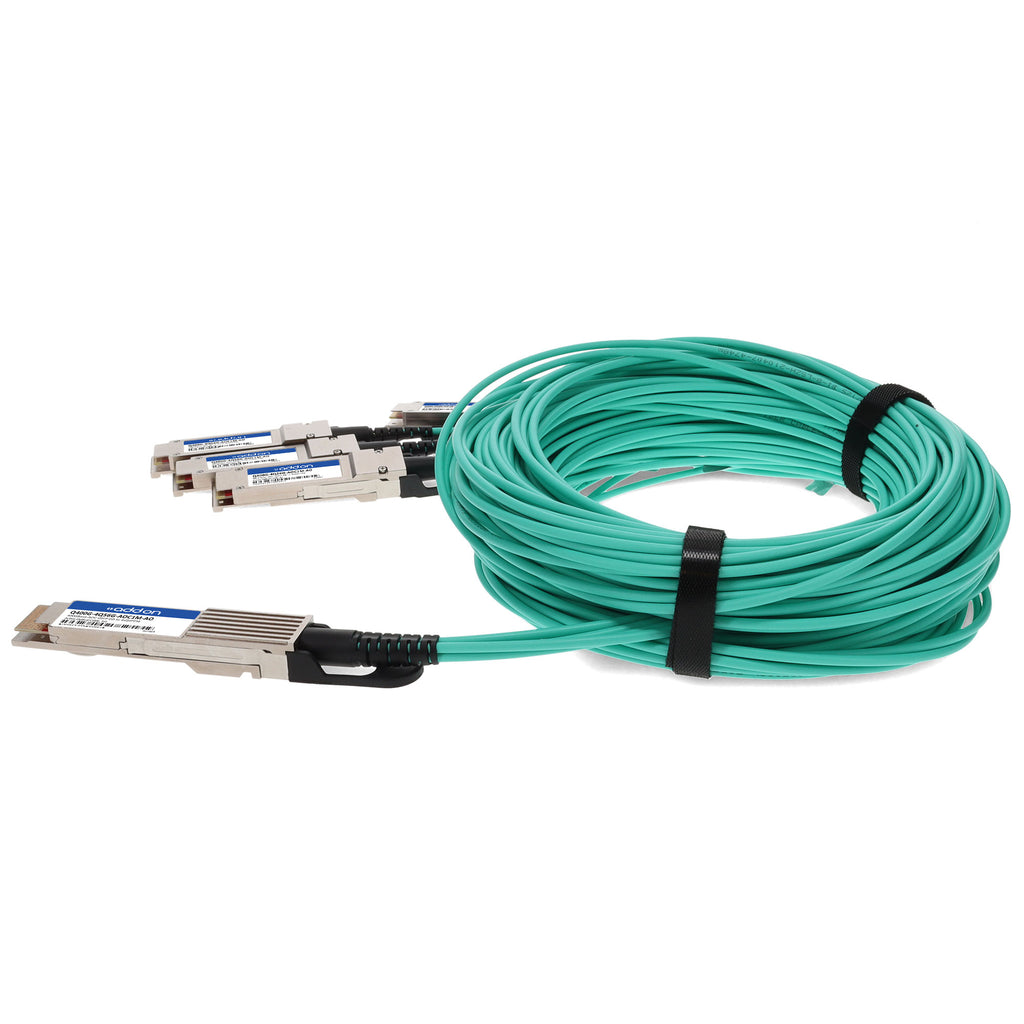

The AddOn Q400G-4Q56G-AOC1M-AO is a high-performance, MSA-compliant 400GBase active optical cable (AOC) designed for ultra-fast, high-density data center connectivity. This QSFP-DD to 4xQSFP56 AOC operates over multi-mode fiber (MMF) with a reach of up to 1 meter, delivering high bandwidth and low-latency interconnects for switches, servers, storage, and NIC adapters. Engineered with PAM4 modulation and low-latency DSP-free CDR technology, it supports data rates of up to 56.15 Gb/s per lane, ensuring exceptional performance and reliability. The cable is hot-pluggable, RoHS compliant, LSZH-rated, and fully TAA compliant, making it ideal for government and enterprise environments requiring secure, standards-based network infrastructure. Each unit is uniquely serialized, rigorously tested, and backed by AddOn’s limited lifetime warranty.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| SKU | Q400G-4Q56G-AOC1M-AO |
| Form Factor | QSFP-DD to 4xQSFP56 |
| Data Rate | Up to 400Gbps (56.15 Gb/s per lane) |
| Cable Type | Active Optical Cable (AOC) |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Wavelength | 850nm |
| Maximum Reach | 1 meter (3.3 feet) |
| Modulation | PAM4 |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) |
| Power Supply Voltage | 3.3V |
| Operating Temperature | 0°C to 70°C (Commercial) |
| Bit Error Rate (BER) | ≤ 2.4×10⁻⁴ (pre-FEC) |
| Compliance Standards | IEEE 802.3cm, MSA, CMIS 4.0, TAA, RoHS |
| Connector Type | QSFP-DD (400G) to 4x QSFP56 (100G) |
| Cable Jacket | LSZH, Aqua |
| Minimum Bend Radius | 30 mm |
| Hot Pluggable | Yes |
| Applications | 400G Ethernet, Switches, Servers, NICs, Data Centers |
| Warranty | Limited Lifetime Warranty |
