Description

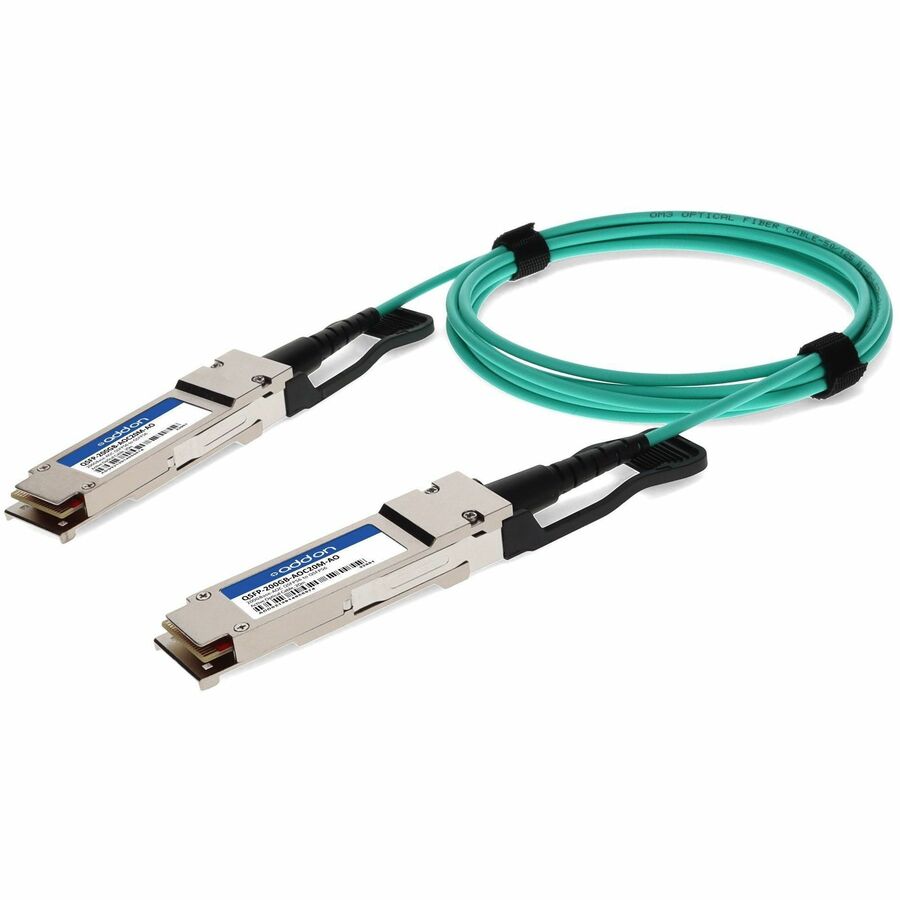

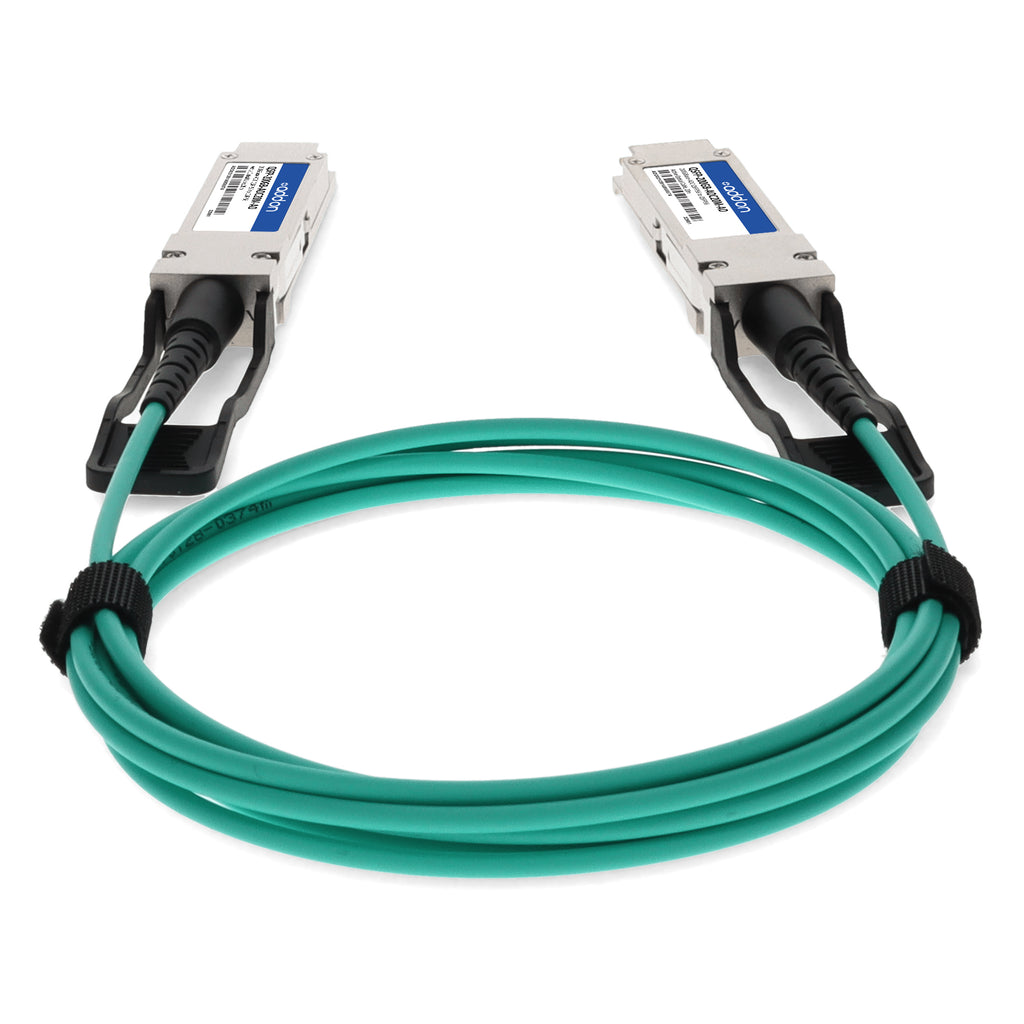

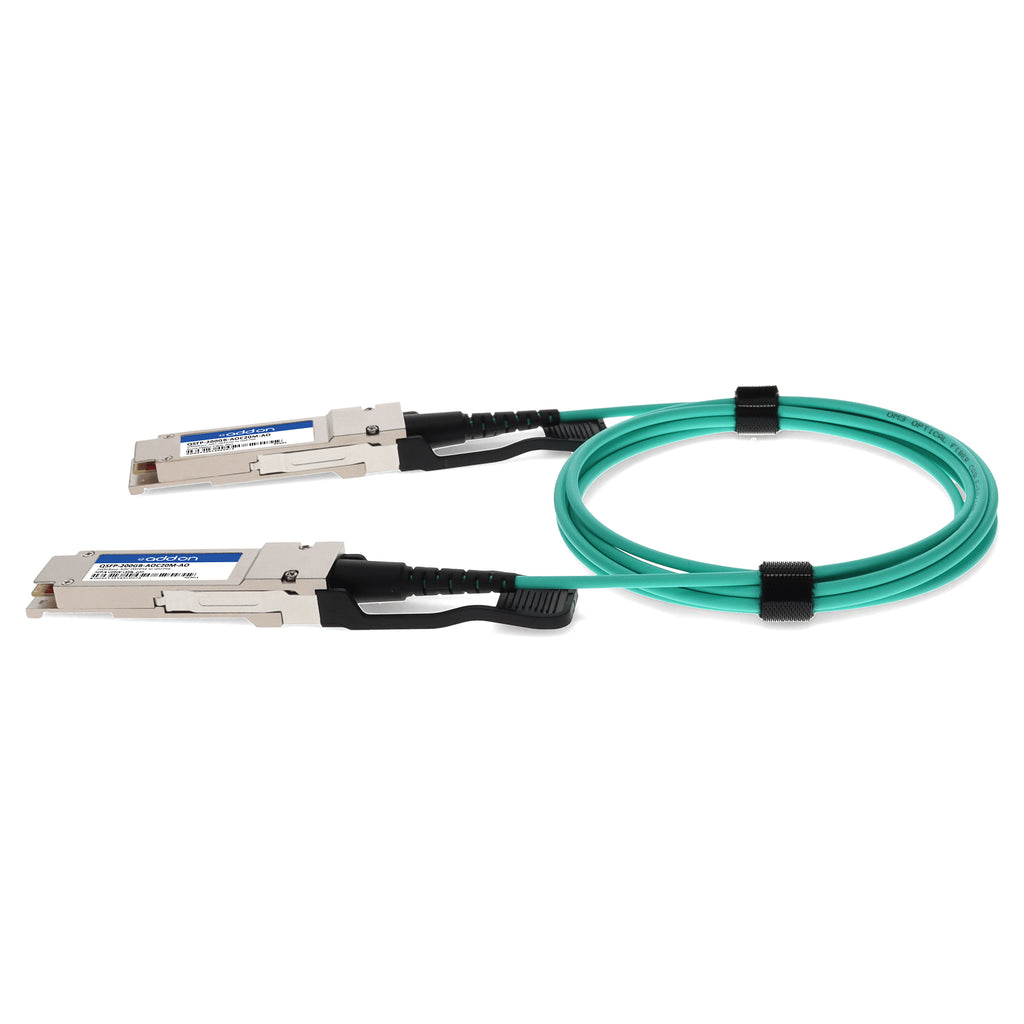

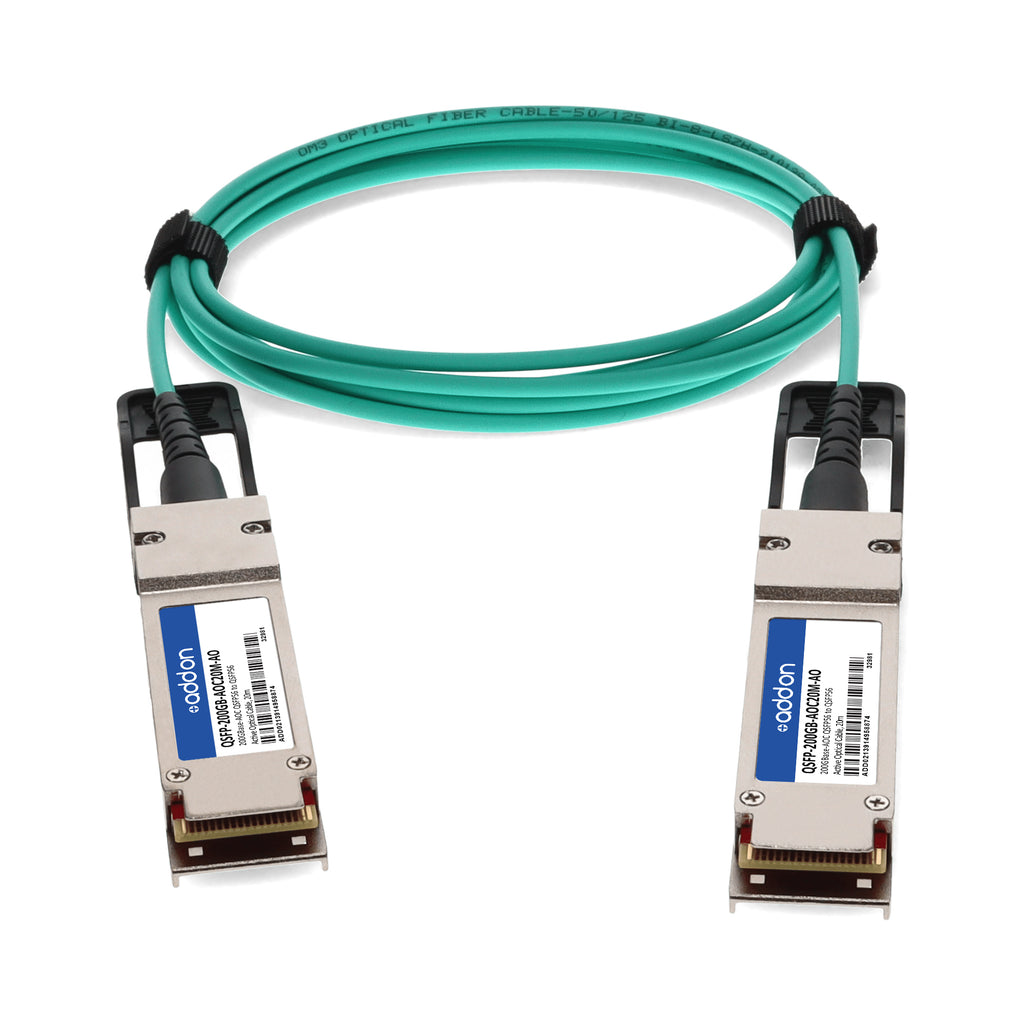

The AddOn QSFP-200GB-AOC20M-AO is a high-performance, MSA and TAA compliant 200GBase-AOC QSFP56 to QSFP56 active optical cable designed for next-generation data center interconnects. Operating over active multimode fiber (MMF) with a maximum reach of 20 meters at an 850nm wavelength, this cable delivers exceptional bandwidth with a data rate of 53.125 Gbps per lane and supports PAM4 modulation for efficient, high-capacity transmission.
Featuring low-latency DSP-free electronics, hot-pluggable QSFP56 interfaces, and low power consumption of just 3.6 W per cable end (with CDR enabled), it ensures reliable, high-speed connectivity between servers, switches, storage systems, and network adapters. The cable is built with LSZH or LSZH/OFNR-rated jacket materials, ensuring safety and compliance in demanding enterprise and hyperscale environments. Fully RoHS-compliant, lead-free, and rigorously tested for 100% functionality, this cable is ideal for IEEE 802.3cd 200GBASE-SR4 applications in modern data centers.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| Model / SKU | QSFP-200GB-AOC20M-AO |
| Product Type | Active Optical Cable (AOC) |
| Compliance Standards | MSA, TAA, IEEE 802.3cd, SFF-8665, RoHS |
| Data Rate | 53.125 Gbps per lane |
| Aggregate Bandwidth | 200 Gbps |
| Interface | QSFP56 to QSFP56 |
| Modulation | PAM4 |
| Maximum Reach | 20 m |
| Wavelength | 850 nm |
| Fiber Type | Multimode Fiber (MMF) |
| Cable Jacket | LSZH or LSZH/OFNR (Aqua) |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Minimum Bend Radius | 30 mm |
| Power Supply Voltage | 3.13 – 3.47 V |
| Power Consumption | 3.6 W per cable end (with CDR enabled) |
| Power Supply Current | 1091 mA |
| Operating Case Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 85% |
| Features | Hot-pluggable, DSP-free low latency, FEC support, Uniquely serialized |
| Applications | Data center interconnects, Servers, Switches, Storage, NIC adapters |
| Warranty | Limited Lifetime Warranty |
