Description

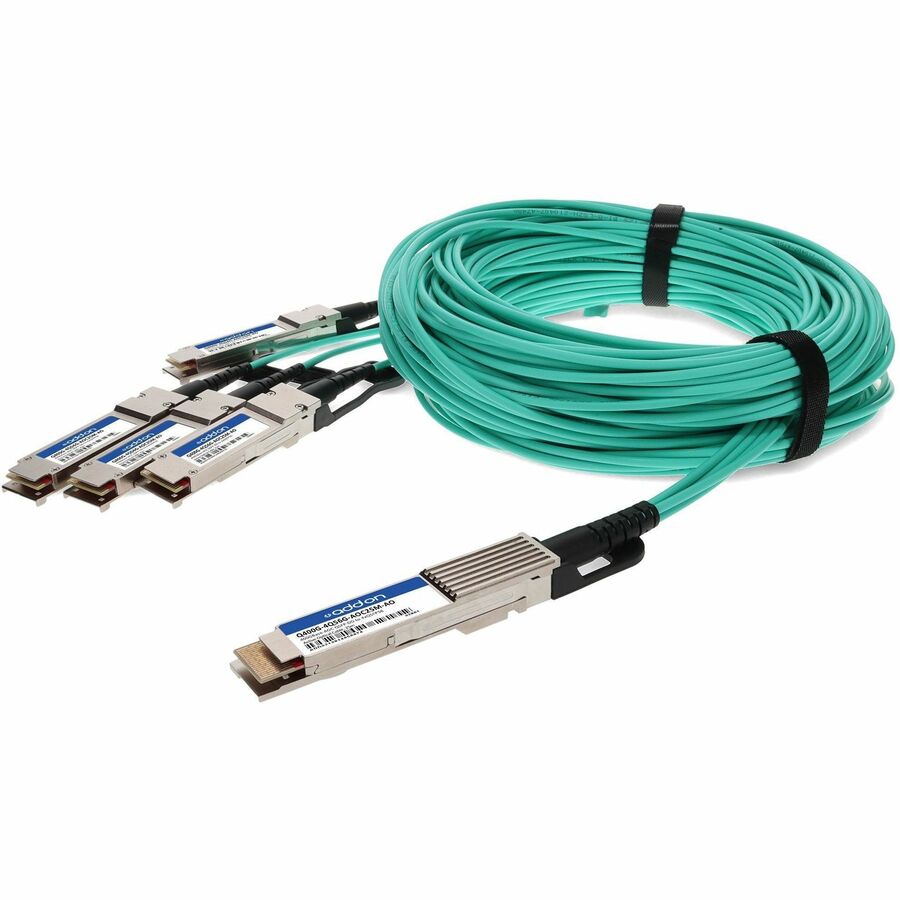

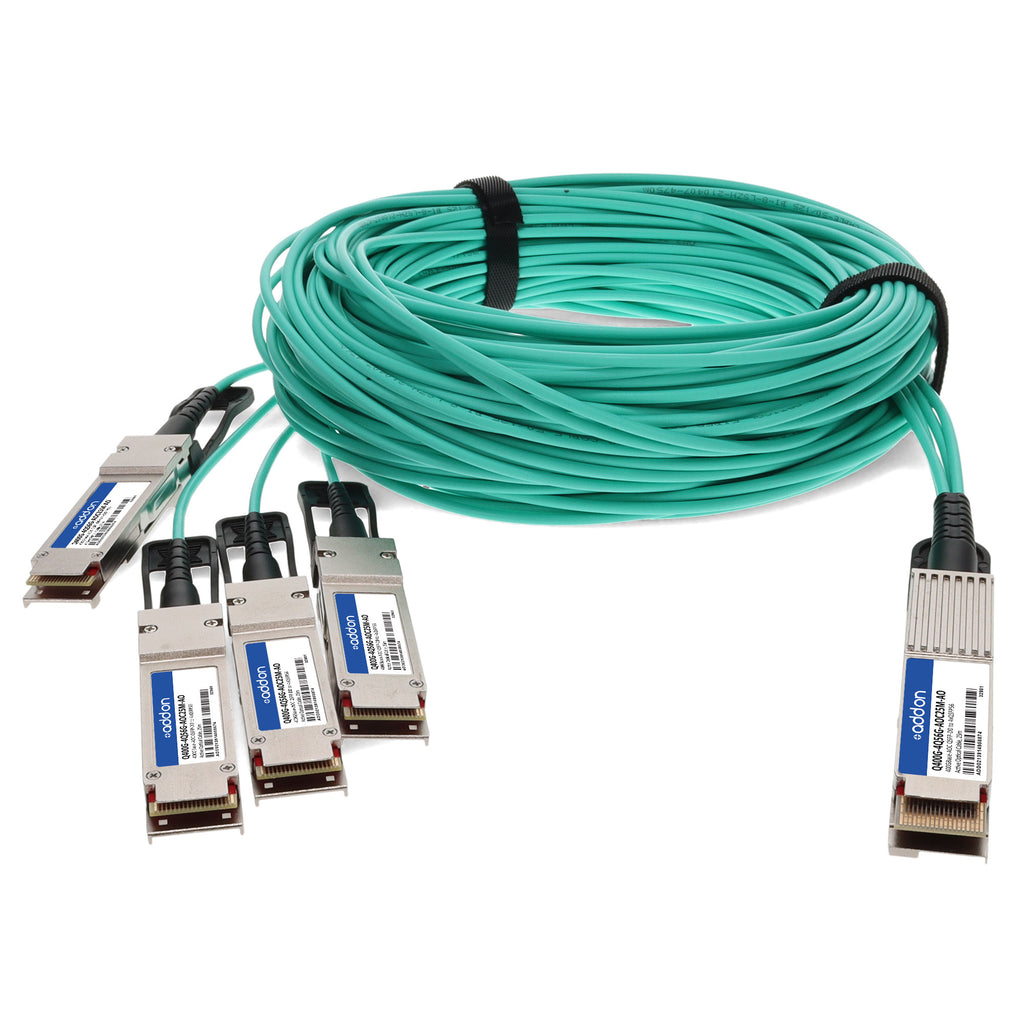

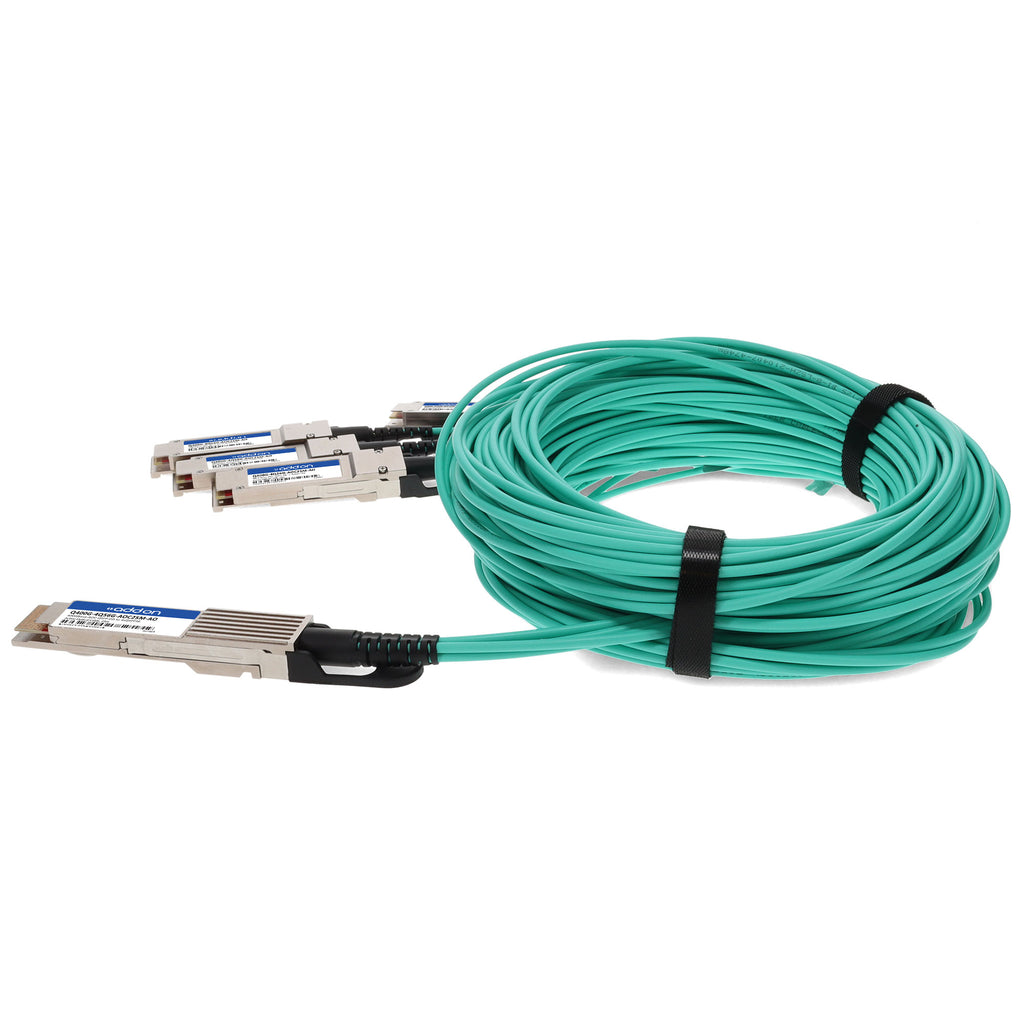

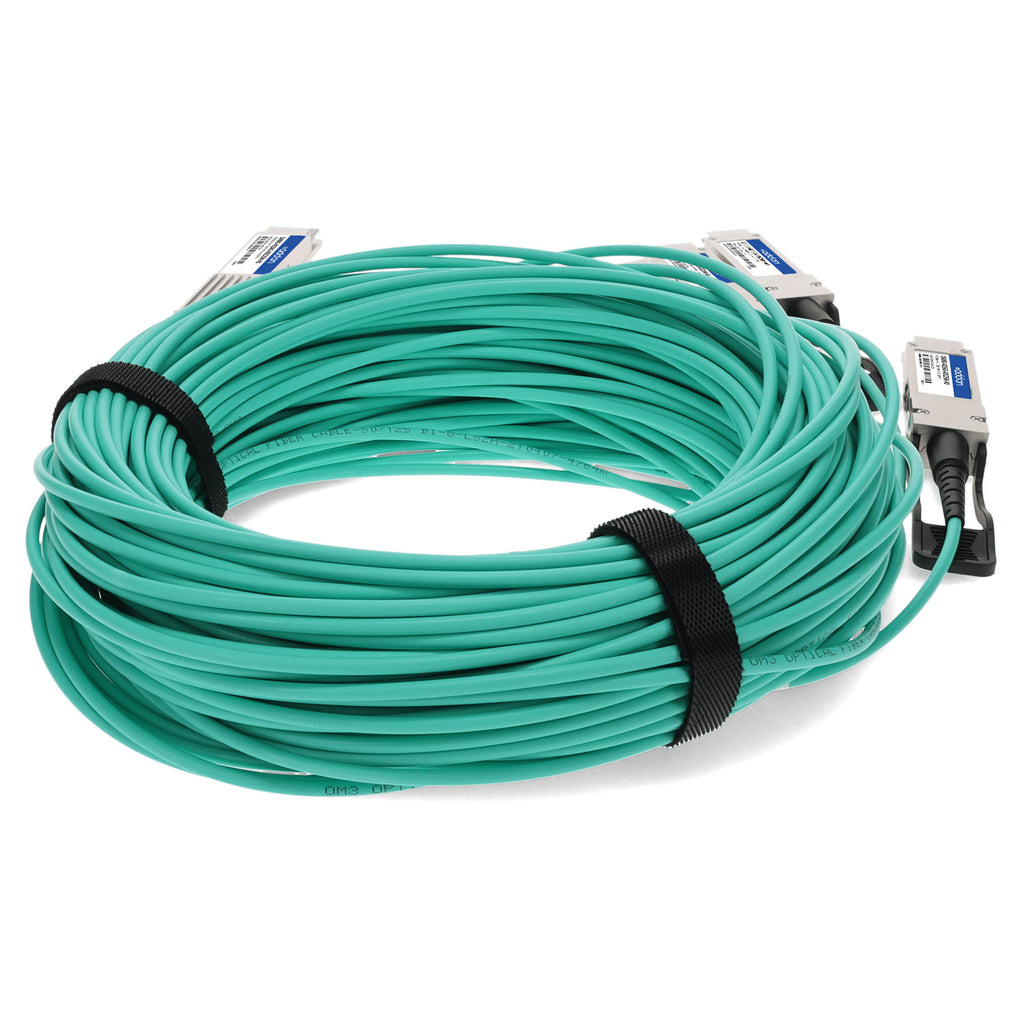

The AddOn Q400G-4Q56G-AOC25M is a high-performance 400GBase Active Optical Cable (AOC) designed for next-generation data center interconnects. This MSA and TAA compliant cable features a QSFP-DD connector on one end and four QSFP56 connectors on the other, enabling seamless 400G to 4x100G breakouts over a 25-meter active multi-mode fiber link. Operating at an 850nm wavelength, it leverages PAM4 modulation and supports multi-data rates up to 56.15 Gb/s per lane, ensuring low-latency, high-bandwidth connectivity.
Engineered for reliability and performance, the cable consumes just 7.6W on the 400G end and 2.3W on the 100G end (with all CDRs enabled) while maintaining hot-pluggable functionality and CMIS 4.0 compliance. With its LSZH-rated jacket, low power consumption, and robust performance across 0°C to 70°C operating temperatures, this active optical cable is ideal for data center switches, servers, storage systems, and NIC interconnect applications. Every unit is uniquely serialized, rigorously tested for full interoperability, and backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | Q400G-4Q56G-AOC25M-AO |
| Form Factor | QSFP-DD to 4xQSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Data Rate | Up to 400GBase (56.15 Gb/s per lane) |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Cable Length | 25 meters (82.0 ft) |
| Connector Type | QSFP-DD (400G) to 4x QSFP56 (100G) |
| Modulation | PAM4 |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) |
| Voltage Supply | Single 3.3V |
| Temperature Range | 0°C to 70°C (Commercial) |
| Compliance | MSA, CMIS 4.0, IEEE 802.3cm, TAA, RoHS |
| Cable Jacket | LSZH, Aqua |
| Minimum Bend Radius | 30mm (without tension) |
| Applications | Data center switches, servers, storage, NIC adapters |
| Warranty | Limited Lifetime Warranty |
