Description

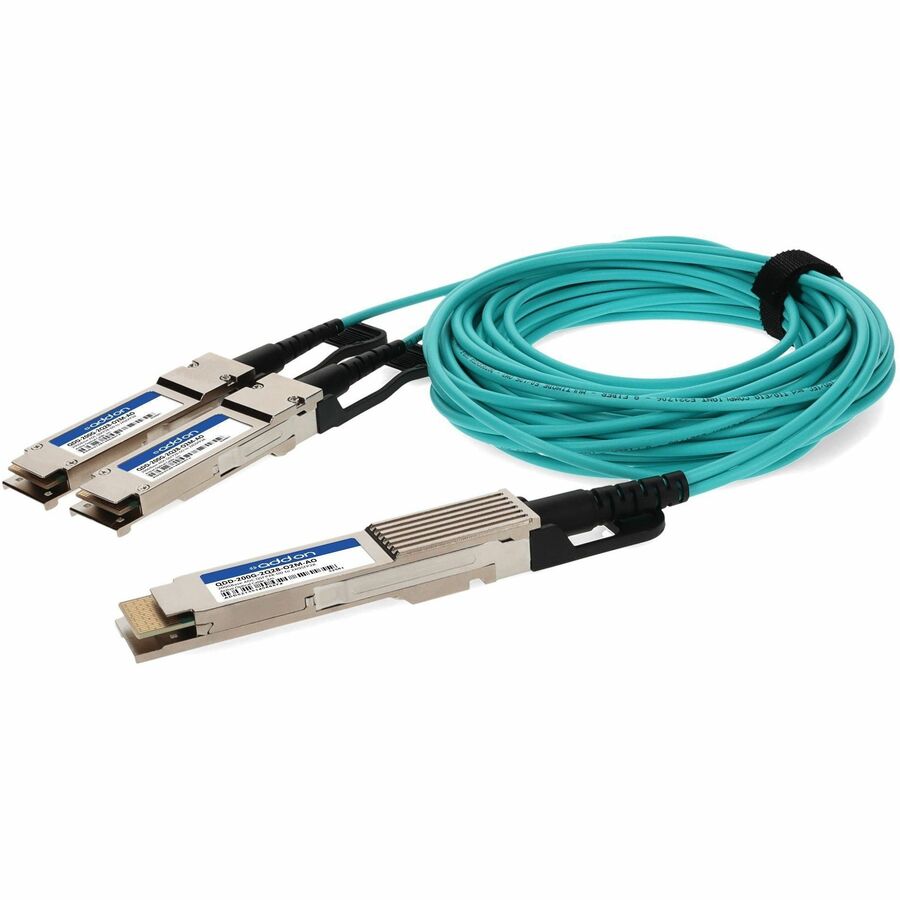

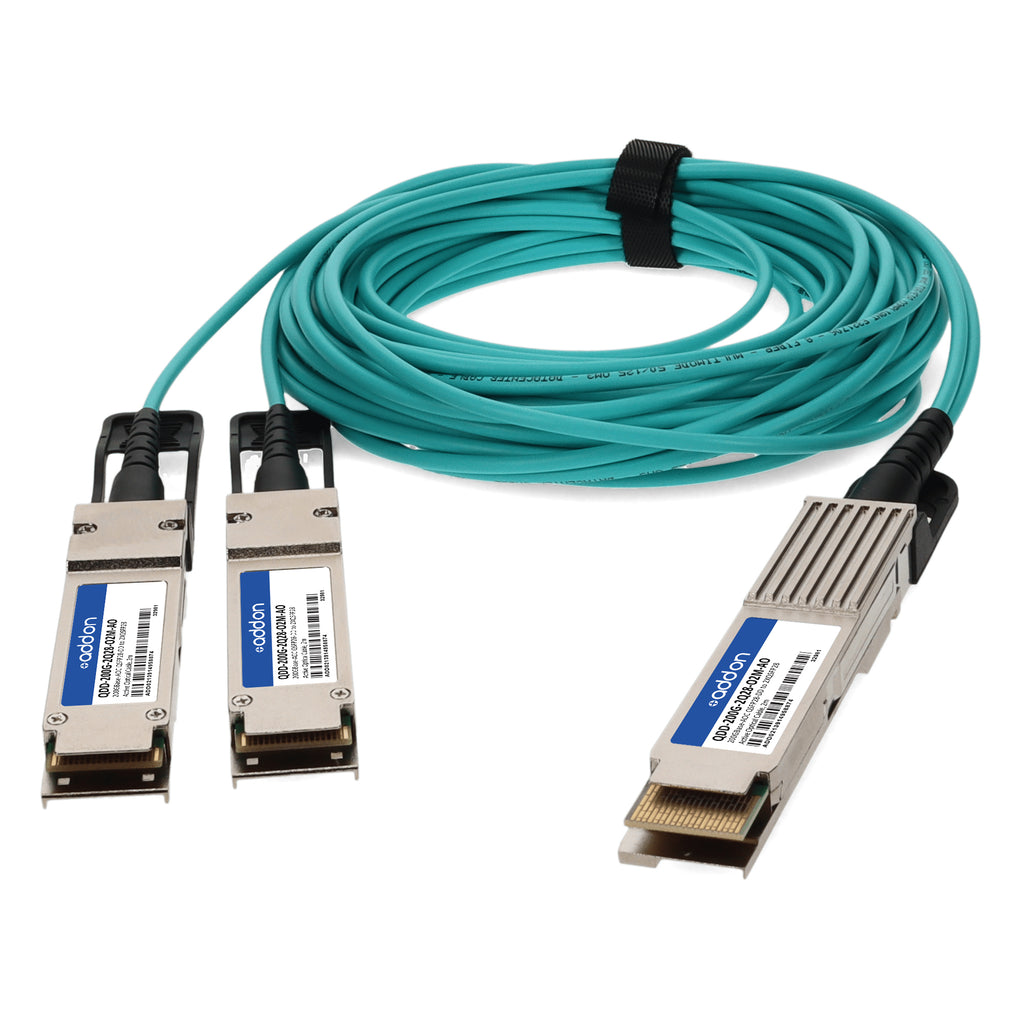

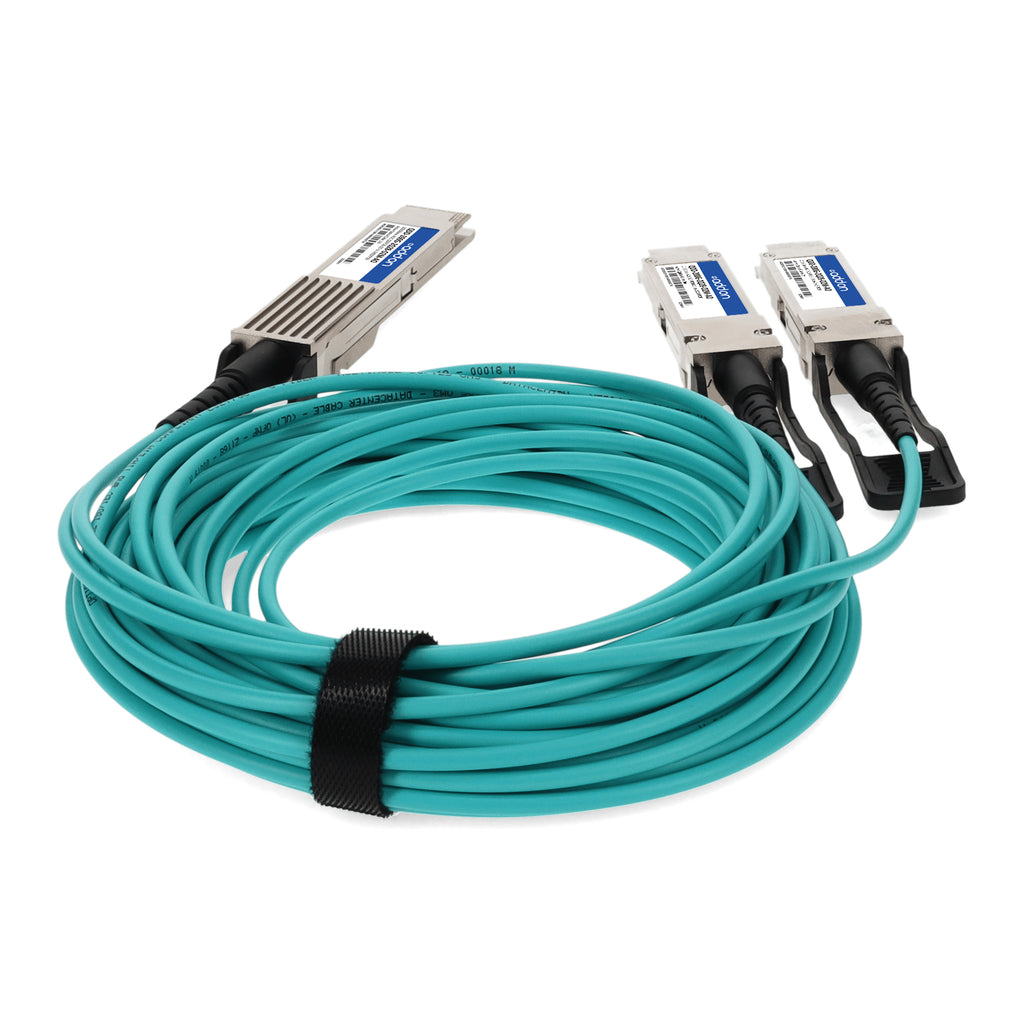

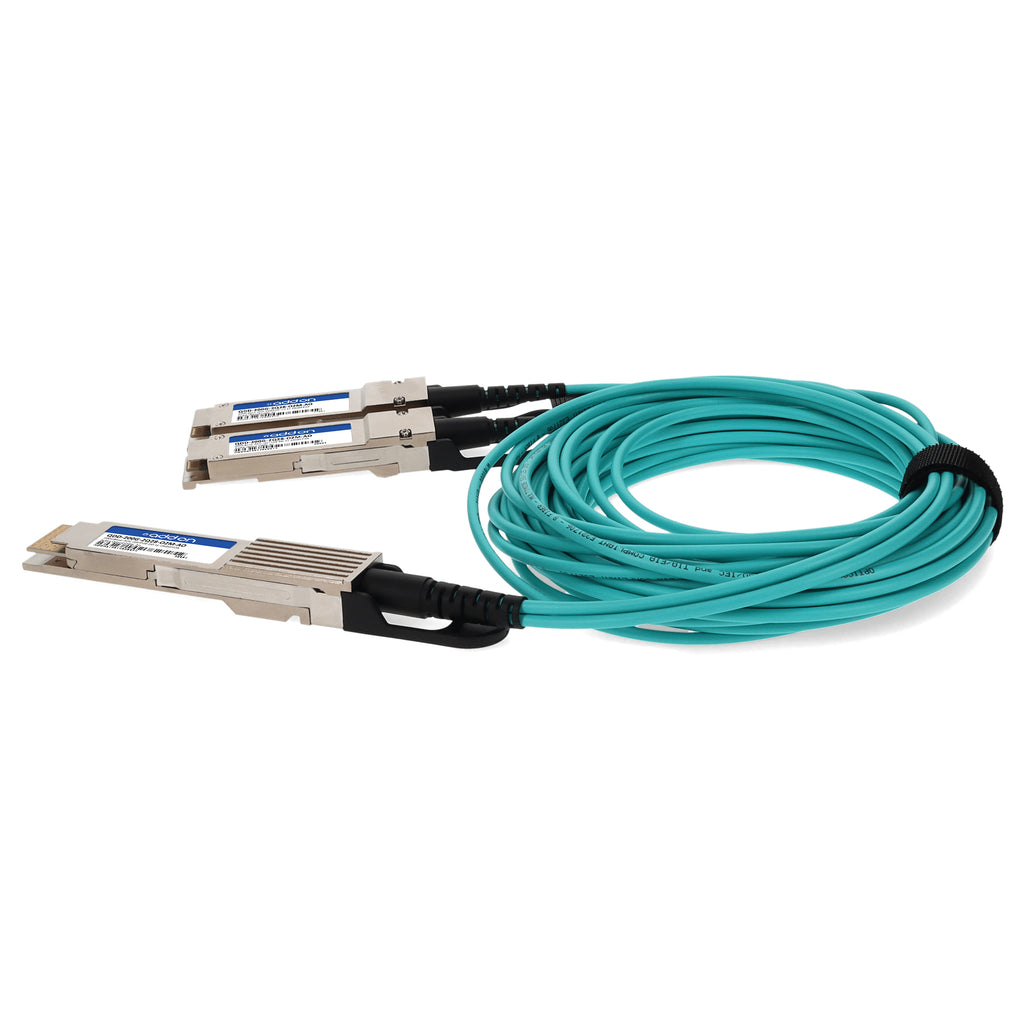

The AddOn QDD-200G-2Q28-O2M-AO is an MSA and TAA compliant 200GBase-AOC active optical breakout cable designed for high-performance data center, HPC, and enterprise network environments. This QSFP28-DD to 2xQSFP28 NRZ active optical cable operates at a wavelength of 850nm over multimode fiber (MMF) with a maximum reach of 2 meters, providing up to 25.78 Gbps per channel. Engineered for seamless interoperability and optimized for low power consumption (3.3W on the QSFP28-DD end and 1.65W on each QSFP28 end), this hot-pluggable cable delivers reliable and high-speed connectivity for applications including 100 Gigabit Ethernet, InfiniBand EDR, and proprietary HPC interconnections. The cable is OFNP-rated for safe vertical installations, RoHS/REACH compliant, and TUV certified — backed by AddOn’s limited lifetime warranty for assured quality and performance.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| SKU | QDD-200G-2Q28-O2M-AO |
| Product Type | Active Optical Cable (AOC) |
| Compliance | MSA, TAA |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Total Data Rate | 200 Gbps |
| Cable Type | QSFP28-DD to 2x QSFP28 NRZ |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (MMF) |
| Cable Length | 2 meters |
| Connector Type | QSFP28-DD to 2x QSFP28 |
| Power Consumption | 3.3W (QSFP28-DD end), 1.65W (QSFP28 end) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Minimum Bend Radius | 30mm (no tension) / 60mm (under tension) |
| Cable Jacket | OFNP-rated (Aqua) |
| Applications | 100Gigabit Ethernet, InfiniBand EDR, Data Centers, HPC Interconnects |
| Certifications | TUV, RoHS/REACH |
| Warranty | Limited Lifetime Warranty |
