Description

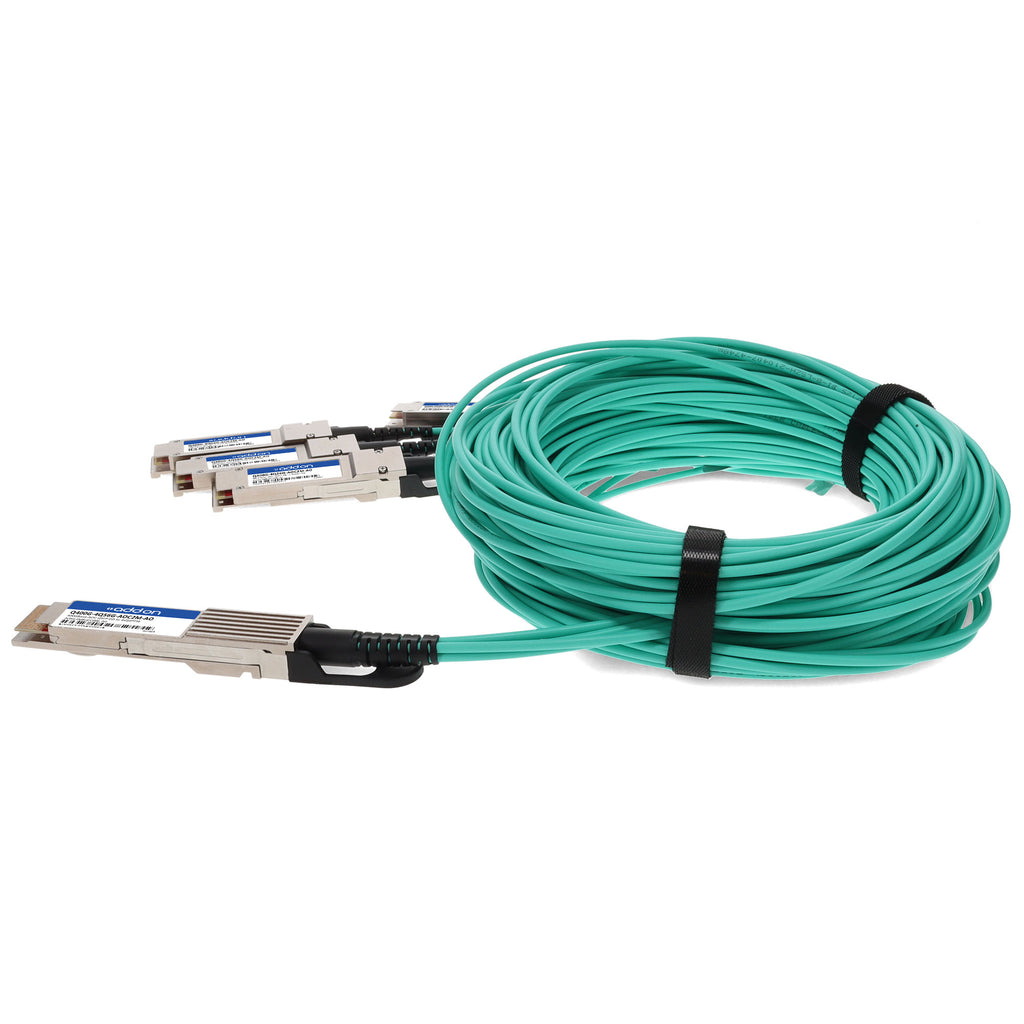

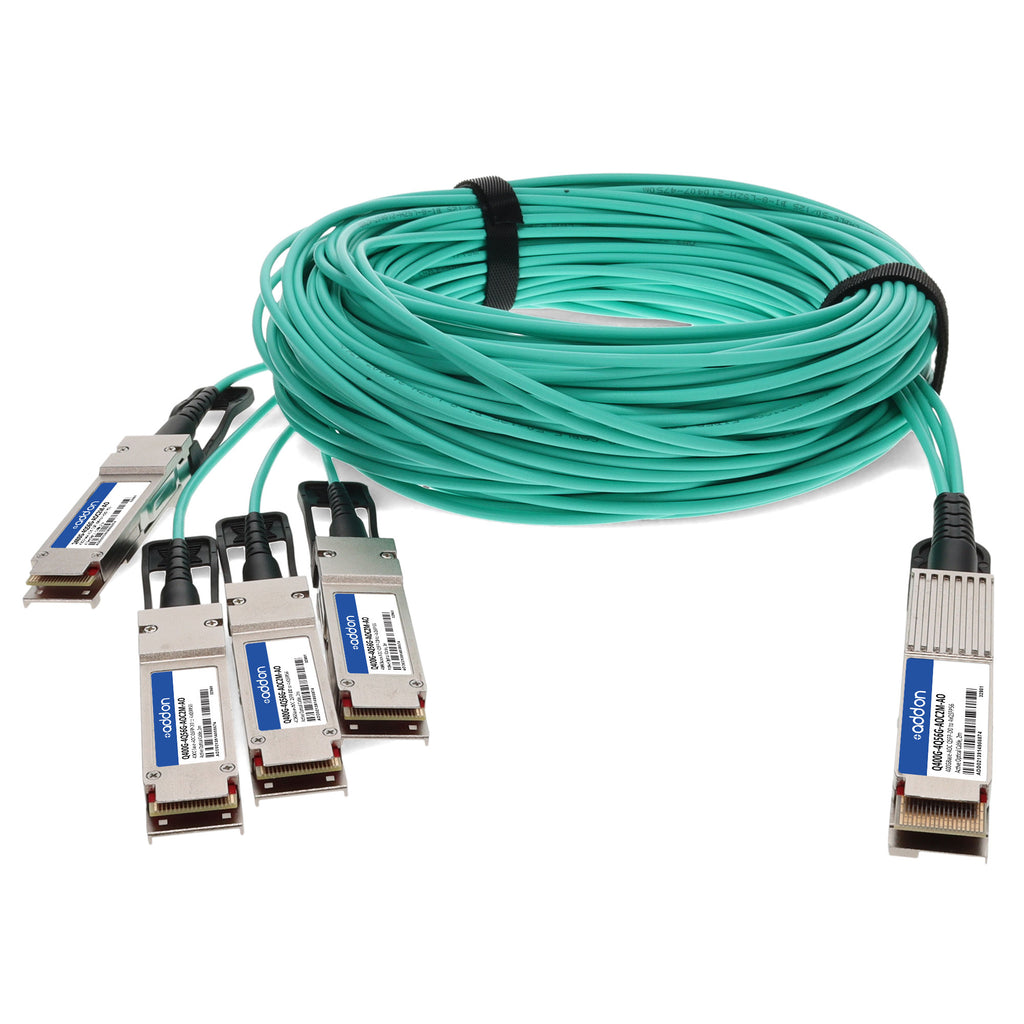

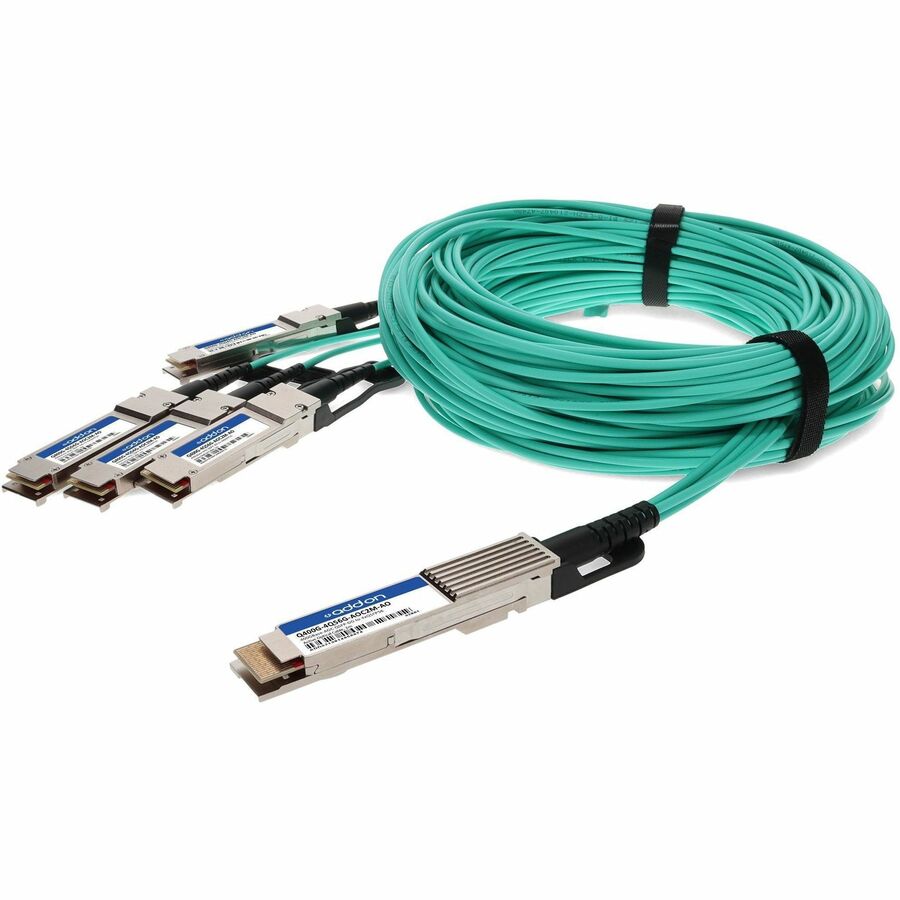

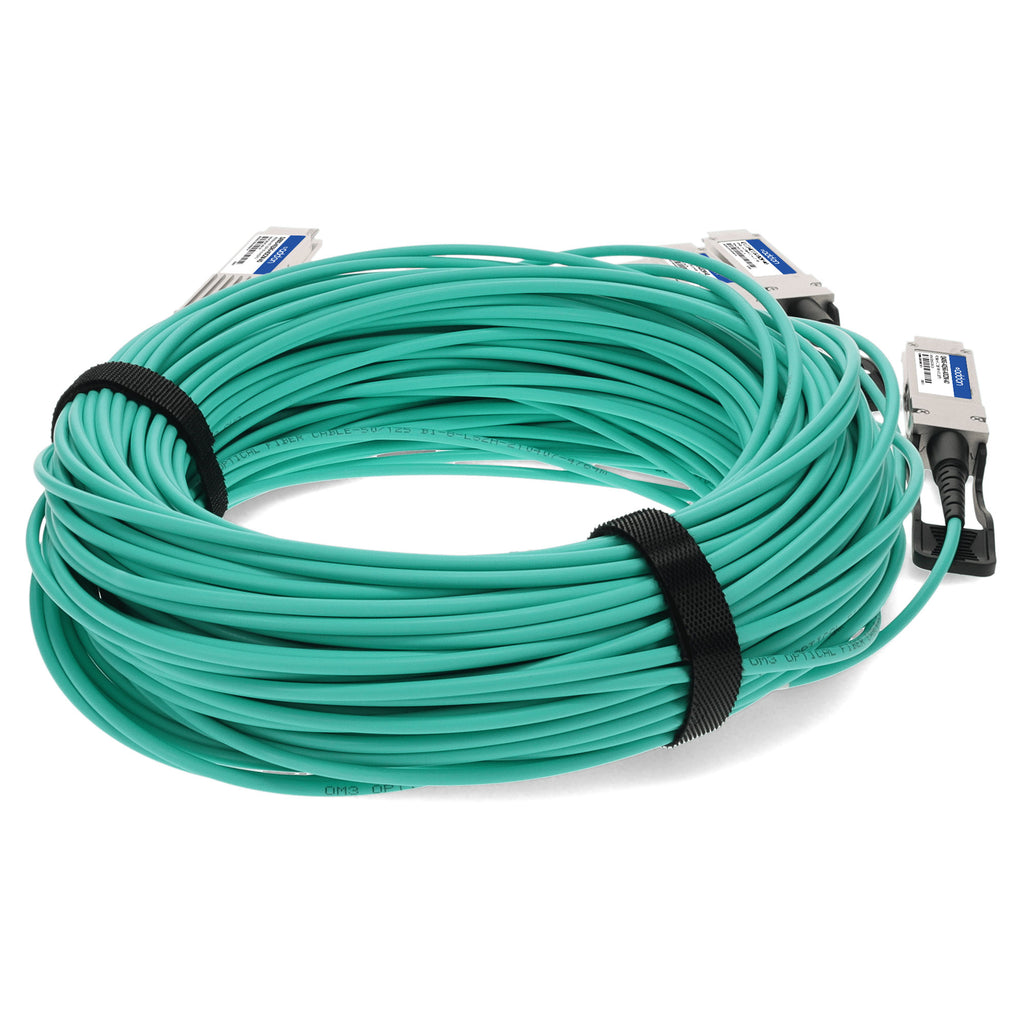

The AddOn Q400G-4Q56G-AOC2M-AO is a high-performance, MSA and TAA compliant 400GBase active optical cable designed for data center, enterprise, and high-speed networking environments. This QSFP-DD to 4xQSFP56 breakout cable operates over multi-mode fiber (MMF) with a maximum reach of 2 meters, supporting PAM4 modulation and data rates up to 56.15 Gb/s per lane. Engineered for superior performance, it features low latency DSP-free electronics-based CDR, low power consumption (7.6W on the 400G end, 2.3W on the 100G ends), and hot-pluggable connectivity. The cable is CMIS 4.0 compliant, IEEE 802.3cm compatible, and RoHS lead-free. Ideal for connecting switches, servers, storage systems, and NIC adapters in high-bandwidth 400G Ethernet deployments, it comes backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Part Number | Q400G-4Q56G-AOC2M-AO |
| Cable Type | Active Optical Cable (AOC) |
| Connector Type | QSFP-DD to 4xQSFP56 |
| Data Rate (Per Lane) | Up to 56.15 Gb/s |
| Aggregate Bandwidth | 400 Gbps |
| Wavelength | 850 nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Reach | 2 m |
| Modulation | PAM4 |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) |
| Power Supply Voltage | 3.3 V (single) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Compliance | MSA, TAA, CMIS 4.0, IEEE 802.3cm, RoHS |
| Features | Hot-pluggable, LSZH cable jacket, low latency DSP-free CDR |
| Applications | Data centers, Ethernet switches, servers, NICs, storage systems |
| Warranty | Limited Lifetime Warranty |
