Description

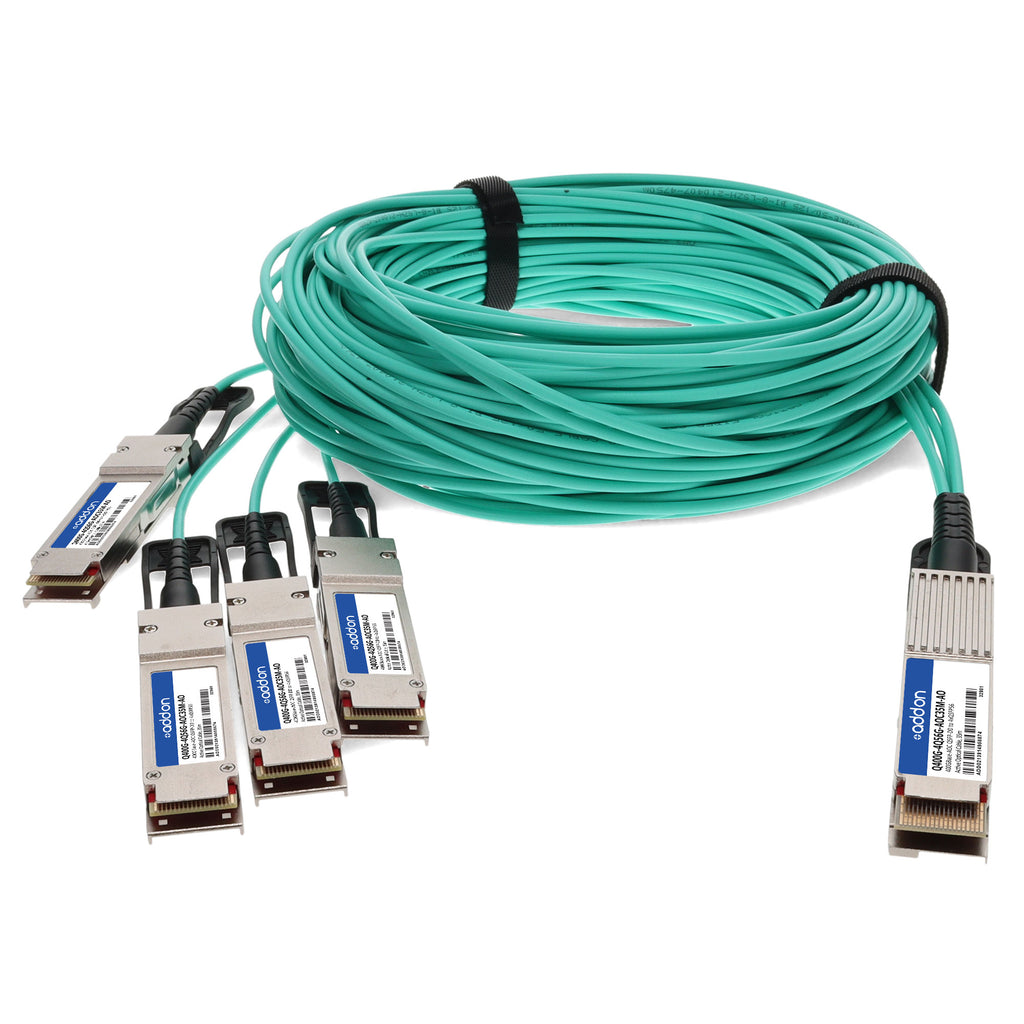

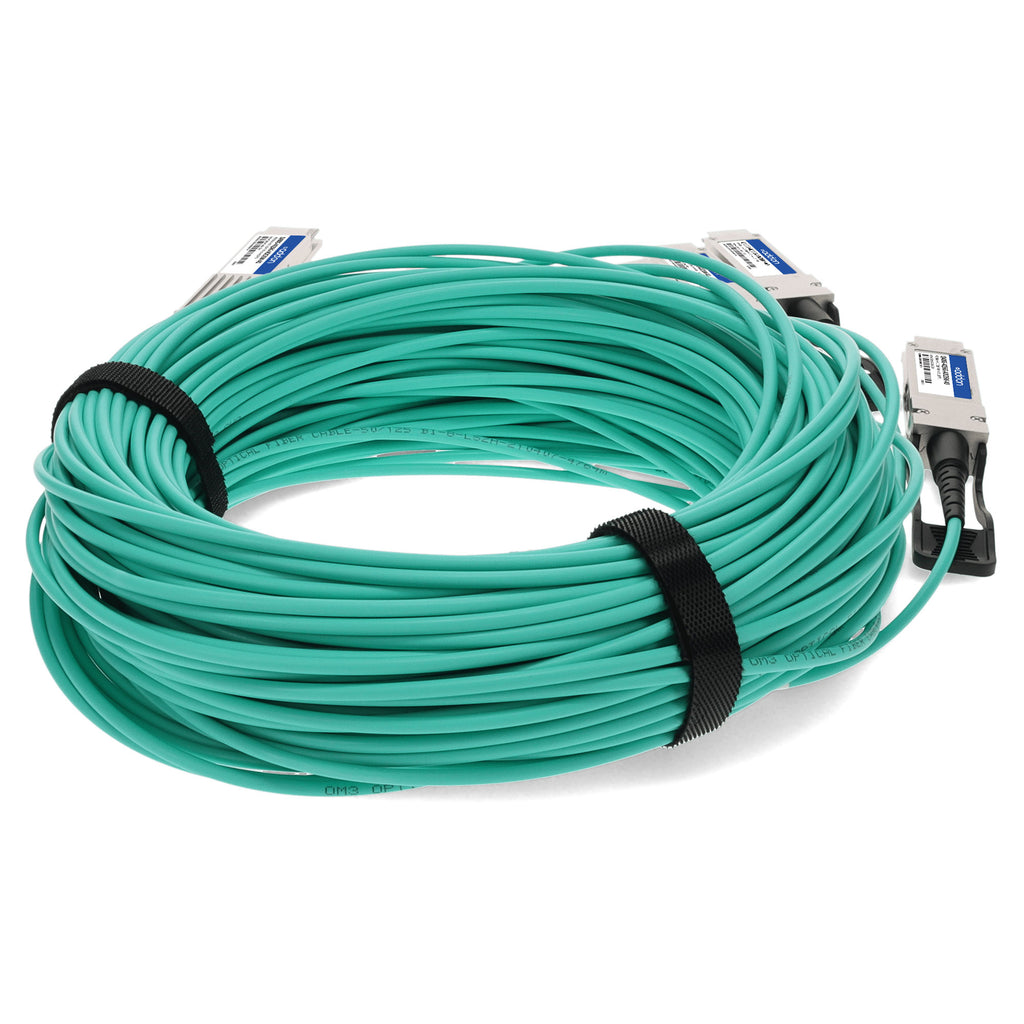

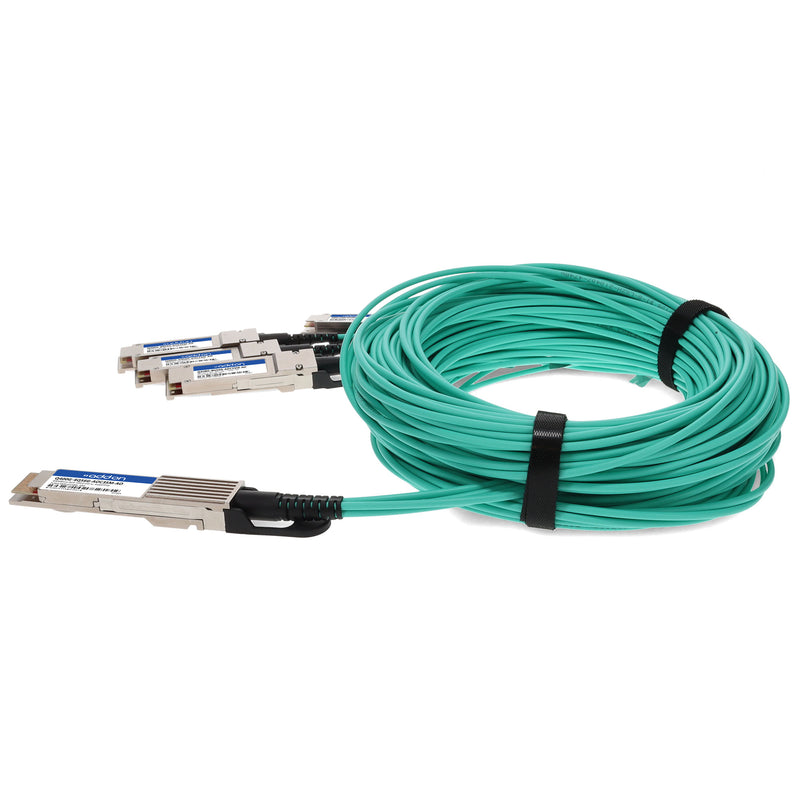

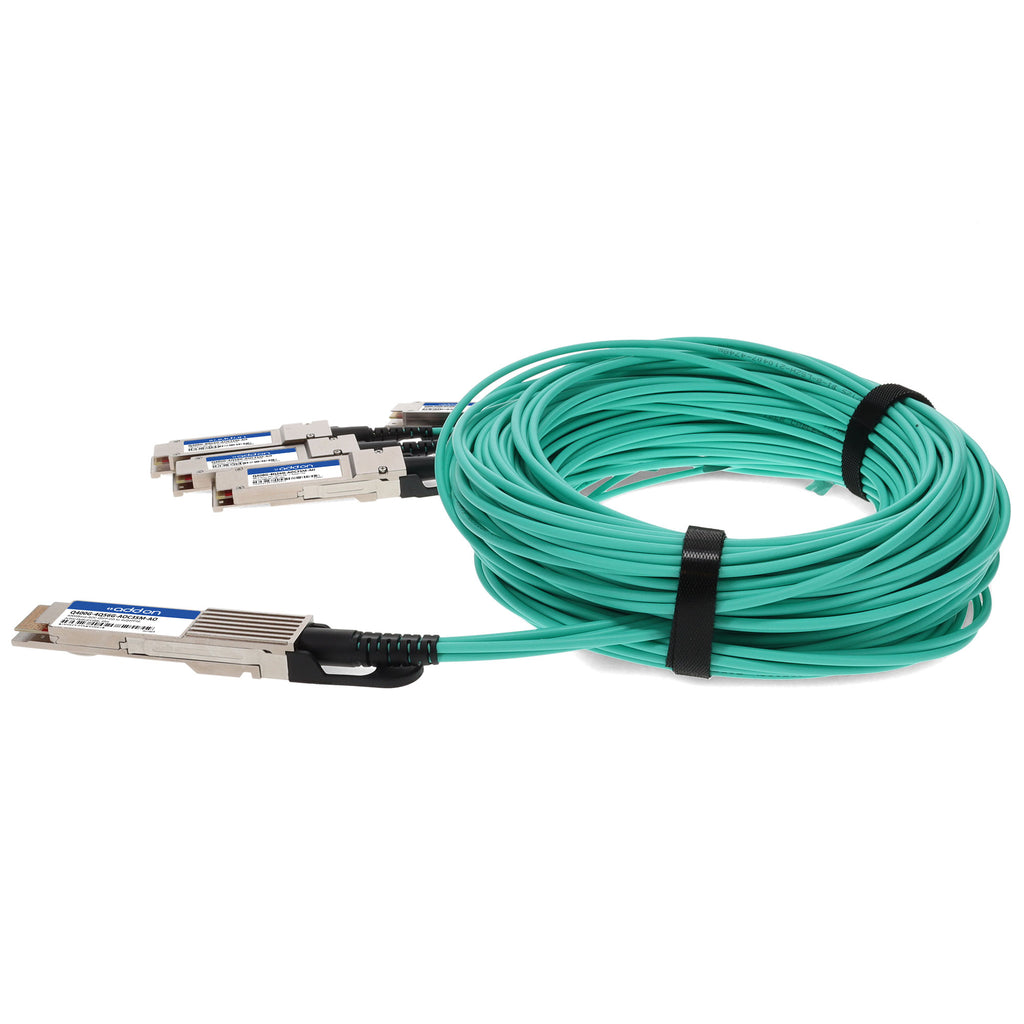

The AddOn Q400G-4Q56G-AOC35M-AO is a high-performance, MSA and TAA compliant 400GBase active optical cable designed to deliver reliable, high-speed connectivity between network switches, servers, storage systems, and NIC adapters in modern data centers. This QSFP-DD to 4xQSFP56 PAM4 breakout AOC operates over multi-mode fiber (MMF) with an 850nm wavelength and a maximum reach of 35 meters, ensuring low-latency, high-bandwidth data transmission.
Featuring DSP-free electronics-based CDR, PAM4 modulation, and support for multi-data rates up to 56.15 Gb/s per lane, this cable ensures optimal performance and interoperability. With low power consumption (7.6W on the 400G end and 2.3W on the 100G ends), hot-pluggable design, LSZH-rated aqua jacket, and compliance with IEEE 802.3cm and CMIS 4.0 standards, it offers a robust solution for high-density, high-speed networking environments. Each unit is uniquely serialized, programmed, and rigorously tested for full MSA compliance and functionality, and is backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| SKU | Q400G-4Q56G-AOC35M-AO |
| Form Factor | QSFP-DD to 4xQSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Data Rate (Per Lane) | Up to 56.15 Gb/s |
| Aggregate Data Rate | 400Gbps |
| Modulation | PAM4 |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Maximum Reach | 35m |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) |
| Voltage Supply | 3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Connector 1 | QSFP-DD |
| Connector 2 | 4x QSFP56 |
| Cable Jacket | LSZH, Aqua |
| Minimum Bend Radius | 30mm (without tension) |
| Compliance Standards | MSA, TAA, IEEE 802.3cm, CMIS 4.0, RoHS |
| Hot Pluggable | Yes |
| Applications | 400G Ethernet, Data Center Interconnect, Switch-to-Server, NIC Connectivity |
| Warranty | Limited Lifetime Warranty |
