Description

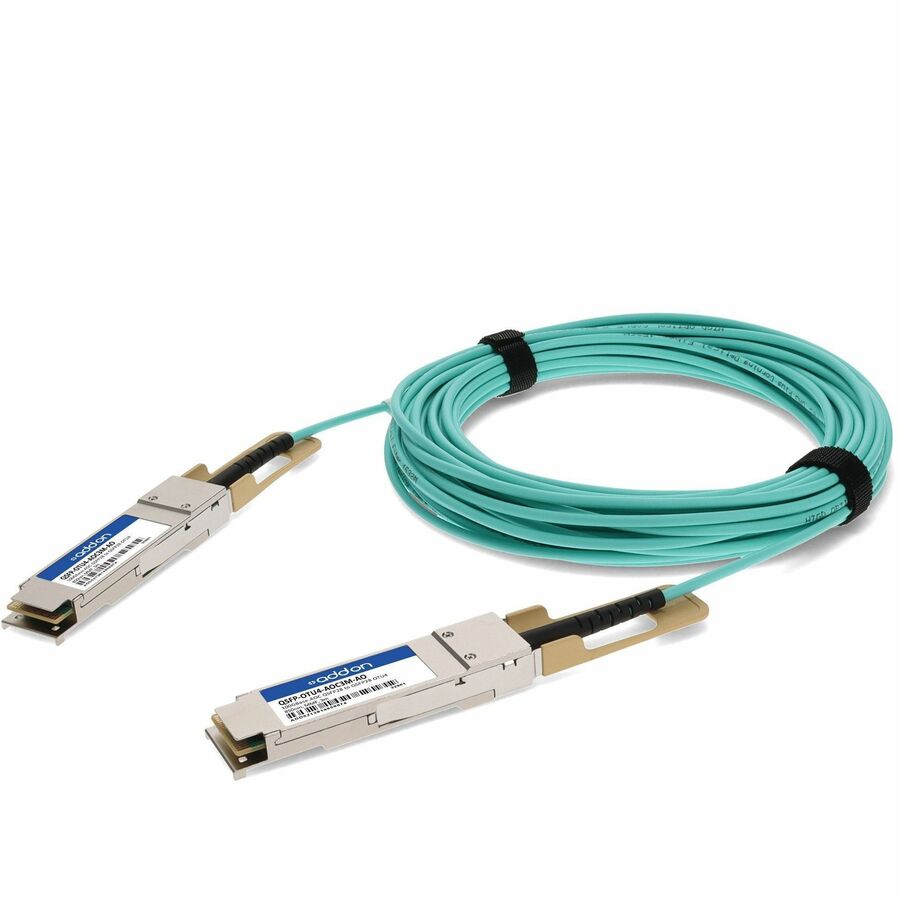

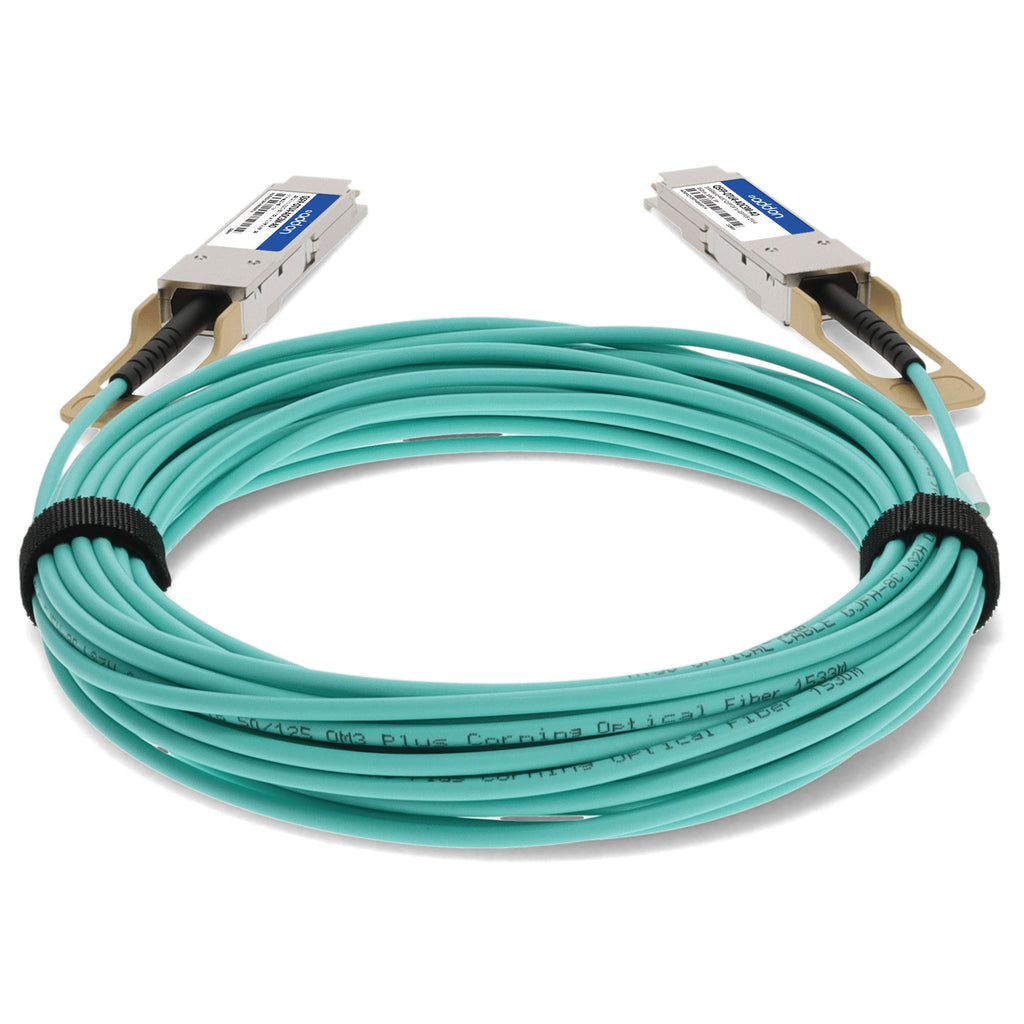

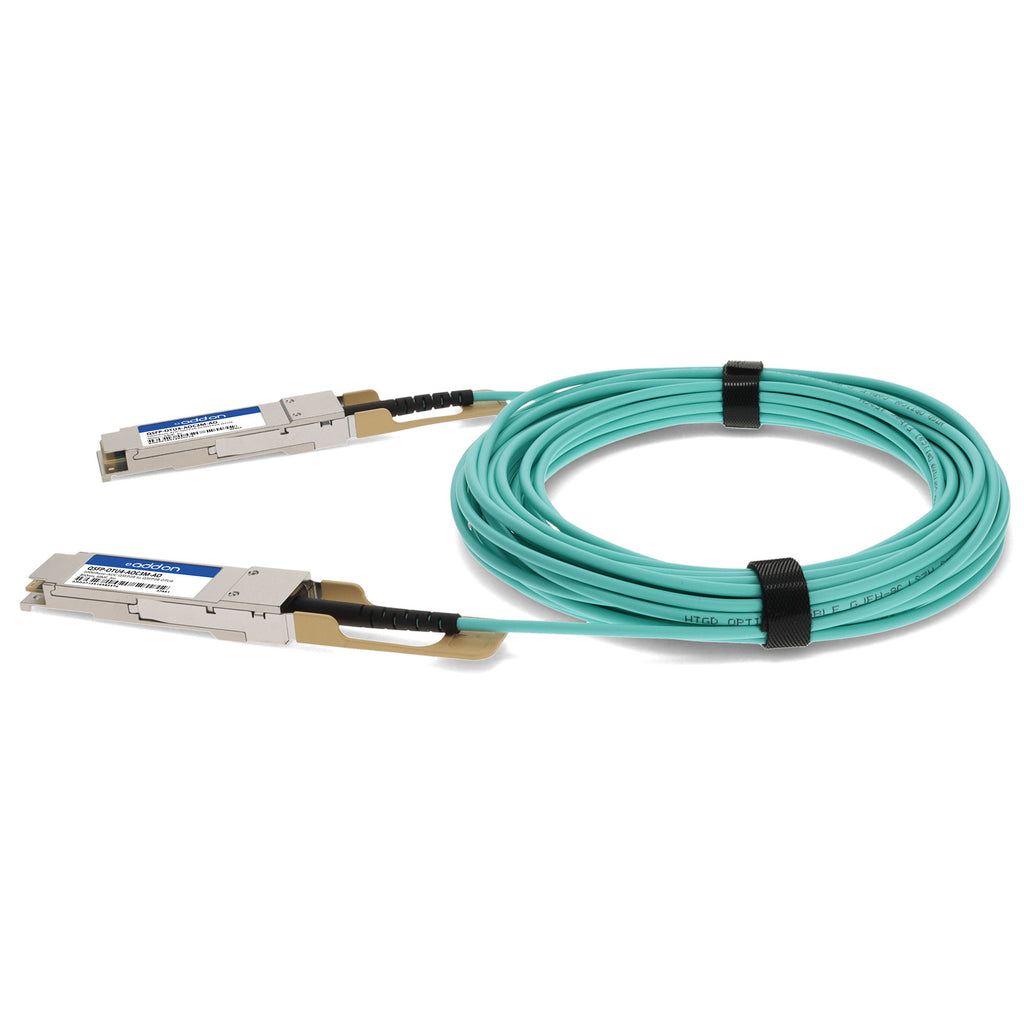

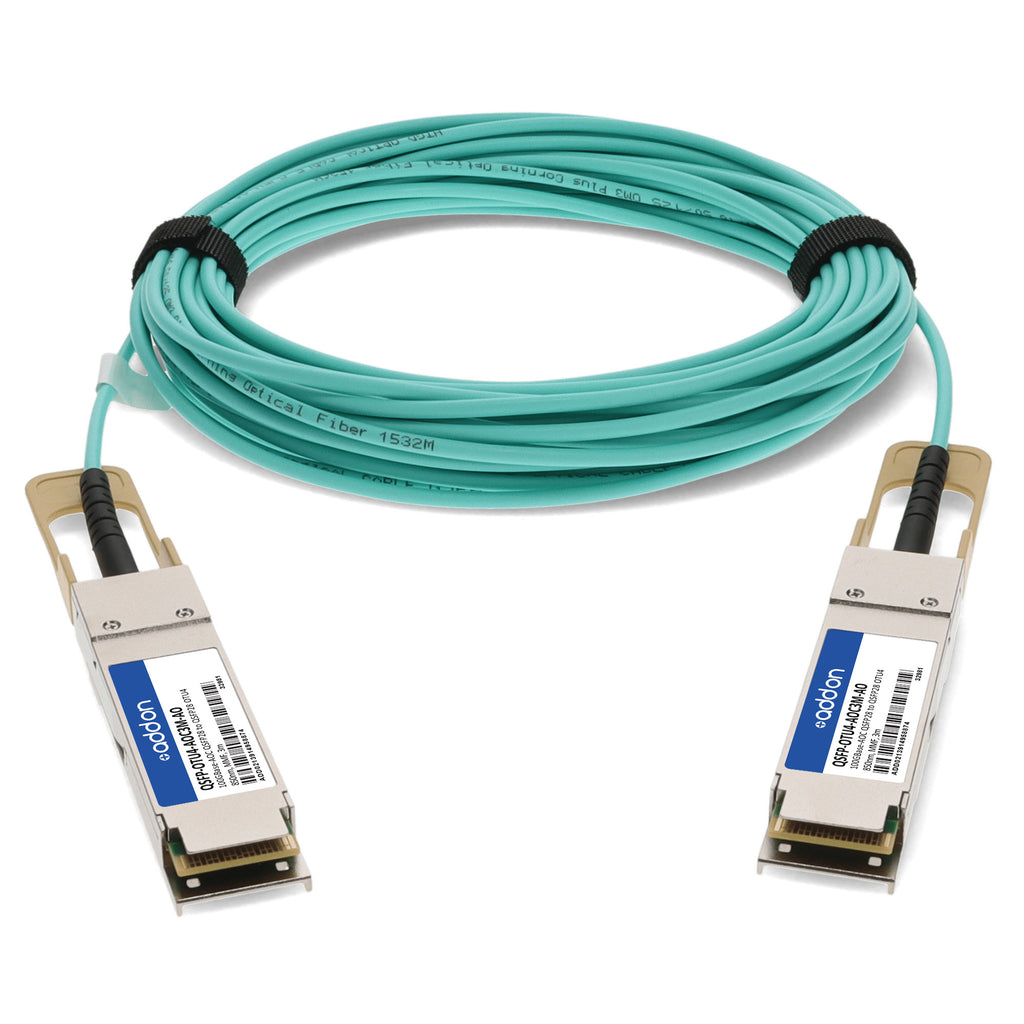

The AddOn QSFP-OTU4-AOC3M-AO is a MSA and TAA compliant 100GBase-OTU4 QSFP28 to QSFP28 Active Optical Cable (AOC) designed for high-speed, high-density data center interconnects. Operating over multi-mode fiber (MMF) at a wavelength of 850nm with a maximum reach of 3 meters, this AOC delivers reliable 100G Ethernet and OTU4 performance across networking, server, and storage environments.
Engineered with low power consumption (<2.5W) and VCSEL/PIN photonic devices, this cable supports up to 4x28 Gbps bi-directional operation while maintaining excellent signal integrity. It includes an I²C standard management interface, automatic power-down for eye safety, and is RoHS compliant and lead-free.
Each unit is individually programmed, serialized, and fully application-tested to guarantee 100% functionality and interoperability. AddOn backs its products with a limited lifetime warranty, ensuring long-term reliability and performance for mission-critical networks.
| Specification | Details |
|---|---|
| Brand | AddOn Networks |
| Part Number | QSFP-OTU4-AOC3M-AO |
| Form Factor | QSFP28 to QSFP28 Active Optical Cable (AOC) |
| Compliance | MSA, TAA, RoHS |
| Application | 100GBase Ethernet, OTU4, High-Performance Computing, Data Storage |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Cable Length | 3 meters (9.8 ft) |
| Maximum Data Rate | Up to 4 × 28 Gbps (112 Gbps aggregate) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | < 2.5 W |
| Supply Voltage | 3.135V – 3.465V |
| Optical Return Loss Tolerance | 12 dB |
| Receiver Overload | 2.5 dBm |
| Damage Threshold | 3.4 dBm |
| Pre-Emphasis Pulse Duration | 30 ps |
| Management Interface | I²C |
| Features | Automatic power-down for safety, high-speed signal integrity, low power consumption, reliable VCSEL & PIN devices |
| Warranty | Limited Lifetime Warranty |
