Description

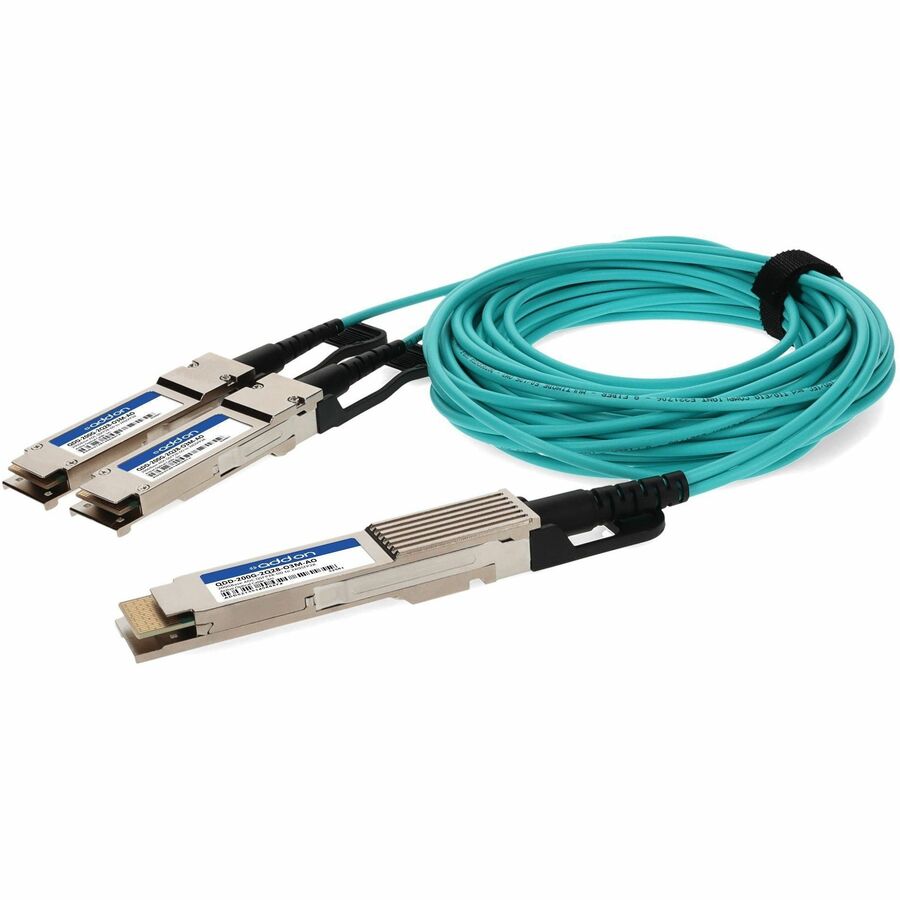

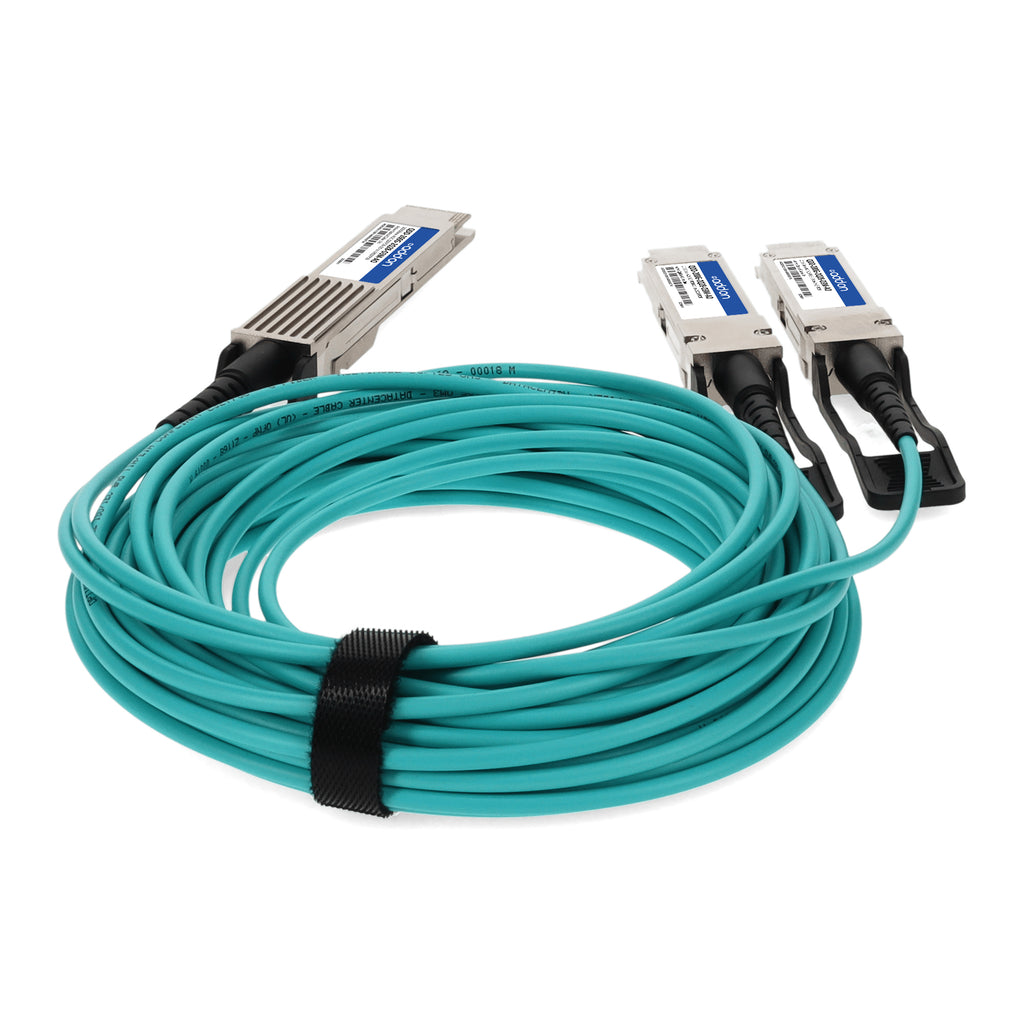

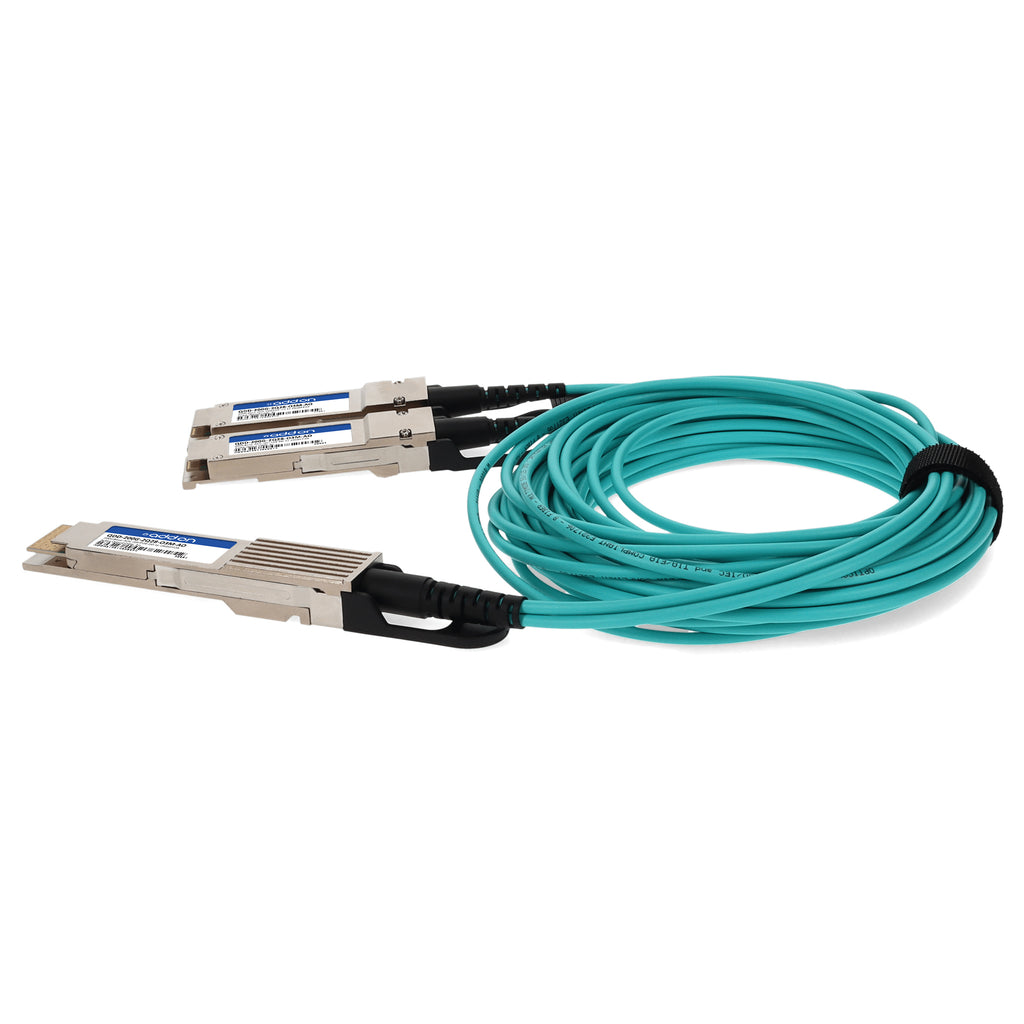

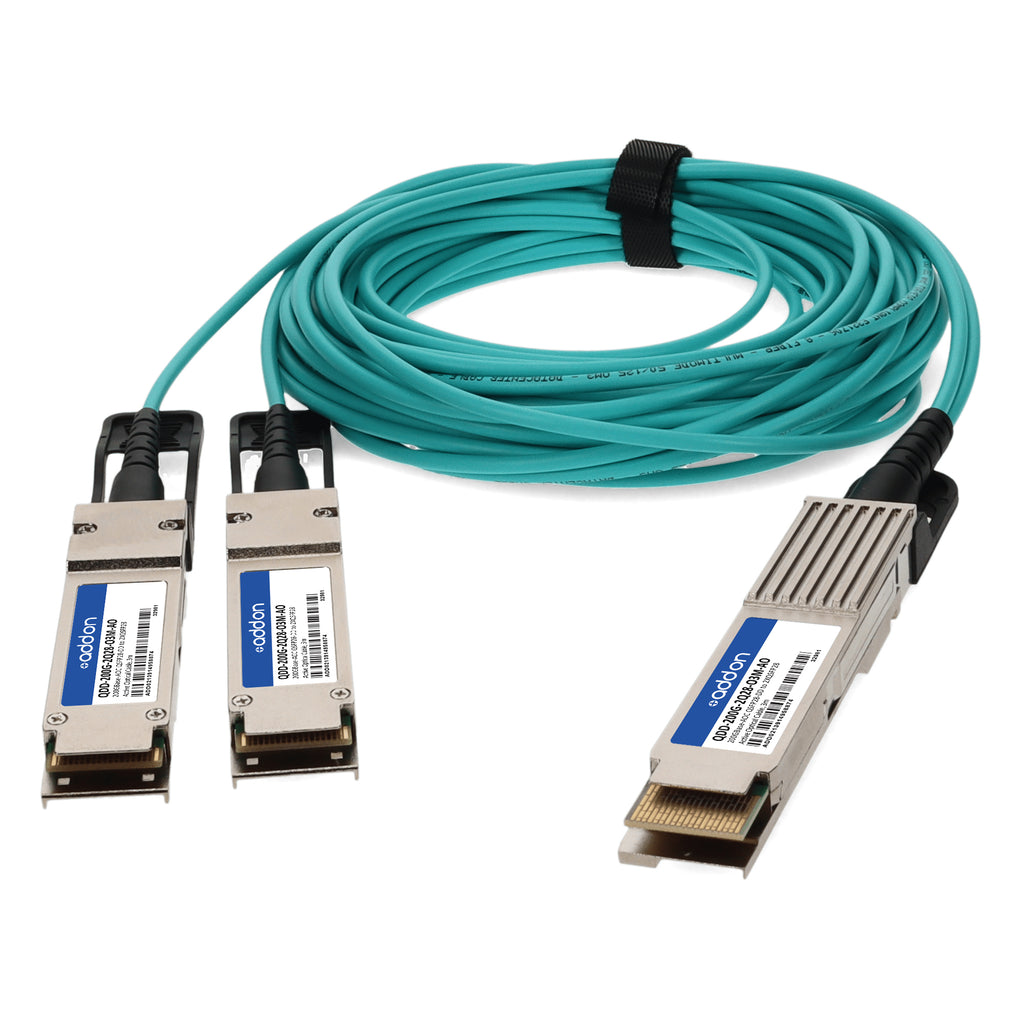

The AddOn QDD-200G-2Q28-O3M-AO is an MSA and TAA compliant 200GBase-AOC QSFP28-DD to 2xQSFP28 NRZ active optical cable designed for high-speed, short-reach data center and HPC connectivity. Operating over OM3 multimode fiber at a wavelength of 850nm, this breakout cable supports up to 25.78 Gbps per channel and provides a maximum reach of 3 meters. With hot-pluggable QSFP-DD and QSFP28 interfaces, low power consumption (3.3W on the QSFP28-DD end and 1.65W on the QSFP28 end), and OFNP-rated aqua jacket for enhanced safety, it is ideal for applications such as 100 Gigabit Ethernet, InfiniBand EDR, and proprietary HPC interconnects. Each cable is uniquely serialized, application-tested, and backed by AddOn’s limited lifetime warranty for maximum reliability and performance.
| Specification | Details |
|---|---|
| SKU | QDD-200G-2Q28-O3M-AO |
| Brand | AddOn |
| Form Factor | QSFP28-DD to 2xQSFP28 |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Aggregate Data Rate | 200 Gbps |
| Cable Type | Active Optical Cable (AOC) |
| Connector Type | QSFP28-DD to 2xQSFP28 |
| Wavelength | 850nm |
| Fiber Type | OM3 Multimode Fiber (MMF) |
| Maximum Reach | 3 meters |
| Breakout Configuration | 1x200G QSFP-DD to 2x100G QSFP28 |
| Power Consumption | 3.3W (QSFP28-DD end), 1.65W (QSFP28 end) |
| Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Cable Diameter | Ø3.0 ± 0.20 mm |
| Minimum Bend Radius | 30 mm (no tension), 60 mm (under tension) |
| Jacket Material | OFNP-Rated (Aqua) |
| Compliance | MSA, TAA, RoHS, REACH |
| Applications | 100Gigabit Ethernet, InfiniBand EDR, Datacenter, HPC |
| Warranty | Limited Lifetime Warranty |
