Description

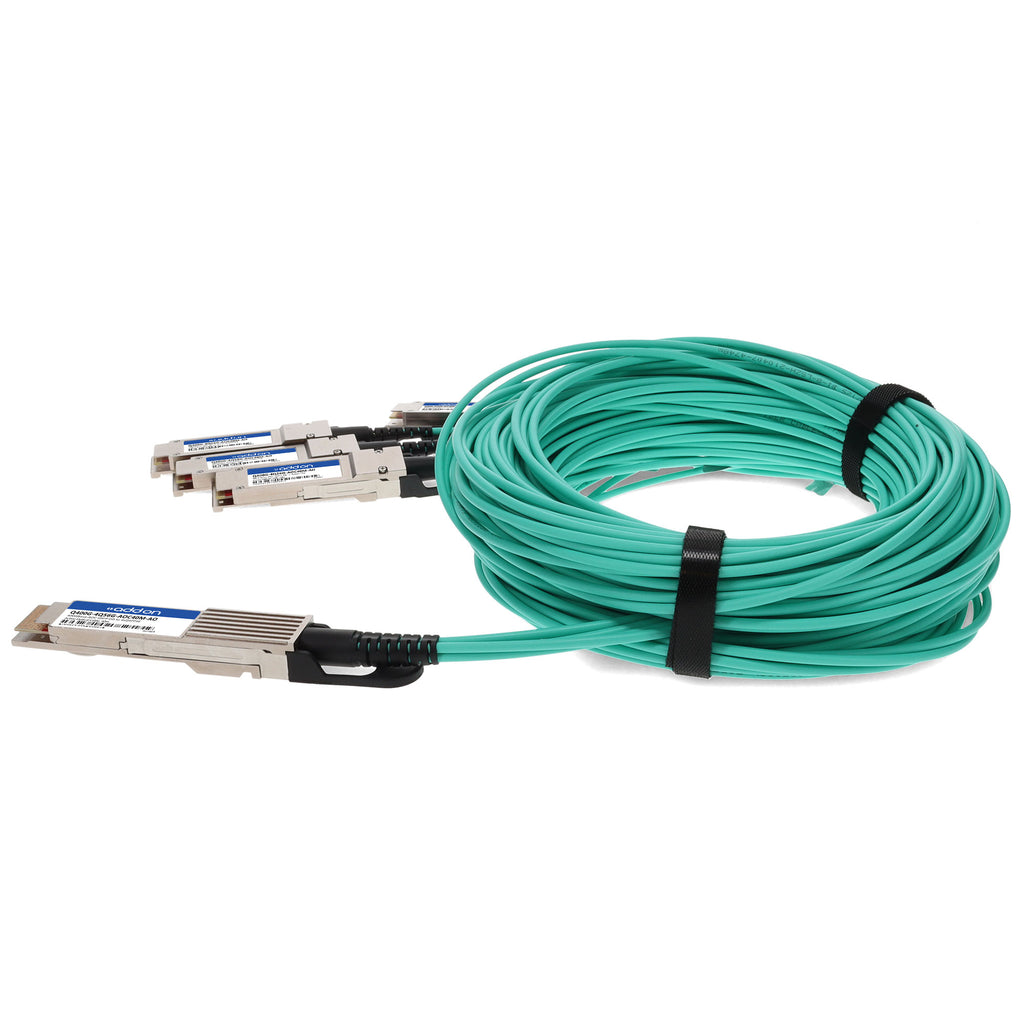

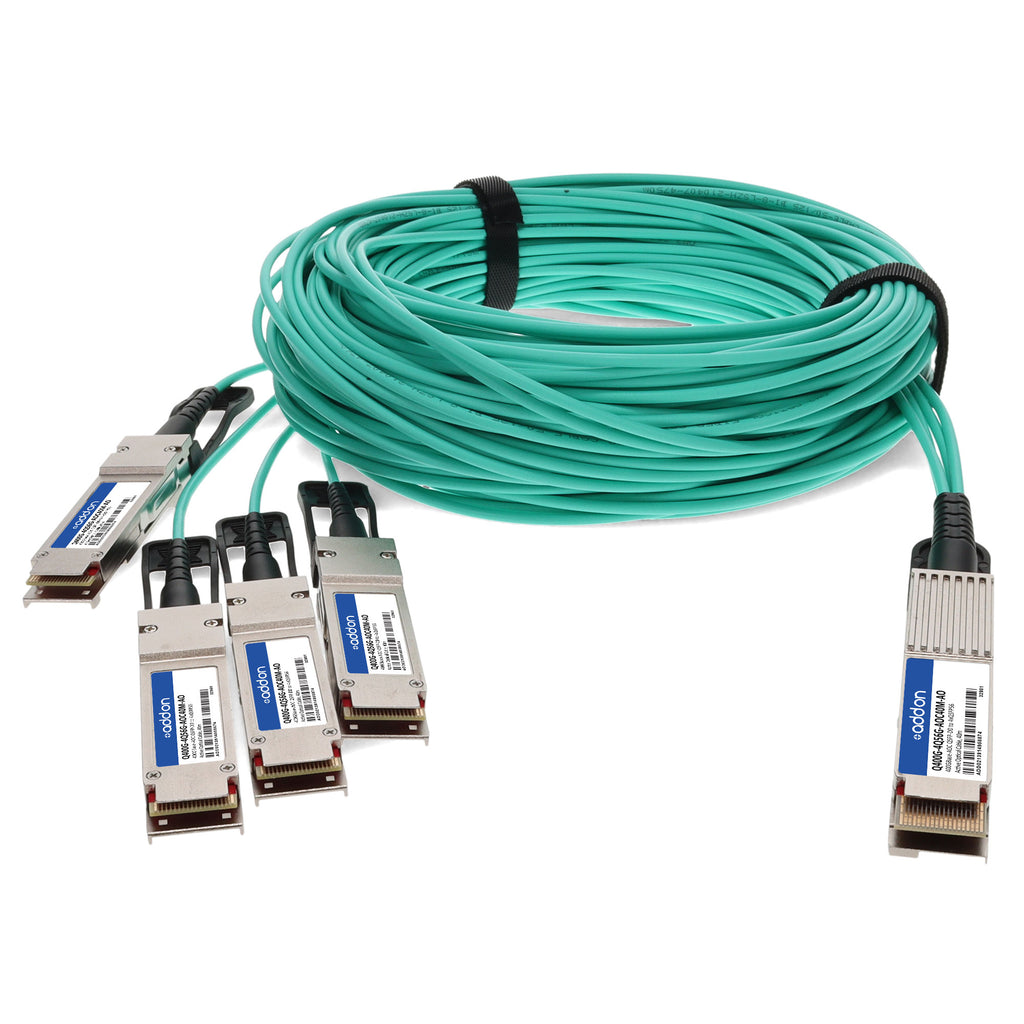

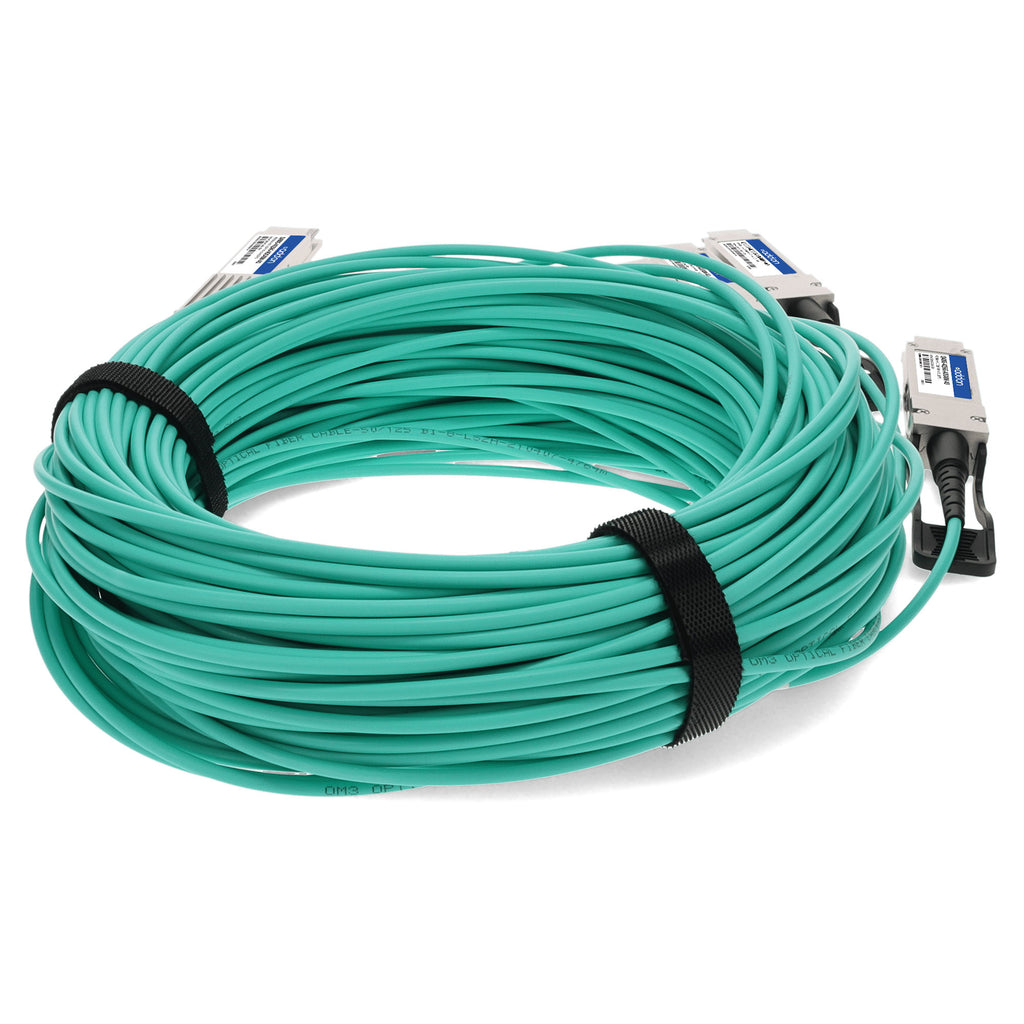

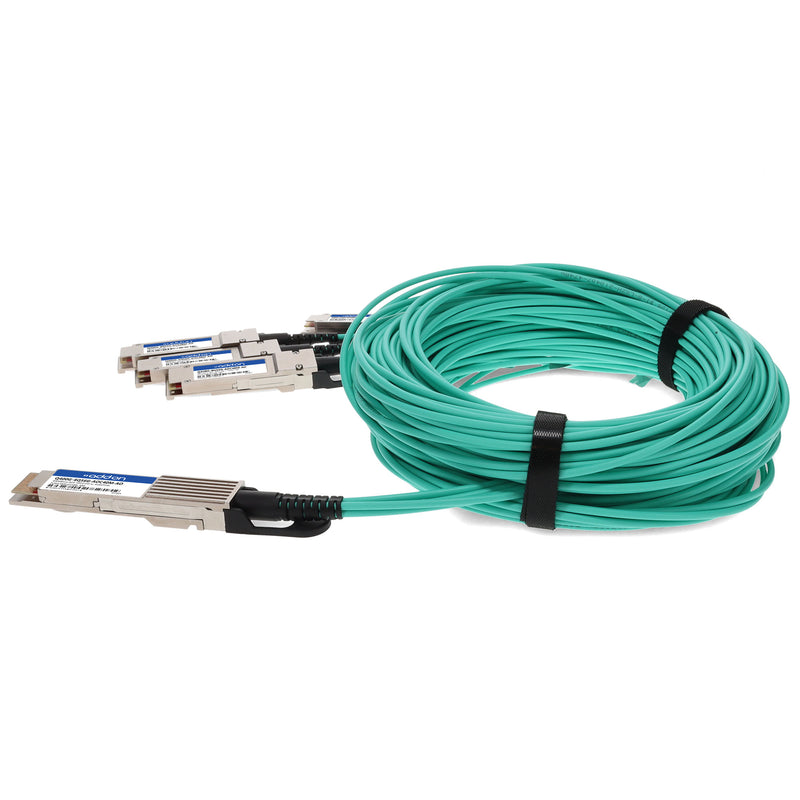

The AddOn Q400G-4Q56G-AOC40M-AO is a high-performance 400GBase active optical cable (AOC) designed for modern data centers, high-performance computing, and enterprise network environments. This QSFP-DD to 4xQSFP56 breakout AOC operates over multimode fiber (MMF) with a maximum reach of 40 meters at a wavelength of 850nm. It delivers reliable, low-latency, and high-bandwidth connectivity with PAM4 modulation and supports data rates up to 56.15 Gb/s per lane. Engineered to meet MSA and CMIS standards, this hot-pluggable cable features low power consumption, DSP-free CDR, and RoHS compliance. It is TAA compliant, ensuring suitability for government and enterprise procurement, and comes backed by AddOn’s industry-leading quality assurance and limited lifetime warranty.
| Specification | Details |
|---|---|
| SKU | Q400G-4Q56G-AOC40M-AO |
| Cable Type | Active Optical Cable (AOC) |
| Interface | QSFP-DD to 4xQSFP56 |
| Data Rate per Lane | Up to 56.15 Gb/s |
| Aggregate Data Rate | 400 Gbps |
| Modulation | PAM4 |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Reach | Up to 40m |
| Power Consumption (400G End) | 7.6W (typical), 8.0W (max) |
| Power Consumption (100G End) | 2.3W (typical), 2.5W (max) |
| Power Supply Voltage | 3.15V – 3.47V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% – 85% (non-condensing) |
| Bit Error Rate (BER) | ≤ 2.4 × 10⁻⁴ (pre-FEC) |
| Connector Type | QSFP-DD (400G) / QSFP56 (100G) |
| Cable Jacket | LSZH, Aqua |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Minimum Bend Radius | 30 mm (without tension) |
| Compliance | IEEE 802.3cm, MSA, CMIS 3.0/4.0, RoHS, TAA |
| Applications | 400G Ethernet, Data Centers, Switches, Servers, NICs, Storage |
| Warranty | Limited Lifetime Warranty |
