Description

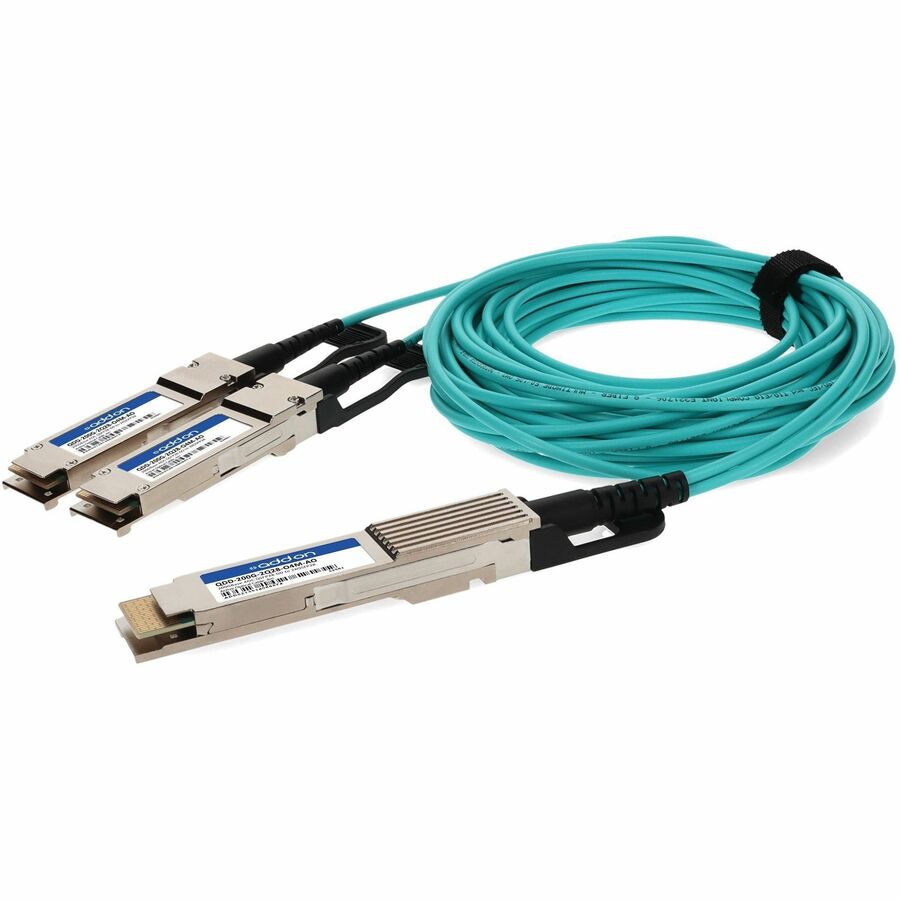

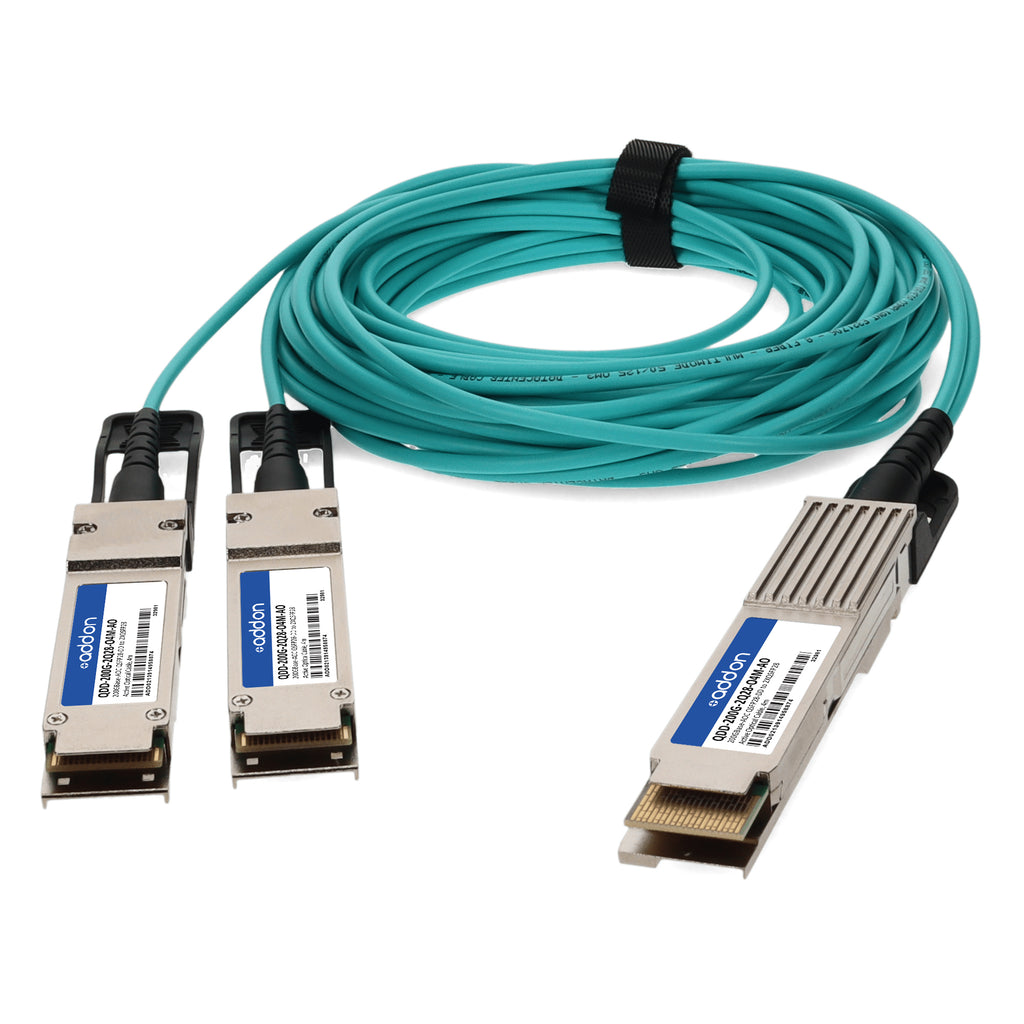

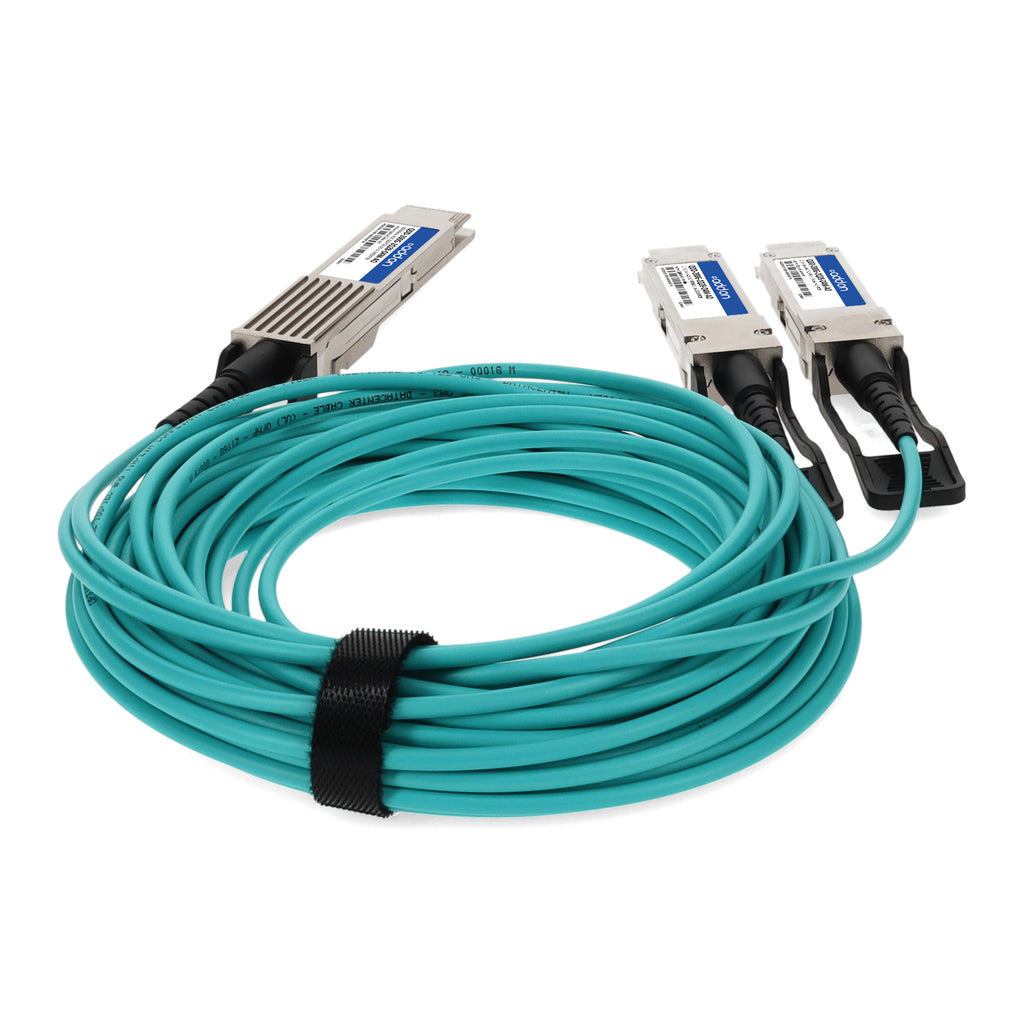

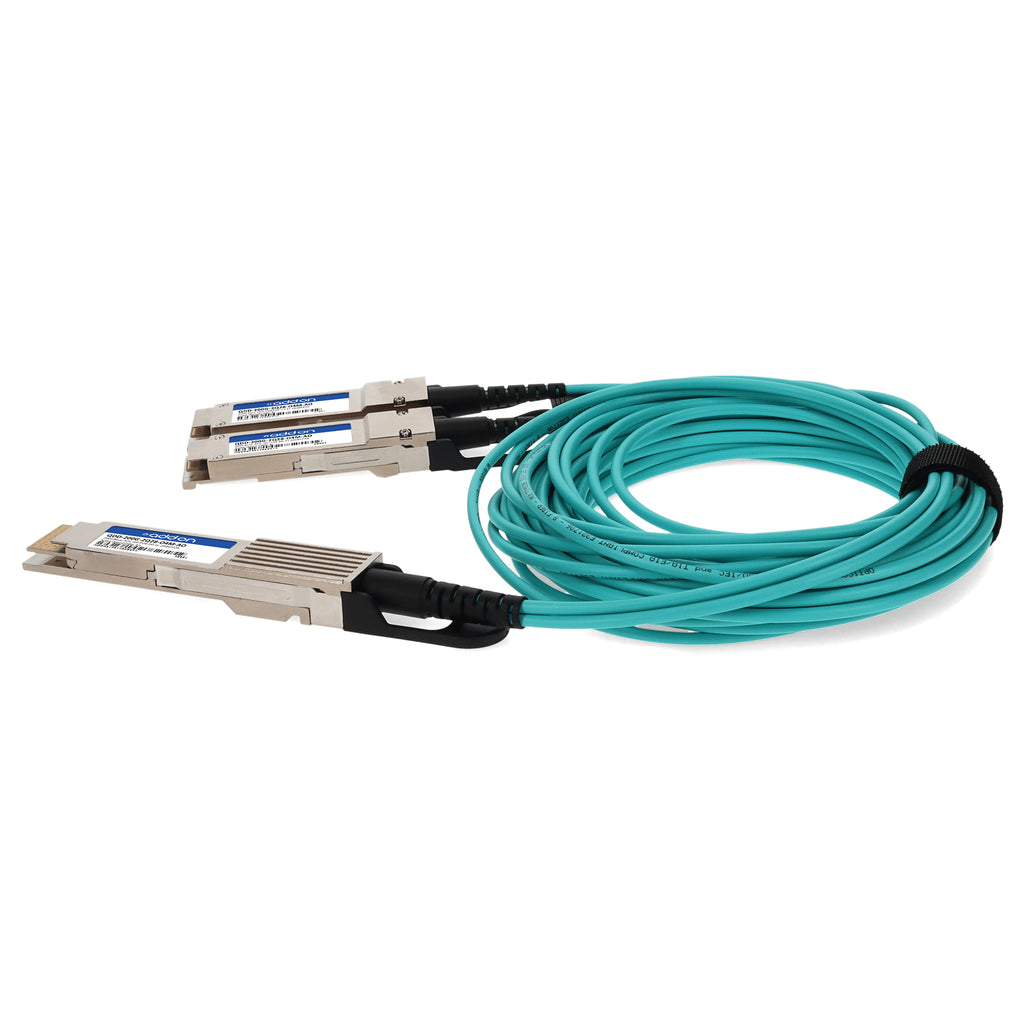

The AddOn QDD-200G-2Q28-O4M-AO is a high-performance 200GBase-AOC active optical cable designed for next-generation data center and high-performance computing environments. This breakout cable connects a single QSFP28-DD port to two QSFP28 ports, providing two independent full-duplex channels over OM3 multimode fiber with a maximum reach of 4 meters. Operating at 850nm, it delivers up to 25.78 Gbps per channel, ensuring ultra-fast, reliable data transmission for 100Gb Ethernet, InfiniBand EDR, and proprietary HPC interconnections.
Engineered to meet MSA and TAA compliance, this AOC offers hot-pluggable connectivity, low power consumption (3.3W on QSFP28-DD side and 1.65W on QSFP28 side), and OFNP-rated cable construction for enhanced safety. Each cable undergoes rigorous programming, serialization, and application-level testing to guarantee 100% compatibility and performance. With RoHS and REACH compliance and TUV certification, AddOn’s AOC solutions deliver exceptional reliability and quality assurance for mission-critical network deployments.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| SKU | QDD-200G-2Q28-O4M-AO |
| Product Type | 200GBase Active Optical Cable |
| Form Factor | QSFP28-DD to 2xQSFP28 |
| Wavelength | 850nm |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Total Data Rate | 200 Gbps |
| Cable Length | 4 meters |
| Fiber Type | OM3 Multimode Fiber |
| Connector Type | QSFP28-DD to 2xQSFP28 |
| Compliance | MSA, TAA, RoHS, REACH |
| Power Consumption | 3.3W (QSFP28-DD), 1.65W (QSFP28) |
| Power Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Cable Jacket | OFNP-Rated (Aqua) |
| Cable Diameter | Ø3.0 ± 0.20 mm |
| Minimum Bend Radius | 30 mm (no tension) / 60 mm (under tension) |
| Applications | 100Gb Ethernet, InfiniBand EDR, HPC Interconnects |
| Certifications | TUV Certified, Lead-Free |
| Warranty | Limited Lifetime Warranty |
