Description

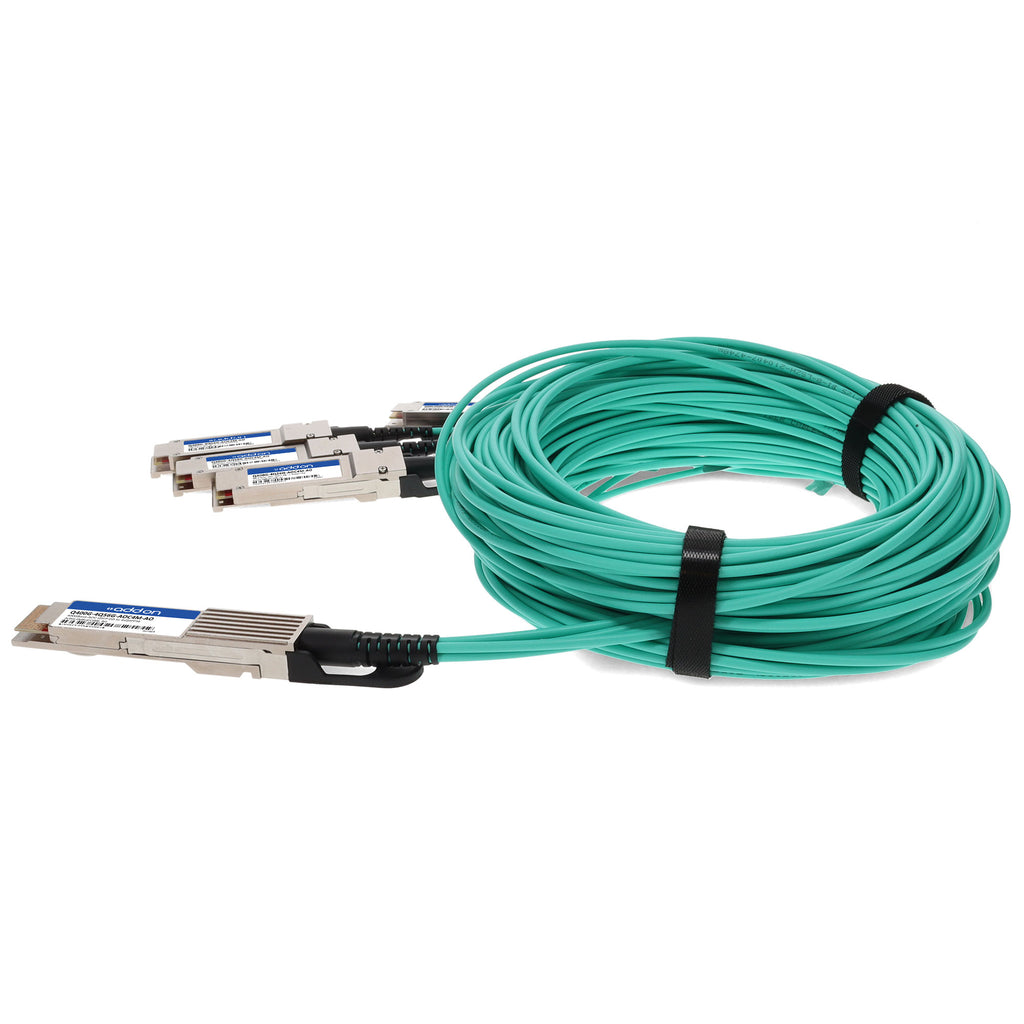

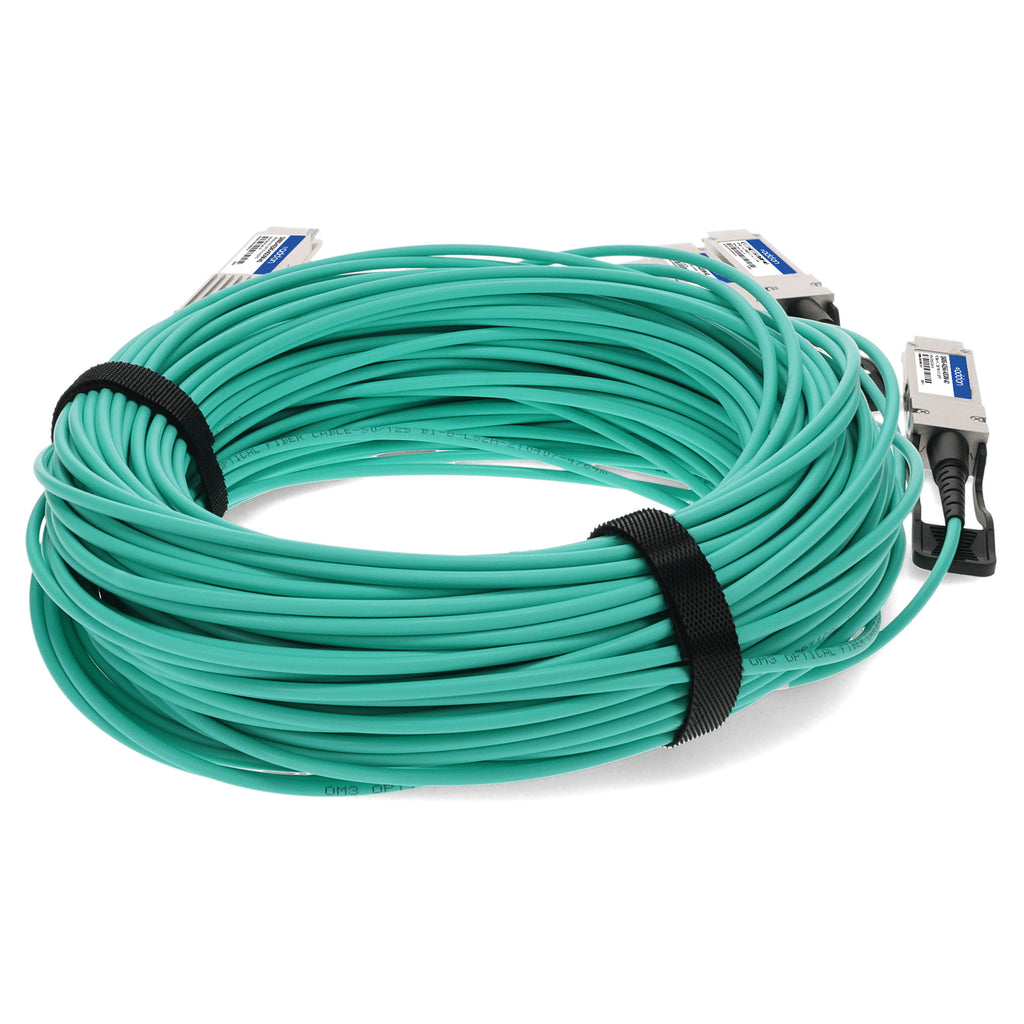

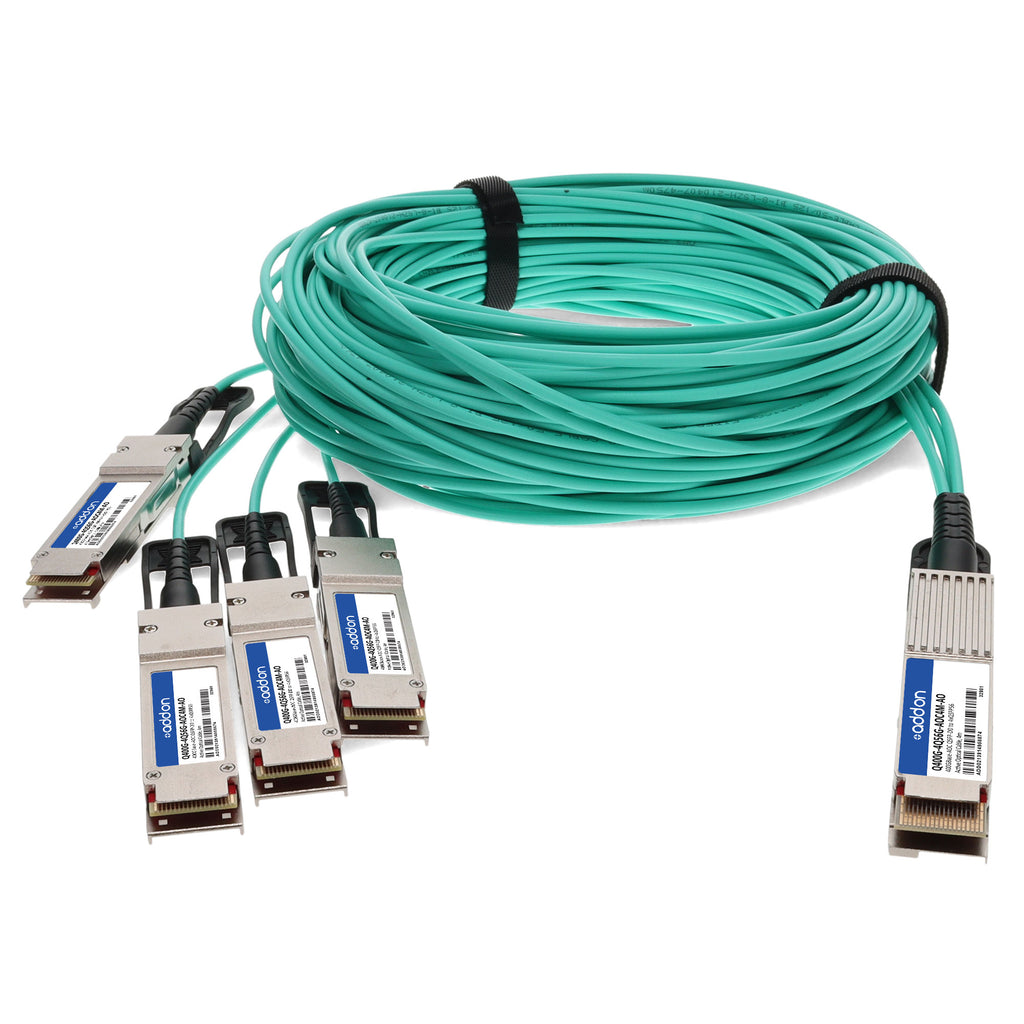

The AddOn Q400G-4Q56G-AOC4M-AO is a high-performance 400GBase active optical cable designed for ultra-high-speed interconnects in modern data centers. This MSA and TAA compliant QSFP-DD to 4xQSFP56 breakout AOC operates over multi-mode fiber with a maximum reach of 4 meters at 850nm. It features PAM4 modulation and low-latency DSP-free electronics-based CDR, supporting multi-data rates up to 56.15 Gb/s per lane. Engineered for reliability and efficiency, it delivers low power consumption (7.6W on the 400G end and 2.3W on each 100G end) and supports CMIS 4.0. Fully hot-pluggable and RoHS compliant, this LSZH-rated AOC is ideal for high-density switch, server, storage, and NIC interconnects in next-generation Ethernet deployments.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| SKU | Q400G-4Q56G-AOC4M-AO |
| Cable Type | 400GBase-AOC QSFP-DD to 4xQSFP56 Active Optical Cable |
| Compliance | MSA, TAA, IEEE 802.3cm, CMIS 4.0, RoHS |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Maximum Reach | 4m |
| Modulation | PAM4 |
| Data Rate | Up to 56.15 Gb/s per lane |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) |
| Power Supply | Single 3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | –40°C to 85°C |
| Relative Humidity | 5% – 85% |
| Connector Type | QSFP-DD to 4xQSFP56 |
| Cable Jacket | LSZH, Aqua |
| Minimum Bend Radius | 30mm |
| Applications | Data centers, switches, servers, storage, NIC adapters |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
