Description

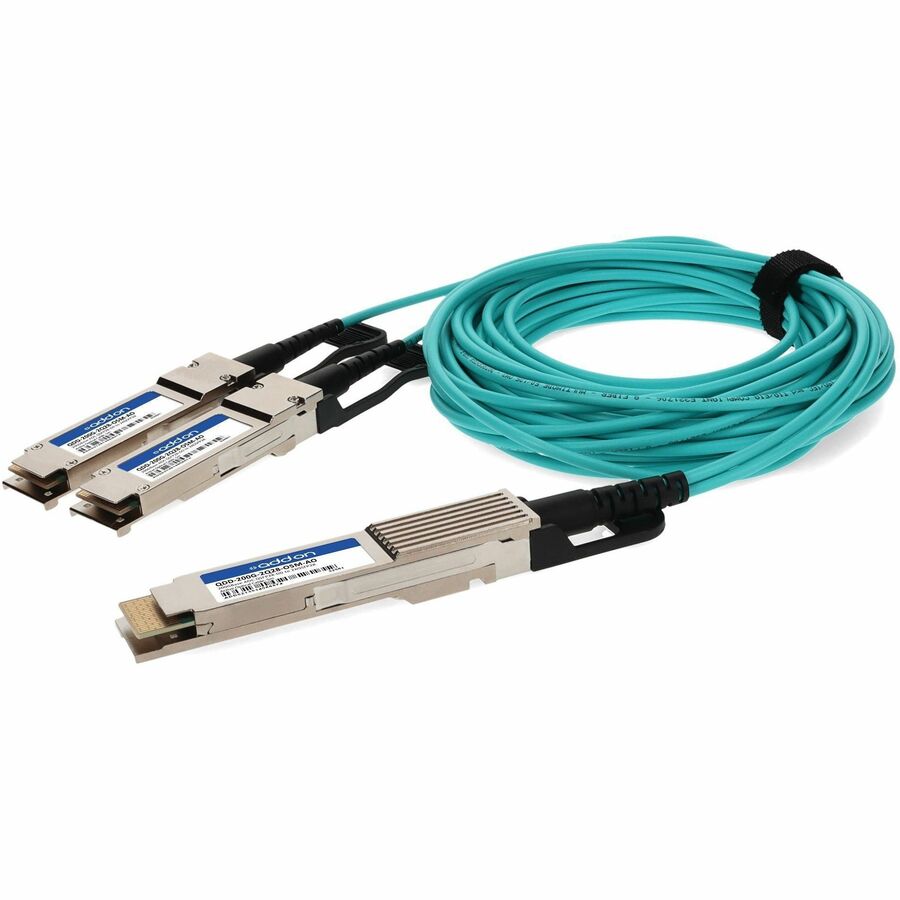

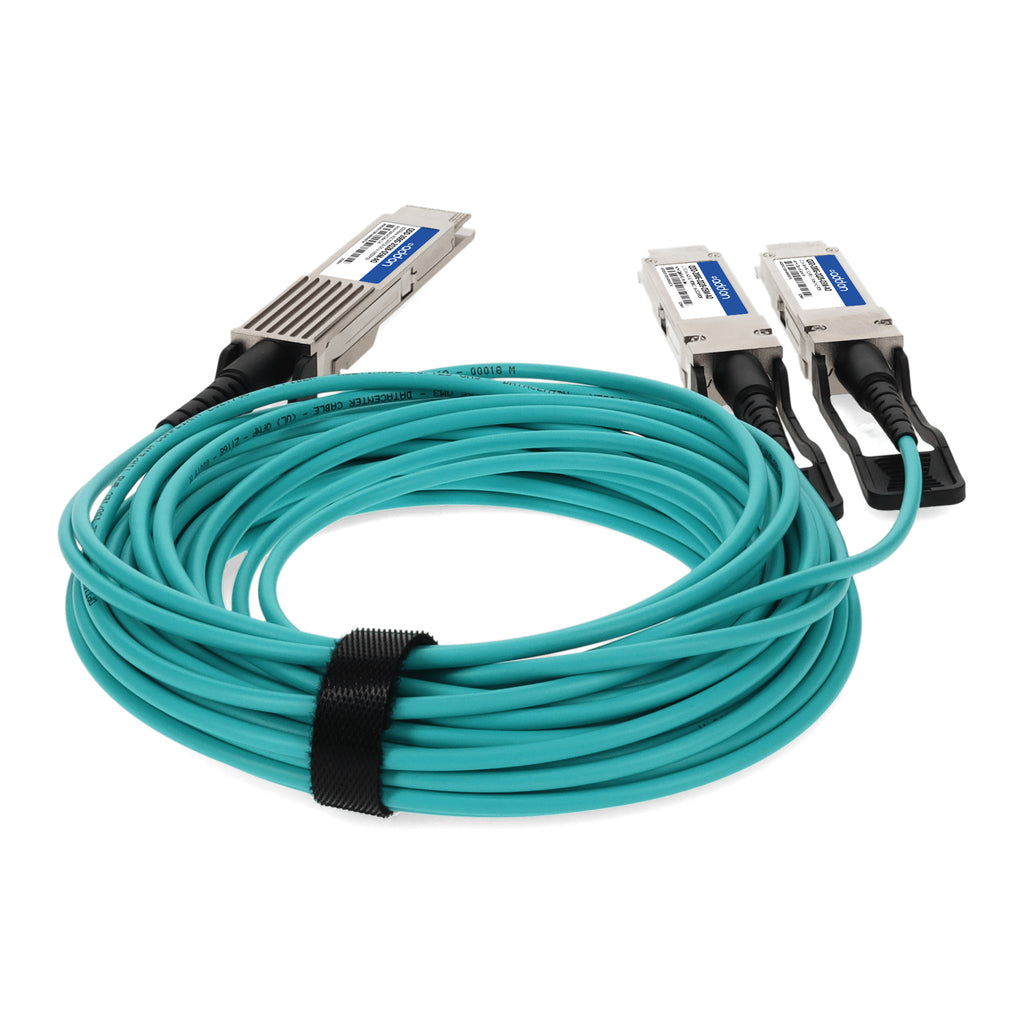

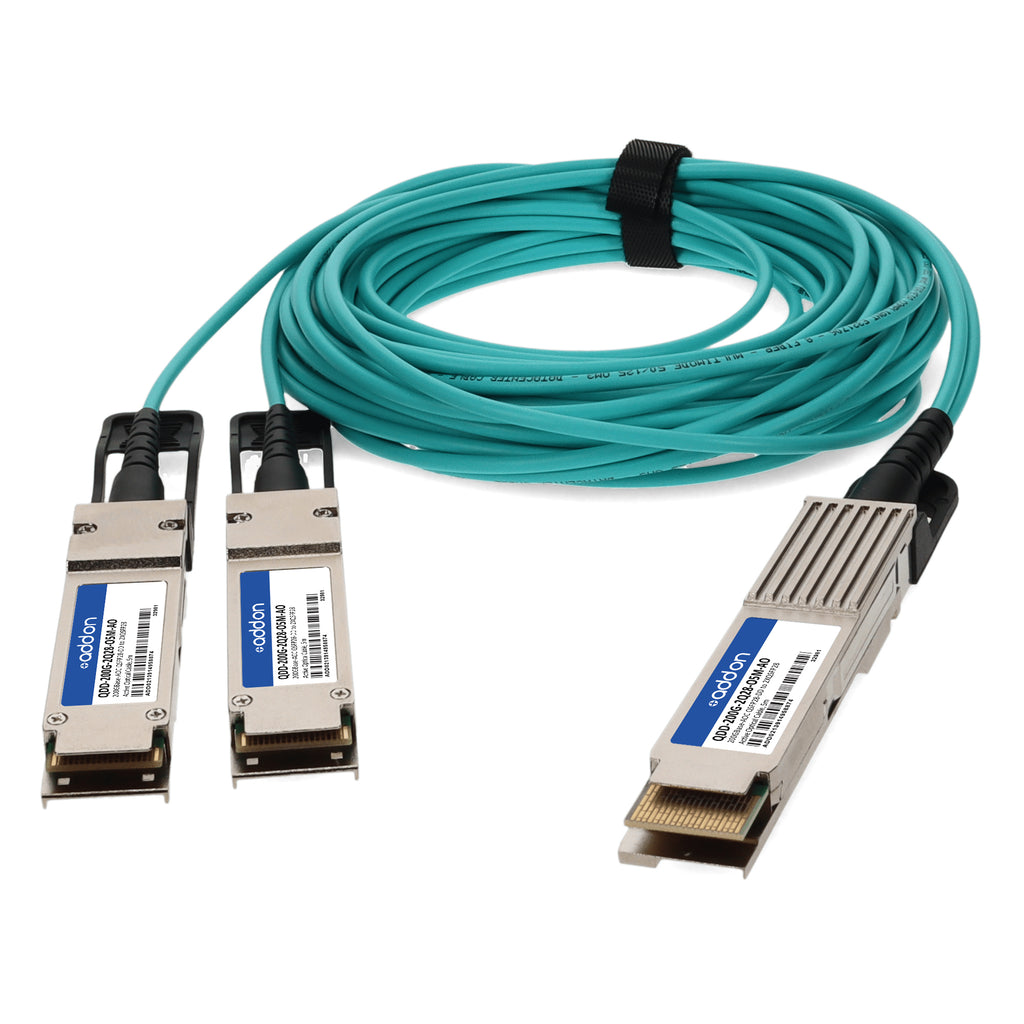

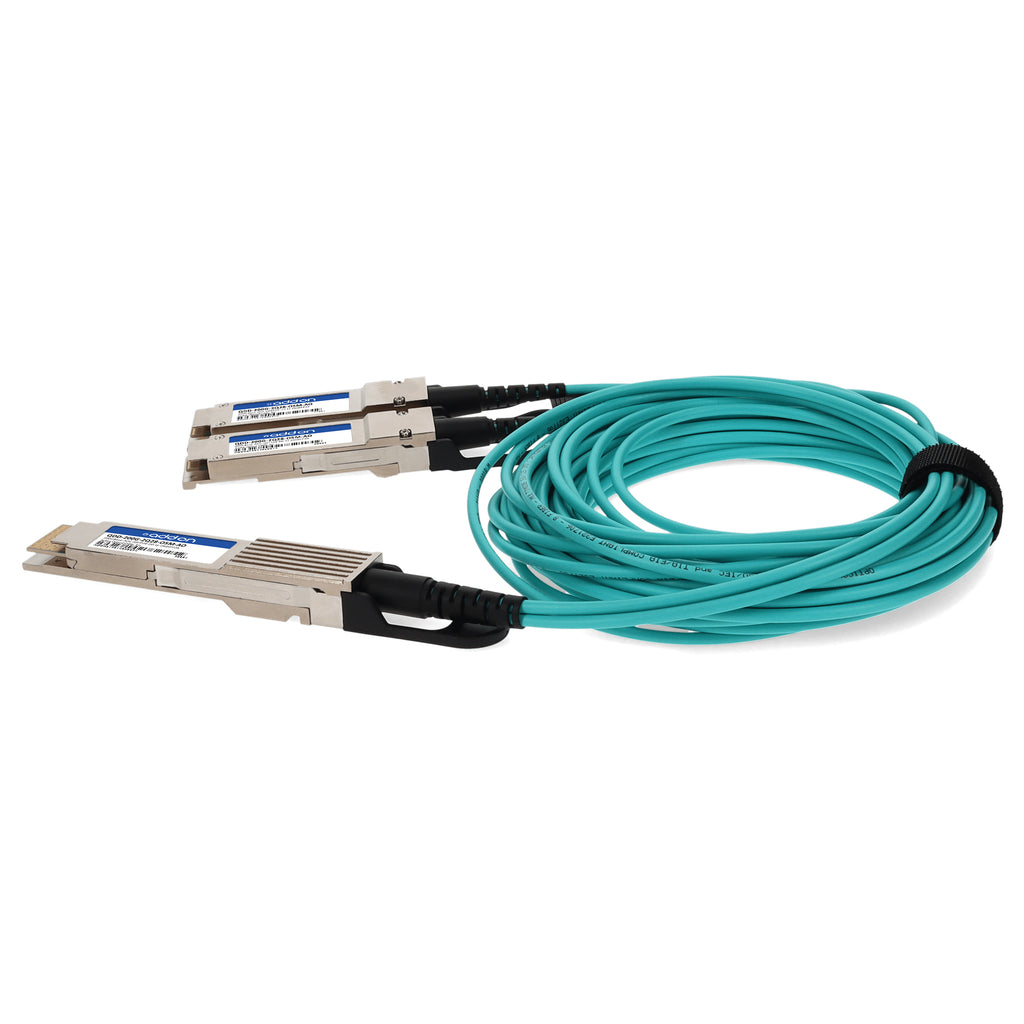

The AddOn QDD-200G-2Q28-O5M-AO is an MSA and TAA compliant 200GBase active optical cable (AOC) featuring a QSFP28-DD connector on one end and two QSFP28 connectors on the other. Operating over multimode fiber (MMF) with a maximum reach of 5 meters and a wavelength of 850nm, this breakout cable enables high-bandwidth interconnects for 100GbE, InfiniBand EDR, datacenter, and HPC applications. Designed with 2 independent full-duplex channels and supporting up to 25.78 Gbps per channel, it delivers superior performance and reliability with low power consumption (3.3W on QSFP28-DD end and 1.65W on QSFP28 end). The hot-pluggable design ensures easy installation and upgrades, while OFNP-rated cable construction enhances safety and compliance in high-performance networking environments. Each unit is uniquely serialized, rigorously tested for data traffic and application compatibility, and backed by AddOn’s limited lifetime warranty for guaranteed quality and reliability.
| Parameter | Specification |
|---|---|
| SKU | QDD-200G-2Q28-O5M-AO |
| Cable Type | Active Optical Cable (AOC) |
| Data Rate (Per Channel) | Up to 25.78 Gbps |
| Total Data Rate | 200 Gbps |
| Connector Type | QSFP28-DD to 2x QSFP28 |
| Wavelength | 850nm |
| Fiber Type | Multimode Fiber (OM3) |
| Cable Length | 5 meters |
| Channels | 2 independent full-duplex |
| Power Consumption (QSFP28-DD) | 3.3W typical |
| Power Consumption (QSFP28) | 1.65W typical |
| Supply Voltage | +3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 0% to 85% |
| Cable Jacket | OFNP-rated (Aqua) |
| Minimum Bend Radius | 30mm (no tension) / 60mm (max tension) |
| Compliance | MSA, TAA, RoHS, REACH |
| Applications | 100Gigabit Ethernet, InfiniBand EDR, Datacenter, HPC Interconnections |
| Warranty | Limited Lifetime Warranty |
