Description

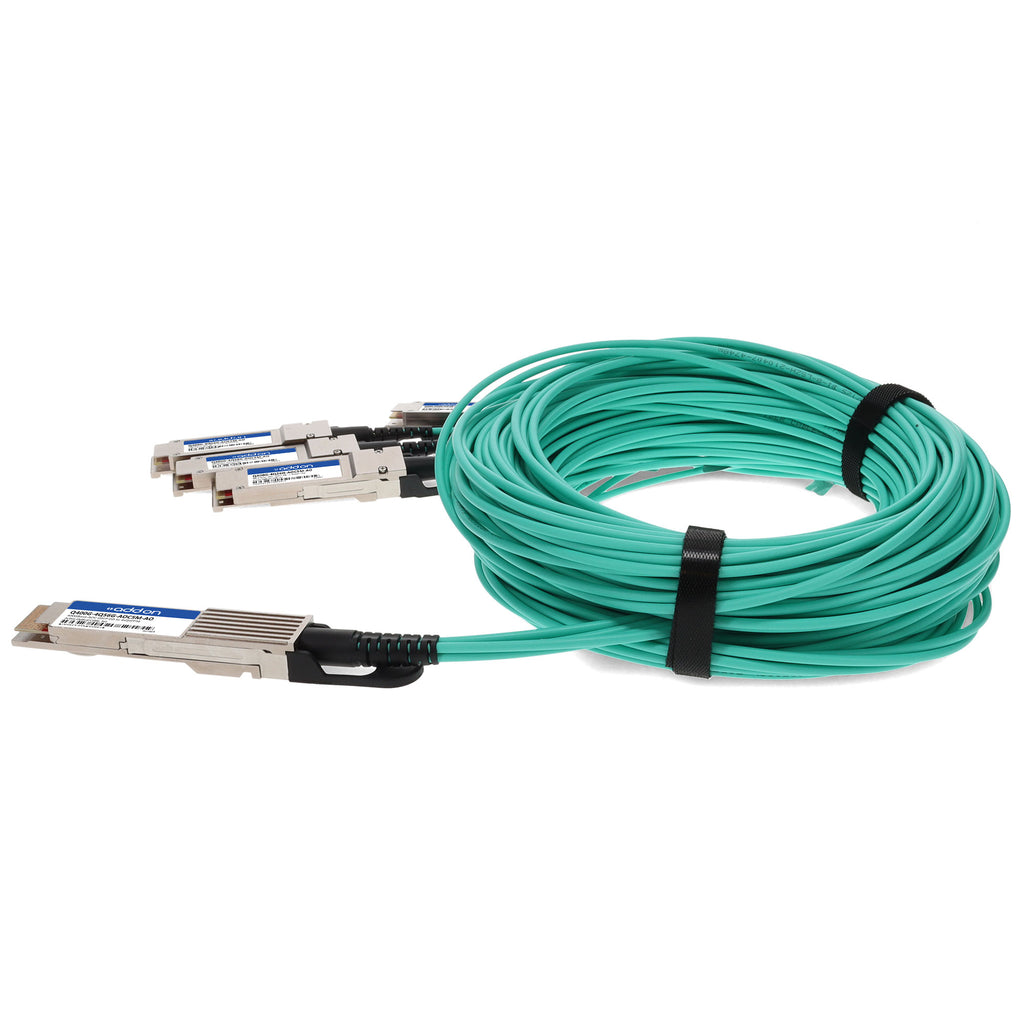

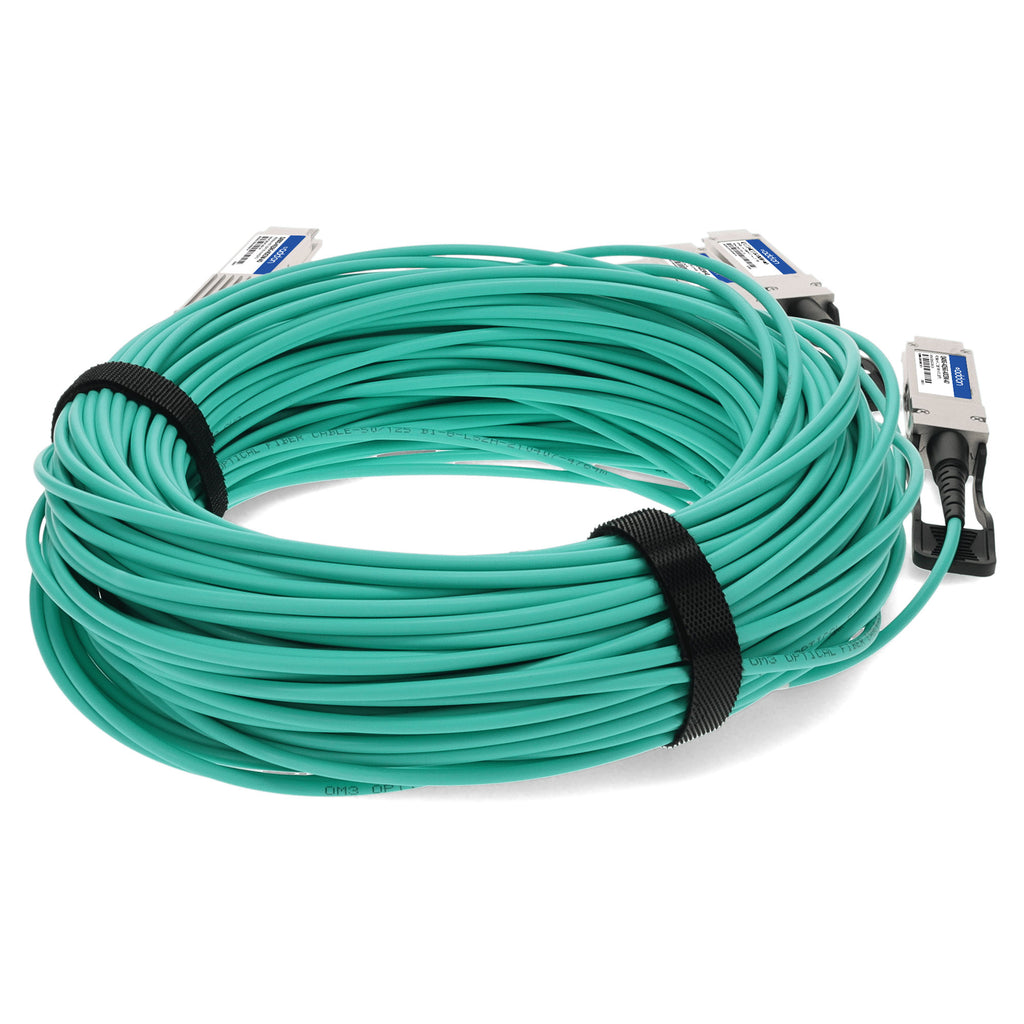

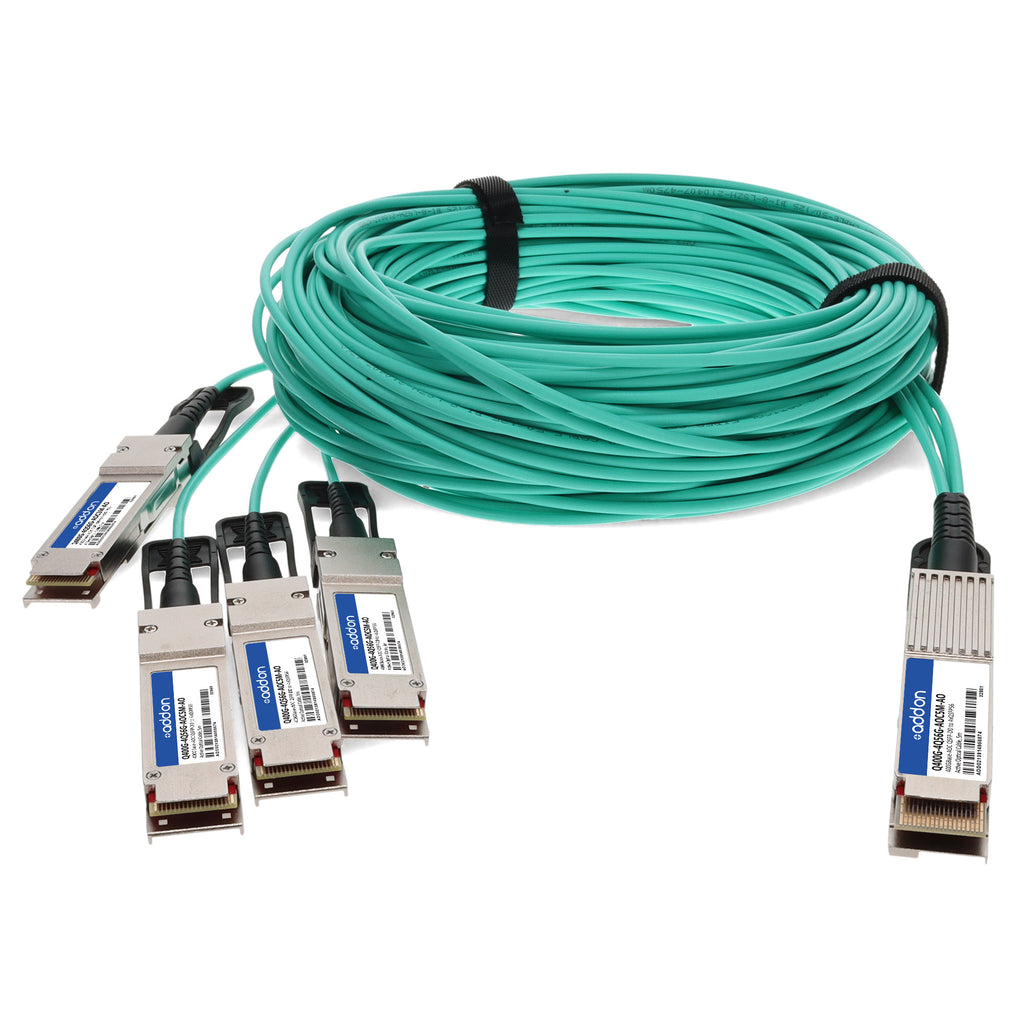

The AddOn Q400G-4Q56G-AOC5M-AO is a high-performance 400GBase active optical cable designed for data center interconnects, high-bandwidth networking, and 400G Ethernet applications. This MSA and TAA compliant QSFP-DD to 4xQSFP56 PAM4 cable operates over multi-mode fiber (MMF) with a maximum reach of 5 meters and supports multi-data rates up to 56.15 Gb/s per lane. Engineered with low-latency DSP-free CDR technology and PAM4 modulation, it ensures superior signal integrity, reduced power consumption, and optimal performance for switches, servers, storage systems, and NIC adapters. Each unit is programmed, uniquely serialized, and rigorously tested for data traffic and application compliance. The cable is hot-pluggable, LSZH-rated, RoHS compliant, and built to meet IEEE 802.3cm standards — all backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| Brand | AddOn |
| Part Number / SKU | Q400G-4Q56G-AOC5M-AO |
| Product Type | Active Optical Cable |
| Data Rate per Lane | Up to 56.15 Gb/s |
| Aggregate Data Rate | 400G (QSFP-DD) to 4x100G (QSFP56) |
| Form Factor | QSFP-DD to 4xQSFP56 |
| Cable Length | 5 meters |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Maximum Reach | 5m |
| Modulation | PAM4 |
| CDR | Low latency DSP-free electronics-based CDR |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) with all CDRs enabled |
| Voltage Supply | Single 3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% – 85% |
| Compliance Standards | MSA, CMIS 3.0/4.0, IEEE 802.3cm, RoHS, TAA |
| Connector Type | QSFP-DD to 4xQSFP56 |
| Cable Jacket | LSZH, Aqua |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Minimum Bend Radius | 30 mm |
| Length Tolerance | +300 / –0 mm |
| Applications | Data centers, switches, servers, storage, NIC adapters, 400G Ethernet |
| Warranty | Limited Lifetime Warranty |
