Description

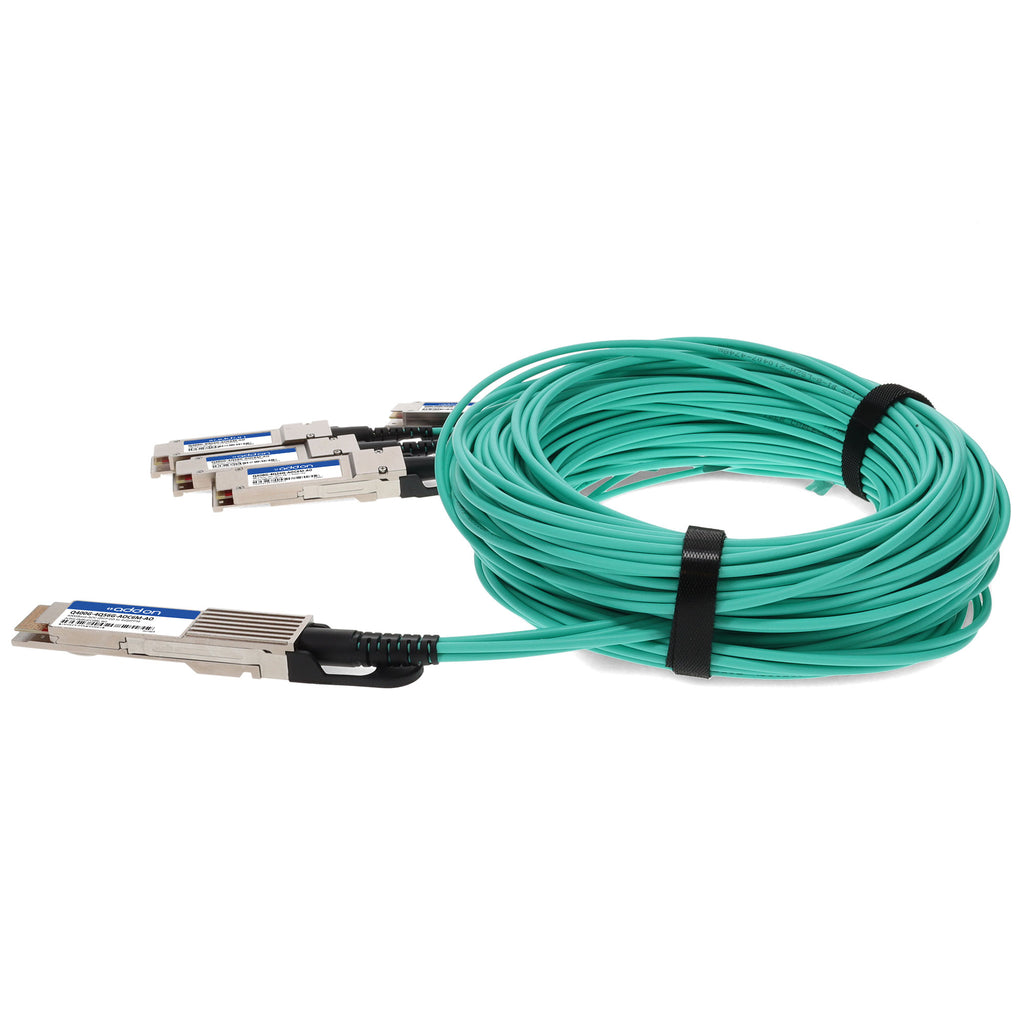

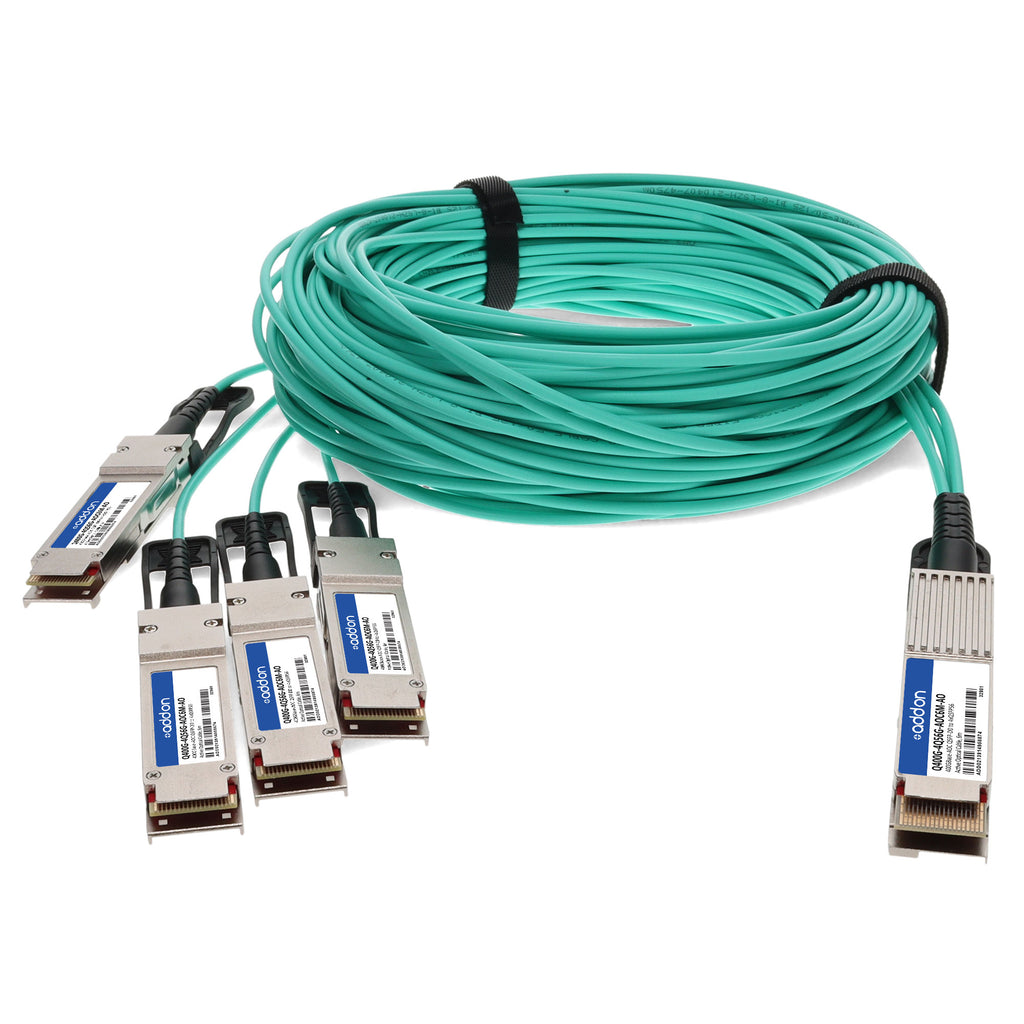

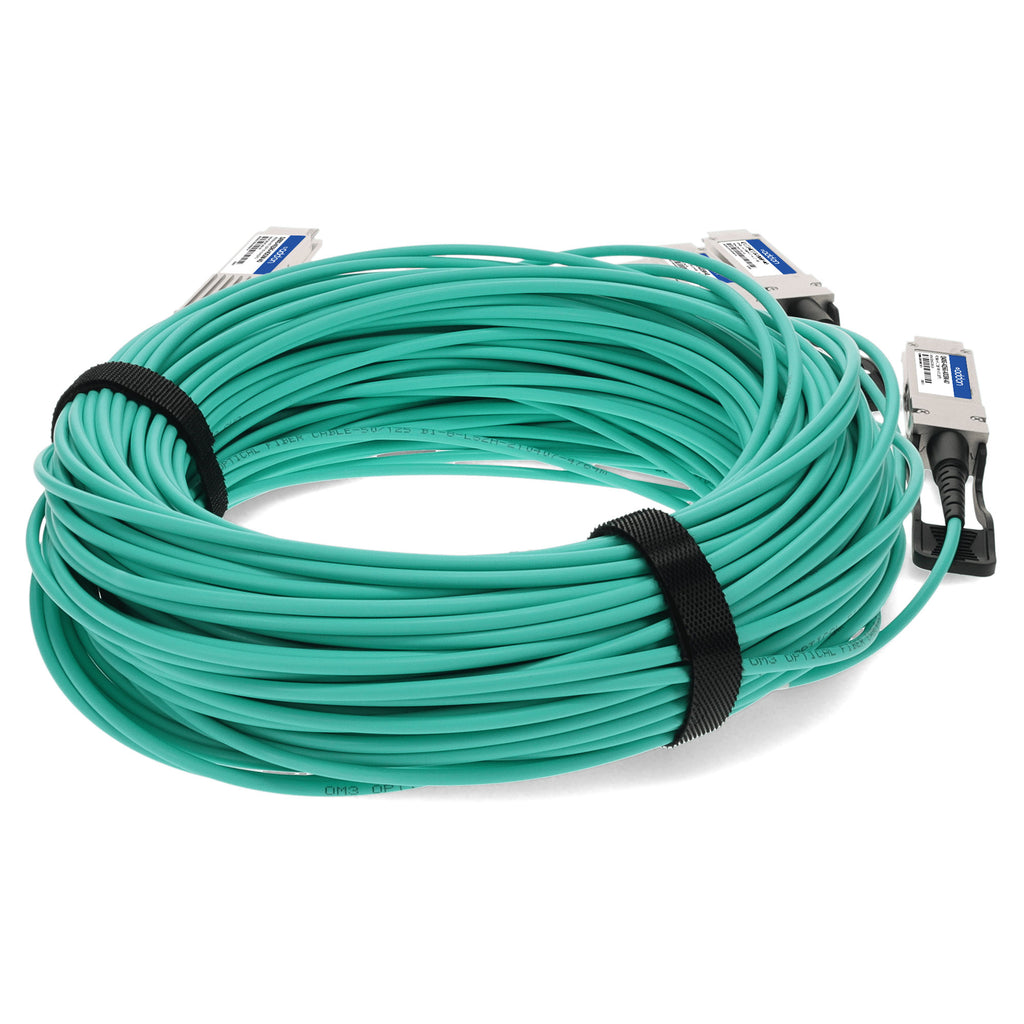

The AddOn Q400G-4Q56G-AOC6M-AO is a MSA and TAA compliant 400GBase active optical cable (AOC) with a QSFP-DD to 4xQSFP56 breakout configuration, designed for high-performance data center and enterprise networking applications. Operating over multi-mode fiber (MMF) with a wavelength of 850nm, this AOC provides a maximum reach of 6 meters, making it ideal for short-range, high-speed interconnects between switches, servers, storage devices, and network interface cards (NICs).
Built with PAM4 modulation and supporting multi-data rates up to 56.15 Gb/s per lane, this cable delivers superior bandwidth and reliability while maintaining low power consumption — 7.6W on the 400G end and 2.3W on each 100G end. It features DSP-free CDR electronics for minimal latency, a hot-pluggable design, and compliance with CMIS 4.0 and IEEE 802.3cm standards. Each unit is uniquely serialized, rigorously tested for interoperability, and backed by AddOn’s limited lifetime warranty.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Part Number / SKU | Q400G-4Q56G-AOC6M-AO |
| Product Type | 400GBase Active Optical Cable (AOC) |
| Form Factor | QSFP-DD to 4xQSFP56 |
| Cable Length | 6 meters |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Maximum Data Rate | 56.15 Gb/s per lane |
| Total Bandwidth | 400G (QSFP-DD) to 4x100G (QSFP56) |
| Modulation | PAM4 |
| Compliance Standards | MSA, TAA, CMIS 4.0, IEEE 802.3cm, RoHS |
| Power Consumption | 7.6W (400G end), 2.3W (100G end) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Supply Voltage | 3.3V (single) |
| Cable Jacket | LSZH, Aqua |
| Minimum Bend Radius | 30 mm |
| Hot Pluggable | Yes |
| Applications | 400G Ethernet, Data Centers, Switches, Servers, Storage, NIC Adapters |
| Warranty | Limited Lifetime Warranty |
