Description

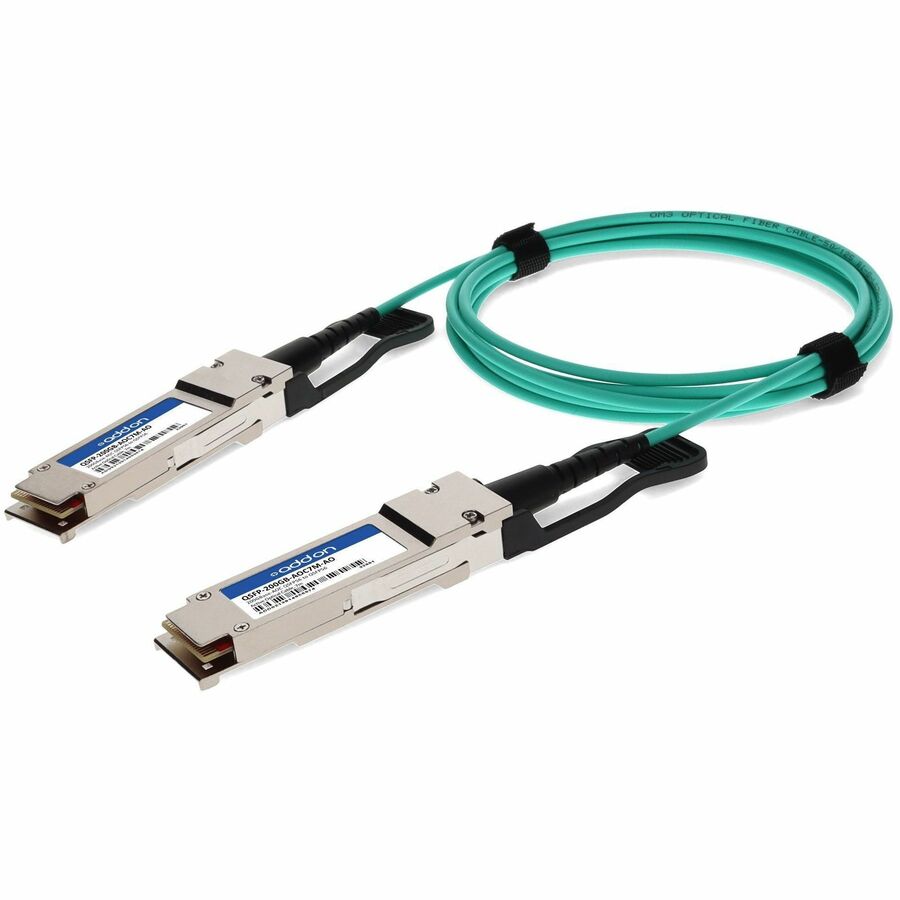

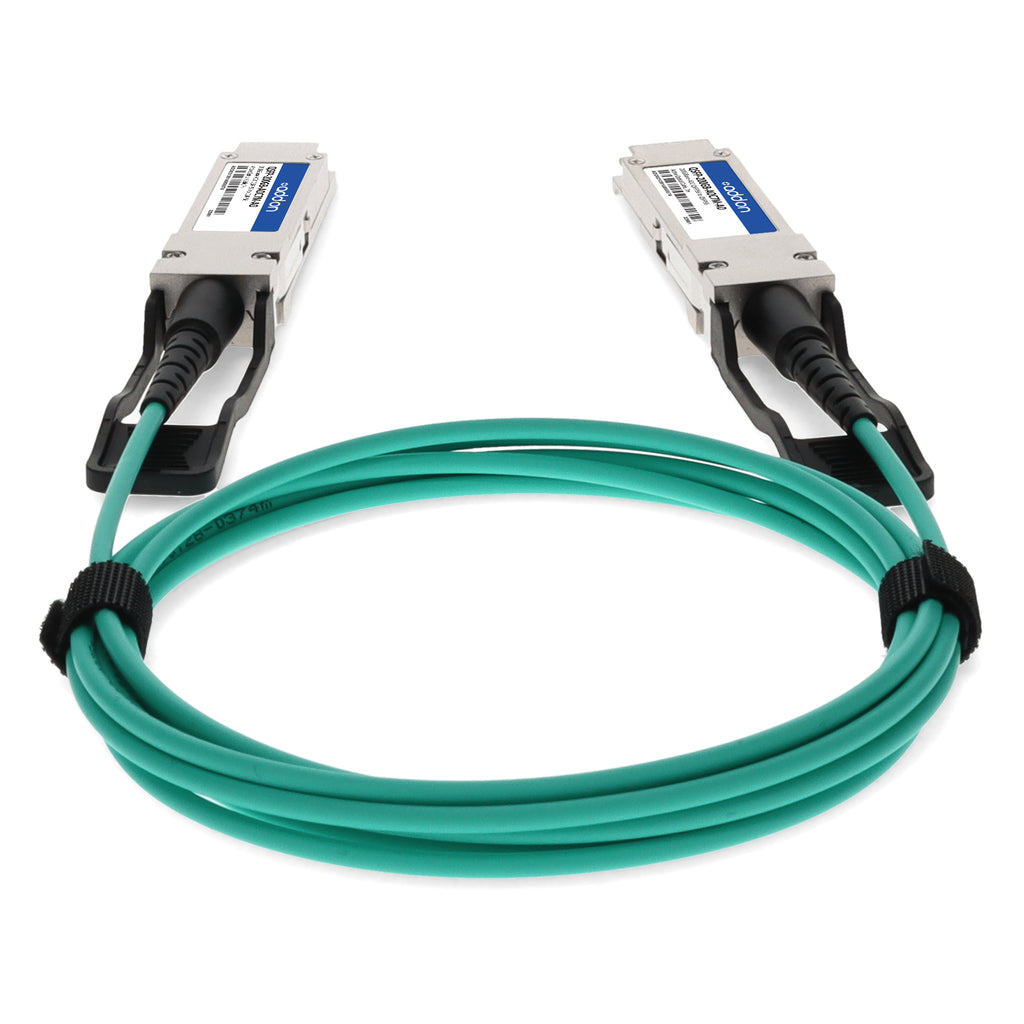

The AddOn QSFP-200GB-AOC7M-AO is a MSA and TAA compliant 200GBase-AOC active optical cable designed for high-speed interconnects in modern data centers and enterprise networks. This QSFP56 to QSFP56 AOC operates over multimode fiber (MMF) with a maximum reach of 7 meters at an 850nm wavelength.
Engineered with low-latency, DSP-free electronics and PAM4 modulation, it delivers a high data rate of 53.125 Gbps per lane, ensuring optimal performance for applications such as server-to-switch, switch-to-switch, storage, and NIC interconnects.
With features like hot-pluggable SFF-8665 interfaces, low power consumption (3.6 W per cable end), and CDR with FEC support, this AOC is designed for reliability, scalability, and ease of deployment. It is RoHS compliant, lead-free, and built to Trade Agreements Act (TAA) standards, backed by AddOn’s limited lifetime warranty.
| Specification | Description |
|---|---|
| Part Number | QSFP-200GB-AOC7M-AO |
| Form Factor | QSFP56 to QSFP56 Active Optical Cable |
| Data Rate | 200 Gbps (53.125 Gbps per lane) |
| Modulation | PAM4 |
| Wavelength | 850nm |
| Cable Type | Multimode Fiber (MMF) |
| Cable Length | 7 meters |
| Connector Type | QSFP56 |
| Compliance Standards | MSA, TAA, IEEE 802.3cd 200GBASE-SR4 |
| Power Supply Voltage | 3.3 V (3.13 – 3.47 V) |
| Power Consumption | 3.6 W per cable end (with CDR enabled) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% – 85% |
| Cable Jacket | LSZH or LSZH/OFNR-rated, Aqua |
| Minimum Bend Radius | 30 mm |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Length Tolerance | +300 / -0 mm |
| Features | DSP-free electronics, FEC support, Hot-pluggable, RoHS compliant, Lead-free |
| Applications | Data center interconnects, servers, switches, storage systems, NIC adapters |
| Warranty | Limited Lifetime Warranty |
