Description

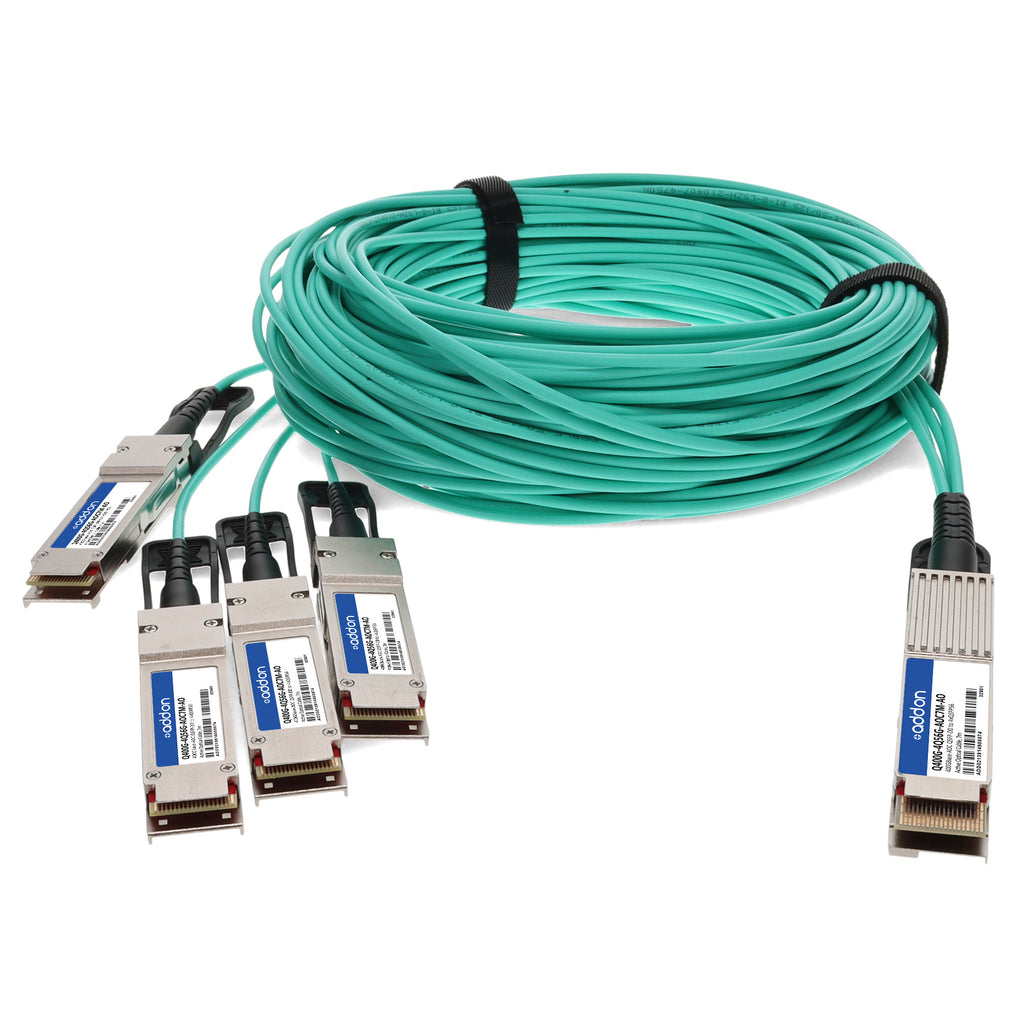

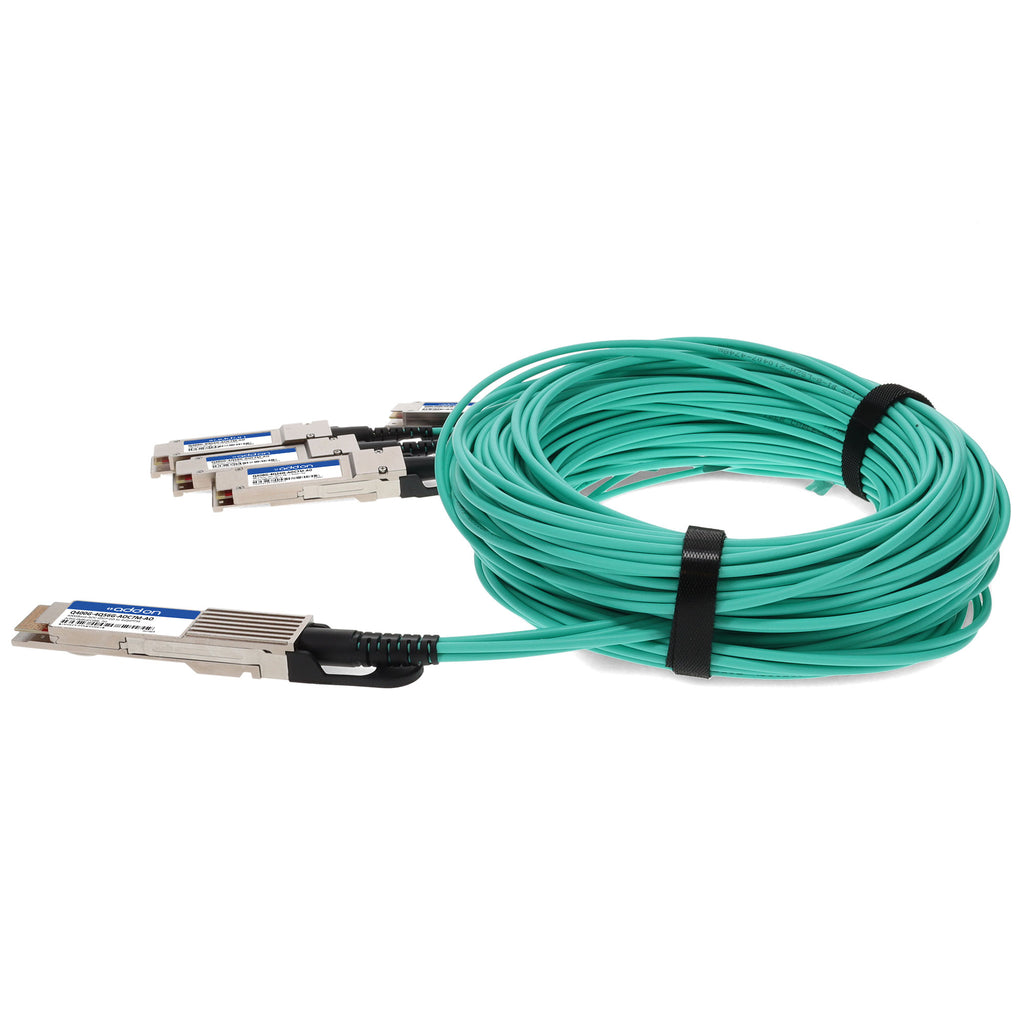

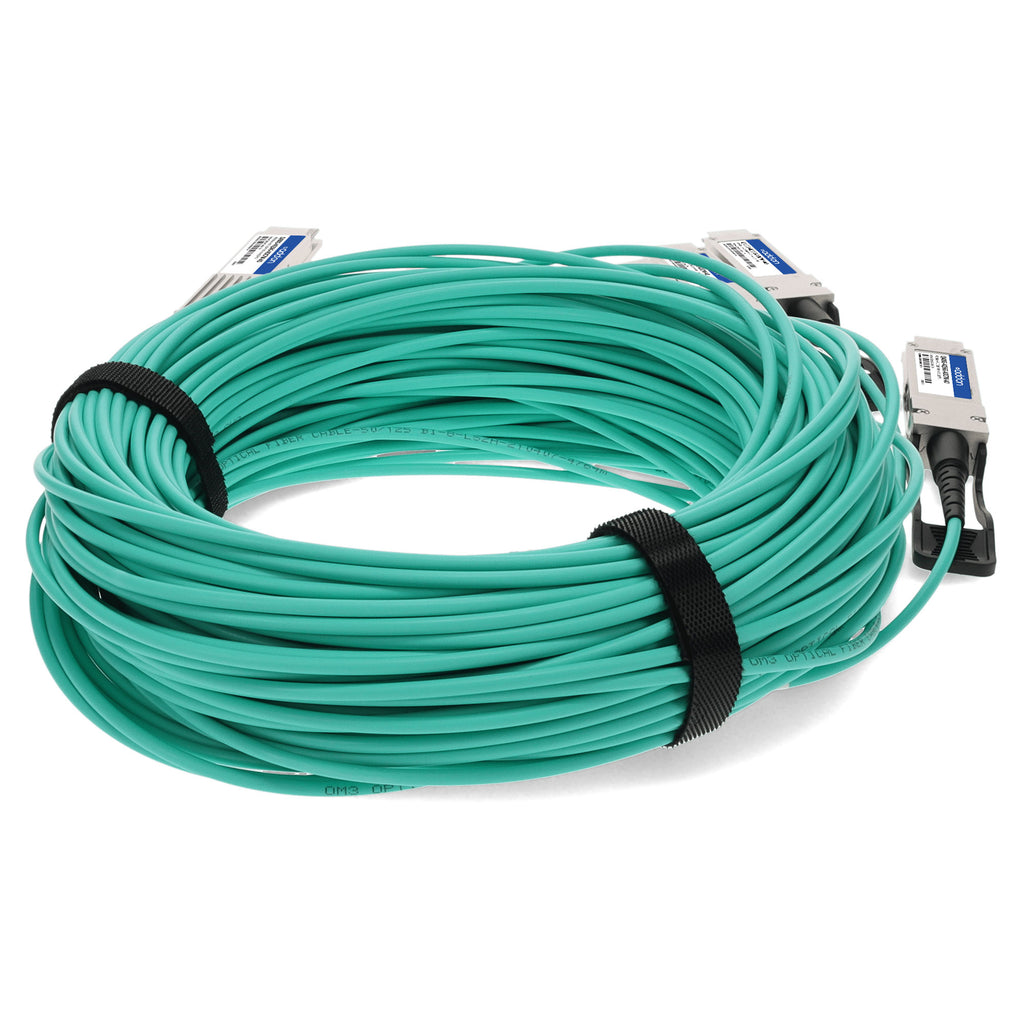

The AddOn Q400G-4Q56G-AOC7M-AO is a high-performance, MSA- and TAA-compliant 400GBase active optical cable (AOC) featuring a QSFP-DD to 4xQSFP56 PAM4 interface. Operating over multi-mode fiber with a maximum reach of 7 meters, this cable delivers low-latency, DSP-free data transmission with PAM4 modulation and supports data rates up to 56.15 Gb/s per lane. Designed for modern high-speed data center environments, it is fully hot-pluggable, CMIS 3.0 compliant, and built with LSZH-rated materials for improved safety. This cable is rigorously tested for interoperability, uniquely serialized, and backed by AddOn’s limited lifetime warranty — ensuring reliable connectivity for 400G Ethernet, switches, servers, storage systems, and NIC adapters.
| Specification | Description |
|---|---|
| Brand | AddOn |
| Part Number | Q400G-4Q56G-AOC7M-AO |
| Form Factor | QSFP-DD to 4xQSFP56 |
| Cable Type | Active Optical Cable (AOC) |
| Data Rate (Per Lane) | Up to 56.15 Gb/s |
| Total Bandwidth | 400 Gbps |
| Reach/Length | 7 meters (23 ft) |
| Wavelength | 850nm |
| Fiber Type | Multi-Mode Fiber (MMF) |
| Modulation | PAM4 |
| Compliance Standards | IEEE 802.3cm, MSA, CMIS 3.0, TAA |
| Power Consumption (400G End) | 7.6W (typical) |
| Power Consumption (100G End) | 2.3W (typical) |
| Power Supply Voltage | 3.3V |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 85% |
| Connector Type | QSFP-DD (Tx) to 4xQSFP56 (Rx) |
| Jacket Material | LSZH, Aqua |
| Cable Diameter | Ø3.0 ± 0.15 mm |
| Minimum Bend Radius | 30 mm (without tension) |
| Hot Pluggable | Yes |
| Applications | Data center interconnects, switches, servers, storage, NIC adapters |
| Warranty | Limited Lifetime Warranty |
