Description

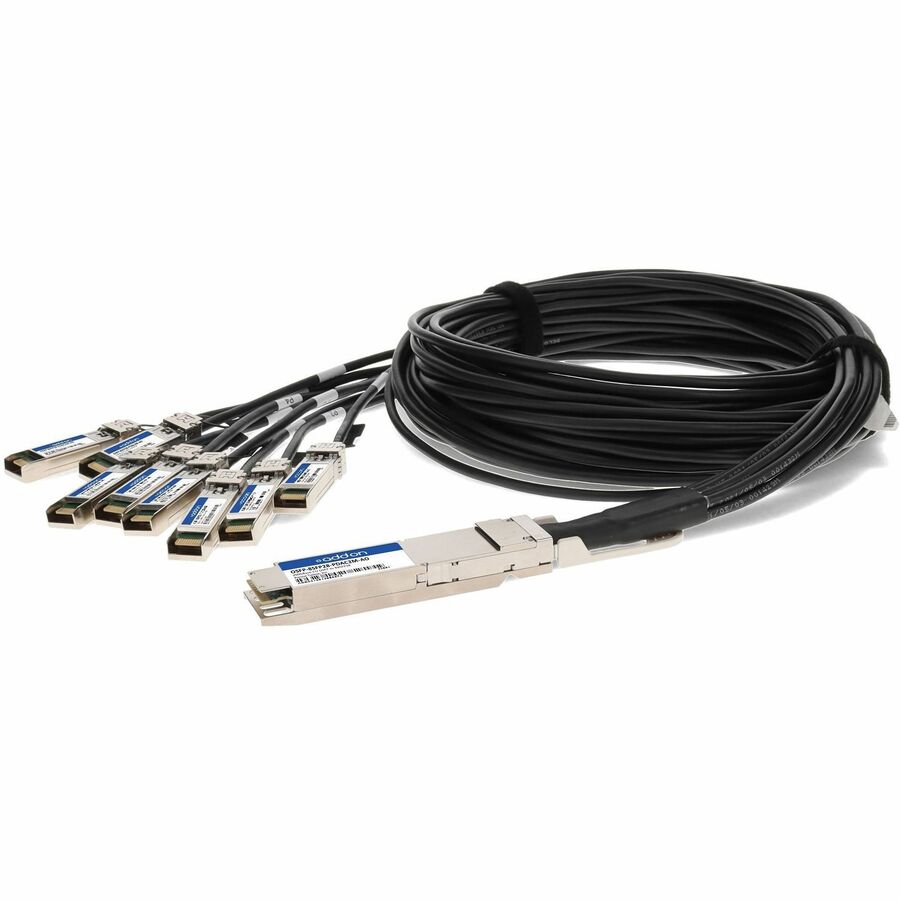

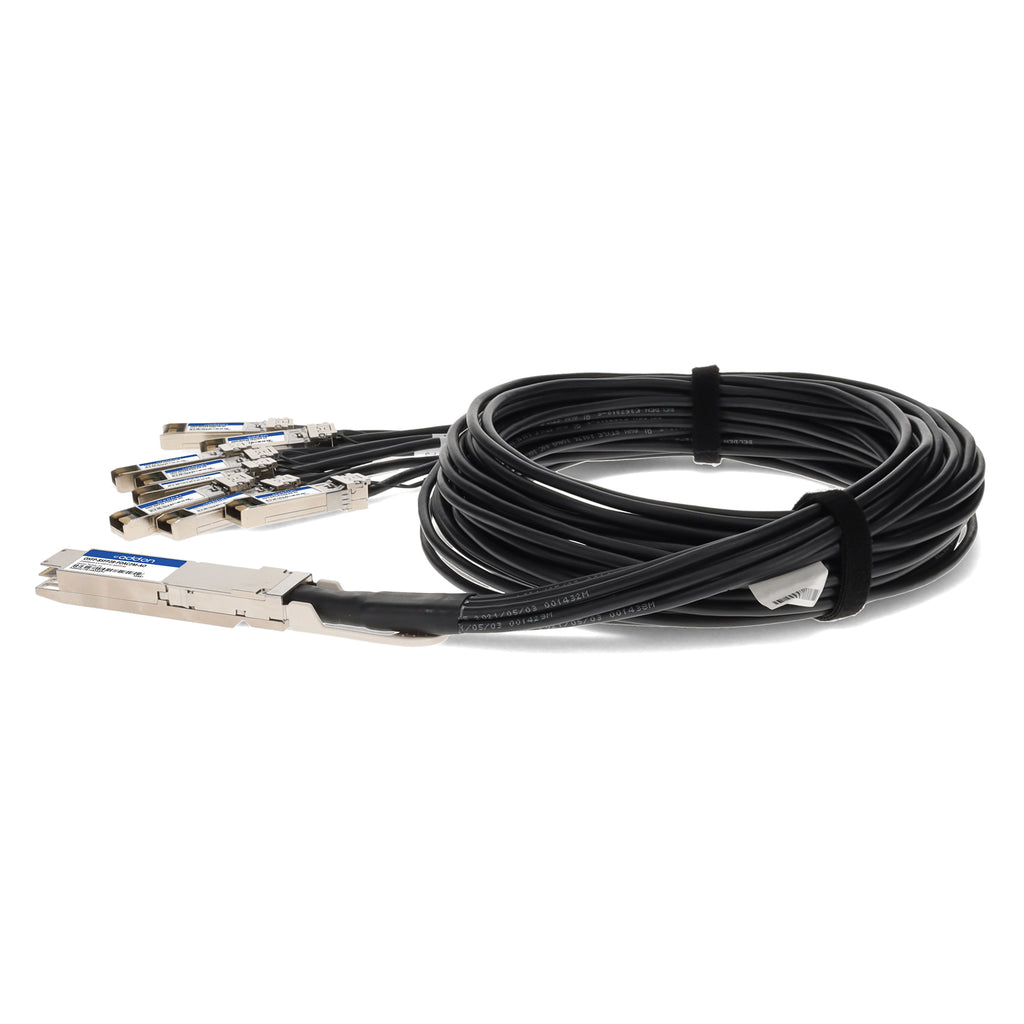

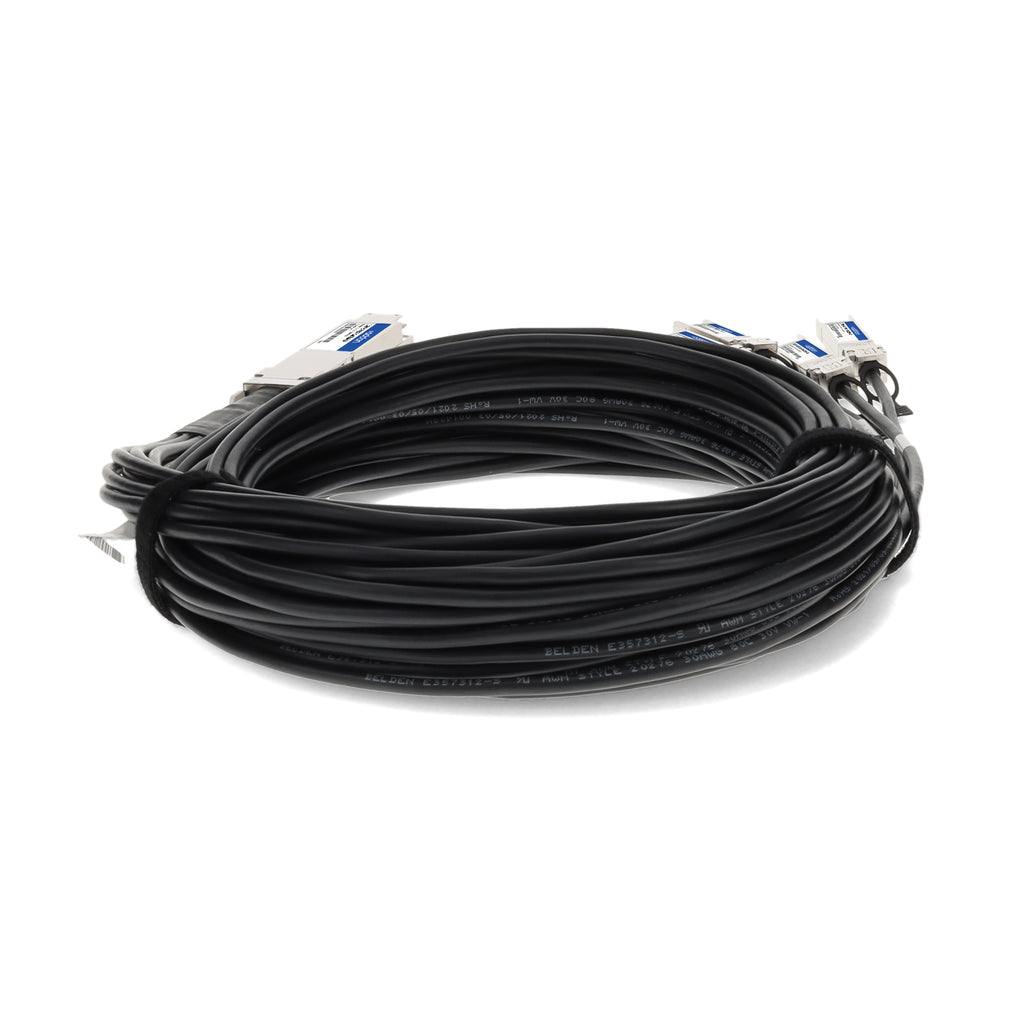

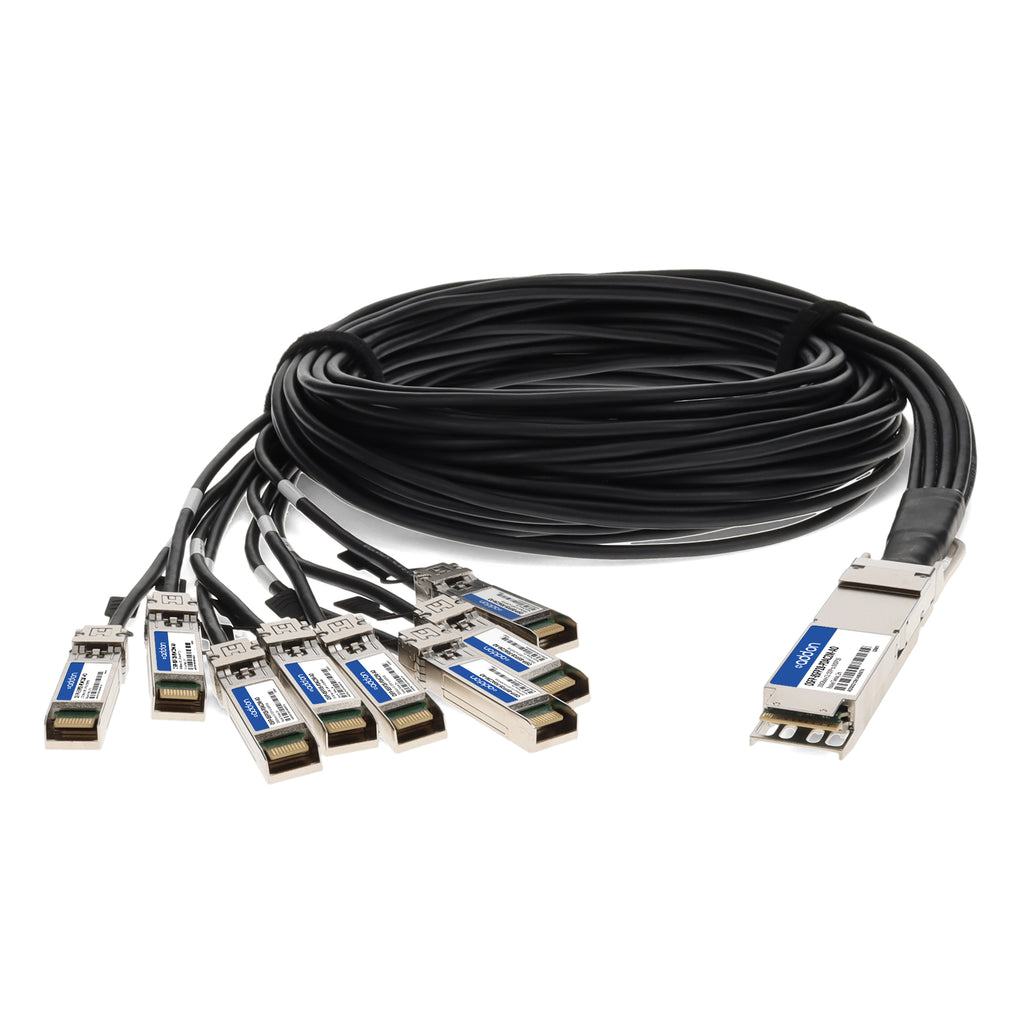

The AddOn OSFP-8SFP28-PDAC2M is a high-performance, MSA-compliant 200GBase-CU direct attach cable designed for short-distance, high-speed connectivity in data center and enterprise environments. This passive twinax cable connects one OSFP port to eight SFP28 ports, delivering eight parallel full-duplex channels for a total data rate of 200Gbps. With a 2-meter reach, 30 AWG copper conductors, and a pluggable design, it ensures low latency, reliable performance, and seamless integration with 200G Ethernet equipment. Each cable is programmed, uniquely serialized, and fully tested for data traffic and application compliance. It is TAA-compliant, RoHS certified, and backed by AddOn’s limited lifetime warranty — guaranteeing robust, cost-effective connectivity you can trust.
| Parameter | Specification |
|---|---|
| Brand | AddOn |
| SKU | OSFP-8SFP28-PDAC2M-AO |
| Product Type | Passive Direct Attach Copper Cable |
| Data Rate | 200Gbps |
| Interface | OSFP to 8x SFP28 |
| Number of Channels | 8 full-duplex parallel channels |
| Cable Type | Passive Twinax |
| Length | 2 meters (6.6 ft) |
| Wire Gauge | 30 AWG |
| Connector Type (End 1) | OSFP |
| Connector Type (End 2) | 8 x SFP28 |
| Voltage | 5V |
| Isolation Resistance | 100 Ω |
| Conductor Resistance | ≤ 2 Ω |
| Jacket Material | PVC |
| Compliance | MSA, IEEE 802.3bj, RoHS, TAA |
| Applications | 200G Ethernet |
| Warranty | Limited Lifetime Warranty |
