Description

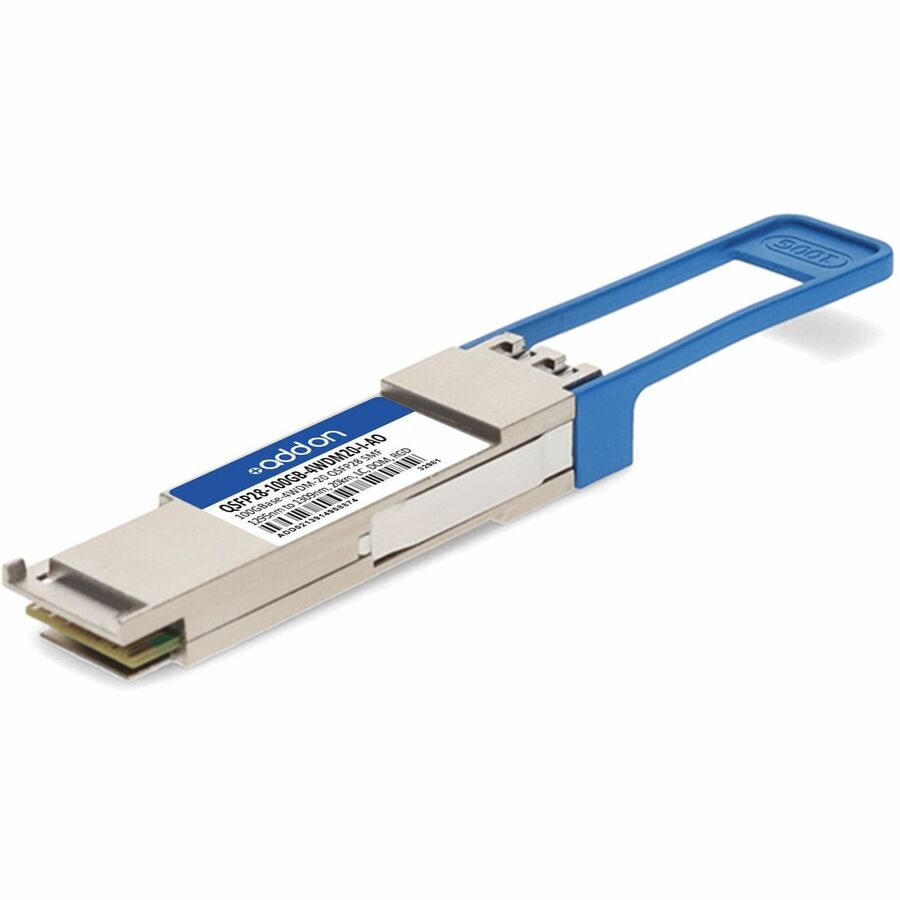

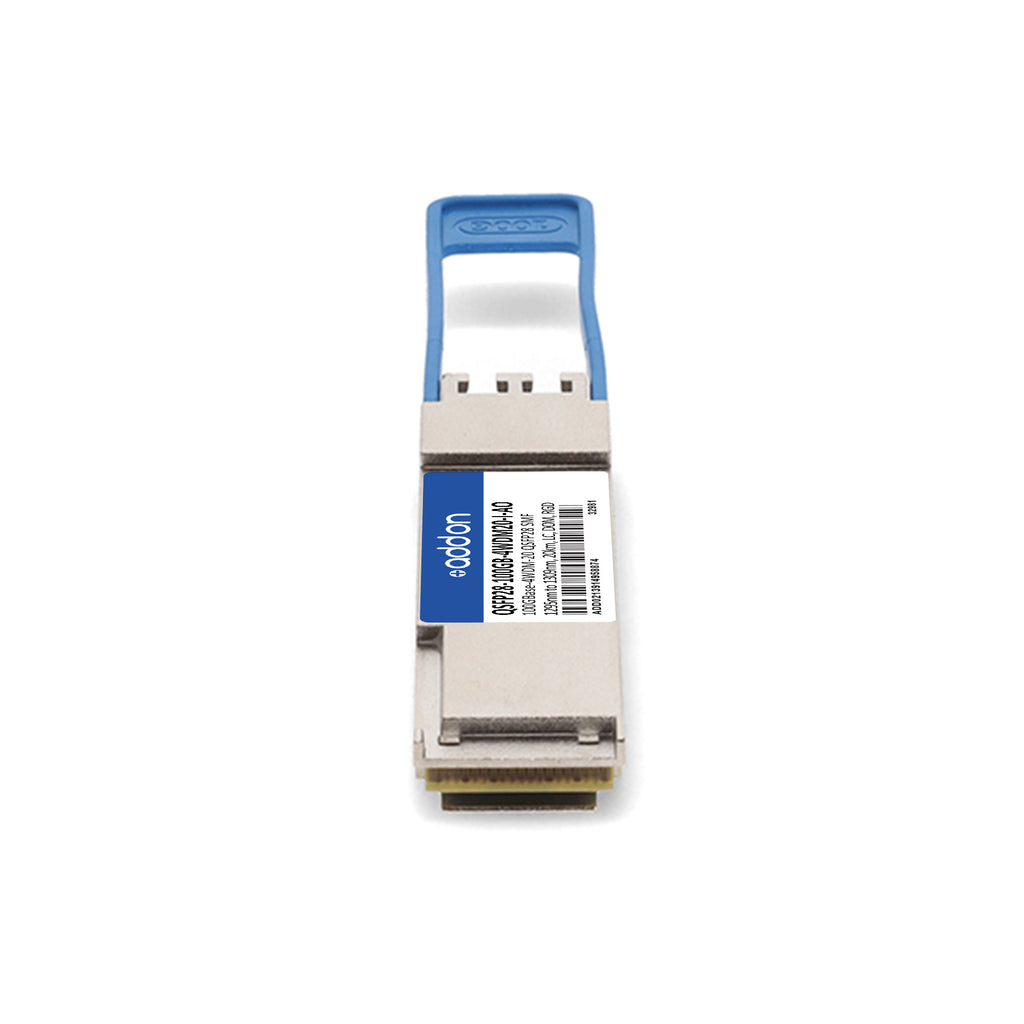

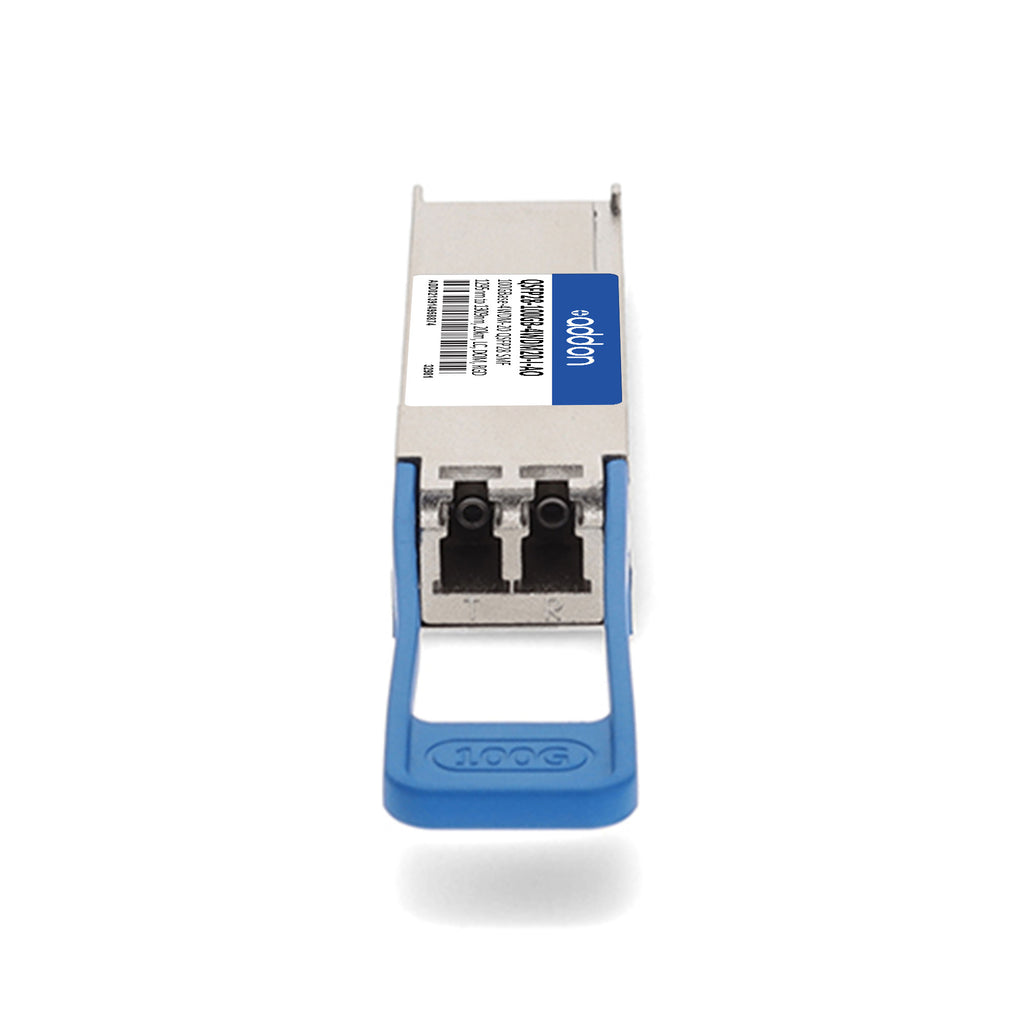

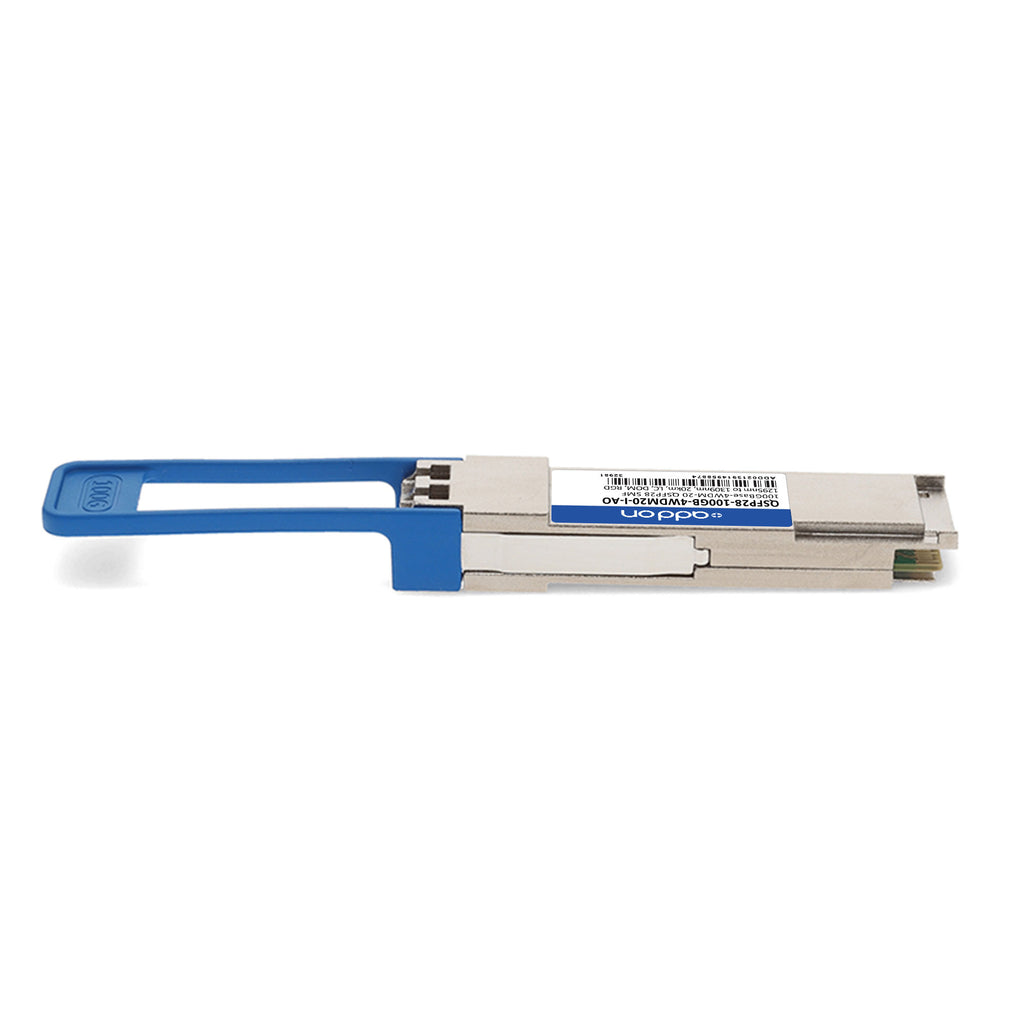

The AddOn QSFP28-100GB-4WDM20-I-AO is a high-performance 100GBase-4WDM-20 QSFP28 optical transceiver designed for 100GbE data center, enterprise, and access network applications. Fully compliant with QSFP28 MSA standards, this module delivers up to 103Gbps throughput over single-mode fiber (SMF) with a reach of up to 20km using LAN-WDM wavelengths from 1295nm to 1309nm and duplex LC connectivity. It features a 4x25G electrical interface, low power consumption under 4.8W, and an integrated digital diagnostic monitoring (DOM) interface for real-time performance insights.
Built with four DFB-based LAN-WDM transmitters and a PIN/TIA receiver array, this ruggedized transceiver is engineered to operate reliably in extended temperature environments from -40°C to 85°C. Each unit is uniquely serialized, data-traffic tested, and Trade Agreements Act (TAA) compliant, ensuring seamless integration into your network infrastructure with guaranteed reliability and long-term support.
| Specification | Description |
|---|---|
| Part Number | QSFP28-100GB-4WDM20-I-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-4WDM-20 (103Gbps) |
| Wavelength Range | 1295nm – 1309nm (LAN-WDM) |
| Reach / Distance | Up to 20km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Transmitter Type | 4x DFB-based LAN-WDM |
| Receiver Type | PIN and TIA Array |
| Electrical Interface | 4x25G |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Power Supply Voltage | 3.3V |
| Power Consumption | < 4.8W |
| Operating Case Temperature | -40°C to +85°C |
| Compliances | MSA, TAA, RoHS |
| Applications | 100G Ethernet, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
