Description

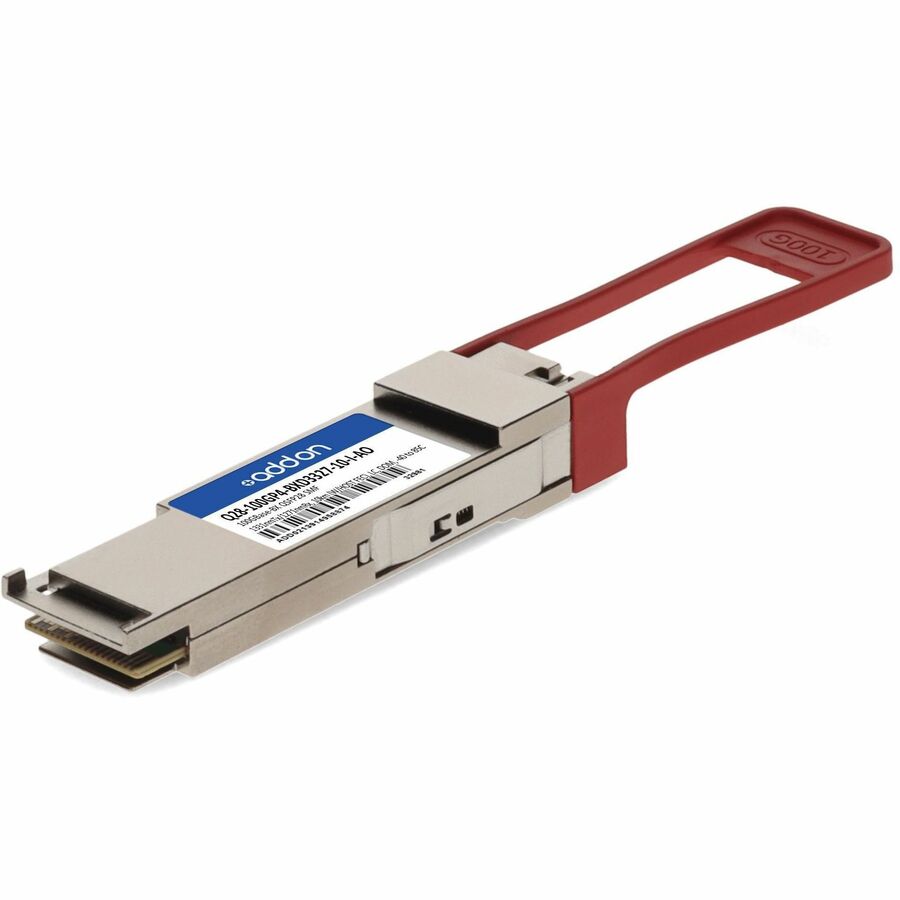

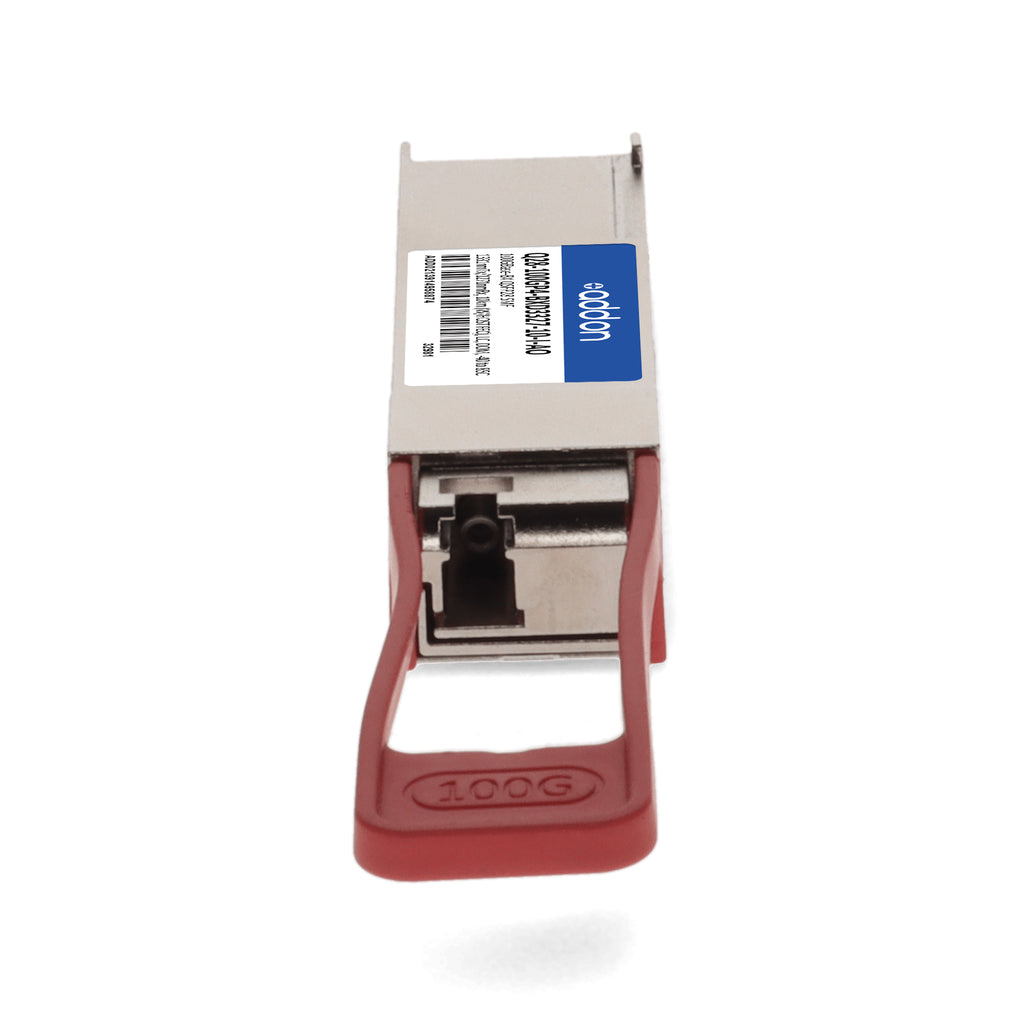

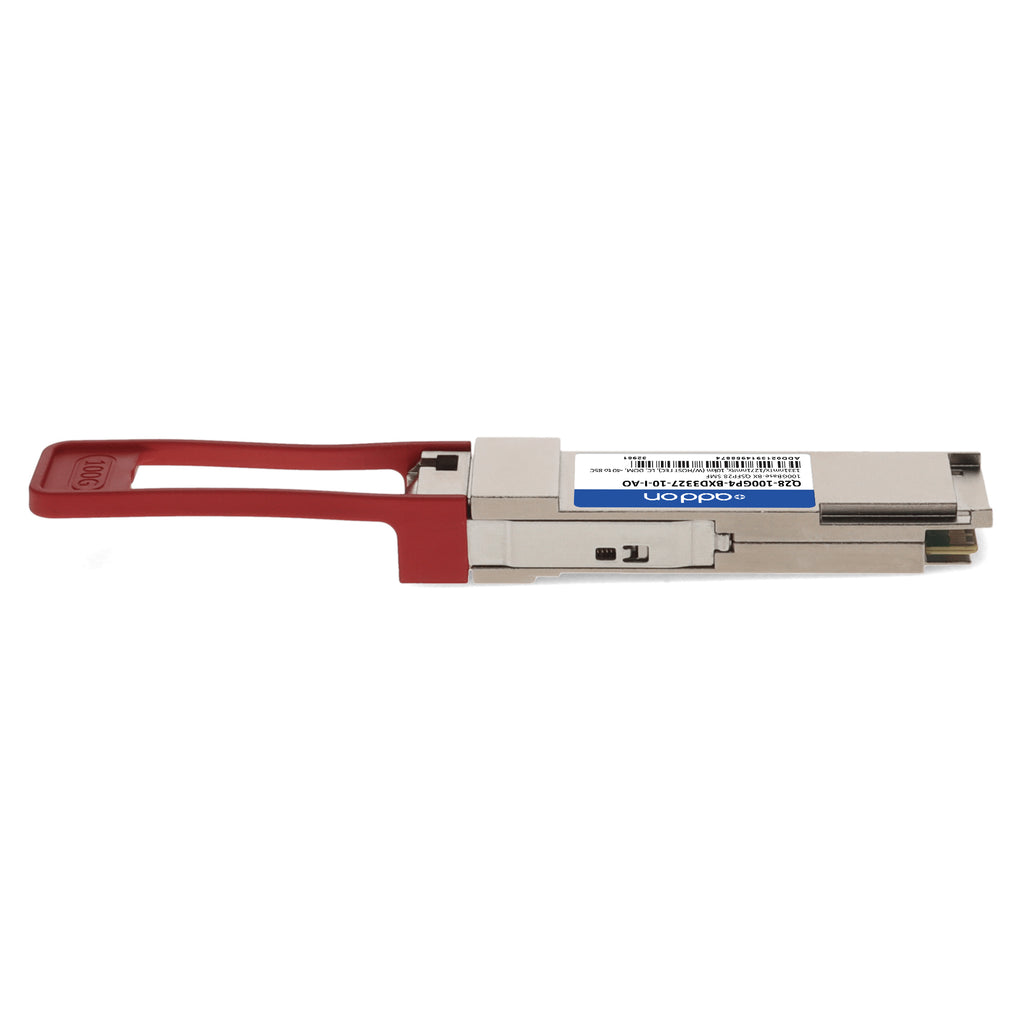

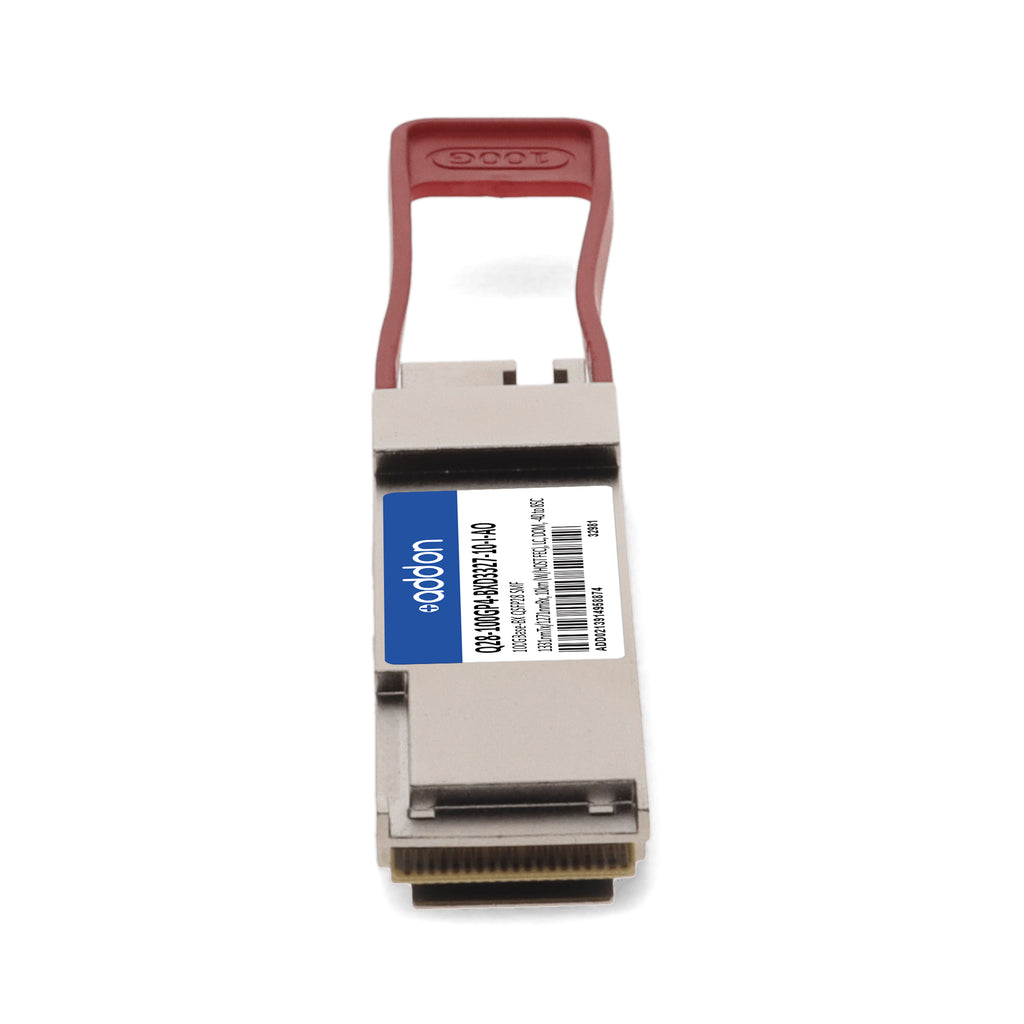

The AddOn Q28-100GP4-BXD3327-10-I-AO is a high-performance, MSA and TAA compliant QSFP28 optical transceiver designed for 100GBase-BX single lambda applications in data center and enterprise environments. Supporting data transmission up to 10 km over single-mode fiber (SMF), this transceiver uses 1331 nm transmit and 1271 nm receive wavelengths and is equipped with bidirectional LC connectors. It is fully compliant with 100G Lambda MSA 100G-LR specifications and SFF-8636 standards, ensuring seamless interoperability with existing network equipment.
Engineered for industrial environments, the Q28-100GP4-BXD3327-10-I-AO operates within a wide temperature range of -40 °C to 85 °C and includes Digital Optical Monitoring (DOM) support for real-time diagnostics. It also features forward error correction (FEC) capability for enhanced signal integrity and reliability. With a robust metal housing for lower EMI, hot-pluggable functionality, and excellent ESD protection, this transceiver provides reliable, high-speed connectivity for data center, cloud, and high-performance computing networks.
| Specification | Details |
|---|---|
| Manufacturer | AddOn |
| Part Number | Q28-100GP4-BXD3327-10-I-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Transmission Technology | PAM4 |
| Wavelength | 1331 nm Tx / 1271 nm Rx |
| Interface | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Reach / Distance | Up to 10 km |
| Optical Modulation | PAM4 with FEC |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range | -40 °C to +85 °C (Industrial) |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Typical Power Dissipation | 4 W |
| Receiver Sensitivity (OMA) | -6.1 dBm |
| Transmitter Launch Power (Avg) | -1.4 dBm to 4.5 dBm |
| Extinction Ratio | ≥ 3.5 dB |
| Compliance | 100G Lambda MSA 100G-LR, SFF-8636, RoHS, TAA |
| Applications | 100G Ethernet, Data Centers, Cloud Networks, HPC |
| Hot Pluggable | Yes |
| EMI Shielding | Metal Housing with Low EMI |
| Warranty | Limited Lifetime Warranty |
