Description

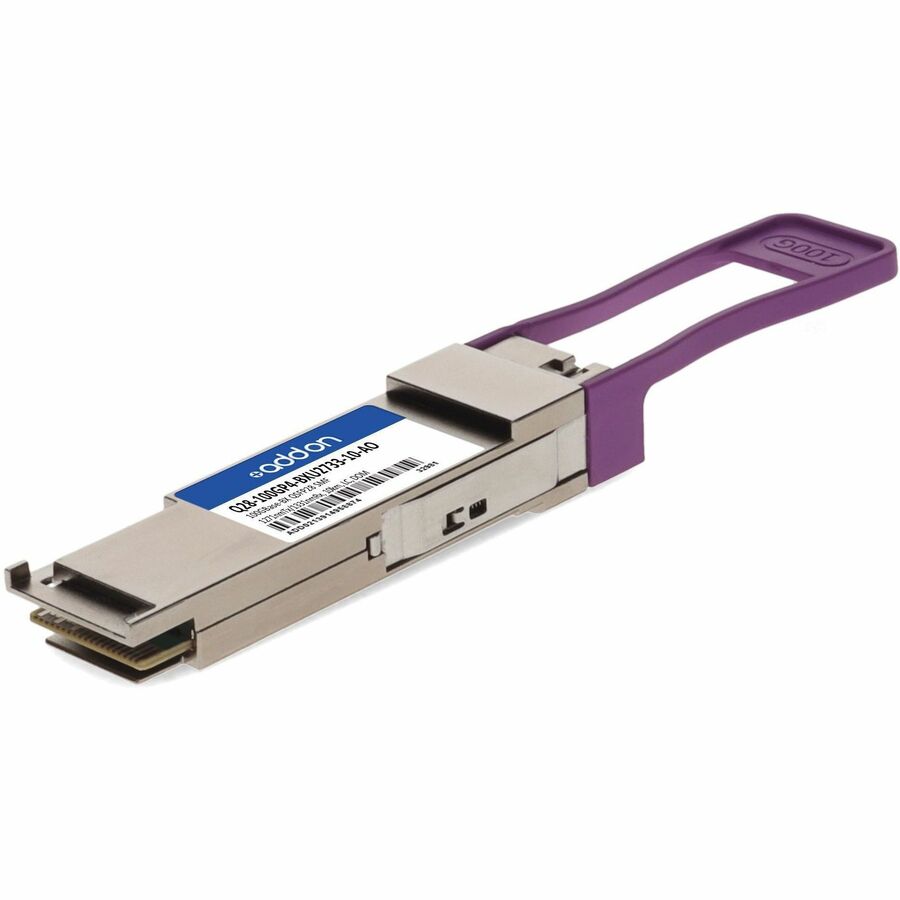

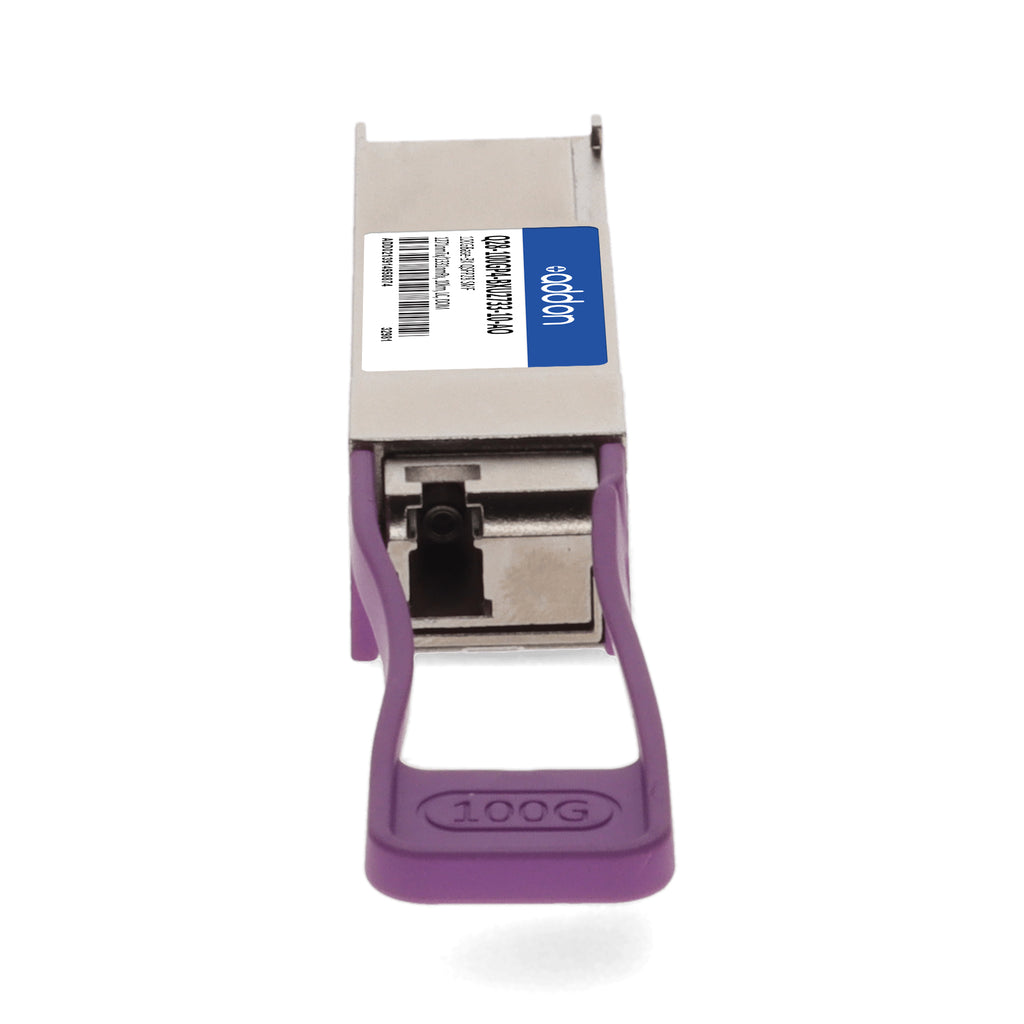

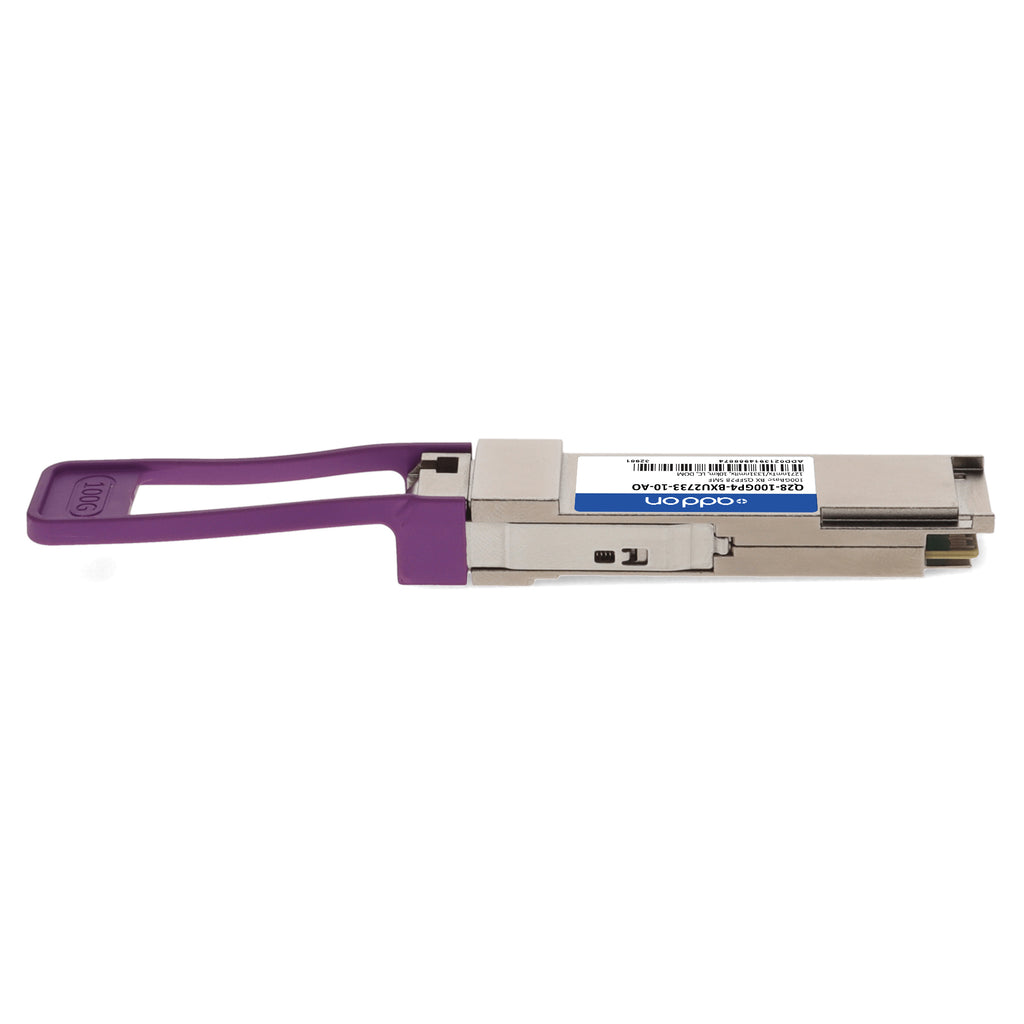

The AddOn Q28-100GP4-BXU2733-10-AO is a high-performance, MSA and TAA compliant 100GBase-BX QSFP28 single lambda transceiver designed for seamless integration in high-speed data center and enterprise networks. Supporting 100Gbps bidirectional transmission up to 10km over single-mode fiber (SMF), it operates at 1271nm transmit and 1331nm receive wavelengths through LC duplex connectors.
Built to 100G Lambda MSA 100G-LR standards and SFF-8636 Rev 2.10a, this module ensures compatibility and reliability across a wide range of networking environments. It features digital optical monitoring (DOM) for real-time diagnostics, forward error correction (FEC) support for enhanced signal integrity, and hot-pluggable design for simplified deployment.
Ideal for 100G Ethernet and high-capacity data center interconnects, this transceiver delivers superior performance, low EMI, and excellent ESD protection — all backed by AddOn’s limited lifetime warranty and stringent testing standards.
| Specification | Details |
|---|---|
| SKU | Q28-100GP4-BXU2733-10-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-BX |
| Compliance Standards | MSA, 100G Lambda MSA 100G-LR, SFF-8636 Rev 2.10a, TAA |
| Wavelength (Tx/Rx) | 1271nm (Tx) / 1331nm (Rx) |
| Reach / Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | LC Duplex |
| Modulation Format | PAM4 |
| Power Supply Voltage | 3.3V |
| Power Dissipation | 4.5W (max) |
| Digital Diagnostics (DOM) | Supported |
| FEC Support | Yes |
| Operating Temperature Range | 0°C to 70°C (Commercial) |
| ESD Protection | MIL-STD-883E Method 3015.4, IEC 61000-4-3 |
| EMI/EMC Compliance | FCC Part 15 Subpart B, EN55022:2010 |
| Laser Safety | FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| RoHS Compliance | RoHS 2.0 Directive 2015/863/EU |
| Applications | Data Centers, 100G Ethernet Networks |
| Warranty | Limited Lifetime Warranty |
