Description

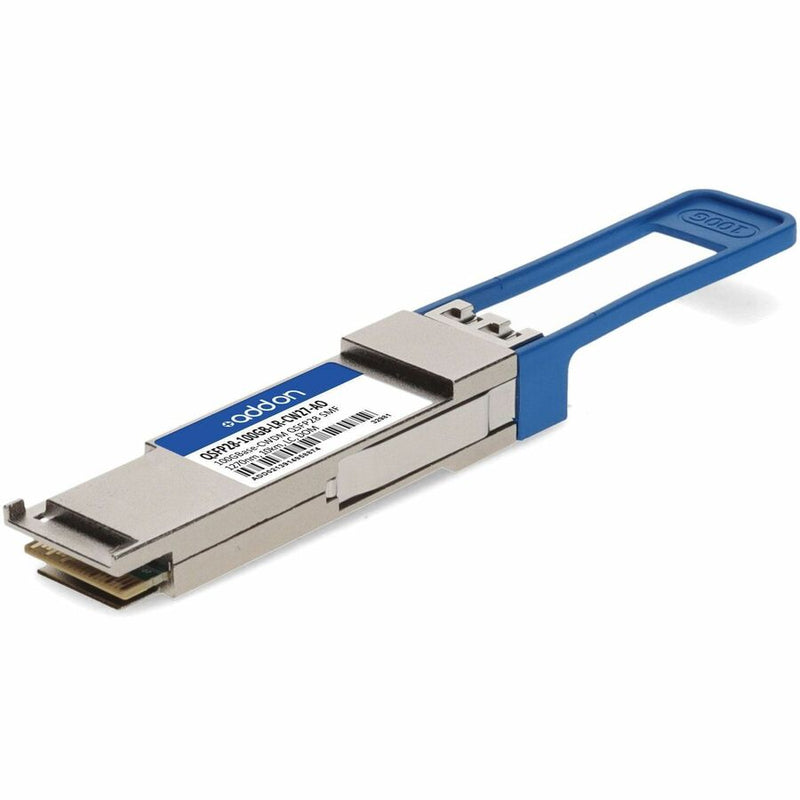

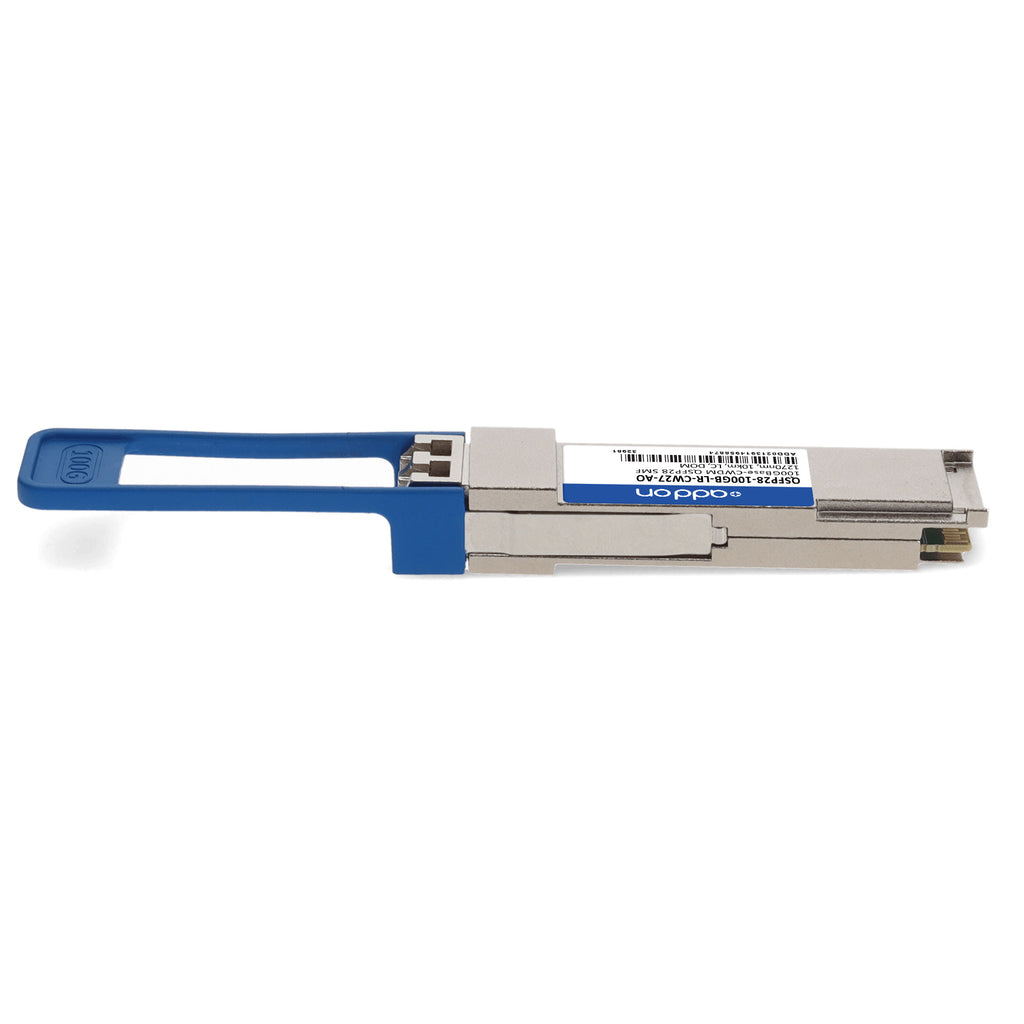

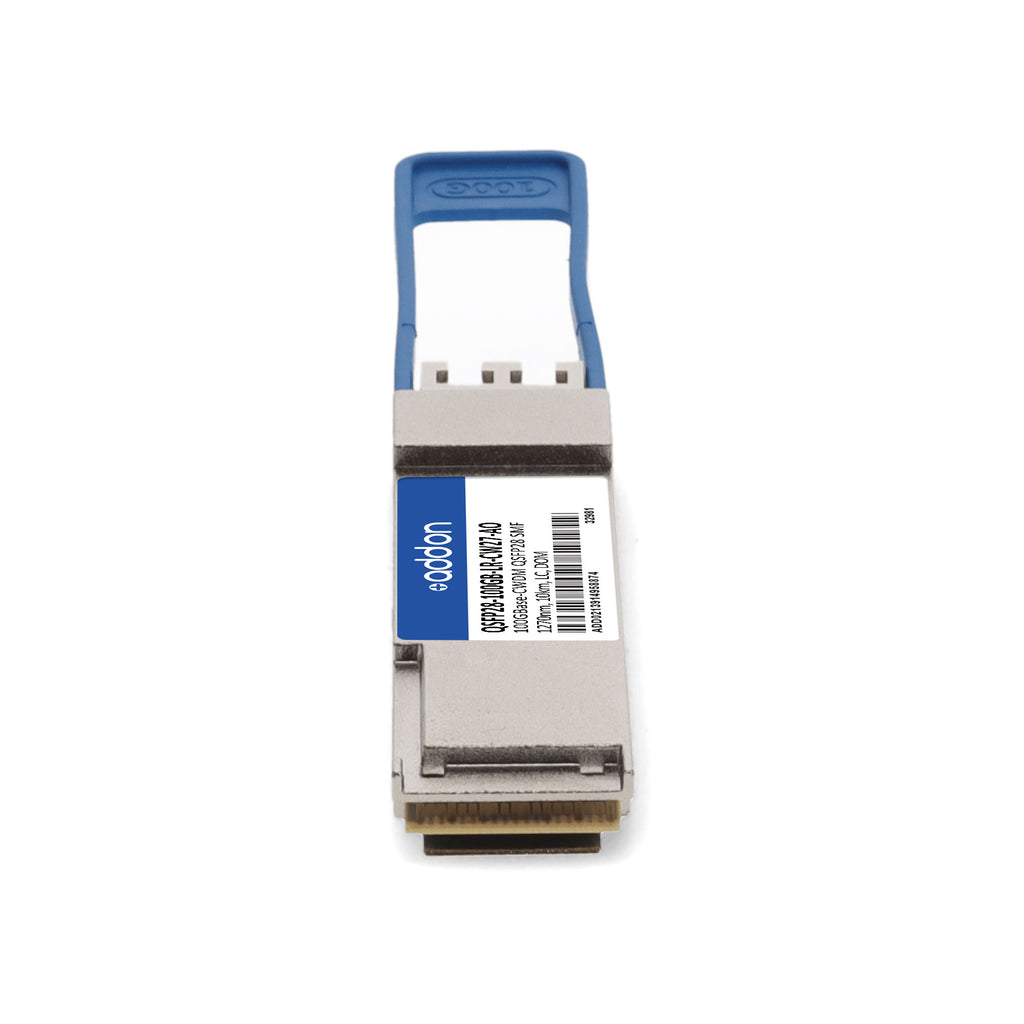

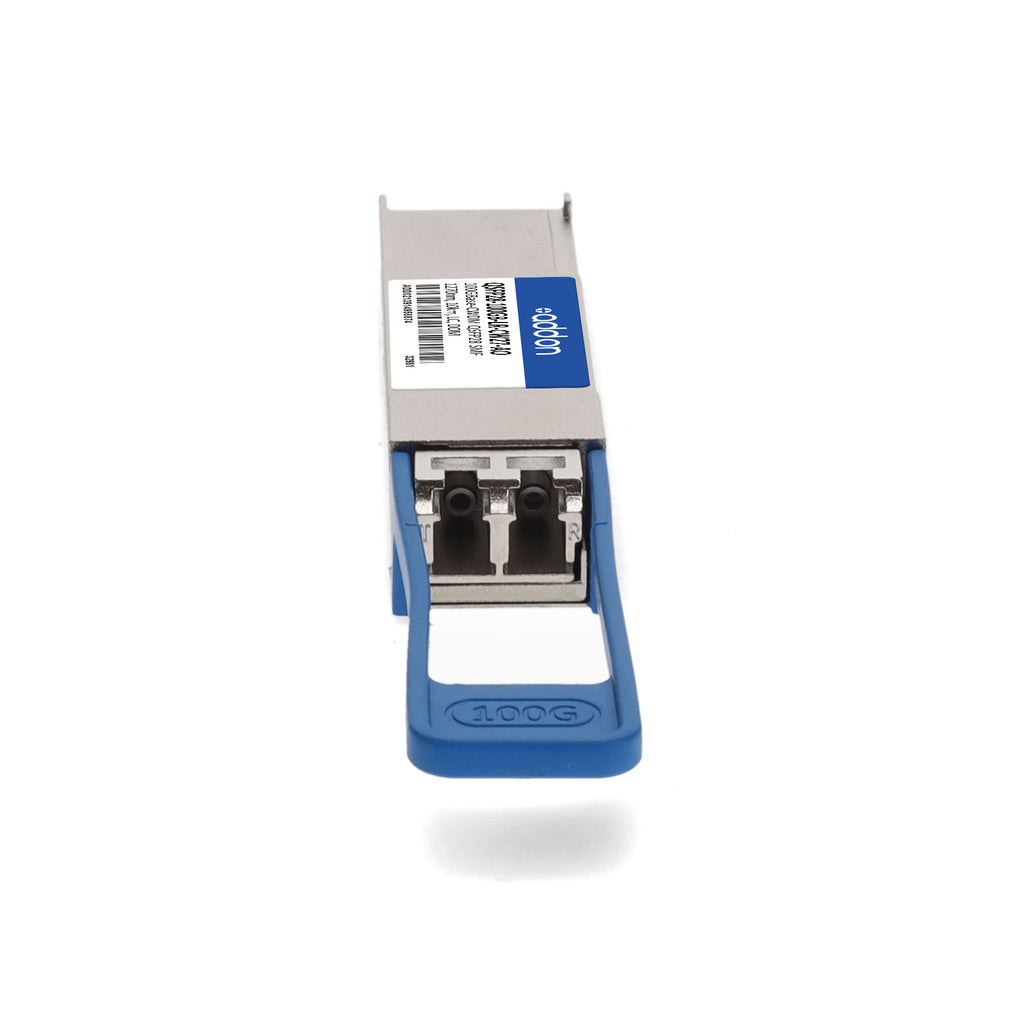

The AddOn QSFP28-100GB-LR-CW27-AO is a high-performance, MSA-compliant 100GBase-CWDM optical transceiver designed for next-generation data center, metro, and enterprise network applications. Operating at a 1270nm wavelength over single-mode fiber (SMF), this module delivers up to 10km of data transmission with FEC, providing reliable and cost-effective connectivity for high-bandwidth environments.
Built to 100G Lambda MSA 100G-LR specifications, it supports a 4x25G electrical interface and features Digital Optical Monitoring (DOM) for real-time performance diagnostics. The module’s low power consumption (< 4.5 W), LC duplex connector, and robust design make it ideal for high-density networking deployments. It is also TAA-compliant, RoHS-certified, and undergoes rigorous testing to ensure seamless interoperability with OEM equipment.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Part Number | QSFP28-100GB-LR-CW27-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Wavelength | 1270 nm (CWDM) |
| Transmission Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | LC Duplex |
| Modulation Format | PAM4 |
| Electrical Interface | 4 × 25 Gbps |
| Power Supply Voltage | 3.3 V |
| Power Dissipation | < 4.5 W |
| Digital Diagnostics (DOM) | Supported |
| Operating Temperature | 0 °C to 70 °C |
| Optical Transmit Power (Avg) | -1.4 dBm to 4.5 dBm |
| Receiver Sensitivity (OMAouter) | Max(-6.1 dBm, SECQ-7.5 dBm) |
| Extinction Ratio | ≥ 3.5 dB |
| Side-Mode Suppression Ratio | ≥ 30 dB |
| Compliance | MSA, 100G Lambda MSA, SFF-8636 Rev 2.10a, RoHS, TAA |
| Applications | 100G Ethernet over CWDM, Access, Metro, and Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
