Description

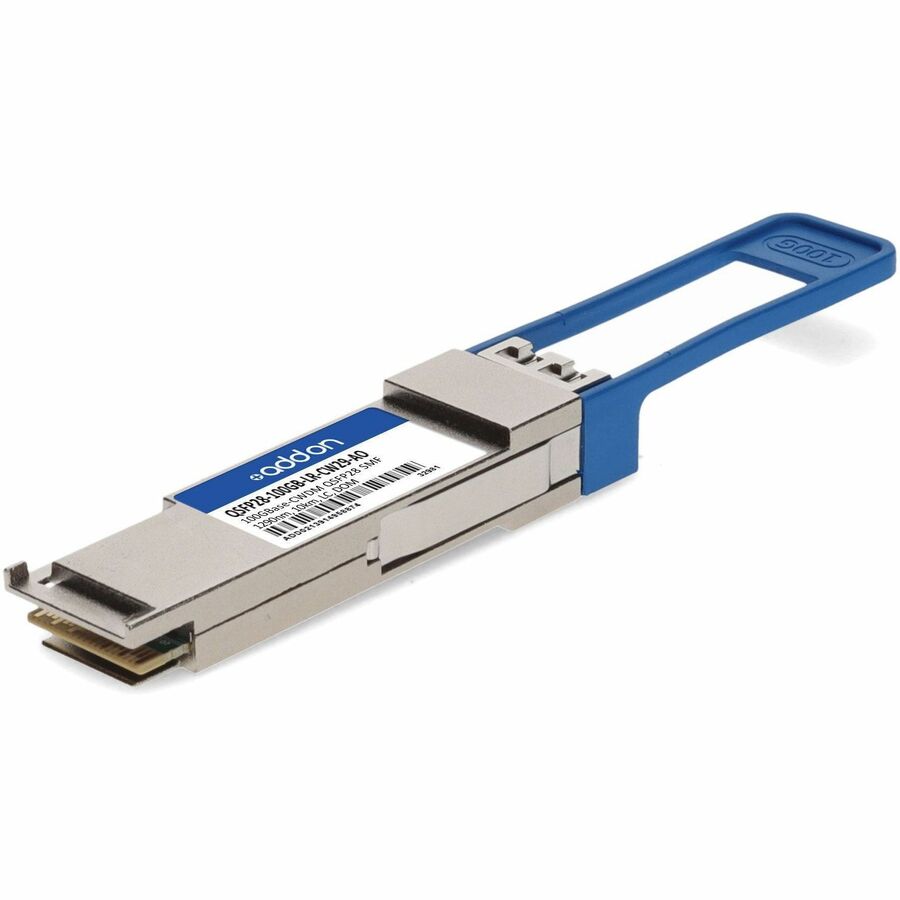

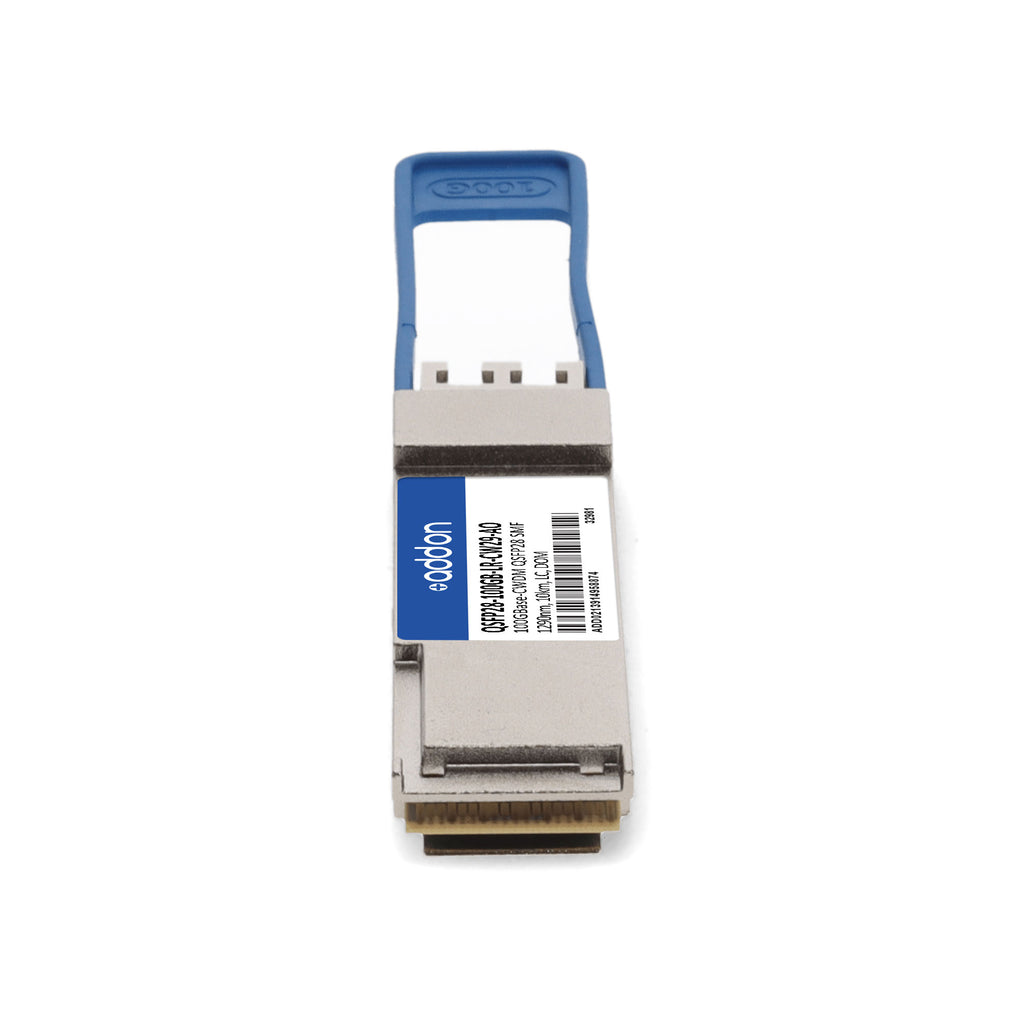

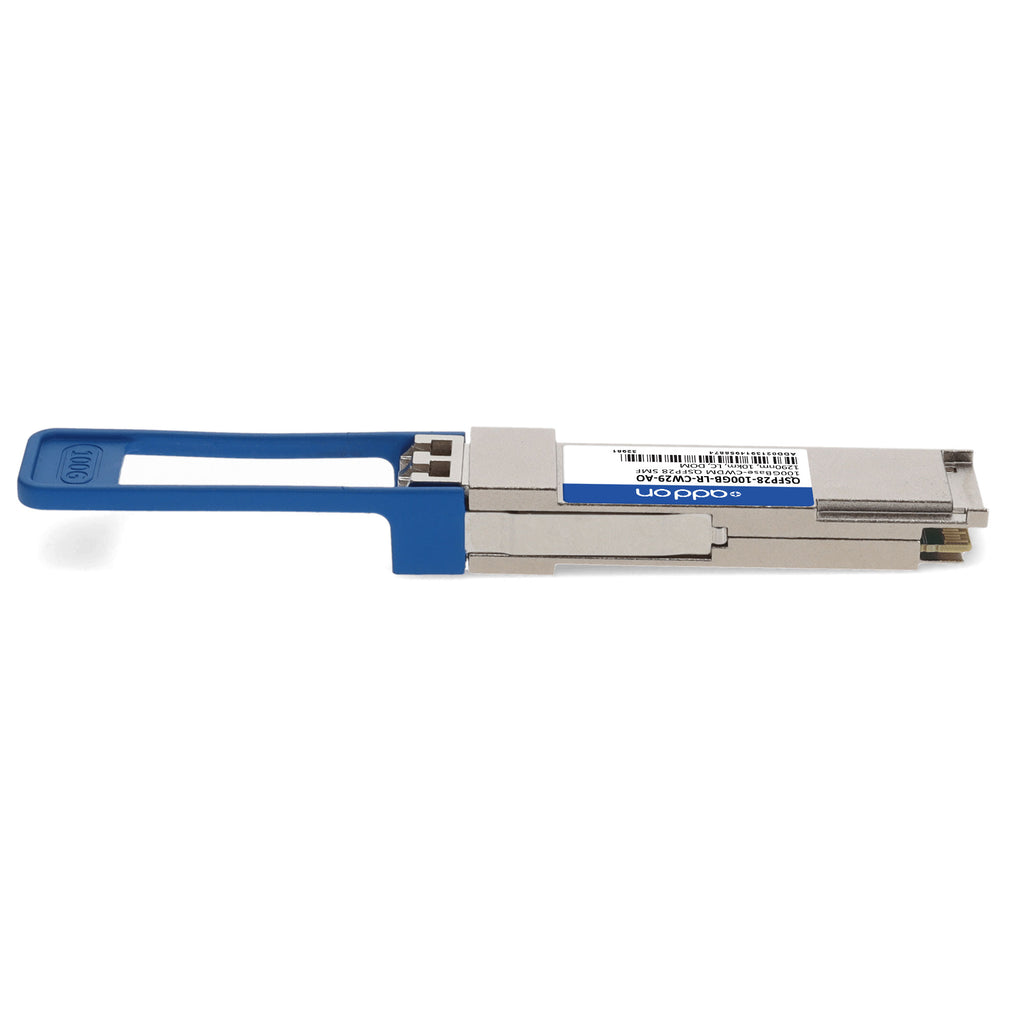

The AddOn QSFP28-100GB-LR-CW29-AO is a 100GBase-CWDM QSFP28 optical transceiver designed for high-performance 100Gbps Ethernet applications across access, metro, and enterprise networks. Built to meet MSA and 100G Lambda MSA 100G-LR specifications, this single-lambda module delivers reliable data transmission up to 10km over single-mode fiber (SMF) using a 1290nm wavelength. It supports PAM4 modulation and integrates Digital Optical Monitoring (DOM) for real-time performance tracking. With a power dissipation below 4.5W, a 4x25G electrical interface, and an LC duplex connector, this TAA-compliant transceiver ensures seamless network integration and exceptional reliability. Each unit is uniquely serialized and rigorously tested for compliance and interoperability.
| Specification | Details |
|---|---|
| Part Number | QSFP28-100GB-LR-CW29-AO |
| Form Factor | QSFP28 |
| Data Rate | 100Gbps |
| Wavelength | 1290nm (CWDM) |
| Transmission Distance | Up to 10km |
| Fiber Type | Single-Mode Fiber (SMF) |

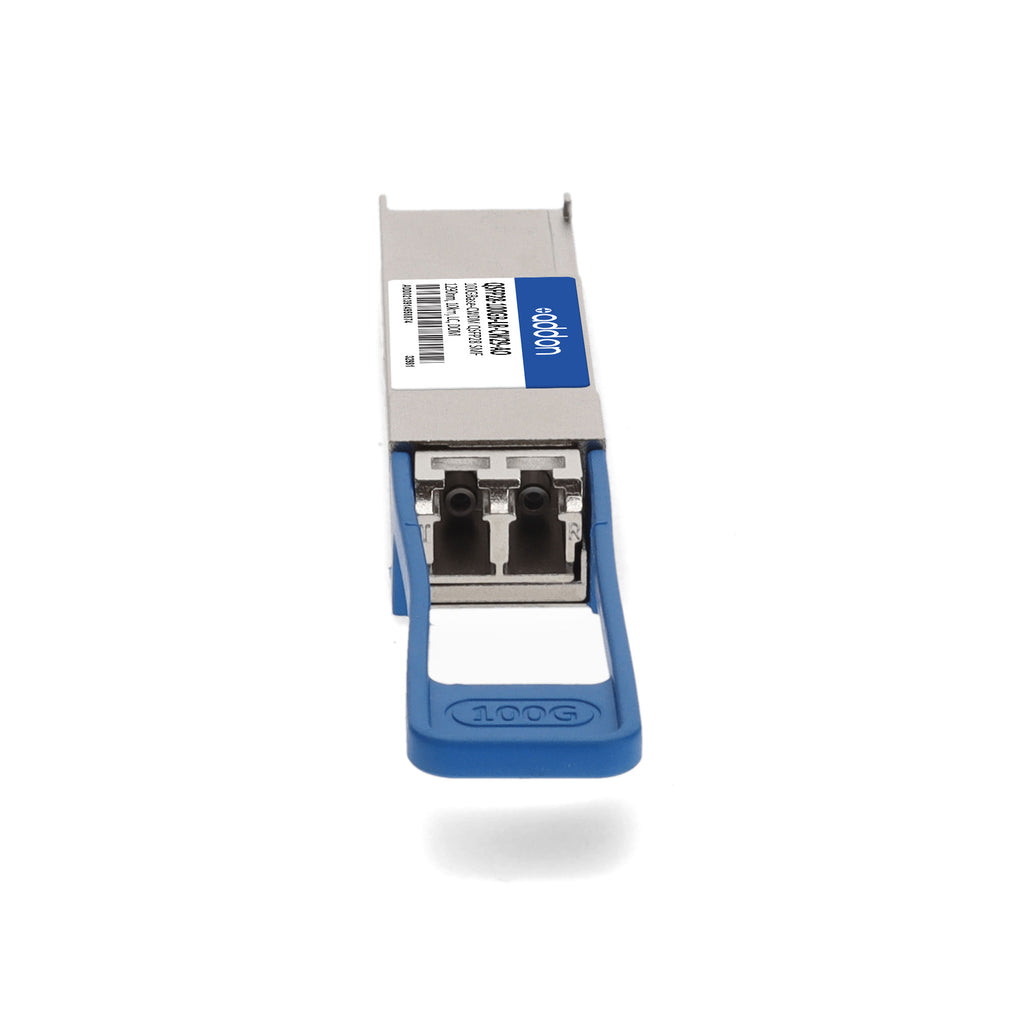

| Connector | LC Duplex |
| Modulation Format | PAM4 |
| Optical Signaling Speed | 53.125 Gbaud |
| Power Supply Voltage | 3.3V |
| Power Dissipation | < 4.5W |
| Electrical Interface | 4x25G |
| Operating Case Temperature | 0°C to 70°C |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Compliance Standards | MSA, 100G Lambda MSA 100G-LR, SFF-8636 Rev 2.10a |
| Regulatory Compliance | RoHS, TAA |
| Applications | 100GBase Ethernet over CWDM, Access, Metro, Enterprise |
| Warranty | Limited Lifetime Warranty |
