Description

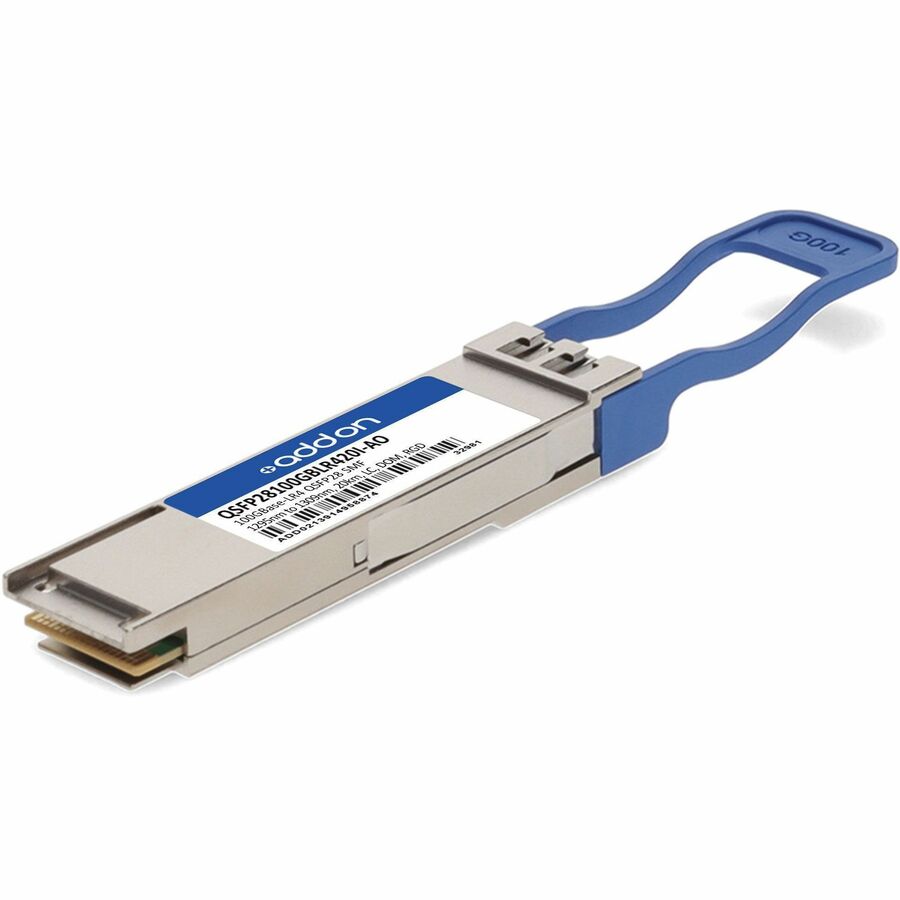

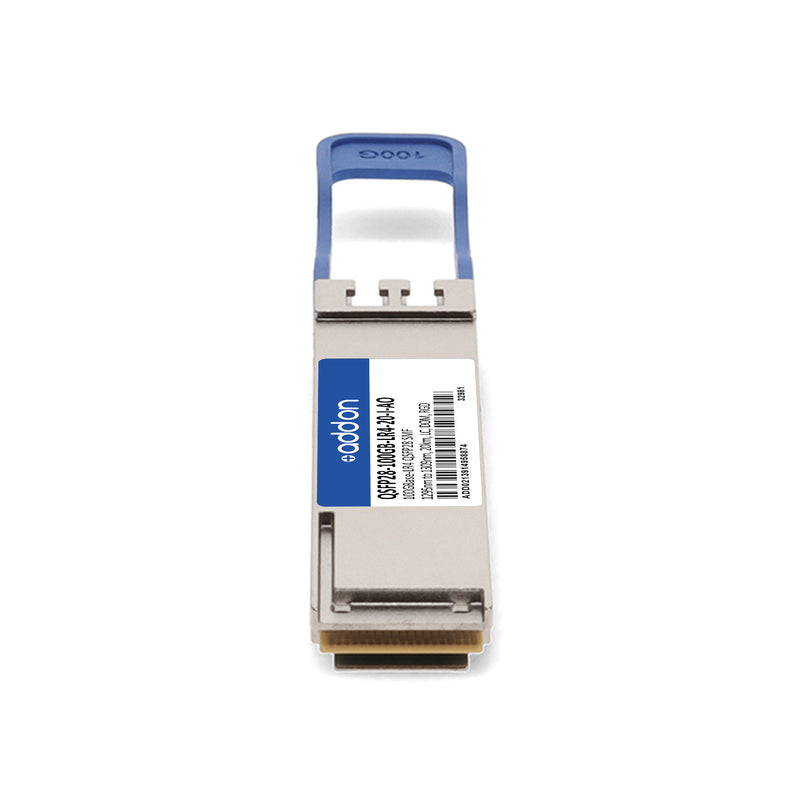

The AddOn QSFP28-100GB-LR4-20-I-AO is a high-performance, MSA-compliant 100GBase-LR4 QSFP28 optical transceiver designed to deliver up to 20 km of data transmission over single-mode fiber (SMF). Operating across wavelengths from 1295 nm to 1309 nm and using a duplex LC connector, this module supports 100 Gbps Ethernet applications in data center, access, and enterprise networks.
Built to meet TAA (Trade Agreements Act) requirements and SFF-8665 standards, this hot-pluggable transceiver offers excellent ESD protection, low EMI, and reliable performance even in industrial temperature environments (-40 °C to 85 °C). Integrated Digital Optical Monitoring (DOM) allows real-time access to operating parameters for simplified network management.
Each unit is uniquely serialized, data-traffic tested, and application validated to ensure seamless network integration. Backed by AddOn’s stringent quality assurance and a limited lifetime warranty, this transceiver is a robust and cost-effective solution for next-generation high-speed optical connectivity.
| Specification | Details |
|---|---|
| Brand | AddOn |
| Part Number | QSFP28-100GB-LR4-20-I-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Wavelength | 1295 nm – 1309 nm |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | -40 °C to 85 °C (Industrial) |
| Compliance Standards | MSA, SFF-8665, TAA, RoHS |
| Hot-Pluggable | Yes |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Dissipation | ≤ 5 W |
| Launch Optical Power per Lane | 0 dBm to +5 dBm |
| Receiver Sensitivity (OMA) | ≤ -9 dBm |
| Extinction Ratio | ≥ 4 dB |
| Optical Return Loss | ≥ 20 dB |
| Applications | 100GBase Ethernet, Data Center, Access, Enterprise |
| Warranty | Limited Lifetime Warranty |
