Description

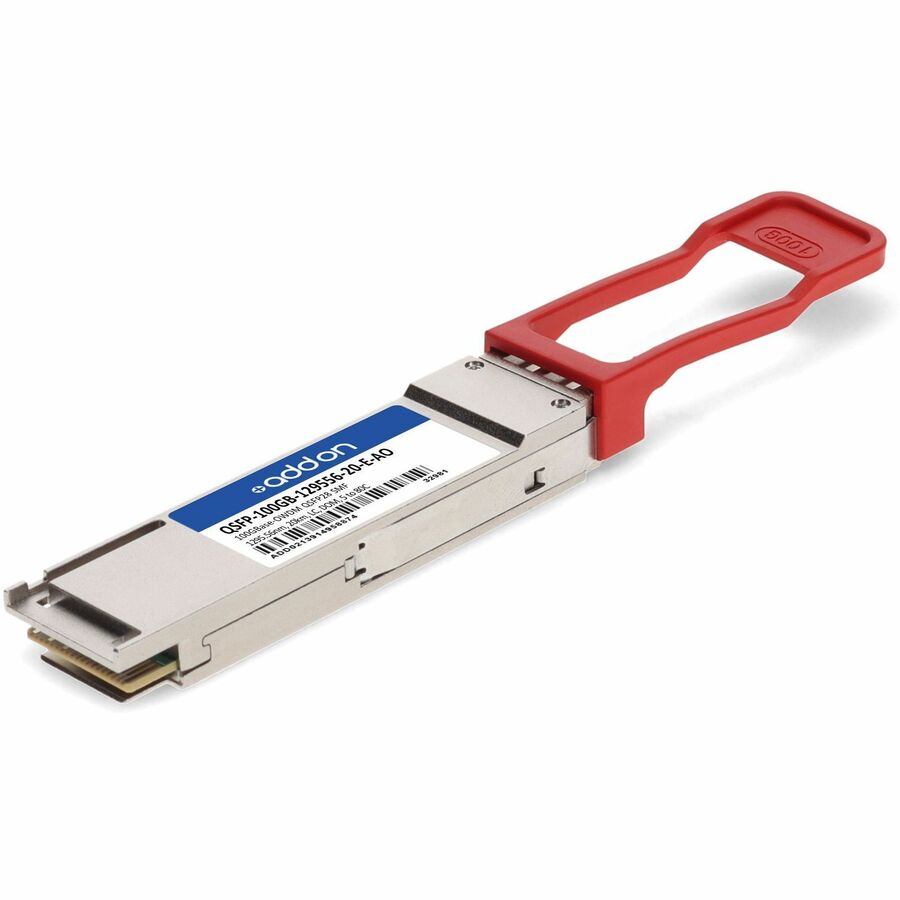

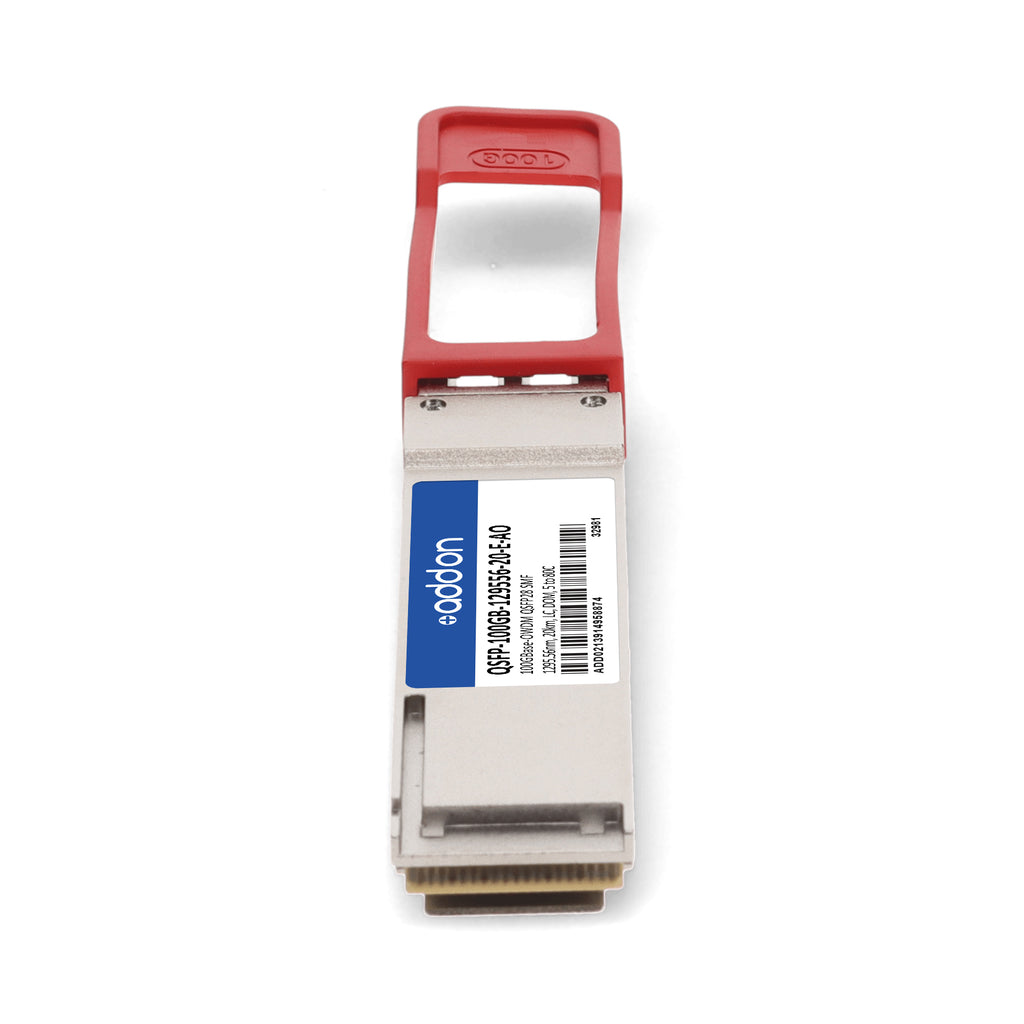

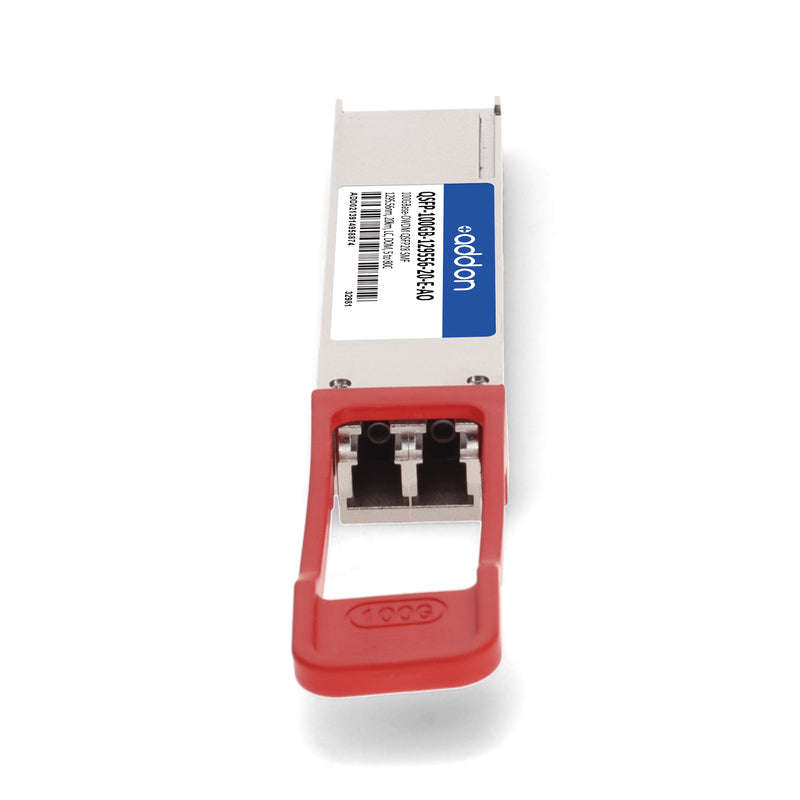

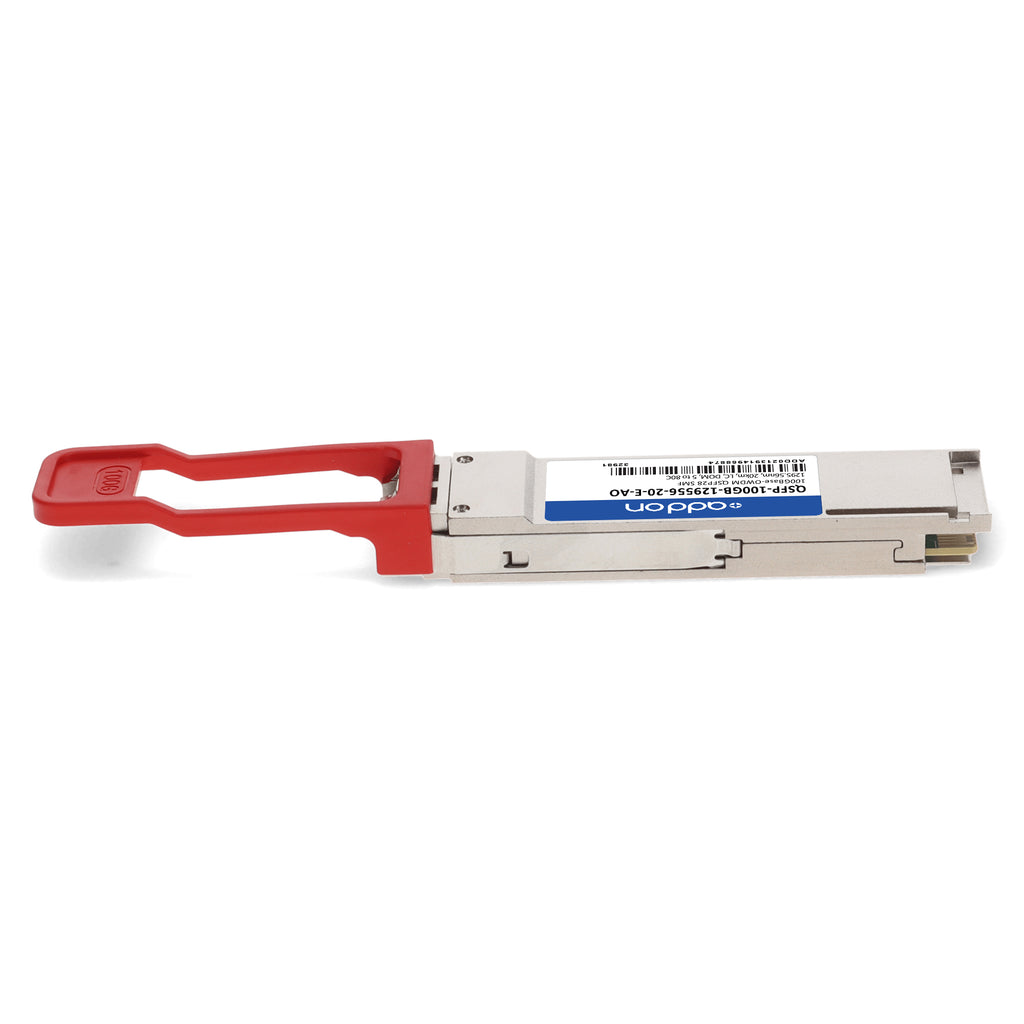

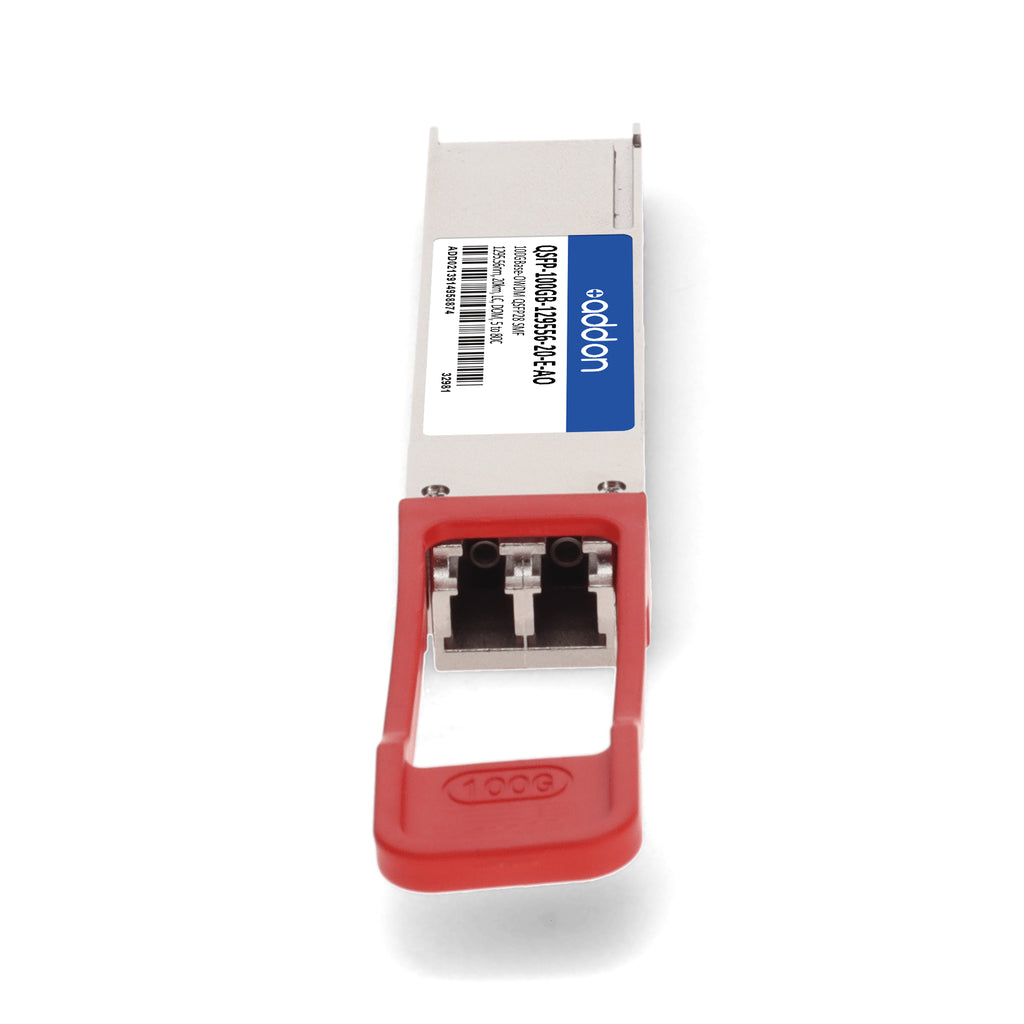

The AddOn QSFP-100GB-129556-20-E-AO is a high-performance 100GBase-OWDM QSFP28 optical transceiver designed for reliable 100 Gbps Ethernet connectivity over single-mode fiber (SMF) up to 20 km. Operating at a 1295.56 nm wavelength and supporting PAM4 modulation, this hot-pluggable transceiver is fully compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards. It features an APD receiver for high sensitivity, digital optical monitoring (DOM) for real-time diagnostics, and an I2C management interface. With its robust design, TAA compliance, and wide operating temperature range from -5 °C to +80 °C, this transceiver is ideal for data center, enterprise, and carrier network deployments that demand scalability, performance, and reliability.
| Specification | Details |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gbps (PAM4) |
| Wavelength | 1295.56 nm (OWDM O-Band Channel OW295) |
| Transmission Distance | Up to 20 km over SMF |
| Connector Type | Duplex LC |
| Modulation Format | PAM4 |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA |
| DOM Support | Yes |
| Receiver Type | High-sensitivity APD |
| Optical Power (Tx) | 0 – 3.4 dBm |
| Receiver Sensitivity | ≤ -11.6 dBm (OMAouter) |
| Operating Temperature | -5 °C to +80 °C |
| Power Supply Voltage | +3.3 V |
| Power Consumption | ~4.4 W (typical at 25 °C) |
| Interface | I2C Management Interface |
| Compliance Features | TAA Compliant, RoHS Compliant, Lead-Free |
| Applications | 100G Ethernet, Access, Enterprise Networks |
