Description

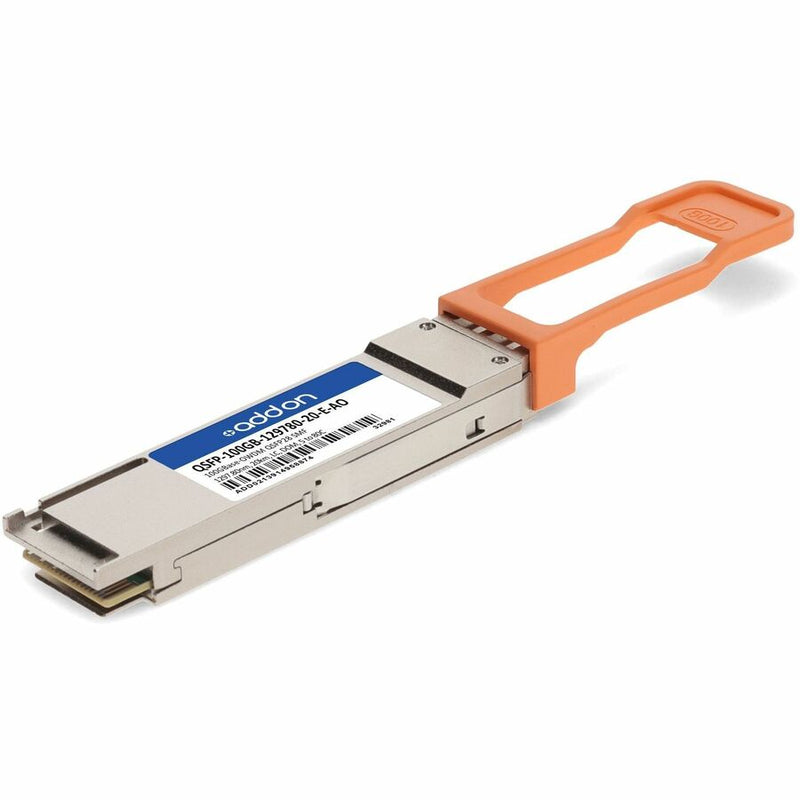

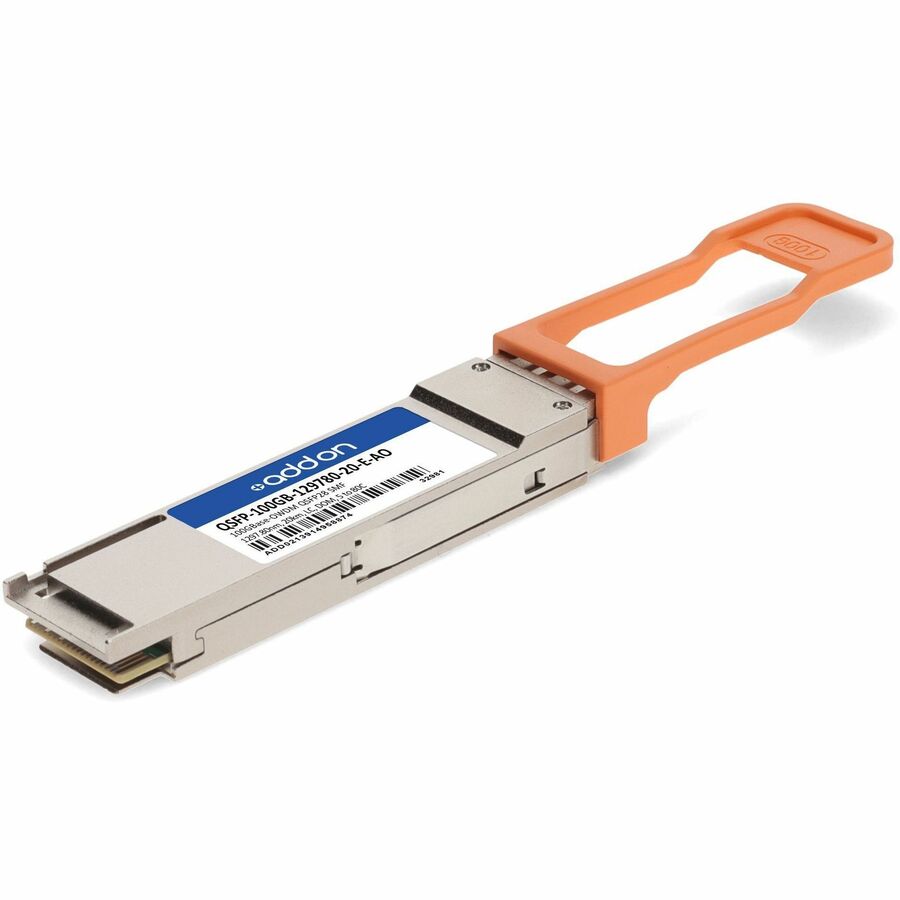

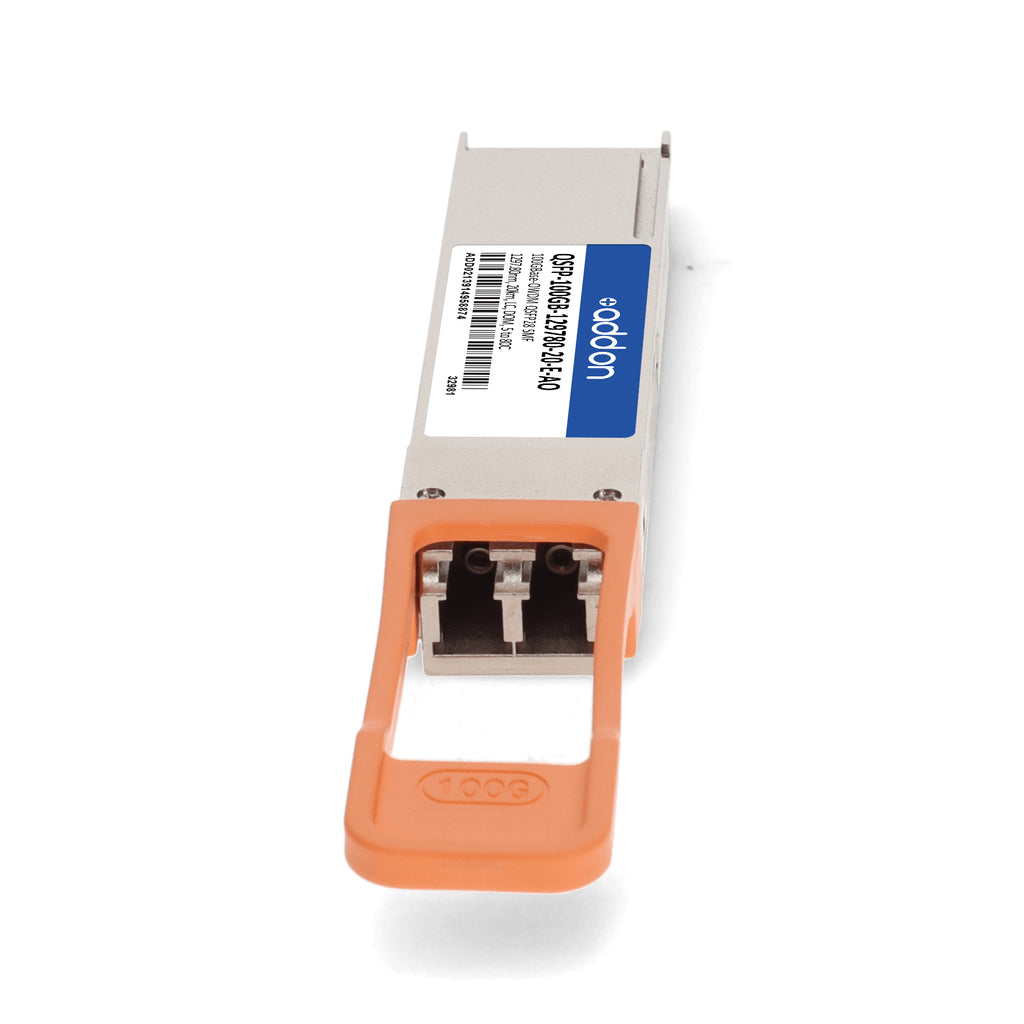

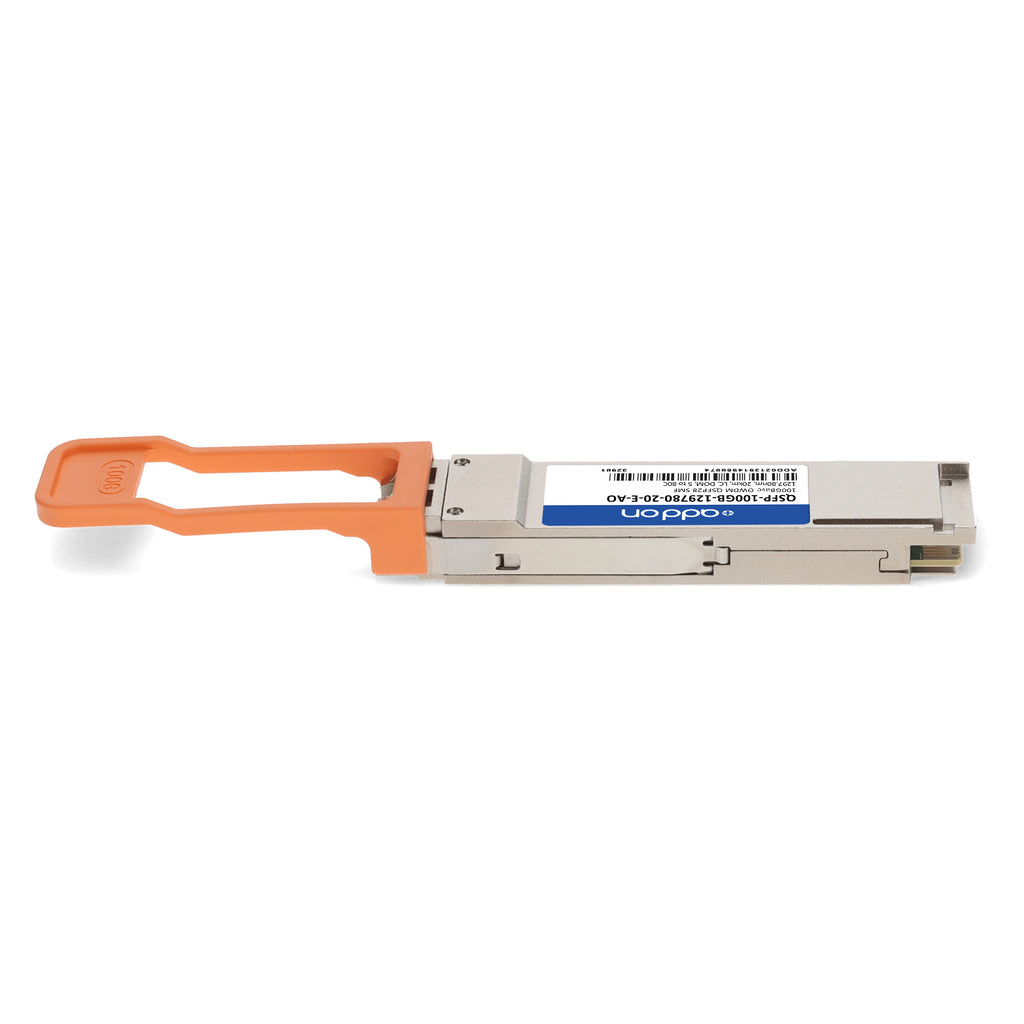

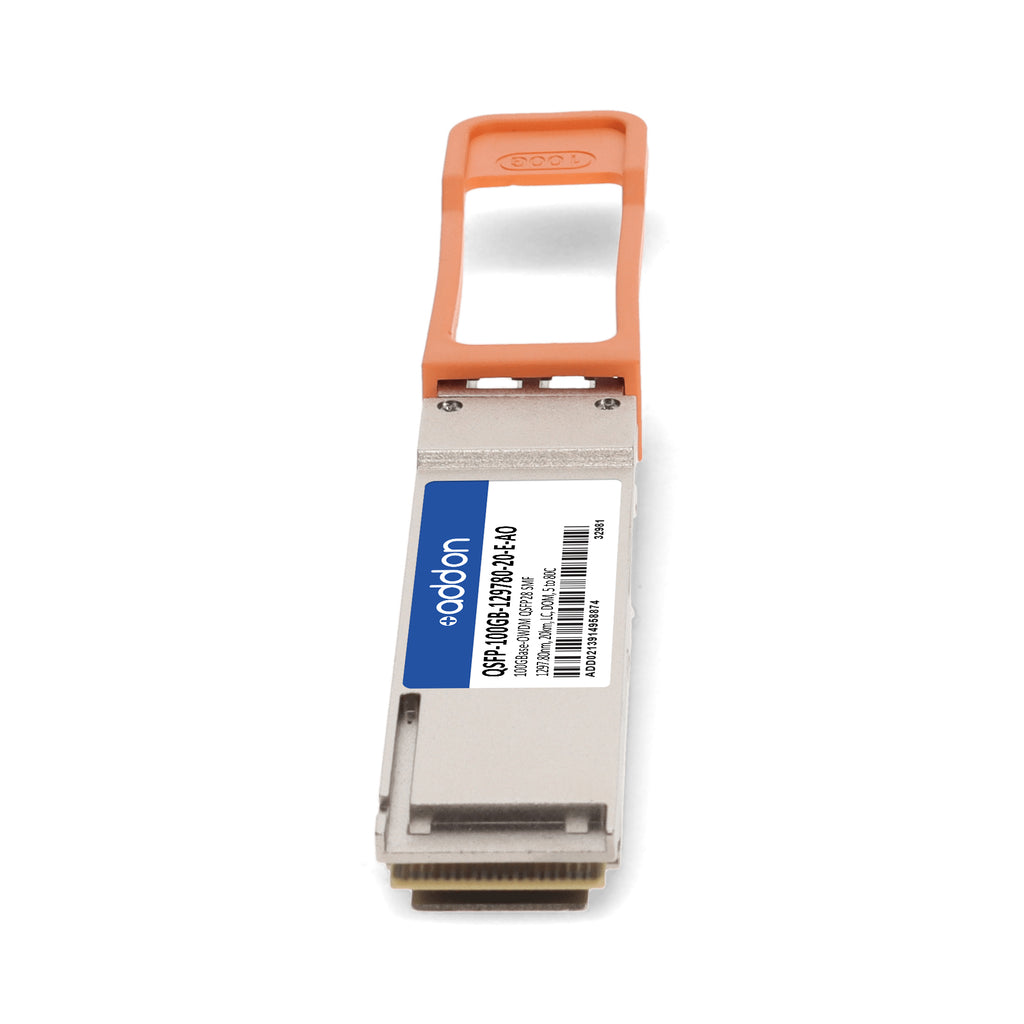

The AddOn QSFP-100GB-129780-20-E-AO is a high-performance 100GBase-OWDM QSFP28 optical transceiver designed for next-generation high-speed network applications. Operating over single-mode fiber (SMF), this module delivers up to 20 km transmission distance on the OW297 50 GHz O-Band channel at a wavelength of 1297.80 nm. It supports 106.25 Gbps PAM4 signaling and is fully compliant with QSFP28 MSA, IEEE 802.3bs, and 100G Lambda MSA standards.
With features like a high-sensitivity APD receiver, digital optical monitoring (DOM) for real-time diagnostics, and duplex LC connectivity, it ensures seamless integration into existing network infrastructures. The transceiver is TAA-compliant, hot-pluggable, and built with robust reliability standards — making it ideal for high-bandwidth data center, enterprise, and access network deployments.
| Specification | Details |
|---|---|
| Form Factor | QSFP28 |
| Data Rate | 106.25 Gbps (PAM4) |
| Application | 100GBase Ethernet, Access, Enterprise |
| Wavelength | 1297.80 nm (OW297 O-Band, 50 GHz) |
| Distance | Up to 20 km over SMF |
| Optical Modulation | PAM4 |
| Connector Type | Duplex LC |
| Transmitter Type | EML |
| Receiver Type | APD |
| Average Launch Power | 0 – 3.4 dBm |
| Extinction Ratio | ≥ 5.0 dB |
| Receiver Sensitivity (OMAouter) | ≤ -11.6 dBm |
| Average Receive Power | -15.7 – -3 dBm |
| Power Supply Voltage | +3.3 V |
| Power Consumption | 4.4 – 5.5 W (typical) |
| Operating Temperature | -5 °C to +80 °C |
| Digital Diagnostics (DOM) | Supported |
| Compliance | QSFP28 MSA, IEEE 802.3bs, 100G Lambda MSA, TAA, RoHS |
| Hot-Pluggable | Yes |
| Warranty | Limited Lifetime |
